Hardware Networking and Security Hubs and Switches
Add to My Favorites
Hubs and Switches

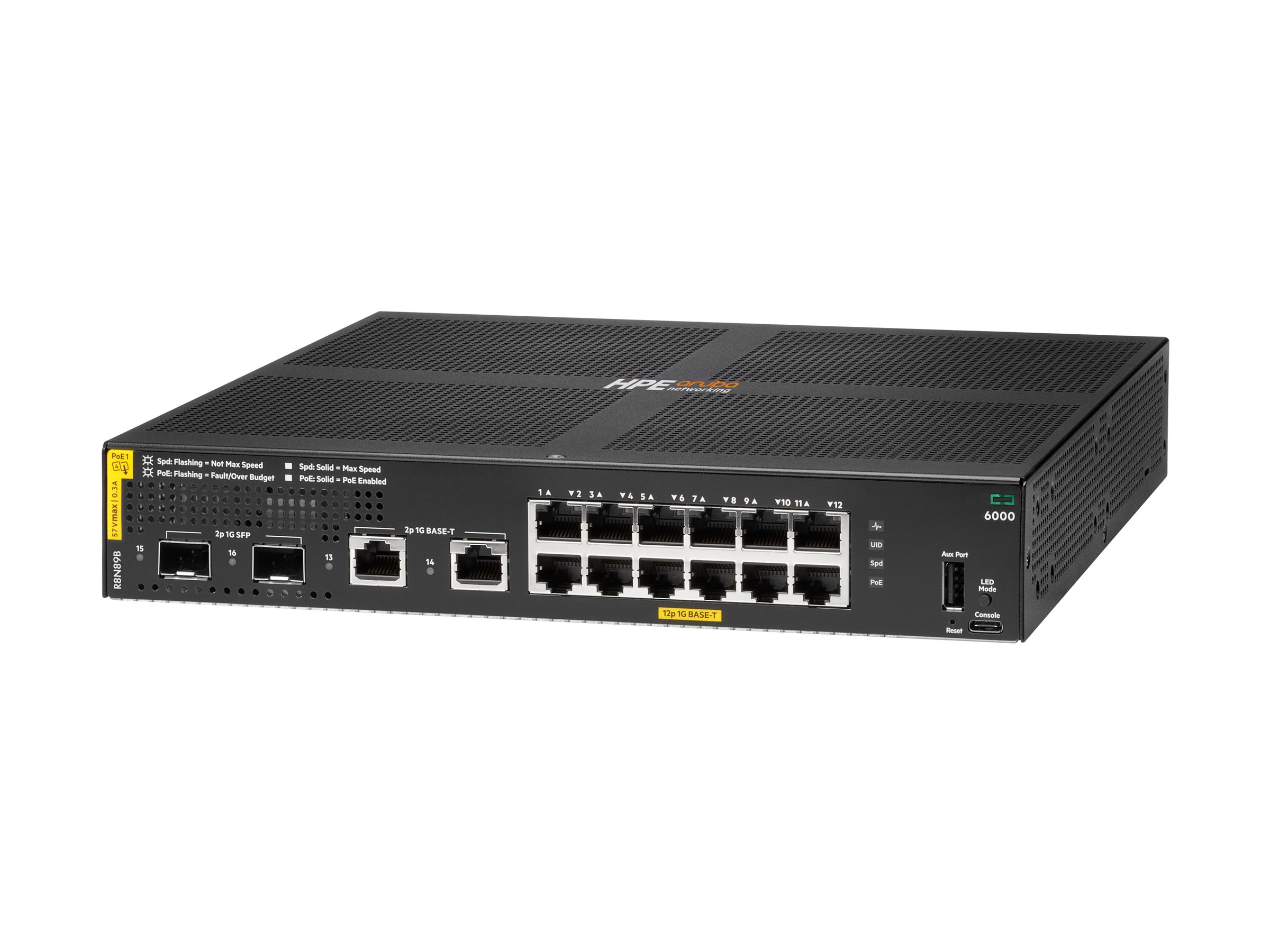

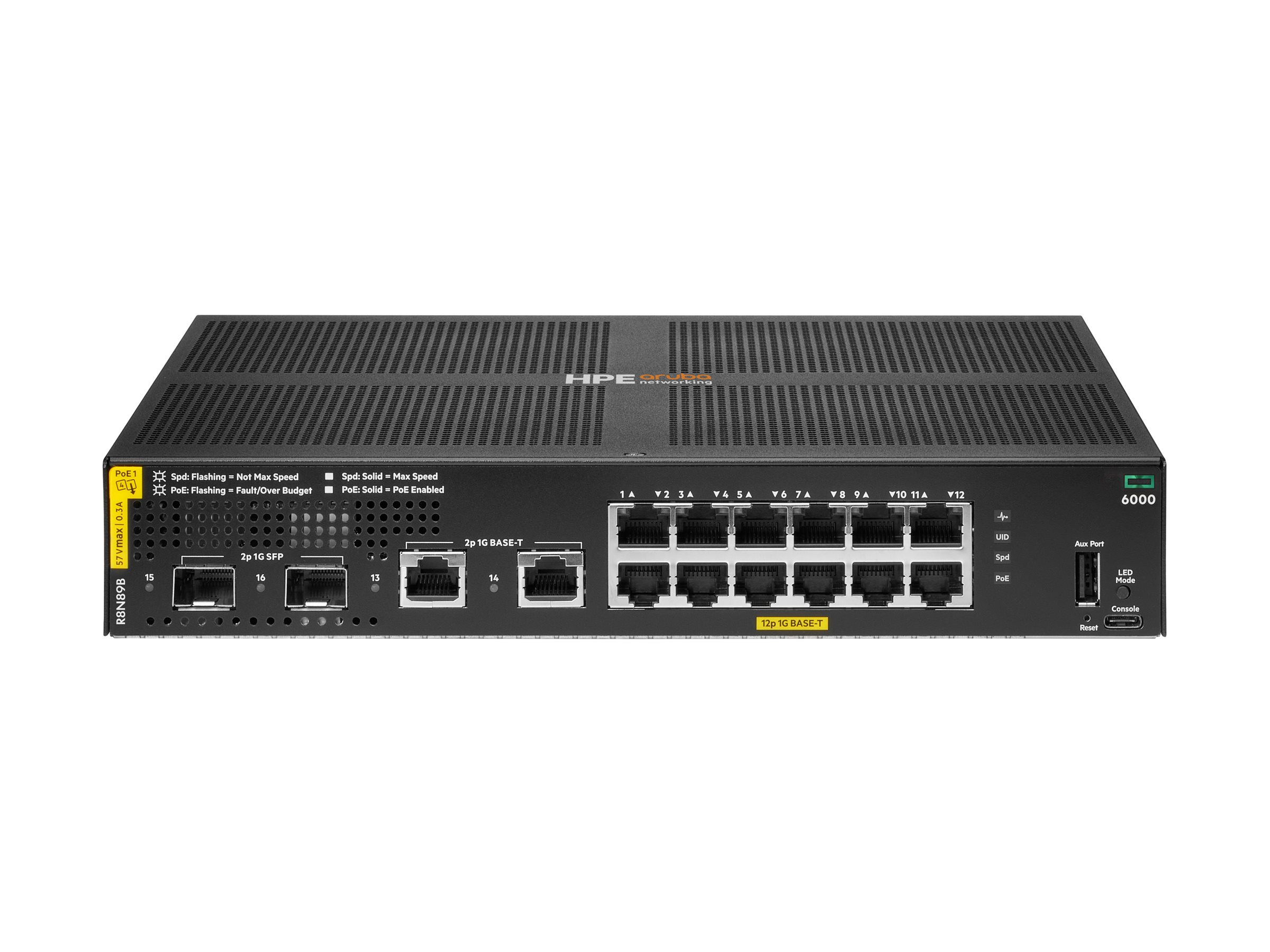

HPE Aruba Networking CX 6000 12p 10M/100M/1G Class4 PoE 2p SFP 1G 139W Switch

MSRP€1,300.00
€531.00
HPE Aruba Networking CX 6000 12p 10M/100M/1G Class4 PoE 2p SFP 1G 139W Switch
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • managed
  • 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink) + 2 x Gigabit RJ-45
  • rack-mountable, wall-mountable
  • PoE+ (139 W)
HPE Aruba Networking CX 6000 12p 10M/100M/1G Class4 PoE 2p SFP 1G 139W Switch
  • Switch
  • managed
  • 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink) + 2 x Gigabit RJ-45
  • rack-mountable, wall-mountable
  • PoE+ (139 W)
  • BTO
  Additional Details
Price: €531.00
MSRP: €1,300.00
Mfr Part #: R8N89B#B2C
SHI Part #: 51092144
Category: Network switches
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionHPE Aruba Networking CX 6000 12p 10M/100M/1G Class4 PoE 2p SFP 1G 139W Switch - Switch - managed - 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink) + 2 x Gigabit RJ-45 - rack-mountable, wall-mountable - PoE+ (139 W) - BTO
ManufacturerHewlett Packard Enterprise
MSRP€1,300.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth25.5 cm
Dimensions & Weight / Height4.39 cm
Dimensions & Weight / Weight2.17 kg
Dimensions & Weight / Width25.4 cm
Header / BrandHPE
Miscellaneous / Product Color
  • Black
  • Silver
Networking / Form Factor
  • Rack-mountable
  • Wall-mountable
Networking / Ports Qty12
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
System Requirements / OS RequiredAOS-CX
Dimensions & Weight
Depth25.5 cm
Height4.39 cm
Weight2.17 kg
Width25.4 cm
Environmental Parameters
Humidity Range Operating5 - 95% (non-condensing)
Humidity Range Storage5 - 90% (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 12 x 10/100/1000 Base-T (PoE+) RJ-45 PoE Class 4
  • 2 x Gigabit LAN SFP uplink
  • 2 x Gigabit LAN RJ-45
  • 1 x USB-C console
  • 1 x USB Type A host
General
Authentication MethodRADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2)
Capacity
  • Packet buffer size: 12.38 MB
  • Switched virtual interfaces (SVIs) (dual stack): 16
  • IPv4 host table capacity: 1024
  • IPv6 host table (ND): 512
  • IPv4 routes (Unicast): 512
  • IPv6 routes (Unicast): 512
  • IGMP groups: 512
  • MLD groups: 512
  • IPv4 ACL entries (ingress): 1914
  • IPv6 ACL entries (ingress): 957
  • MAC ACL entries (ingress): 1914
Compliant StandardsIEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3az
Device TypeSwitch - 12 ports - managed
Enclosure TypeRack-mountable, wall-mountable 1U
Encryption AlgorithmSSL
FeaturesPoE Class 4, CoS, ToS, TPM, layer 2 switching, Address Resolution Protocol, LLDP, UTM, UDLD, RPVST+, RSTP support, MSTP support, fanless
Flash Memory8 GB
Jumbo Frame Support9198 bytes
MAC Address Table Size8192 entries
Performance
  • Switching capacity: 32 Gbps
  • Throughput: 23.8 Mpps
  • Latency (1 Gbps): 2.3 µs
PoE Budget139 W
Ports12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink) + 2 x Gigabit RJ-45
Power Over Ethernet (PoE)PoE+
Processor1 x ARM Cortex-A9: 1.016 GHz
RAM2 GB DDR3 SDRAM
Remote Management ProtocolMIB, CLI, RMON, SNMP, SNMP 2, SNMP 3
Routing ProtocolIGMP, IGMPv2, IGMPv3, MLD, MLDv2
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsIEC/EN 62368-1:2014, IEC/EN 62368-1:2018, UL 62368-1:2019 Ed.3, CSA C22.2 No. 62368-1:19 Third Edition, CNS 15598:2020, KC 62386-1:2021, VCCI-CISPR 32 Class A, CNS 15936 Class A, FCC CFR 47 Part 15 Class A, EN 55032:2015/A11:2020, CISPR-32 Class A, ICES-003 Issue 7: 2020 Class A, AS/NZS CISPR 32:2015 Class A, IEC/EN 60825-1:2014 Class 1, Laser Class 1, CISPR 35: 2016, EN 55035:2017/A11:2020, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-3-2, IEC 61000-3-2, EN 61000-3-3, IEC 61000-3-3
Pricing TypeBTO
Rack Mounting KitIncluded
Power
Power Consumption Stand by11.9 Watt
Power DeviceInternal power supply
Voltage RequiredAC 100-127/200-240 V (50/60 Hz)
Software / System Requirements
OS RequiredAOS-CX
