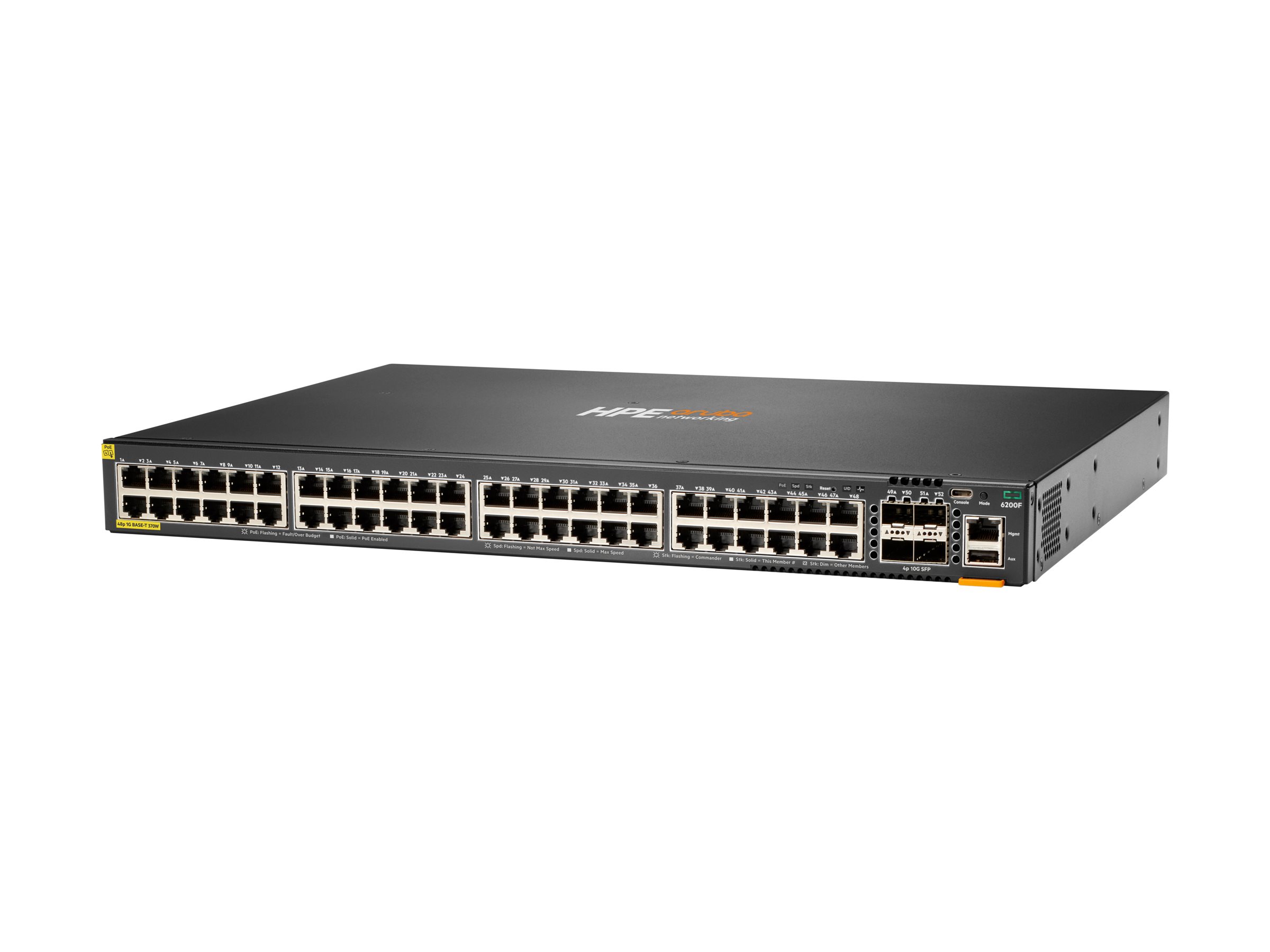

HPE Aruba Networking CX 6200F 48G 4SFP+ Switch
MSRP€8,115.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE Aruba Networking CX 6200F 48G 4SFP+ Switch
- Switch
- L3
- managed
- 48 x 10/100/1000 + 4 x 100/1000/10G SFP+
- front and side to back
- rack-mountable
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | €8,115.00 |
| Mfr Part #: | JL726B#ABA |
| SHI Part #: | 46203531 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
Network Cables
- 10GBase direct attach cable
- SFP+ (M) to SFP+ (M)
- 3 m
- twinaxial
- passive
- for HPE Aruba 2540 48, 2930F 24, 2930M 24, 6200F 12, 6200M 24, 83XX; CX 10000, 6405 v2, 8360
MSRP €295.00
€157.00
- Network cable
- RJ-45 (M) to DB-9 (F)
- for FlexNetwork 5510 24, 5510 48; HPE Aruba 2530, 2930M 24, 2930M 48, 3810M 24, 3810M 48, 8325
MSRP €186.00
€169.00
Networking and Security
- SFP+ transceiver module
- 10GbE
- 10GBase-SR
- SFP+ / LC multi-mode
- up to 300 m
- for HPE Aruba 2930F 12, 2930M 40, 6200F 12, 6200M 24, 6300, 6405 48, 6405 96, 64XX; CX 8360
MSRP €1,657.00
€541.00
- SFP+ transceiver module
- 10GbE
- 10GBase-SR
- LC multi-mode
- up to 400 m
- 850 nm / 1310 nm
MSRP €807.00
€325.00
- 1GbE
- 1000Base-SX
- LC multi-mode
- up to 500 m
- for OfficeConnect 1820; HPE Aruba 6000 12, 6000 24, 6000 48, 6200F 12, 6200M 24, 64XX; CX 8360
MSRP €467.00
€153.00
| General Information | |
|---|---|
| Category | Network switches |
| Description | HPE Aruba Networking CX 6200F 48G 4SFP+ Switch - Switch - L3 - managed - 48 x 10/100/1000 + 4 x 100/1000/10G SFP+ - front and side to back - rack-mountable |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | €8,115.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 28.45 cm |
| Dimensions & Weight / Height | 4.37 cm |
| Dimensions & Weight / Weight | 3.9 kg |
| Dimensions & Weight / Width | 44.25 cm |
| Header / Brand | Aruba |
| Header / Country Kits | United States |
| Header / Localization | English |
| Miscellaneous / Product Color | Gray |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 48 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| System Requirements / OS Required | AOS-CX |
| Dimensions & Weight | |
| Depth | 28.45 cm |
| Height | 4.37 cm |
| Weight | 3.9 kg |
| Width | 44.25 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Secure Shell (SSH) |
| Capacity | Packet buffer size: 8 MB |
| Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Encryption Algorithm | FIPS 140-2, SSL |
| Features | UTM, UDLD, VRRP support, DWRR, CoS, ToS, EQS, RPVST+, BPDU, Address Resolution Protocol, LLDP, PoE Class 4, TPM |
| Flash Memory | 16 GB |
| Jumbo Frame Support | 9220 bytes |
| MAC Address Table Size | 32768 entries |
| Max Units In A Stack | 8 |
| Performance |
|
| Ports | 48 x 10/100/1000 + 4 x 100/1000/10G SFP+ |
| Processor | 1 x ARM Cortex-A72: 1.8 GHz |
| RAM | 8 GB DDR4 SDRAM |
| Remote Management Protocol | CLI, MIB, RMON |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, RIP-2, OSPFv2, OSPFv3, MLD, MLDv2 |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | EN 62368-1:2014+A11:2017, EN 62368-1:2020+A11:2020, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1:19 Third Edition, IEC 62368-1: 2014 Second Edition, IEC 62368-1:2018 Third Edition, CNS 15598-1:2020, GB 4943.1-2022, EN 55032:2015 /A11:2020, Class A, EN 61000-3-2:2019, EN 61000-3-3:2013, FCC 47 CFR part 15B:2021 Class A, ICES-003 Issue 7: 2020 Class A, VCCI-CISPR 32 Class A, CISPR 32:2016 Class A, AS/NZS CISPR 32:2015 Class A, KS C 9832, CNS 15936: 2020 Class A, EN 60825-1:2014, IEC 60825-1:2014 Class 1, Laser Class 1, CISPR 35: 2016, EN 55035:2017+A11:2020, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-2, EN 61000-3-3, EN 63000:2018, IEC 63000:2018 |
| Included Accessories | 2-Post Rack Kit |
| Localization | English / United States |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-120/200-240 V |
| Software / System Requirements | |
| OS Required | AOS-CX |
