Hardware Networking and Security Hubs and Switches
Add to My Favorites
Hubs and Switches

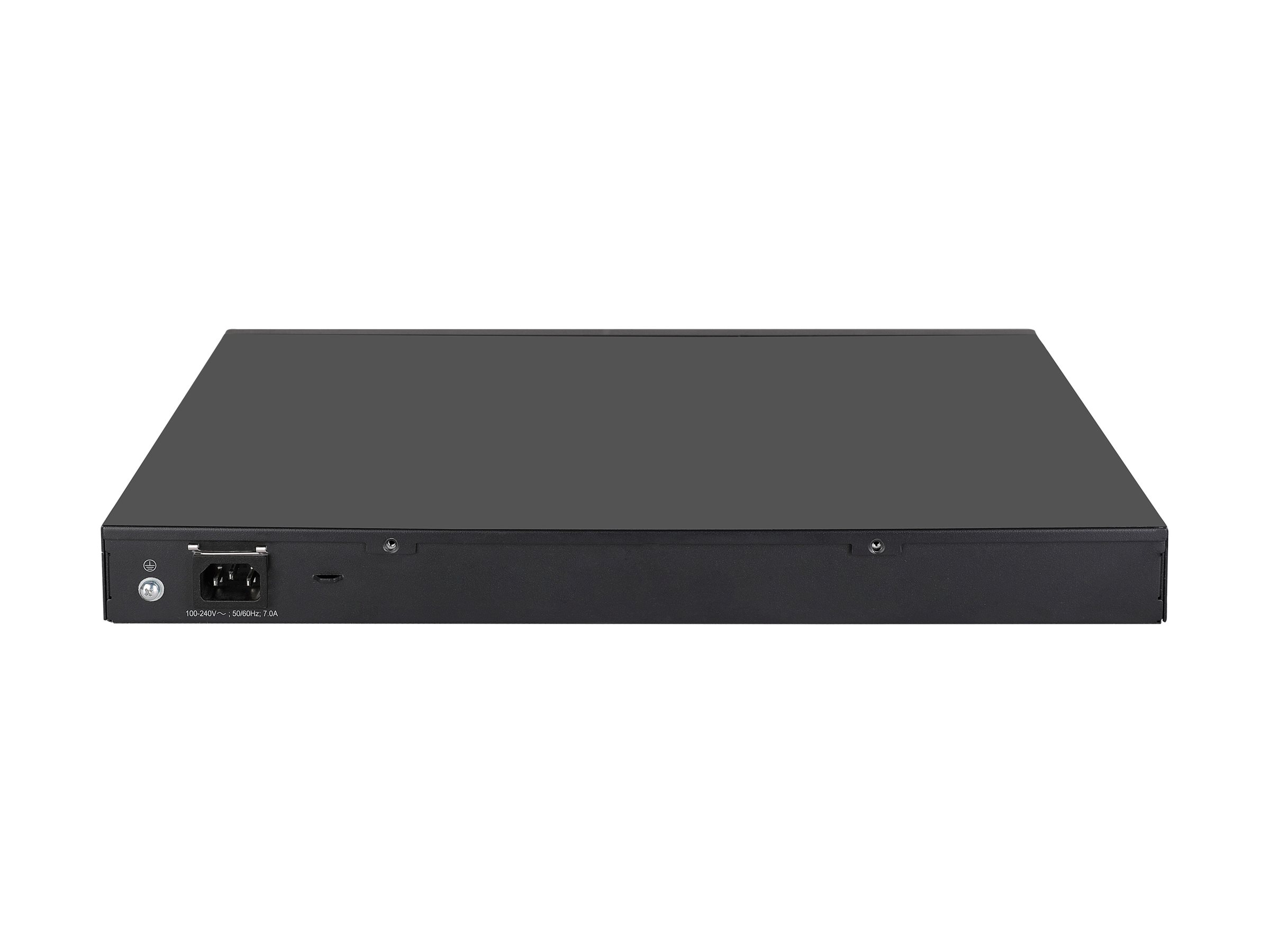

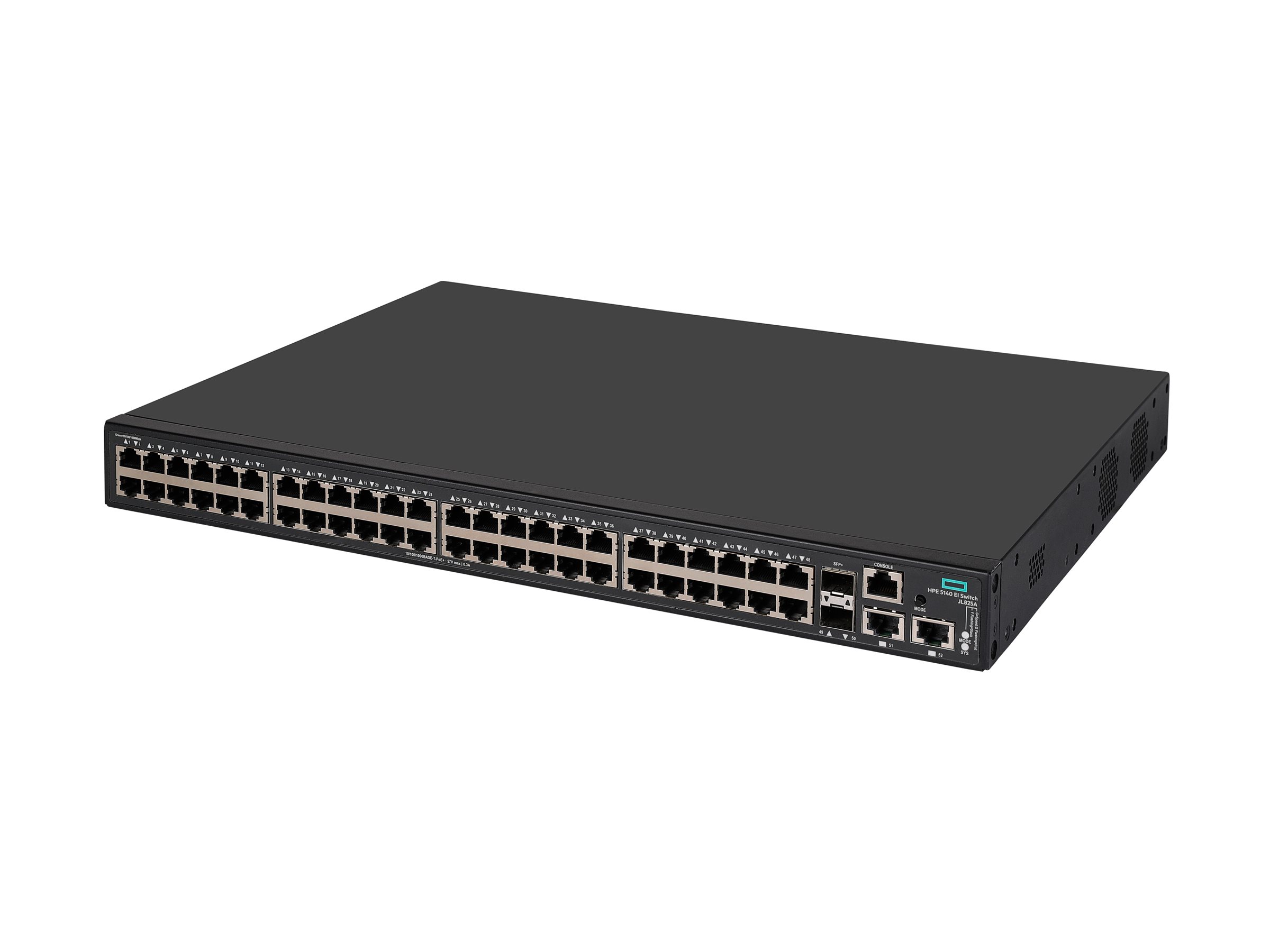

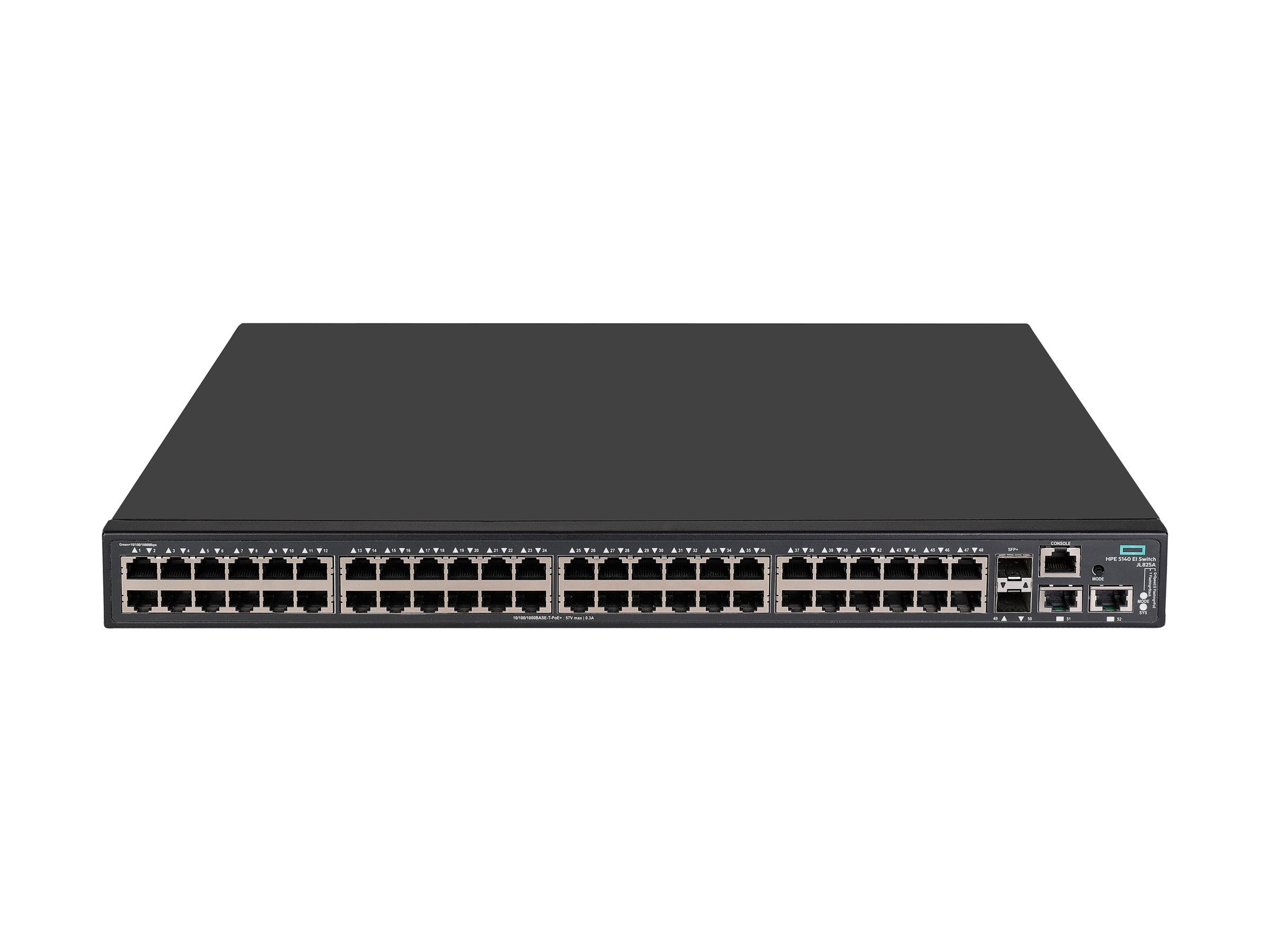

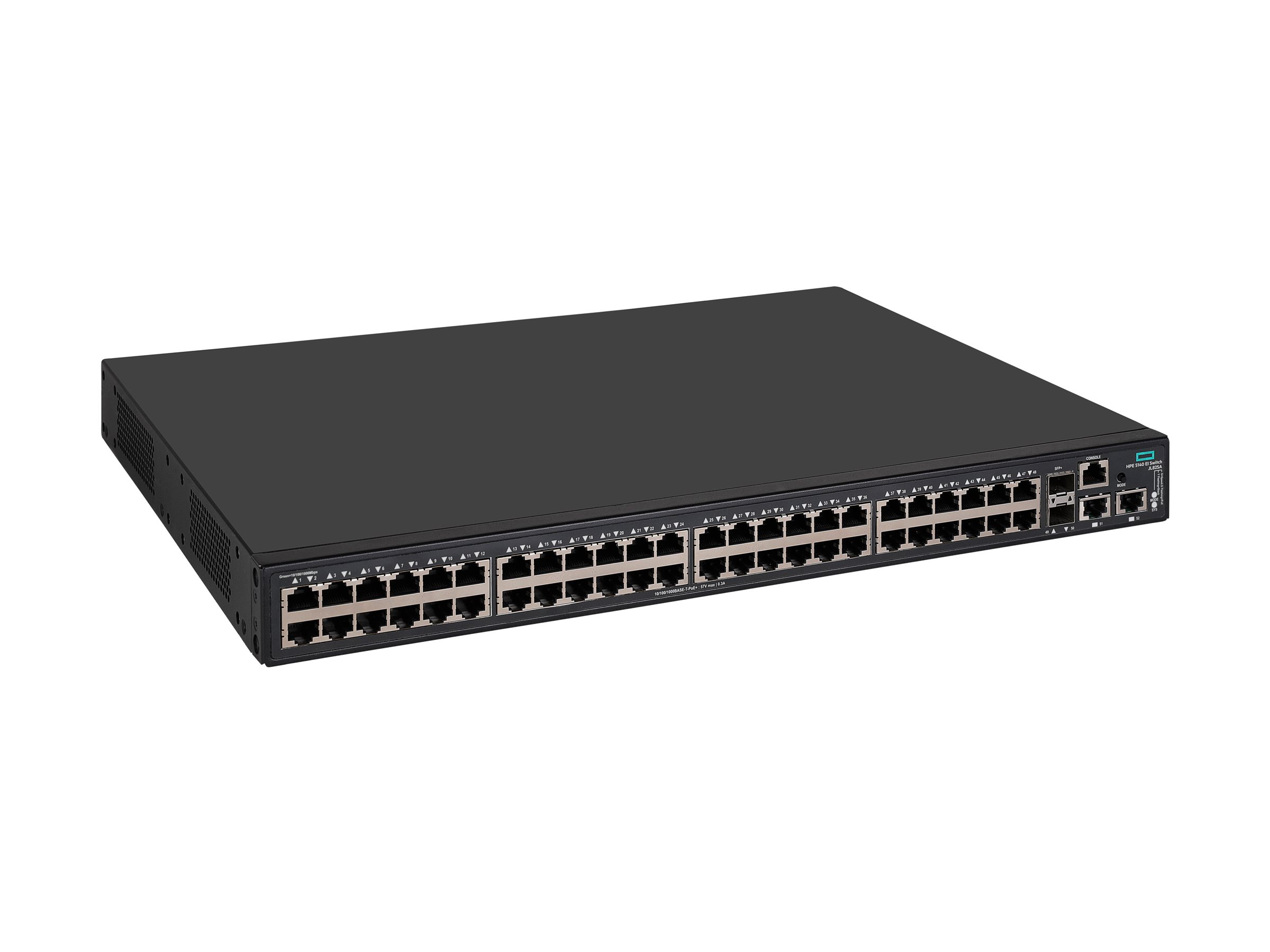

HPE FlexNetwork 5140 48G POE+ 2SFP+ 2XGT EI

MSRP€8,915.00
€7,479.00
HPE FlexNetwork 5140 48G POE+ 2SFP+ 2XGT EI
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3
  • smart
  • 48 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 10 Gigabit Ethernet
  • rack-mountable
HPE FlexNetwork 5140 48G POE+ 2SFP+ 2XGT EI
  • Switch
  • L3
  • smart
  • 48 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 10 Gigabit Ethernet
  • rack-mountable
  • PoE+ (370 W)
  • BTO
  Additional Details
Price: €7,479.00
MSRP: €8,915.00
Mfr Part #: JL825A#ABB
SHI Part #: 43330281
Category: Network switches
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionHPE FlexNetwork 5140 48G POE+ 2SFP+ 2XGT EI - Switch - L3 - smart - 48 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 10 Gigabit Ethernet - rack-mountable - PoE+ (370 W) - BTO
ManufacturerHewlett Packard Enterprise
MSRP€8,915.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth32 cm
Dimensions & Weight / Height4.36 cm
Dimensions & Weight / Weight6 kg
Dimensions & Weight / Width44 cm
Header / BrandHPE
Header / Country KitsEurope
Header / LocalizationEnglish
Miscellaneous / Product ColorBlack
Networking / Form FactorRack-mountable
Networking / Ports Qty48
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth32 cm
Height4.36 cm
Weight6 kg
Width44 cm
Environmental Parameters
Humidity Range Operating10 - 90% (non-condensing)
Humidity Range Storage5 - 95% (non-condensing)
Max Operating Temperature50 °C
Max Storage Temperature70 °C
Min Operating Temperature-5 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 48 x 1000Base-T RJ-45 PoE+
  • 2 x Gigabit / 10Gbit LAN SFP+
  • 2 x Gigabit / 10Gbit LAN RJ-45
  • 1 x console RJ-45 management
General
Authentication MethodSecure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS
Capacity
  • IPv4 routing table entries: 512
  • IPv6 routing table entries: 256
  • VLAN IDs: 4094
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r
Device TypeSwitch - 48 ports - L3 - smart
Enclosure TypeRack-mountable 1U
Encryption AlgorithmSSL
FeaturesFlow control, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, WRR queuing, IPv6 support, High Availability, full duplex mode, sFlow, STP support, RSTP support, VRRP support, MSTP support, ACL support, QoS, CAR, RADIUS support, DHCP server, MLD snooping, DLDP support, STP Root Guard, IPv4 support, LLDP support, DHCP relay, LACP, Port Security, Smart Link Pass-Through, Energy Efficient Ethernet, dynamic ARP protection, DHCP protection, MVRP, SPQ, port isolation, GARP, OpenFlow support, IP source guard, ICMP IRDP, Link Aggregation, VLAN Double Tagging (Q-in-Q), LLDP-MED, Smart Link, Guest VLAN, Ethernet OAM, proxy ARP, WRR, IRF Technology, BPDU protection, UDP support, MRP
Flash Memory256 MB
Jumbo Frame Support9216 bytes
MAC Address Table Size16384 entries
Performance
  • Latency (1000 Mbps): 5 µs
  • Latency (10 Gbps): 3 µs
  • Throughput: 131 Mpps
  • Routing/switching capacity: 176 Gbps
PoE Budget370 W
Ports48 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 10 Gigabit Ethernet
Power Over Ethernet (PoE)PoE+
RAM512 MB SDRAM
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH-2, CLI, SCP, SNMP 6, NTP, ICMP, DHCP, RADIUS
Routing ProtocolOSPF, RIP-1, RIP-2, IGMP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, CIDR
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsPlug and Play, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, WEEE, EN 60825-1, FCC Part 15 B Class A, EN 60825-2, IPv6 Ready, EN 300 386, FDA 21 CFR, AS/NZS CISPR 32 Class A, YD/T993, IEC 62368-1, EN 55032, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, ETSI EN 300 386, EN 62368-1:2014/A11:2017, GB/T9254
LocalizationEnglish / Europe
Pricing TypeBTO
Rack Mounting KitIncluded
Power
Power DeviceInternal power supply
Power Provided430 Watt 10 A
Voltage RequiredAC 100-240 V (50/60 Hz)
