HPE SN6700B Port Side Intake
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

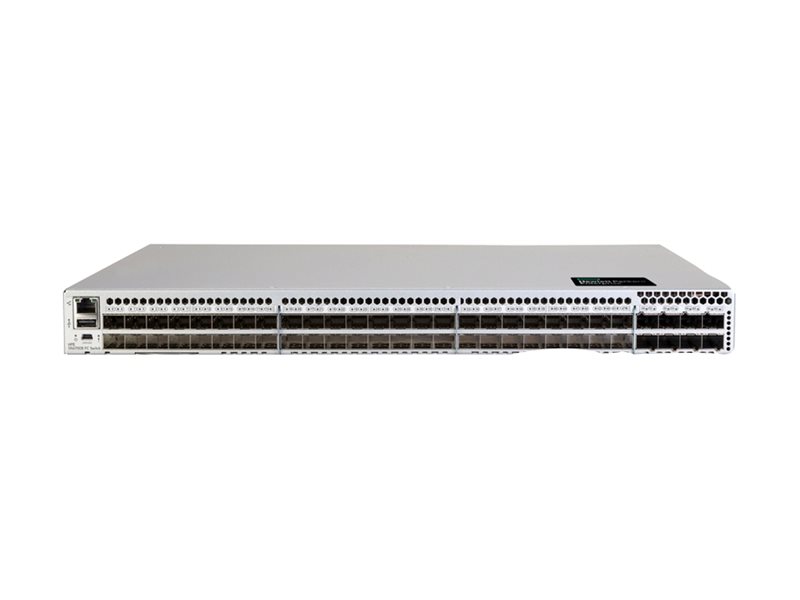

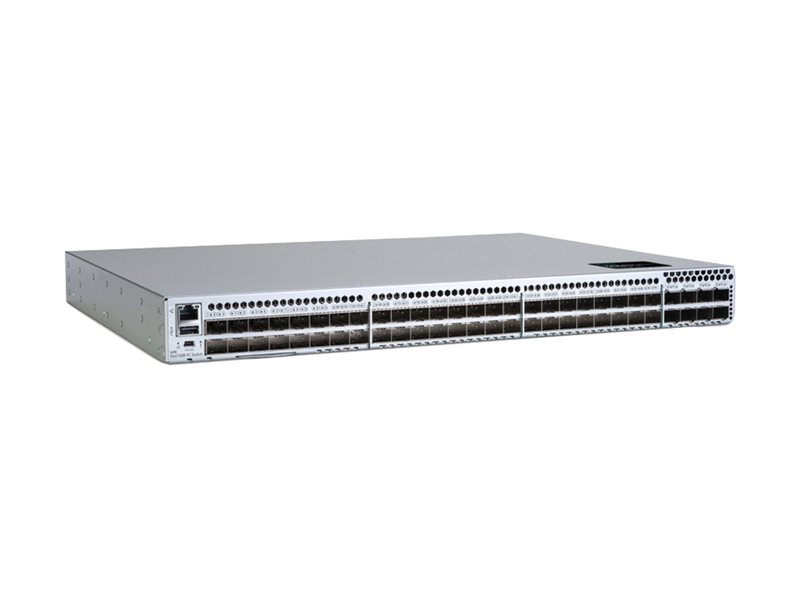

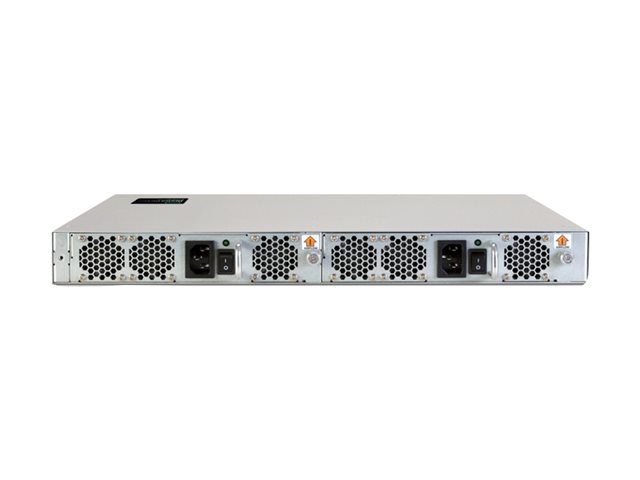

HPE SN6700B Port Side Intake
- Switch
- managed
- 24 x 32Gb Fibre Channel SFP28 + 32 x 32Gb Fibre Channel SFP28 Ports on Demand
- rack-mountable
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | R6B06A |
| SHI Part #: | 41747532 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | HPE SN6700B Port Side Intake - Switch - managed - 24 x 32Gb Fibre Channel SFP28 + 32 x 32Gb Fibre Channel SFP28 Ports on Demand - rack-mountable |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 35.56 cm |
| Dimensions & Weight / Height | 4.39 cm |
| Dimensions & Weight / Weight | 7.17 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | HPE |
| Miscellaneous / Product Color | Silver |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 24 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 35.56 cm |
| Height | 4.39 cm |
| Weight | 7.17 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -25 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+, DH-CHAP, FCAP |
| Device Type | Switch - 24 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | 256-bit AES-GCM, TLS 1.2, TLS 1.3 |
| Features | Syslog support, IPv6 support, FCS, SCP, RBAC, secure boot, RESTful APIs |
| Ports | 24 x 32Gb Fibre Channel SFP28 + 32 x 32Gb Fibre Channel SFP28 Ports on Demand |
| Remote Management Protocol | SNMP 1, SNMP 3, HTTP, HTTPS, SMI-S, SSH, SSH-2, CLI, SFTP, DHCP, LDAP |
| Subtype | Fibre Channel |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Cables Included | 1 x serial cable |
| Compliant Standards | FIPS 140-2 Level 2, USGv6 |
| Included Accessories | Rack mount kit, 24 x 32Gb Fibre Channel SFP28 Short Wave Transceiver |
| Power | |
| Max Supported Qty | 2 |
| Power Device | Internal power supply (not installed) - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| Software Included | Brocade ISL Trunking, Brocade Fabric Vision, Advanced Fabric OS, Advanced Web Tools, Advanced Zoning |
