Dell Networking N2024
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

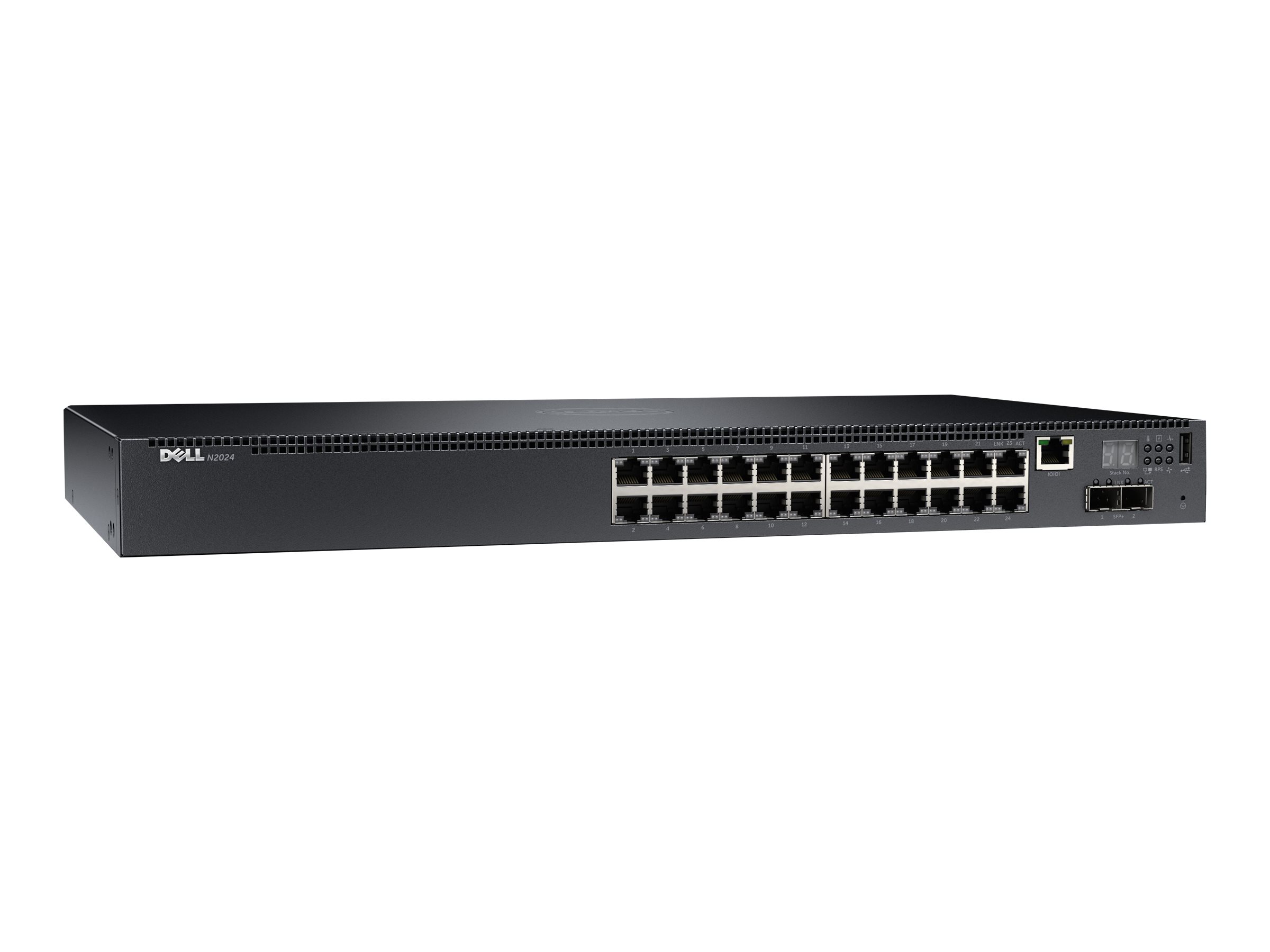

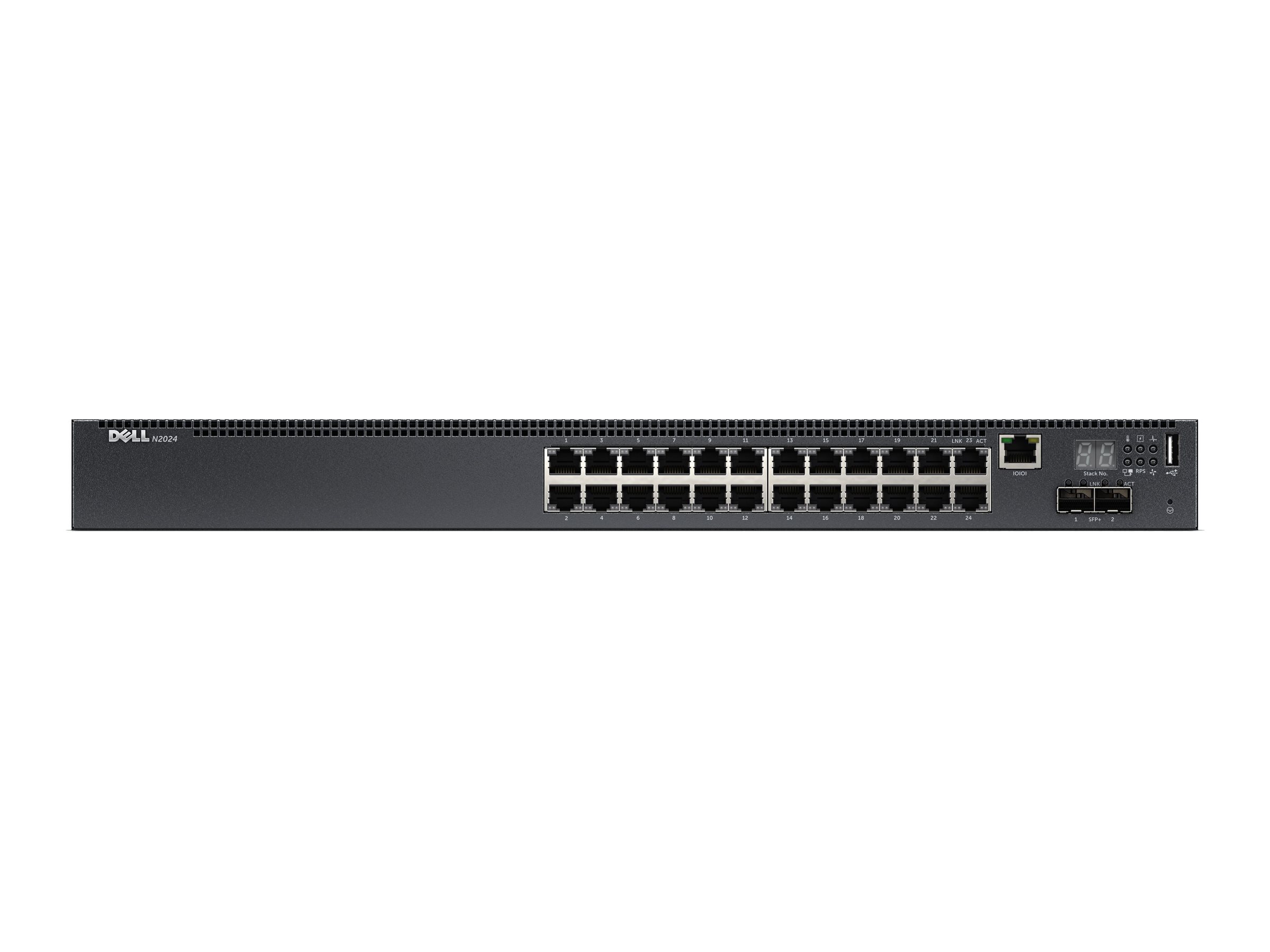

Dell Networking N2024
- Switch
- L2+
- managed
- 24 x 10/100/1000 + 2 x 10 Gigabit SFP+
- front to back airflow
- rack-mountable
| Additional Details | |
|---|---|
| Mfr Part #: | 210-ABNV |
| SHI Part #: | 29883880 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Dell |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Dell Networking N2024 - Switch - L2+ - managed - 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ - front to back airflow - rack-mountable |
| Manufacturer | Dell |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 25.7 cm |
| Dimensions & Weight / Height | 4.35 cm |
| Dimensions & Weight / Weight | 3.69 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | Dell |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 24 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 25.7 cm |
| Height | 4.35 cm |
| Weight | 3.69 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Humidity Range Storage | 0 - 85% |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 65 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Capacity |
|
| Device Type | Switch - 24 ports - L2+ - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Encryption Algorithm | MD5, AES, SSL, TLS |
| Features | Flow control, auto-negotiation, VLAN support, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, ACL support, IPv4 support, Energy Efficient Ethernet, MIB, dual firmware images, NDP, redundant fans |
| Flash Memory | 256 MB |
| MAC Address Table Size | 8192 entries |
| Performance |
|
| Ports | 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ |
| RAM | 1 GB |
| Remote Management Protocol | Telnet, TFTP |
| Routing Protocol | RIP-1, RIP-2, static IPv4 routing, static IPv6 routing |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, cUL, GS, RoHS, WEEE, REACH, ICES Class A, VCCI Class A, EAC, CCC Class A |
| Rack Mounting Kit | Included |
| Power | |
| Features | Redundant Power System (RPS) connector |
| Installed Qty | 1 |
| Power Consumption Operational | 42.9 Watt |
| Power Device | Internal power supply |
| Power Provided | 100 Watt |
