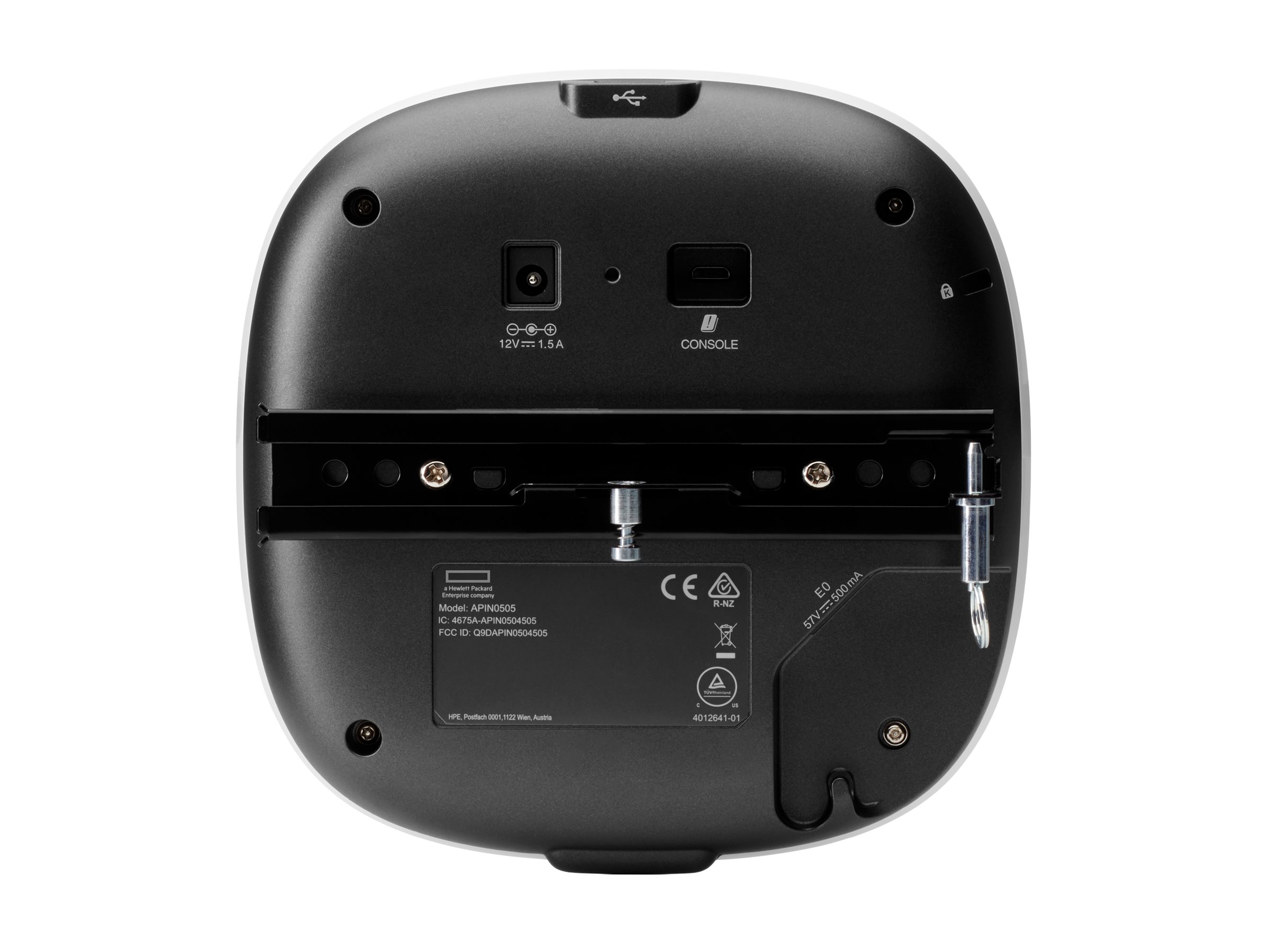

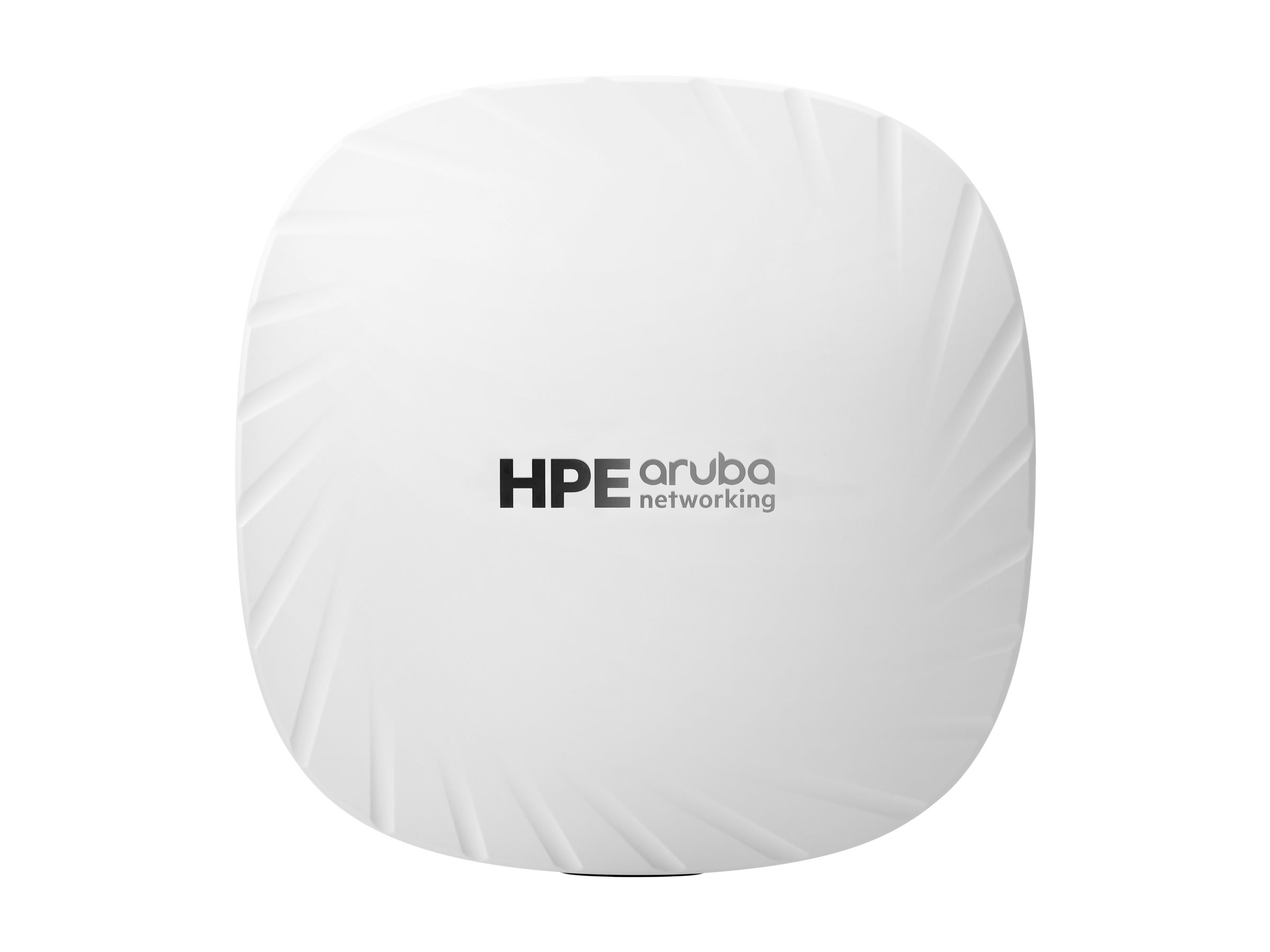

HPE Aruba AP-505 (US)


MSRP€944.00
Login for Price
HPE Aruba AP-505 (US)

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Campus
  • wireless access point
  • Bluetooth 5.0, 802.11ax
  • Bluetooth, Wi-Fi
  • 2.4 GHz, 5 GHz
HPE Aruba AP-505 (US)
  • Campus
  • wireless access point
  • Bluetooth 5.0, 802.11ax
  • Bluetooth, Wi-Fi
  • 2.4 GHz, 5 GHz
  • in-ceiling
  Additional Details
MSRP: €944.00
Mfr Part #: R2H29A
SHI Part #: 38625841
Category: Network h/w components and accessories
UNSPSC: 43221700
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware
Product Line: HPE - Networking

Network Interface Cards

HPE Aruba AP-USB-ZB - Network adapter
  • USB
  • Wi-Fi 5, Wi-Fi 5, Bluetooth 5.0, ZigBee 3.0
  • for HPE Aruba AP-303, 304, 305, 334, 365, 367, 375, 504, 505; Instant IAP-304, 305, 324, 325
MSRP €241.00 €187.00
HPE Aruba AP-USB-ZB - Network adapter
  • USB
  • 802.11ac Wave 2, 802.11ac Wave 1, Bluetooth 5.0, ZigBee 3.0 (pack of 10)
  • for HPE Aruba AP-303, 304, 305, 334, 365, 367, 375, 504, 505; Instant IAP-304, 305, 324, 325
MSRP €1,171.00 €904.00
HPE Aruba AP-USB-ZB - Network adapter
  • USB
  • 802.11ac Wave 2, 802.11ac Wave 1, Bluetooth 5.0, ZigBee 3.0 (pack of 20)
  • for HPE Aruba AP-303, 304, 305, 334, 365, 367, 375, 504, 505; Instant IAP-304, 305, 324, 325
MSRP €5,852.00 €4,515.00
General Information
CategoryNetwork h/w components and accessories
DescriptionHPE Aruba AP-505 (US) - Campus - wireless access point - Bluetooth 5.0, 802.11ax - Bluetooth, Wi-Fi - 2.4 GHz, 5 GHz - in-ceiling
ManufacturerHewlett Packard Enterprise
MSRP€944.00
UNSPSC43221700
Main Specifications
Header / BrandAruba
Miscellaneous / Product ColorWhite
Networking / Connectivity TechnologyWireless
Networking / Data Link Protocol
  • 802.11ax
  • Bluetooth 5.0
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Data Transfer Rate1.2 Gbps
Networking / Form FactorIn-ceiling
Networking / TypeWireless access point
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
System Requirements / OS Required
  • ArubaOS
  • InstantOS
Antenna
AntennaInternal
Antenna Qty2
DirectivityOmni-directional
Gain Level5.7 dBi
Dimensions & Weight (Shipping)
Shipping Depth18.3 cm
Shipping Height6.3 cm
Shipping Weight645 g
Shipping Width19.3 cm
Environmental Parameters
Humidity Range Operating5 - 93% (non-condensing)
Max Operating Temperature50 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 1 x 1000Base-T - RJ-45
  • 1 x USB 2.0 - Type A
  • 1 x console - micro-USB
General
Device TypeWireless access point
Ruggedized DesignIndoor
Internet of Things (IoT)
Communications TechnologyBluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) CompatibleYes
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsUL 2043, FCC, EN 60601-1-1, CE/EMC, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950, ETS 300 019 Class 2.3, ETS 300 019 Class 1.2
Included AccessoriesMounting bracket
MTBF148 years
Networking
Capacity
  • Wireless clients per Wi-Fi radio: 256
  • BSSIDs per radio: 16
  • OFDMA units: 8
Compliant StandardsIEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Connectivity TechnologyWireless
Data Link ProtocolIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Data Transfer Rate1.2 Gbps
Encryption AlgorithmSSL, WPA, WPA2, WPA3
FeaturesAuto-uplink (auto MDI/MDI-X), Deep Packet Inspection (DPI), Trusted Platform Module (TPM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), High-Throughput (HT) support, LED off mode, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), 2x2 MIMO technology, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), High Efficiency (HE) support, Target Wait Time (TWT)
Form FactorIn-ceiling
Frequency Band2.4 GHz, 5 GHz
Line Coding FormatCCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA
Performance
  • Maximum data rate (2.4 GHz): 574 Mbps
  • Maximum data rate (5 GHz): 1.2 Gbps
  • Aggregate throughput: 1.774 Gbps
Spread Spectrum MethodOFDM, DSSS, OFDMA
Status IndicatorsSystem, status
Power
Power Consumption Operational8.9 Watt
Power Over Ethernet (PoE) SupportedPoE
Software / System Requirements
OS RequiredArubaOS, InstantOS
