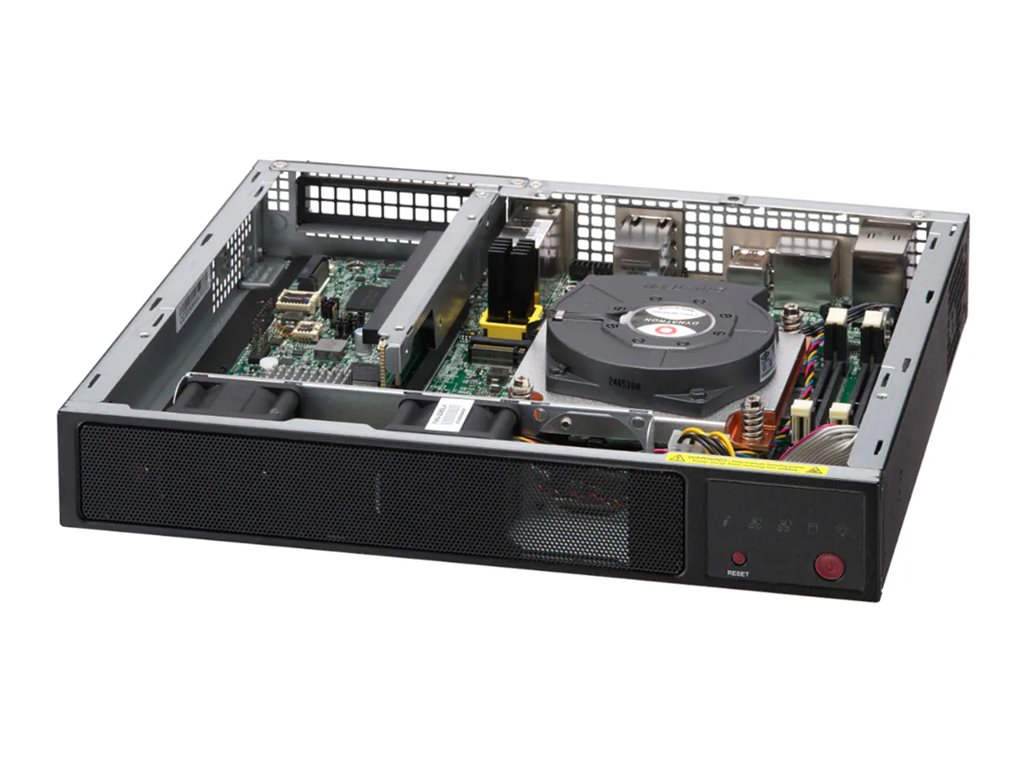

Supermicro Gold Series SuperServer E300-14AR-01-G2
MSRP€5,437.51
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Supermicro Gold Series SuperServer E300-14AR-01-G2
- Server
- embedded computer 1-way
- 1 x Core Ultra 5 245 / up to 5.1 GHz
- RAM 32 GB
- SSD 960 GB
- NVMe
- Intel Graphics
- Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet
- no OS
- monitor: none
- black
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | €5,437.51 |
| Mfr Part #: | SYS-E300-14AR-01-G2 |
| SHI Part #: | 51922073 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Super Micro Computer |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | Supermicro Gold Series SuperServer E300-14AR-01-G2 - Server - embedded computer 1-way - 1 x Core Ultra 5 245 / up to 5.1 GHz - RAM 32 GB - SSD 960 GB - NVMe - Intel Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet - no OS - monitor: none - black |
| Manufacturer | Super Micro Computer |
| MSRP | €5,437.51 |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor |
|
| Dimensions & Weight / Depth | 22.58 cm |
| Dimensions & Weight / Height | 4.3 cm |
| Dimensions & Weight / Weight | 1.6 kg |
| Dimensions & Weight / Width |
|
| Display / Type | None. |
| Hard Drive / Capacity | 960 GB |
| Hard Drive / Interface | PCI Express |
| Hard Drive / Interface Type | PCI Express |
| Header / Brand | Supermicro |
| Mainboard / Chipset Type | Intel W880 |
| Mainboard / Processor Socket | LGA1851 Socket |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 3.5 GHz |
| Processor / Generation | Series 2 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 14-core |
| Processor / Processor Number | 245 |
| Processor / Type | Core Ultra 5 |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Technology | DDR5 SDRAM |
| System / Hard Drive Capacity | 960 GB |
| System / Type | Server |
| Video Output / Graphics Processor | Intel Graphics |
| Cache Memory | |
| Cache Per Processor | 24 MB |
| Installed Size | 24 MB |
| Dimensions & Weight | |
| Depth | 22.58 cm |
| Height | 4.3 cm |
| Weight | 1.6 kg |
| Width | 26.48 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 27.6 cm |
| Shipping Height | 14.2 cm |
| Shipping Weight | 3.4 kg |
| Shipping Width | 38.1 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | Air cooling solution, 2 x 40 mm fan, LED panel |
| Color | Black |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Product Form Factor | Embedded computer |
| Server Scalability | 1-way |
| Type | Server |
| Graphics Controller | |
| Graphics Processor | Intel Graphics - up to 8 TOPS |
| Video Interfaces | VGA, HDMI, DisplayPort |
| Hard Drive | |
| Capacity | 1 x 960 GB |
| Features | NVM Express (NVMe) |
| Interface Type | PCI Express |
| Type | SSD - M.2 2280 |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Ethernet Controller | 2 x Intel I226-LM / 2 x Intel X550 |
| Ethernet Ports | 2 x 10 Gigabit Ethernet, 2 x 2.5 Gigabit Ethernet |
| Features | ACPI support |
| Neural Processor Unit (NPU) | |
| AI Datatype Support on NPU | INT8 |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 13 TOPS |
| Sparsity Support | Yes |
| Total Processor Performance Up To (TOPS) | 29 TOPS |
| Windows Studio Effects Support | Yes |
| Operating System / Software | |
| OS Provided | No operating system |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Power Provided | 180 watt |
| Voltage Required | AC 100-240 V (47 - 63 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel W880 |
| Clock Speed | 3.5 GHz (P-core) / 3 GHz (E-core) |
| CPU | Intel Core Ultra 5 (Series 2) 245 |
| CPU Qty | 1 |
| CPU Socket | LGA1851 Socket |
| Max CPU Qty | 1 |
| Max Turbo Speed | 5.1 GHz (P-core) / 4.5 GHz (E-core) |

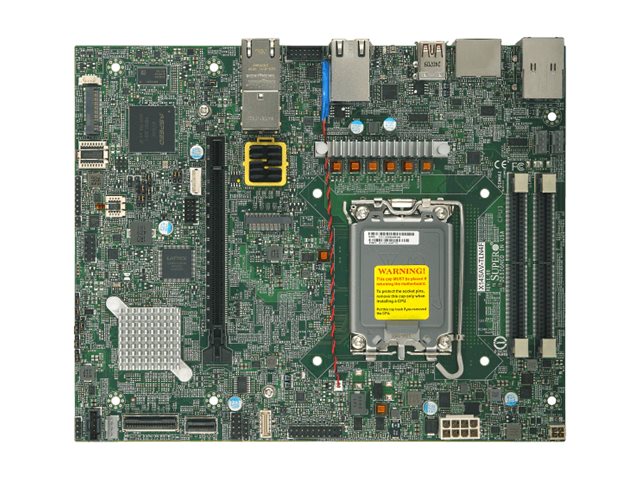

| Motherboard Name | Supermicro X14SAV-TLN4F |
| Number of Cores | 14-core |
| Processor Main Features | Intel Smart Cache, Intel Deep Learning Boost (DL Boost) |
| RAM | |
| Configuration Features | 1 x 32 GB |
| Effective Memory Speed | 5600 MT/s |
| Form Factor | DIMM 288-pin |
| Installed Size | 32 GB (installed) / 96 GB (max) |
| Rated Memory Speed | 5600 MT/s |
| Slots | 2 (total) / 1 (empty) |
| Technology | DDR5 SDRAM |
| Storage Controller | |
| Channel Qty | 1 |
| Controller Interface Type | SATA 6Gb/s |
| Type | SATA |
