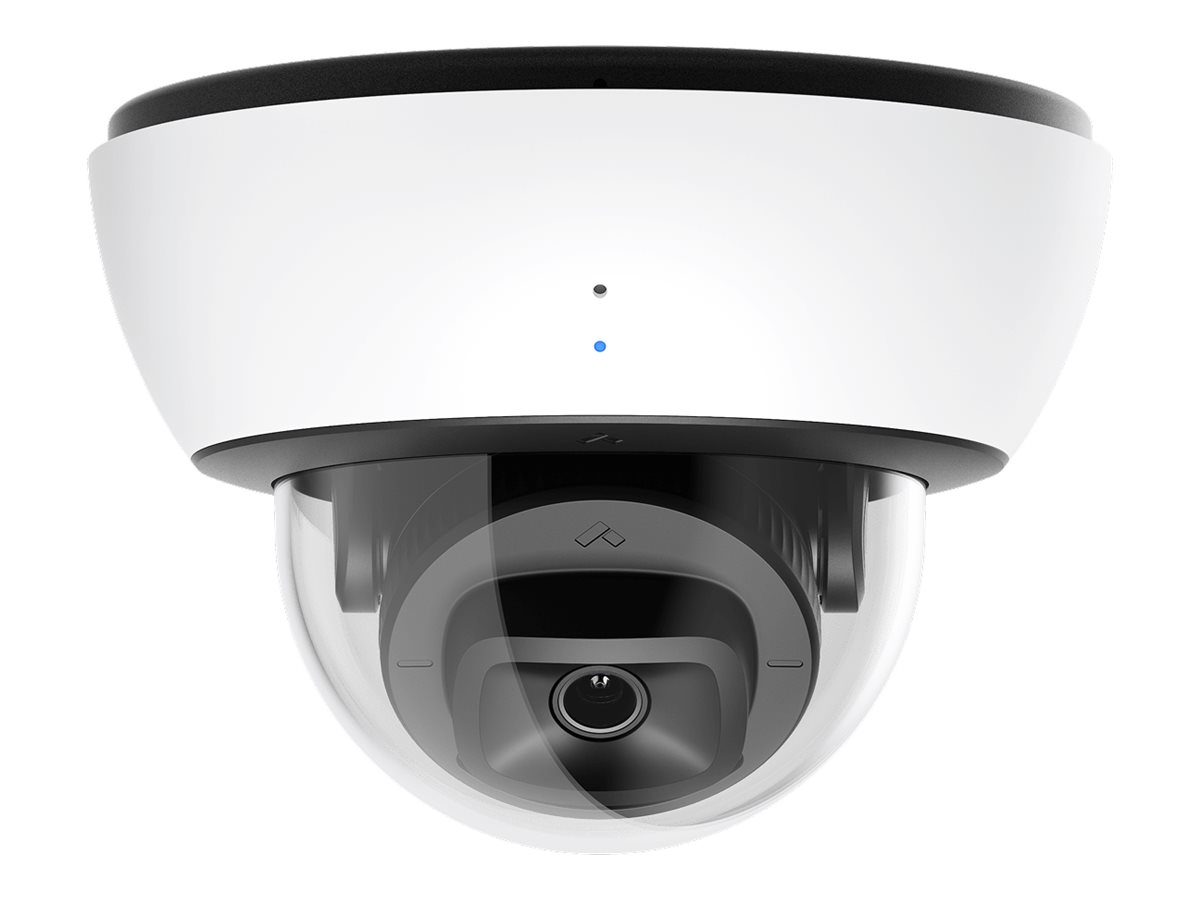

Verkada Dome Series CD63-E-F
MSRP€9,517.38
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Verkada Dome Series CD63-E-F
- Network surveillance camera
- dome
- outdoor
- weather resistant / impact resistant
- color (Day&Night)
- 3840 x 2160
- 4K
- auto iris
- vari-focal
- audio
- wireless
- GbE
- H.265, H.264
- PoE Plus
- TAA Compliant
- with 120 days onboard storage (3TB)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | €9,517.38 |
| Mfr Part #: | CD63-3TBE-HW-F |
| SHI Part #: | 51011345 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Verkada |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Verkada Dome Series CD63-E-F - Network surveillance camera - dome - outdoor - weather resistant / impact resistant - color (Day&Night) - 3840 x 2160 - 4K - auto iris - vari-focal - audio - wireless - GbE - H.265, H.264 - PoE Plus - TAA Compliant - with 120 days onboard storage (3TB) |
| Manufacturer | Verkada |
| MSRP | €9,517.38 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 15.5 cm |
| Dimensions & Weight / Height | 11.4 cm |
| Dimensions & Weight / Weight | 1.386 kg |
| Dimensions & Weight / Width | 15.5 cm |
| Header / Brand | Verkada |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 10-year warranty |
| Camera | |
| Digital Video Format | H.265, H.264 |
| Exposure Range | 1/30 sec - 1/10000 sec |
| Features | People analytics, vehicle analytics, motion detection, Live Link, audit log, cloud backup, configurable retention days, selectable storage location, low bandwidth mode, Occupancy Trends, AI-powered search, people search, Person of Interest detection, crowd detection, line-crossing detection, loitering detection, trajectory analysis, aluminum housing, plastic dome trim, LED indicator, 350° rotation, IR-cut filter, Ambarella CV72S66 CPU, 2 streams |
| Flash Memory | 3 TB |
| Frame Rate (max) | 24 frames per second |
| Infrared Distance | 40 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed - outdoor - weather resistant / impact resistant |
| Video Modes | 4K |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDXC Card |
| General | |
| Audio Support | Yes: built-in microphone, one-way audio capability |
| Bundled with | 120 days onboard storage (3TB) |
| Connectivity Technology | Wired, wireless |
| Depth | 15.5 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 11.4 cm |
| Weight | 1.386 kg |
| Width | 15.5 cm |
| Image Sensor | |
| Type | Progressive Scan CMOS 1/1.2" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | RTSP |
| Lens Construction | |
| Diagonal Field of View (degree) | 55 - 113 |
| Focal Length | 5.9 mm - 13.3 mm |
| Focus Adjustment | Motorized |
| Horizontal Field of View (degree) | 49 - 109 |
| Lens Iris | F/1.5-2.9 auto iris (P-Iris) |
| Optical Zoom | 2.25 x |
| Type | Vari-focal |
| Vertical Field of View (degree) | 28 - 58 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Compliant Standards | FCC, ICES, IK08, 802.3at, UKCA, RCM, VCCI, NOM, KCC, IEC 62368-1, NDAA, IP66, IP67, NTRA, IEEE 802.3at Type 2, IEEE 802.3af Type 1, UL 2043 |
| Included Accessories | Screw pack, mount plate with leveler, conduit adapter, desiccant, Torx T10 screw driver, cable sealing rubber for 6.5-7.5mm |
| TAA Compliant | Yes |
| Panning | |
| Range (degree) | 360 |
| Power | |
| Power Requirements | PoE Plus |
| Tilting | |
| Range (degree) | 65 |
