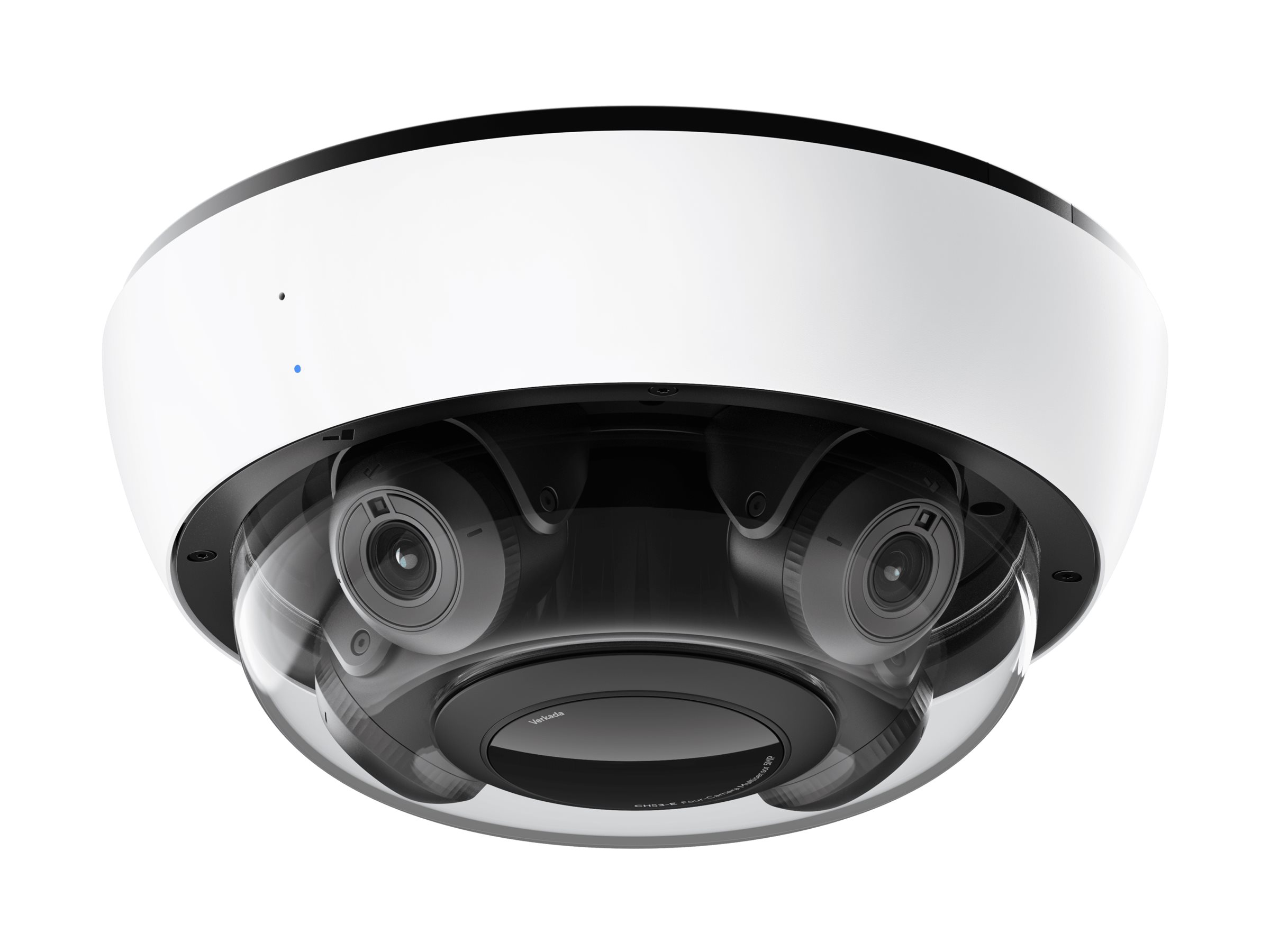

Verkada Multisensor Series CH53-E
MSRP€5,871.64
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Verkada Multisensor Series CH53-E
- Network surveillance camera
- multi-sensor
- dome
- weather resistant / impact resistant
- color (Day&Night)
- 4 x 5 MP
- 2592 x 1944
- motorized
- audio
- GbE
- H.265, H.264
- PoE Plus Class 3
- with 30 days onboard storage (1TB)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | €5,871.64 |
| Mfr Part #: | CH53-1TBE-HW |
| SHI Part #: | 50716587 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Verkada |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Verkada Multisensor Series CH53-E - Network surveillance camera - multi-sensor - dome - weather resistant / impact resistant - color (Day&Night) - 4 x 5 MP - 2592 x 1944 - motorized - audio - GbE - H.265, H.264 - PoE Plus Class 3 - with 30 days onboard storage (1TB) |
| Manufacturer | Verkada |
| MSRP | €5,871.64 |
| UNSPSC | 45121504 |
| Main Specifications | |

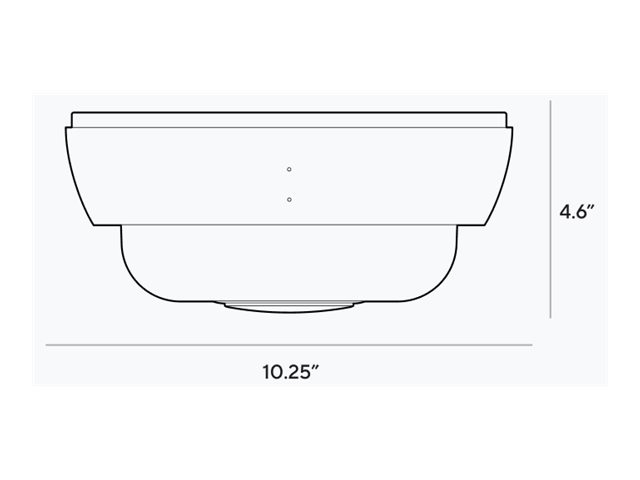

| Dimensions & Weight / Depth | 26.2 cm |
| Dimensions & Weight / Height | 11.5 cm |
| Dimensions & Weight / Weight | 3.425 kg |
| Dimensions & Weight / Width | 26.2 cm |
| Header / Brand | Verkada |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 10-year warranty |
| Camera | |
| Digital Video Capture Resolution | 2592 x 1944 |
| Digital Video Format | H.265, H.264 |
| Exposure Range | 1/30 sec - 1/10000 sec |
| Features | Infrared cut filter, 2 x Ambarella CV72S66 CPU, -90° / +90° rotation, True Wide Dynamic Range (TWDR), 120 dB dynamic range, dual exposure, PoE+ support, LED indicator, 8 video streams, aluminum/plastic housing, People Detection, Vehicle Detection, Person of Interest detection, crowd detection, line-crossing detection, loitering detection, AI-powered alerts, cloud backup, configurable retention days, selectable storage location, low bandwidth mode, Time-Lapse recording, people search, attribute search, face search, Occupancy Trends, trajectory analysis, live face blur, AI-powered search, Live Link, privacy regions, audit log, Lens Distortion Compensation (LDC), 30 days of storage |
| Flash Memory | 1 TB |
| Frame Rate (max) | 24 frames per second |
| Infrared Distance | 30 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2592 x 1944 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - multi-sensor - weather resistant / impact resistant |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDXC Card |
| General | |
| Audio Support | Yes: built-in microphone, one-way audio capability |
| Bundled with | 30 days onboard storage (1TB) |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Depth | 26.2 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 11.5 cm |
| Weight | 3.425 kg |
| Width | 26.2 cm |
| Image Sensor | |
| Type | 4 x 5 MP Progressive Scan CMOS 4 x 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | RTSP |
| Lens Construction | |
| Diagonal Field of View (degree) | 44 - 145 |
| Focal Length | 3.18 mm - 8.12 mm |
| Horizontal Field of View (degree) | 38 - 105 |
| Lens Iris | F/1.9-3.24 |
| Optical Zoom | 2.55 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 28 - 76 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Compliant Standards | IEEE 802.3bt, FCC, ICES, VCCI, IP66, IP67, IK10, NDAA |
| Included Accessories | T10 security torx screwdriver, mount plate, 4 wall screws, 4 wall anchors, 2 desiccants, conduit adapter, cable gland |
| Panning | |
| Range (degree) | -180 to +180 |
| Power | |
| Power Requirements | PoE Plus Class 3 |
| Tilting | |
| Range (degree) | -25 to +90 |
