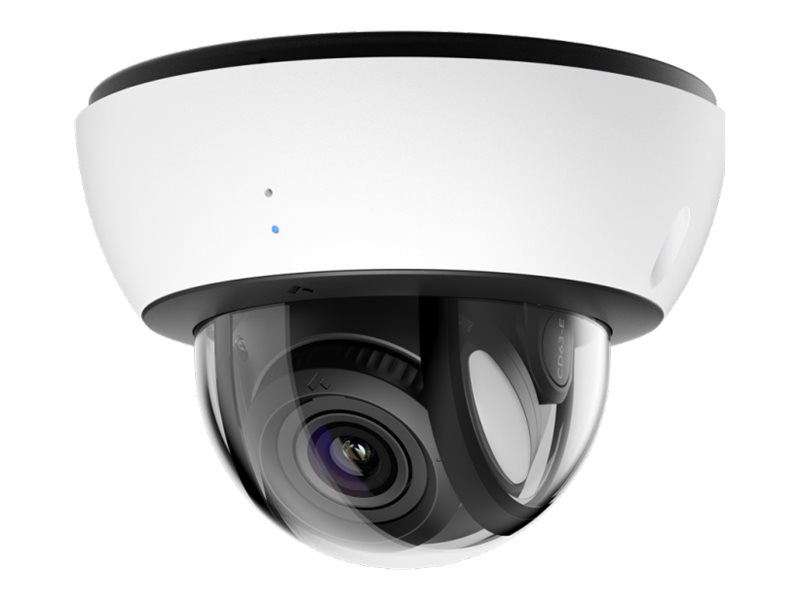

Verkada FIPS-Validated Dome Series CD63-512E-HW-F
MSRP€3,643.71
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Verkada FIPS-Validated Dome Series CD63-512E-HW-F
- Network surveillance camera
- dome
- outdoor
- weather resistant / impact resistant
- color (Day&Night)
- 3840 x 2160
- 4K
- auto iris
- motorized
- audio
- GbE
- H.265, H.264
- DC 43
- 57 V / PoE+
- TAA Compliant
- with 30 days onboard storage (512GB)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | €3,643.71 |
| Mfr Part #: | CD63-512E-HW-F |
| SHI Part #: | 50605414 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Verkada |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Verkada FIPS-Validated Dome Series CD63-512E-HW-F - Network surveillance camera - dome - outdoor - weather resistant / impact resistant - color (Day&Night) - 3840 x 2160 - 4K - auto iris - motorized - audio - GbE - H.265, H.264 - DC 43 - 57 V / PoE+ - TAA Compliant - with 30 days onboard storage (512GB) |
| Manufacturer | Verkada |
| MSRP | €3,643.71 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 15.5 cm |
| Dimensions & Weight / Height | 10.44 cm |
| Dimensions & Weight / Weight | 1.386 kg |
| Dimensions & Weight / Width | 15.5 cm |
| Header / Brand | Verkada |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 10-year warranty |
| Camera | |
| Digital Video Format | H.265, H.264 |
| Exposure Range | 1/30 sec - 1/10000 sec |
| Features | Ambarella CV72S66 CPU, vehicle analytics, people analytics, Person of Interest detection, Occupancy Trends, aluminum/plastic housing, Wide Dynamic Range (WDR), 350° rotation, IR-cut filter, Live Streaming, adaptive quality recording, LED indicator, People Detection, Vehicle Detection, crowd detection, line-crossing detection, loitering detection, AI-powered alerts, people search, attribute search, face search, Motion Search, trajectory analysis, selective face blurring, vehicle search, cloud backup, configurable retention days, selectable storage location, low bandwidth mode, timelapse, Live Link, privacy regions, audit log, live face blur |
| Flash Memory | 512 GB |
| Frame Rate (max) | 24 frames per second |
| Infrared Distance | 40 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed - outdoor - weather resistant / impact resistant |
| Video Modes | 4K |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Encryption Algorithm | FIPS 140-2 |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDXC Card |
| General | |
| Audio Support | Yes: one-way audio capability, built-in microphone |
| Bundled with | 30 days onboard storage (512GB) |
| Connectivity Technology | Wired |
| Depth | 15.5 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 10.44 cm |
| Weight | 1.386 kg |
| Width | 15.5 cm |
| Image Sensor | |
| Type | Progressive Scan CMOS 1/1.2" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | RTSP |
| Lens Construction | |
| Diagonal Field of View (degree) | 53 - 113 |
| Focal Length | 5.9 mm - 13.3 mm |
| Horizontal Field of View (degree) | 47 - 109 |
| Lens Iris | F/1.5-2.9 auto iris (P-Iris) |
| Optical Zoom | 2.25 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 27 - 58 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Compliant Standards | IP67, IP66, IK10, NDAA, IEEE 802.3at Type 2, IEEE 802.3af Type 1, FCC, ICES, UKCA, RCM, NTRA, NOM, KCC, VCCI, UL 2043 |
| Included Accessories | Screw pack, mount plate with leveler, cable sealing rubber for 6.5-7.5mm, conduit adapter, Torx T10 screw driver, desiccant |
| TAA Compliant | Yes |
| Panning | |
| Range (degree) | 360 |
| Power | |
| Power Requirements | DC 43 - 57 V / PoE+ |
| Tilting | |
| Range (degree) | 65 |
