Vertiv PowerIT MU05MUW1-36CF13-6PS56B4A10-S
MSRP€3,100.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

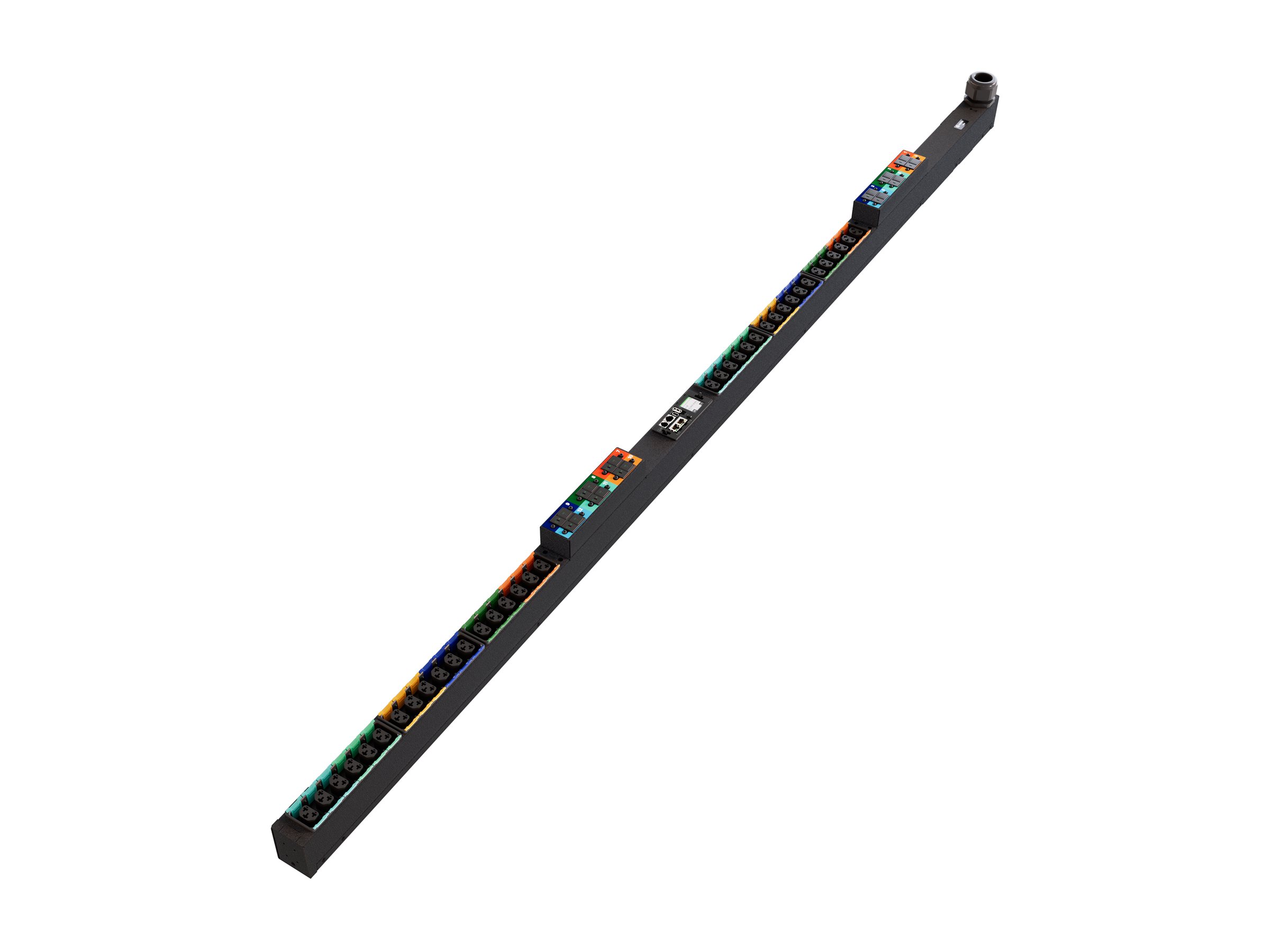

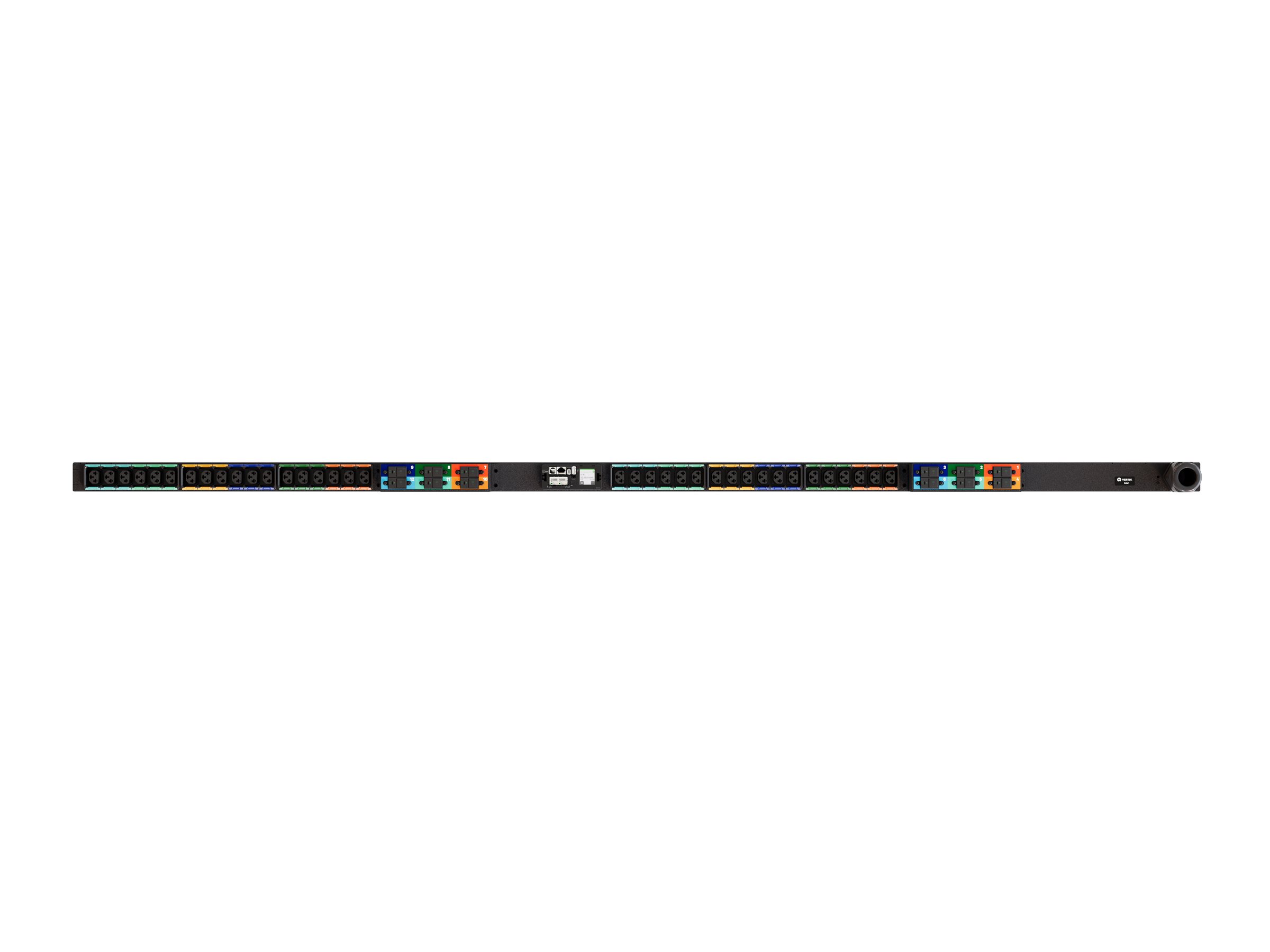

Vertiv PowerIT MU05MUW1-36CF13-6PS56B4A10-S
- Power distribution unit (rack-mountable)
- monitored, unit level, vertical
- AC 200-240/346-415 V
- 43.4 kW
- 3-phase WYE
- Ethernet 10/100/1000, RS-232, USB
- input: IEC 60309 3P+N+E
- output connectors: 36 (IEC 60320 C13/C19)
- 0U
- 78"
- 3 m cord
- black
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | €3,100.00 |
| Mfr Part #: | VP4U60A2 |
| SHI Part #: | 49887013 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Vertiv PowerIT MU05MUW1-36CF13-6PS56B4A10-S - Power distribution unit (rack-mountable) - monitored, unit level, vertical - AC 200-240/346-415 V - 43.4 kW - 3-phase WYE - Ethernet 10/100/1000, RS-232, USB - input: IEC 60309 3P+N+E - output connectors: 36 (IEC 60320 C13/C19) - 0U - 78" - 3 m cord - black - TAA Compliant |
| Manufacturer | Vertiv |
| MSRP | €3,100.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.6 cm |
| Dimensions & Weight / Height | 198.2 cm |
| Dimensions & Weight / Width | 5.1 cm |
| Header / Brand | Vertiv |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Voltage Required | AC 200-240/346-415 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 6.6 cm |
| Height | 198.2 cm |
| Width | 5.1 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 8.6 kg |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Rack Size | 78" |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | ANSI, IEC, UL 2900-1, UL, RoHS, C-UL, FCC Part 15 A, ANSI C12.1, IEC 62053-21, UKCA, UL 62368-1, EN 55032, EN 55035, RCM, China RoHS |
| Features | Powder-coated, vertical orientation, monitored, per phase power monitoring, input power monitoring, daisy chain functionality, steel enclosure, IP reset button, overload protection, remote power cycling, environment sensor ports, outlet control, color-coded labels, U-lock outlets, P-lock power cord compatible, high retention locking outlets, remote outlet switching, remote reboot, monitored outlet level, Interchangeable Monitoring Device (IMD) module, touch screen LCD display, bottom-front feed cord entry, 12 x 20A double pole magnetic breakers, upgradeable, power cable IP44 compliant, LED indicators |
| Included Accessories | Rack mounting brackets |
| Rack Mounting Kit | Included |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | IPv4, IPv6, HTTP, HTTPS, DHCP, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP 1, Syslog, TACACS+, SNMP 2c, SNMP 3, Modbus, TCP/IP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+N+E |
| Input Voltage | AC 200-240/346-415 V |
| Input Wiring | 3-phase WYE |
| Max Electric Current | 63 A |
| Output Voltage | AC 240 V 50/60 Hz |
| Power Capacity | 43.4 kW |
| Power Output Connectors Details | 36 x power IEC 60320 C13/C19 |
