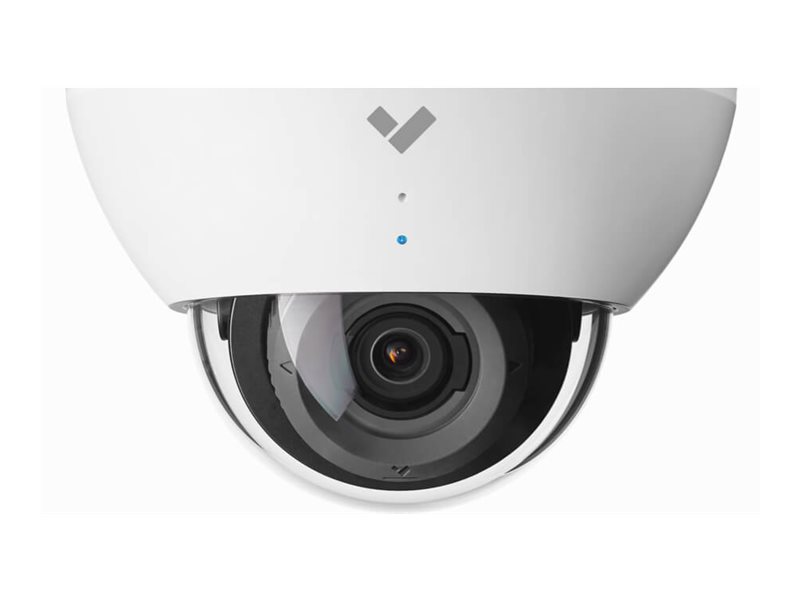

Verkada CD52-F - Network surveillance camera
MSRP€3,921.80
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Verkada CD52-F - Network surveillance camera
- dome
- indoor
- vandal-resistant
- color (Day&Night)
- 5 MP
- 2688 x 1944
- auto iris
- vari-focal
- LAN 10/100
- H.265, H.264
- PoE
- TAA Compliant
- with 90 days onboard storage (768GB)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | €3,921.80 |
| Mfr Part #: | CD52-768-HW-F |
| SHI Part #: | 49701941 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Verkada |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Verkada CD52-F - Network surveillance camera - dome - indoor - vandal-resistant - color (Day&Night) - 5 MP - 2688 x 1944 - auto iris - vari-focal - LAN 10/100 - H.265, H.264 - PoE - TAA Compliant - with 90 days onboard storage (768GB) |
| Manufacturer | Verkada |
| MSRP | €3,921.80 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 14.6 cm |
| Dimensions & Weight / Height | 10.43 cm |
| Dimensions & Weight / Weight | 776 g |
| Dimensions & Weight / Width | 14.6 cm |
| Header / Brand | Verkada |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 10-year warranty |
| Camera | |
| Digital Video Capture Resolution | 2688 x 1944 |
| Digital Video Format | H.265, H.264 |
| Exposure Range | 1/30 sec - 1/10000 sec |
| Features | Wide Dynamic Range (WDR), progressive scanning, infrared cut filter, Ambarella CV25S88 CPU, Vehicle Detection, aluminum housing, plastic dome trim, 355° rotation |
| Frame Rate (max) | 24 frames per second |
| Infrared Distance | 30 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2688 x 1944 |
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed - indoor - vandal-resistant |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Encryption Algorithm | FIPS 140-2 |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDXC Card |
| General | |
| Bundled with | 90 days onboard storage (768GB) |
| Connectivity Technology | Wired |
| Depth | 14.6 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 10.43 cm |
| Weight | 776 g |
| Width | 14.6 cm |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Lens Construction | |
| Diagonal Field of View (degree) | 48 - 126 |
| Focal Length | 2.8 mm - 8 mm |
| Horizontal Field of View (degree) | 38 - 105 |
| Lens Iris | F/1.3-2.4 auto iris (P-Iris) |
| Type | Vari-focal |
| Vertical Field of View (degree) | 29 - 77 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Compliant Standards | FIPS 140-2, FCC, ICES, IEEE 802.3af, NDAA, NIST |
| Included Accessories | Torx T10 screw driver, screw pack, mounting template |
| TAA Compliant | Yes |
| Panning | |
| Range (degree) | 355 |
| Power | |
| Power Requirements | PoE |
| Tilting | |
| Range (degree) | 60 |
