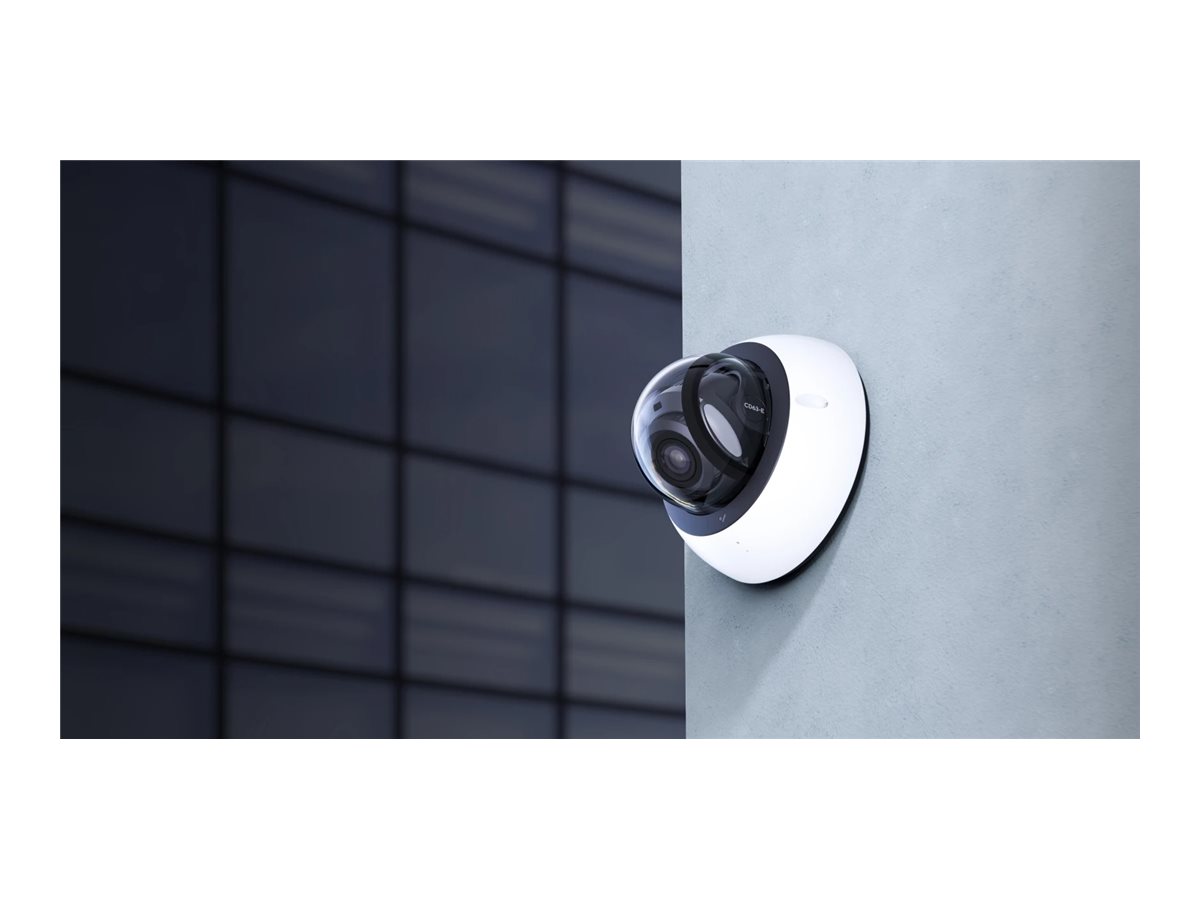

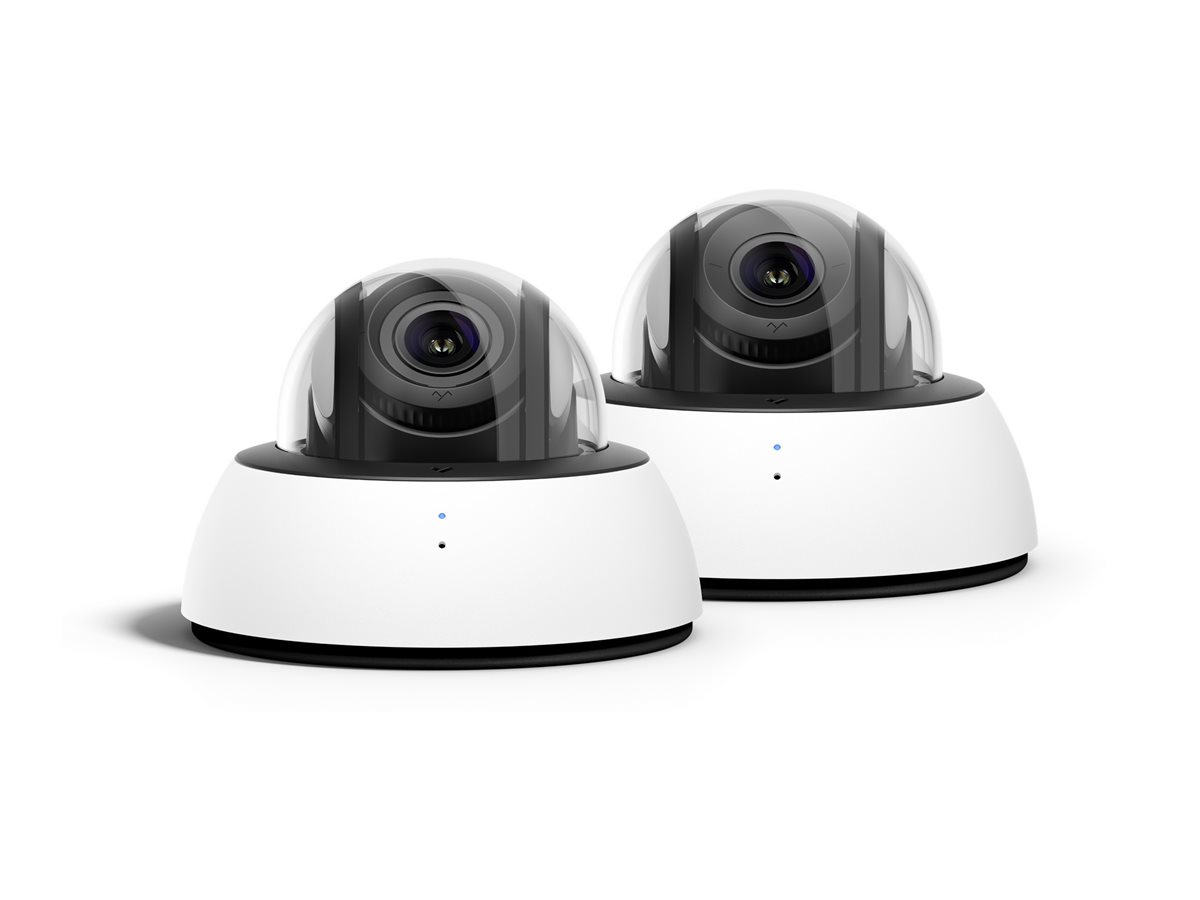

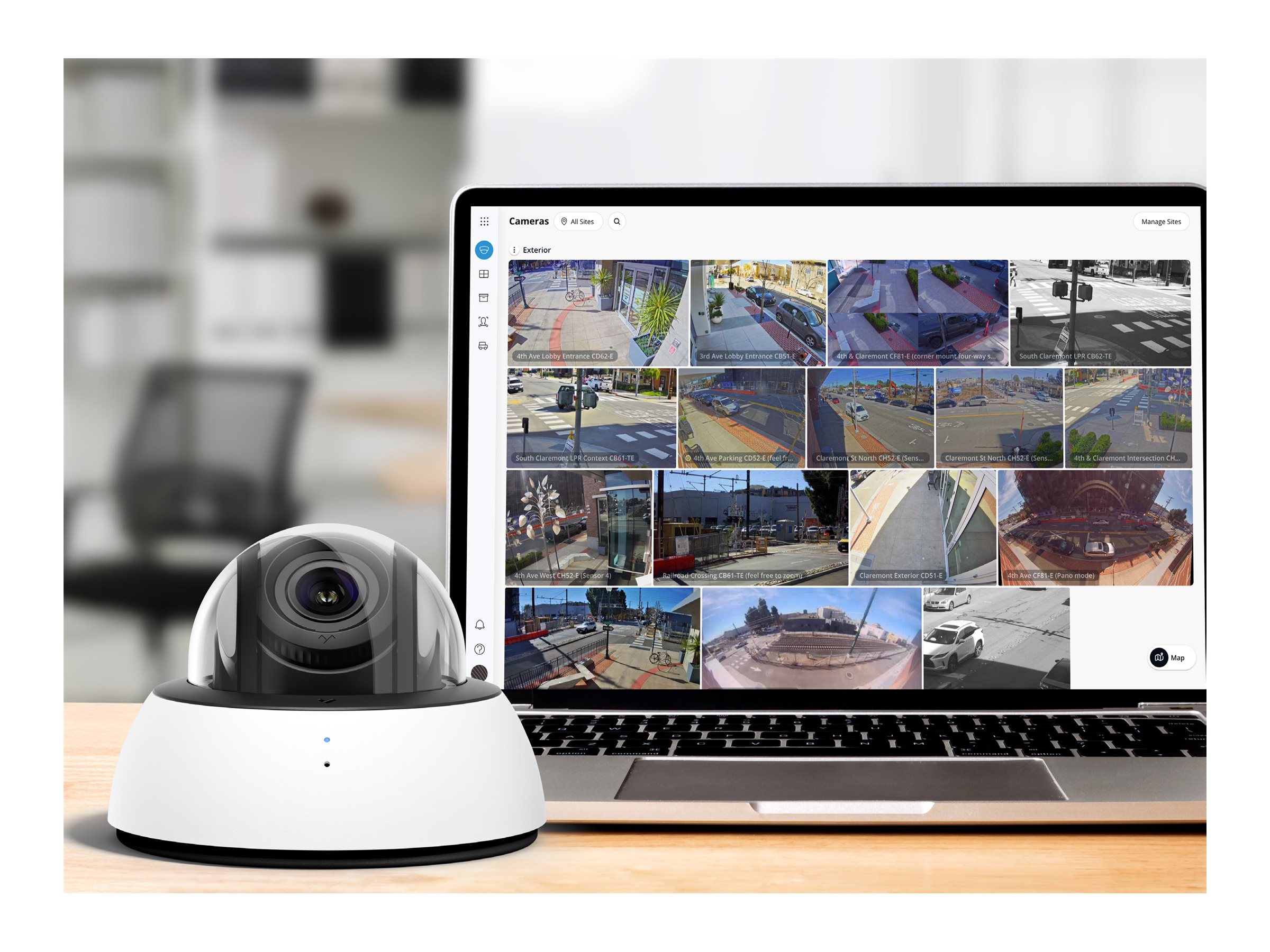

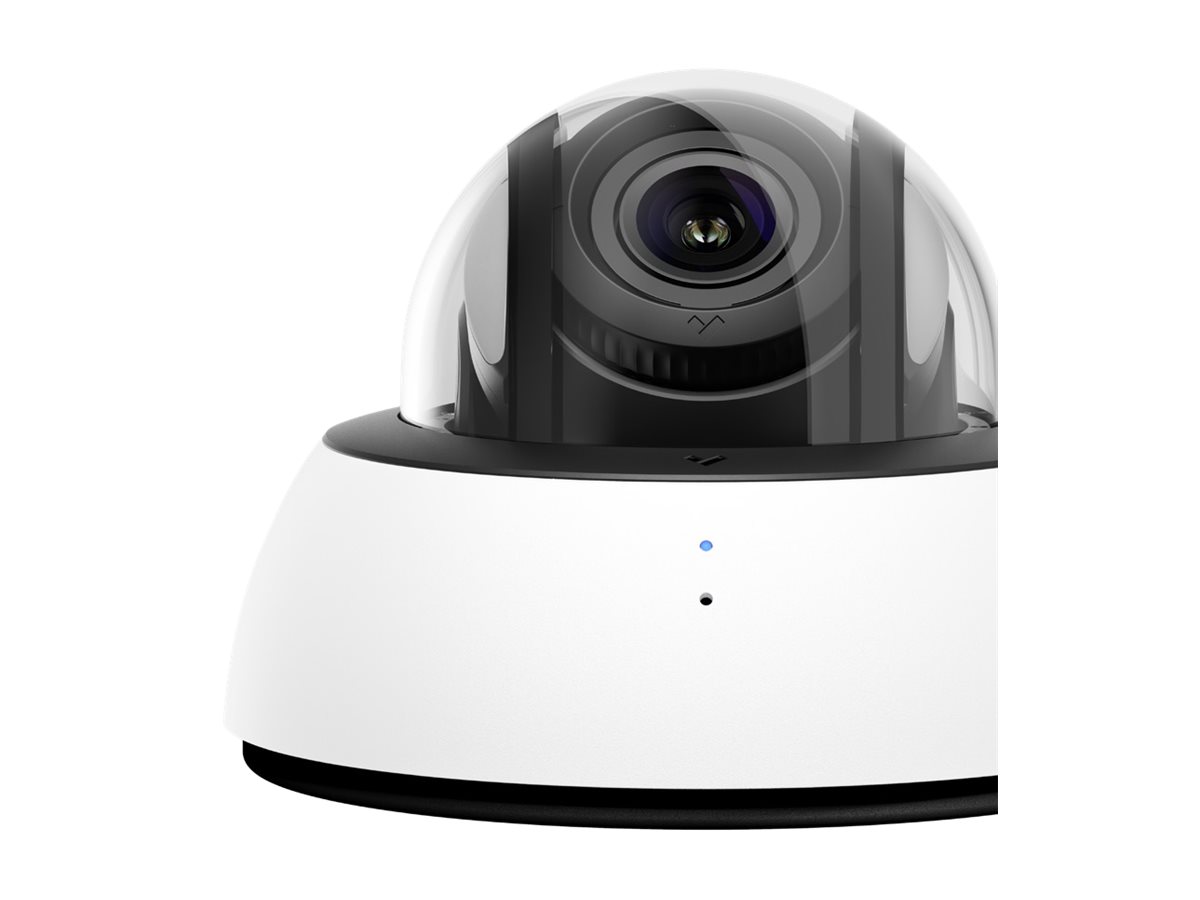

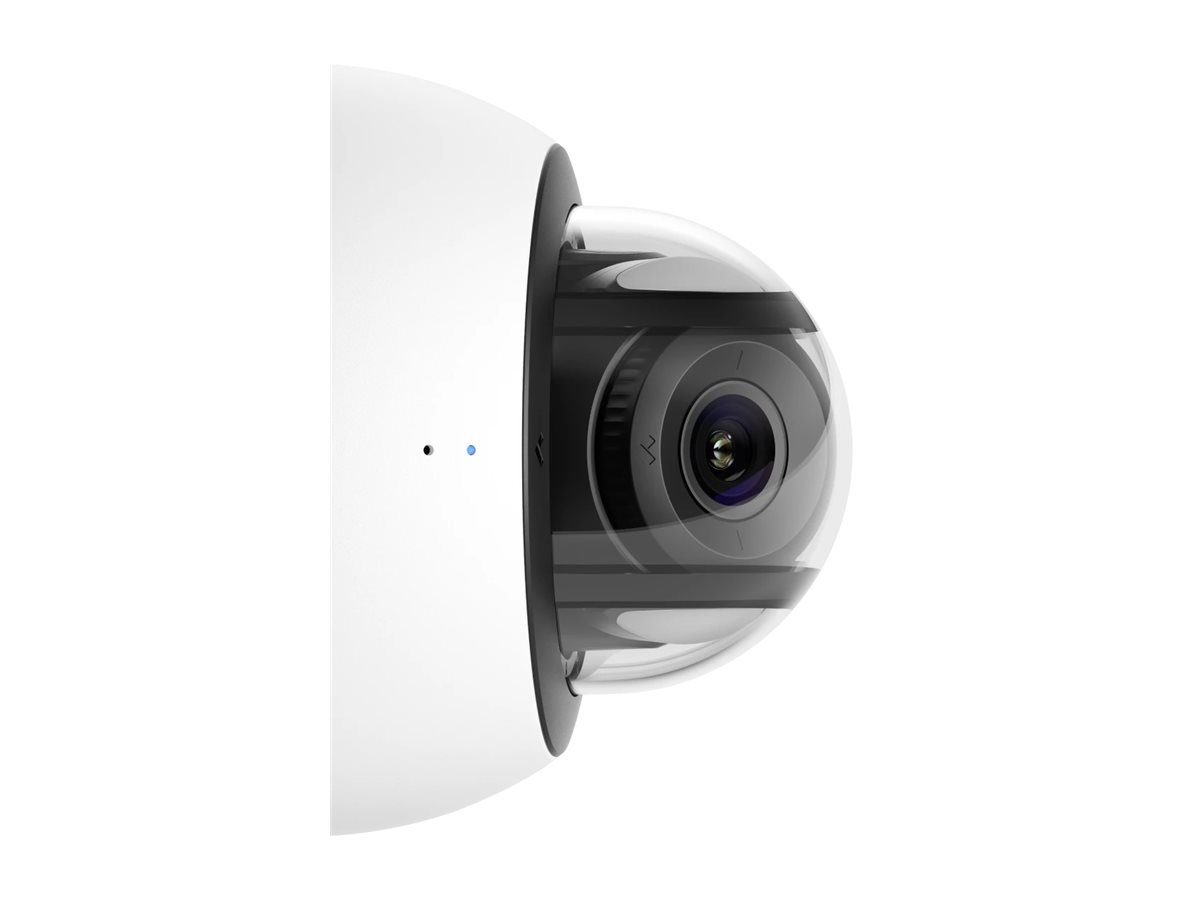

Verkada CD22-512E-HW
MSRP€2,124.65
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Verkada CD22-512E-HW
- Network surveillance camera
- dome
- indoor
- vandal-resistant
- color (Day&Night)
- 3 MP
- 2048 x 1536
- fixed iris
- fixed focal
- LAN 10/100
- H.265, H.264
- PoE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | €2,124.65 |
| Mfr Part #: | CD22-512E-HW |
| SHI Part #: | 49689475 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Verkada |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Verkada CD22-512E-HW - Network surveillance camera - dome - indoor - vandal-resistant - color (Day&Night) - 3 MP - 2048 x 1536 - fixed iris - fixed focal - LAN 10/100 - H.265, H.264 - PoE |
| Manufacturer | Verkada |
| MSRP | €2,124.65 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 14.6 cm |
| Dimensions & Weight / Height | 9.98 cm |
| Dimensions & Weight / Weight | 608 g |
| Dimensions & Weight / Width | 14.6 cm |
| Header / Brand | Verkada |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Camera | |
| Digital Video Capture Resolution | 2048 x 1536 |
| Digital Video Format | H.265, H.264 |
| Exposure Range | 1/30 sec - 1/10000 sec |
| Features | 1/2.8 CMOS image sensor type, infrared-cut filter, Ambarella CV25S88 CPU, 180° rotation, People Detection, trajectory analysis, AI-powered alerts, Vehicle Detection, plastic dome trim, motion detection, crowd detection, line-crossing detection, loitering detection, Wide Dynamic Range (WDR) |
| Flash Memory | 512 GB |
| Frame Rate (max) | 24 frames per second |
| Infrared Distance | 10 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2048 x 1536 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed - indoor - vandal-resistant |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDXC Card |
| General | |
| Connectivity Technology | Wired |
| Depth | 14.6 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 9.98 cm |
| Weight | 608 g |
| Width | 14.6 cm |
| Image Sensor | |
| Type | 3 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | RTSP |
| Lens Construction | |
| Diagonal Field of View (degree) | 91 - 128 |
| Focal Length | 2.8 mm |
| Horizontal Field of View (degree) | 78 - 97 |
| Lens Iris | F/1.6 fixed iris |
| Type | Fixed focal |
| Vertical Field of View (degree) | 63 - 71 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | IEEE 802.3af, UL, FCC, CB, BIS, NOM, KCC, IK08, NDAA |
| Included Accessories | Torx T10 screw driver, screw pack, mounting template |
| Panning | |
| Range (degree) | 355 |
| Power | |
| Power Device | 37 - 57 V |
| Power Requirements | PoE |
| Tilting | |
| Range (degree) | 60 |
