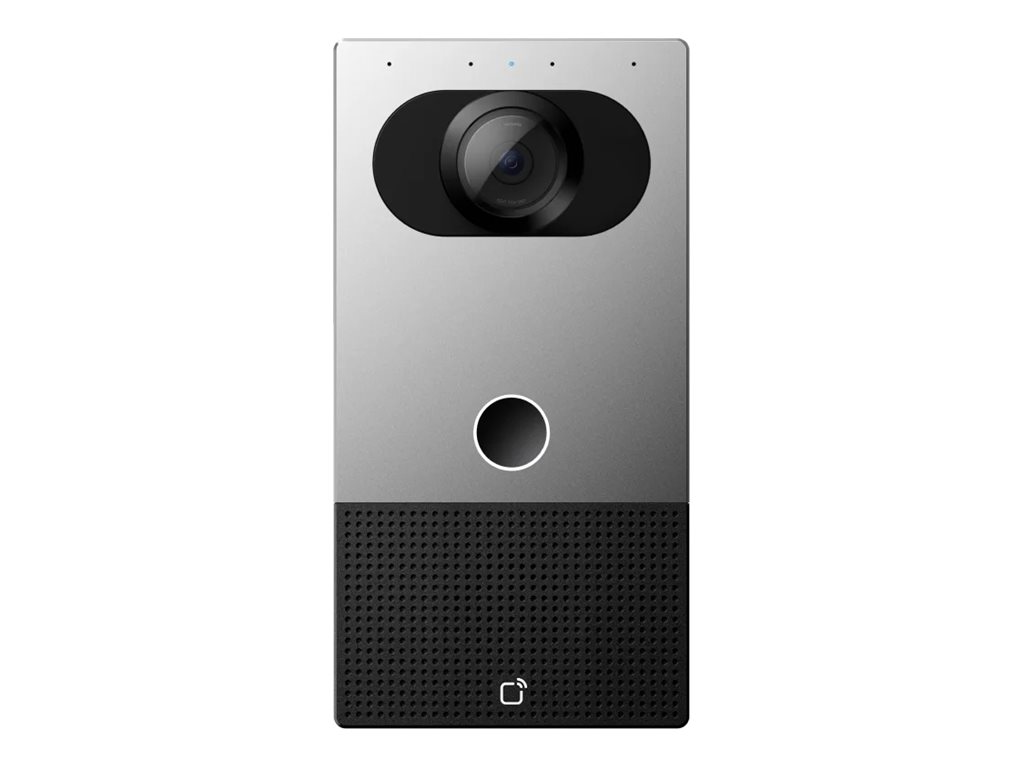

Verkada TD53 - IP intercom station
MSRP€3,509.66
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Verkada TD53 - IP intercom station
- with camera
- video
- wired
- 10/100/1000 Ethernet
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | €3,509.66 |
| Mfr Part #: | TD53-HW |
| SHI Part #: | 49018859 |
| Category: | Intercom equipment |
| UNSPSC: | 43221525 |
| Manufacturer: | Verkada |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Intercom equipment |
| Description | Verkada TD53 - IP intercom station - with camera - video - wired - 10/100/1000 Ethernet |
| Manufacturer | Verkada |
| MSRP | €3,509.66 |
| UNSPSC | 43221525 |
| Main Specifications | |
| Dimensions & Weight / Depth | 3.3 cm |
| Dimensions & Weight / Height | 22.9 cm |
| Dimensions & Weight / Weight | 1 kg |
| Dimensions & Weight / Width | 11.8 cm |
| Header / Brand | Verkada |
| Miscellaneous / Product Color |
|
| Networking / Connectivity Technology | Wired |
| Packaged Quantity | 1 |
| Camera | |
| Audio Support | Yes |
| Day & Night Functionality | Yes |
| Features | 130° field of view (horizontal), fixed iris, 100° field of view (vertical), 160° field of view (diagonal), Wide Dynamic Range (WDR) |
| Focal Length | 2.12 mm |
| Image Sensor | 5 Megapixel - CMOS - 1/2.8" |
| Lens Aperture | F/2.1 |
| Max Digital Video Resolution | 2688 x 1944 |
| Control Unit | |
| Buttons Qty | 1 |
| Dimensions & Weight | |
| Depth | 3.3 cm |
| Height | 22.9 cm |
| Weight | 1 kg |
| Width | 11.8 cm |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -40 °C |
| General | |
| Card Technology | HID MIFARE, HID MIFARE DESFire EV3, MIFARE DESFire |
| Connectivity Technology | Wired - Ethernet, Fast Ethernet, Gigabit Ethernet |
| Environment | Outdoor |
| Features | LED indicator, two-way communication, 15 meters detection range, max SPL 90 dB, PoE+, echo cancellation, noise suppression, tamper detection, NFC support, Bluetooth (BLE) clients support |
| Functions | Access control |
| Integrated Components | Camera, speaker (4W), 4 microphones, card reader |
| Interfaces Details |
|
| Placing / Mounting | Flush-mounting |
| Power Source | PoE |
| Product Type | IP intercom station - with camera |
| Miscellaneous | |
| Compliant Standards | CSA C22.2 62368-1, FCC Part 15 B Class B., ICES-003 Class B, IRCM, UKCA, UL 294, UL/IEC 62368-1, ULC 60839-11-1, IP65, IK07, IEEE 802.3af, FCC, IEEE 802.3at |
| Included Accessories | Mounting plate, surface mount, T10 security torx key, mounting kit, grommet punch |
| Product Material | Aluminum, steel, polycarbonate |
| Voltage Required | DC 30 V |
| Warranty | 10-year warranty |
| RAM | |
| Installed Size | 512 GB |
