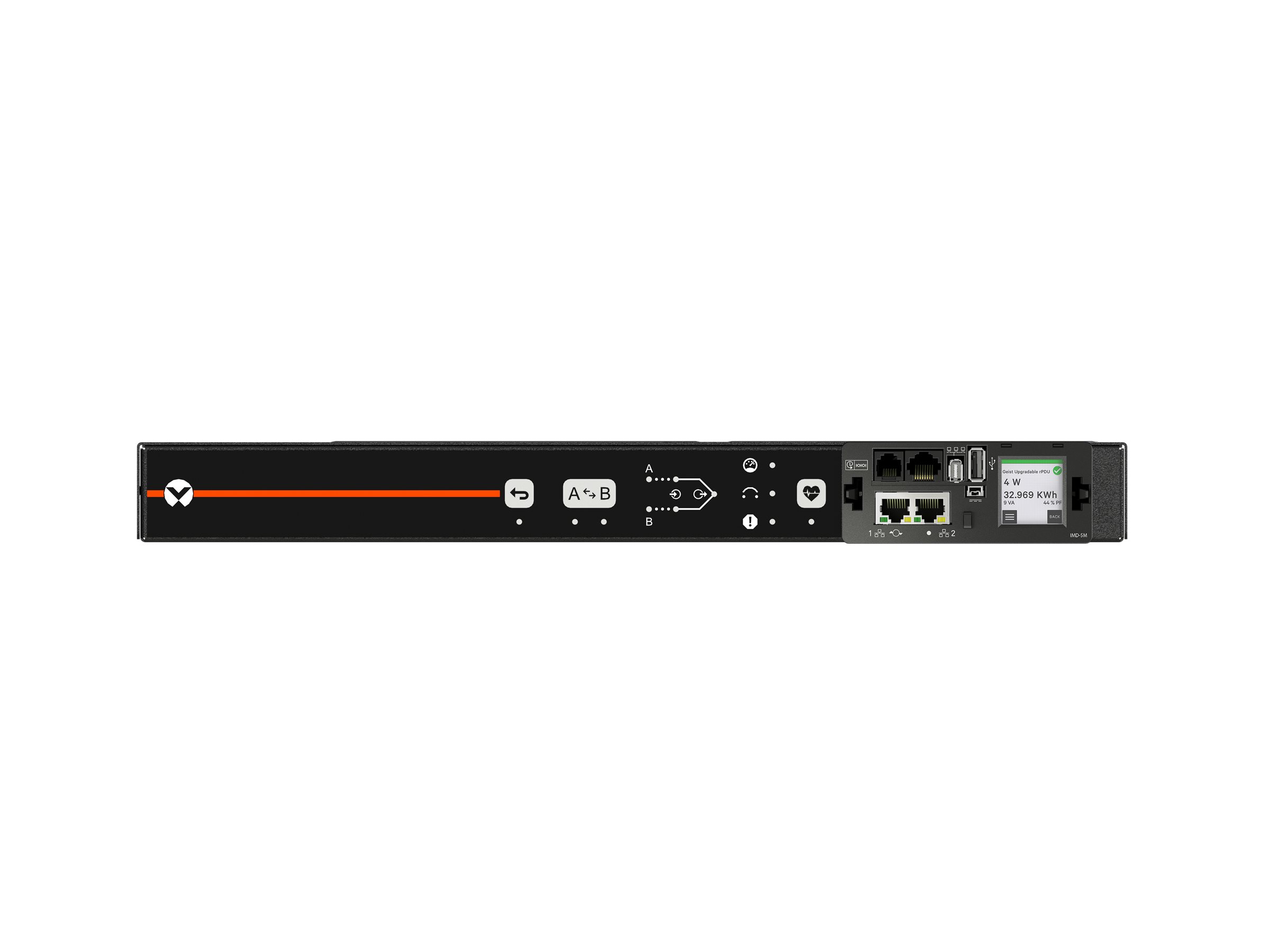

Geist Rack Transfer Switch Monitored Unit Level
MSRP€1,965.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Geist Rack Transfer Switch Monitored Unit Level
- Power distribution unit (rack-mountable)
- AC 230 V
- 2.3 kW
- Ethernet 10/100/1000, RS-232, USB
- input: IEC 60320 C14
- output connectors: 10 (power IEC 60320 C13)
- 1U
- 19"
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | €1,965.00 |
| Mfr Part #: | VA4U11A0 |
| SHI Part #: | 48664921 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Geist Rack Transfer Switch Monitored Unit Level - Power distribution unit (rack-mountable) - AC 230 V - 2.3 kW - Ethernet 10/100/1000, RS-232, USB - input: IEC 60320 C14 - output connectors: 10 (power IEC 60320 C13) - 1U - 19" - black powder coat |
| Manufacturer | Vertiv |
| MSRP | €1,965.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 45.7 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | Geist |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 10 |
| Power Device / Voltage Required | AC 230 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 5-year warranty with product registration |
| Battery | |
| Transfer Time | 8 ms |
| Dimensions & Weight | |
| Depth | 45.7 cm |
| Height | 4.4 cm |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 6.8 kg |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | UKCA, IEC 62368-1, EN 55032, EN 55035, FCC Part 15 A, RoHS, China RoHS, RCM, UL/CUL 62368-1 |
| Features | RJ45 port, horizontal mount, power monitoring, USB interface, integrated RS232, daisy chain functionality, auto transfer switching, out of phase transfers, touch screen LCD display, front panel HMI LED overlay, IP reset button, hard reboot button, locking C13 connector |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, Syslog, TACACS+, SNMP 1, SNMP 2c, SNMP 3 |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Input Connectors | 2 x power IEC 60320 C14 |
| Input Voltage | AC 230 V |
| Max Electric Current | 15 A |
| Output Voltage | AC 100-240 V 50/60 Hz |
| Power Capacity | 2.3 kW |
| Power Output Connectors Details | 10 x power IEC 60320 C13 |
