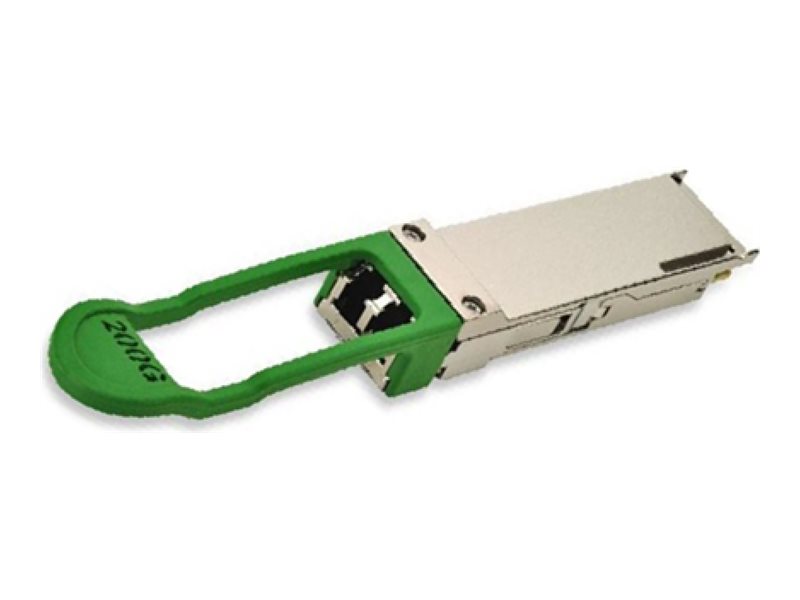

NVIDIA - QSFP56 transceiver module

MSRP€2,635.71

€2,562.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
200 Gigabit InfiniBand 200GBase-FR4 LC single-mode up to 2 km 1310 nm

NVIDIA - QSFP56 transceiver module

General Information
Category	Serial port cards
Description	NVIDIA - QSFP56 transceiver module - 200 Gigabit InfiniBand - 200GBase-FR4 - LC single-mode - up to 2 km - 1310 nm
Manufacturer	NVIDIA
MSRP	€2,635.71
UNSPSC	43201559
Main Specifications
Header / Brand	NVIDIA
Networking / Connectivity Technology	Wired
Networking / Data Link Protocol	200 Gigabit InfiniBand
Networking / Data Transfer Rate	200 Gbps
Networking / Form Factor	Plug-in module
Networking / Type	QSFP56 transceiver module
Packaged Quantity	1
Environmental Parameters
Humidity Range Operating	15 - 85% RH (non-condensing)
Max Operating Temperature	70 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	1 x Ethernet 200GBase-FR4 (duplex) - LC single-mode female x 2
General
Device Type	QSFP56 transceiver module
Form Factor	Plug-in module
Miscellaneous
Compliant Standards	RoHS, MSA, CMIS 4.0, SFF-8665, OS2
Networking
Cabling Type	200GBase-FR4
Compliant Standards	IEEE 802.3bs
Connectivity Technology	Wired
Data Link Protocol	200 Gigabit InfiniBand
Data Transfer Rate	200 Gbps
Features	PAM4 modulation format, hot-pluggable
Max Transfer Distance	2 km
Optical Wave Length	1310 nm
Power
Power Consumption Operational	5.5 Watt
