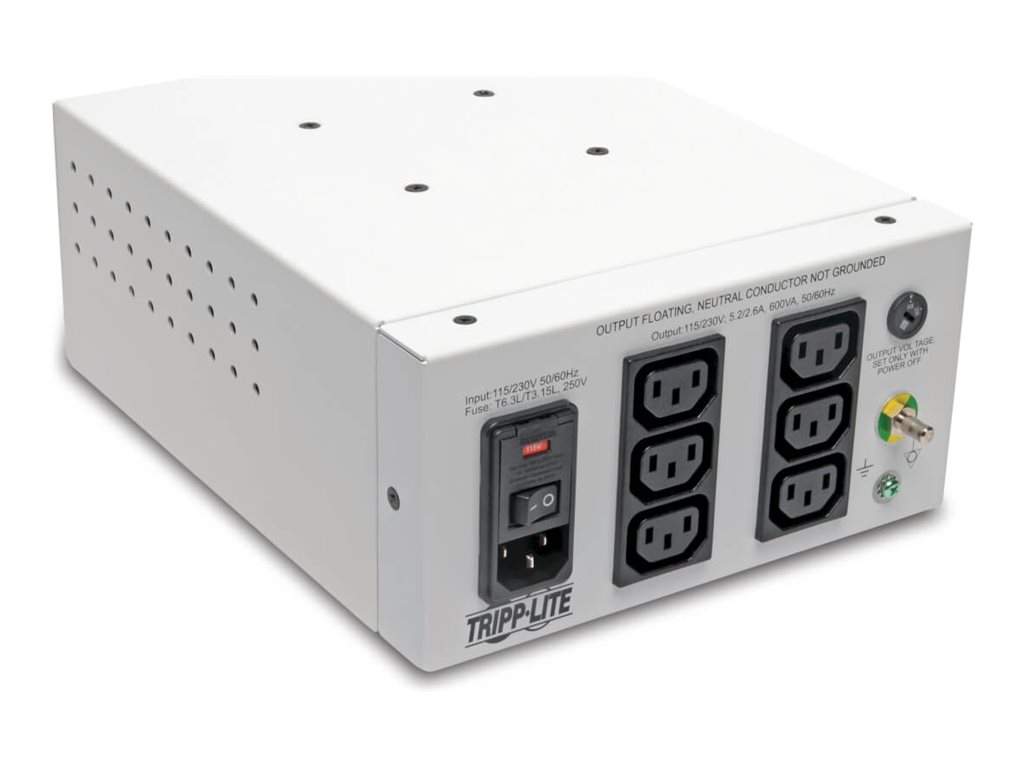

ISOLATION TRANSFORMER HOSPITAL DUAL-VOLTAGE 115/230V 600W 6 C13
MSRP€1,290.37
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ISOLATION TRANSFORMER HOSPITAL DUAL-VOLTAGE 115/230V 600W 6 C13
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | €1,290.37 |
| Mfr Part #: | IS600HGDV |
| SHI Part #: | 44633187 |
| Category: | Power conditioning equipment |
| UNSPSC: | 39121000 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | ISOLATION TRANSFORMER HOSPITAL DUAL-VOLTAGE 115/230V 600W 6 C13 |
| Manufacturer | Eaton |
| MSRP | €1,290.37 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Height | 8.75 |
| Length | 14.70 |
| UPC | 0037332200006 |
| Width | 12.90 |
| Dimensions & Weight | |
| Depth | 25 cm |
| Height | 11 cm |
| Weight | 9.24 kg |
| Width | 20 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 37 cm |
| Shipping Height | 23 cm |
| Shipping Width | 32.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Color | White |
| Device Type | Transformer - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | ANSI/AAMI ES60601-1:2005 + A2 + A1, CAN/CSA C22.2 No. 60601-1:14, IEC 60601-1:2005 Third Edition, NOM, WEEE, RoHS |
| Features | Metal cabinet, convection cooling, output voltage adjustment, overload protection, overheat protection, noise filtering, input voltage adjustment, overcurrent protection |
| Included Accessories | Fuse (115 V operation), fuse (230 V operation) |
| Power Device | |
| Circuit Protection | Fuse |
| Efficiency | 96% |
| EMI/RFI Noise Filtration | 65 dB |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Input Voltage | AC 115/230 V |
| Input Voltage Range | AC 100 - 125 / 200 - 250 V |
| Output Voltage | AC 115/230 V 50/60 Hz |
| Power Capacity | 600 Watt / 600 VA |
| Power Output Connectors Details | 6 x power IEC 60320 C13 |
| Surge Energy Rating | 240 Joules |
| Surge Suppression | Yes |
| Total Harmonic Distortion (THD) | 1 % |
