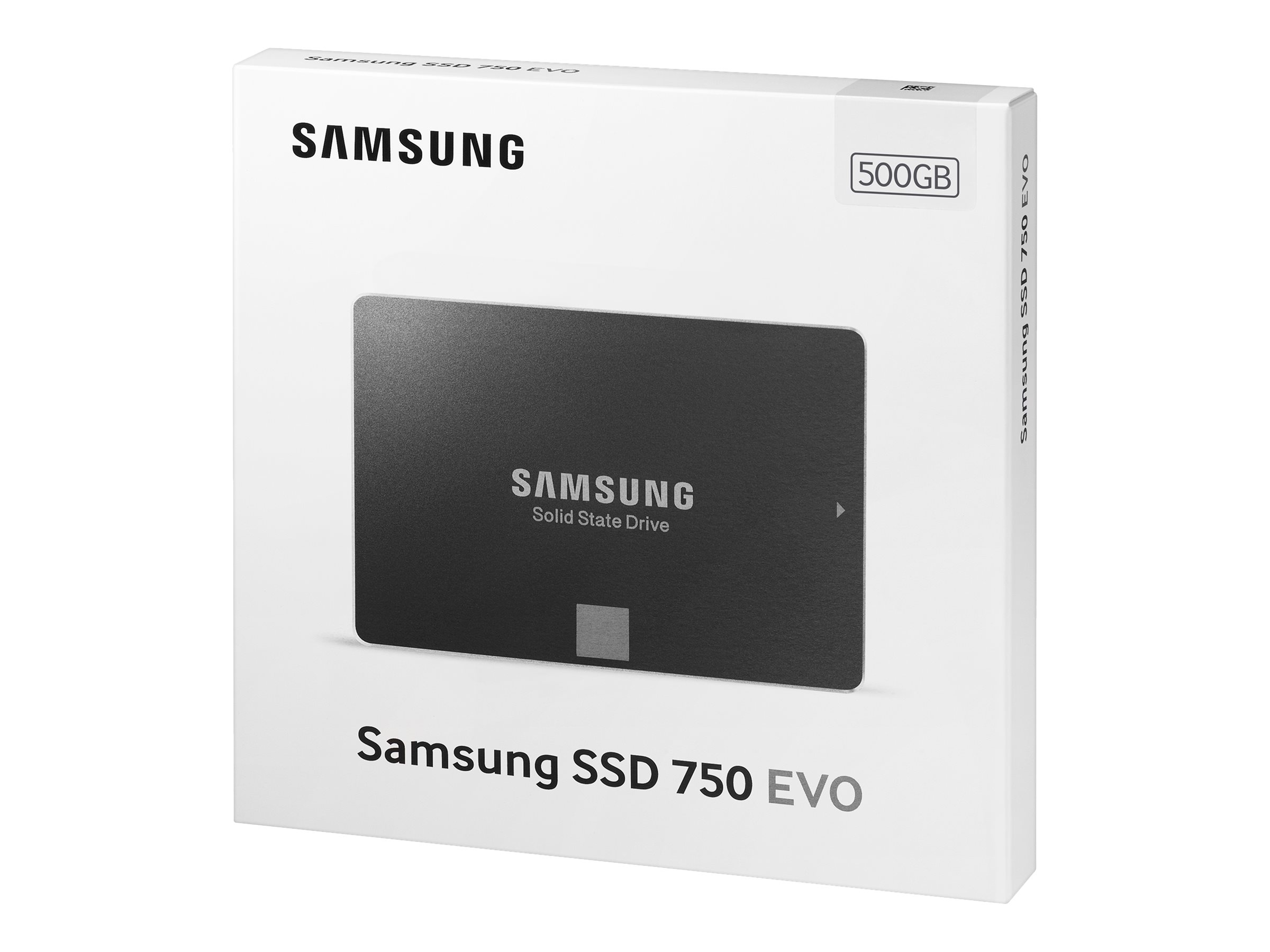

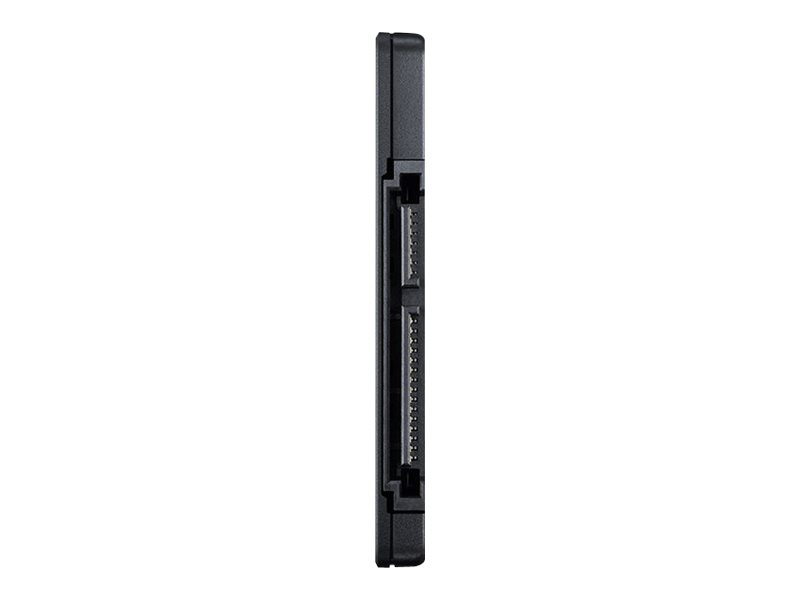

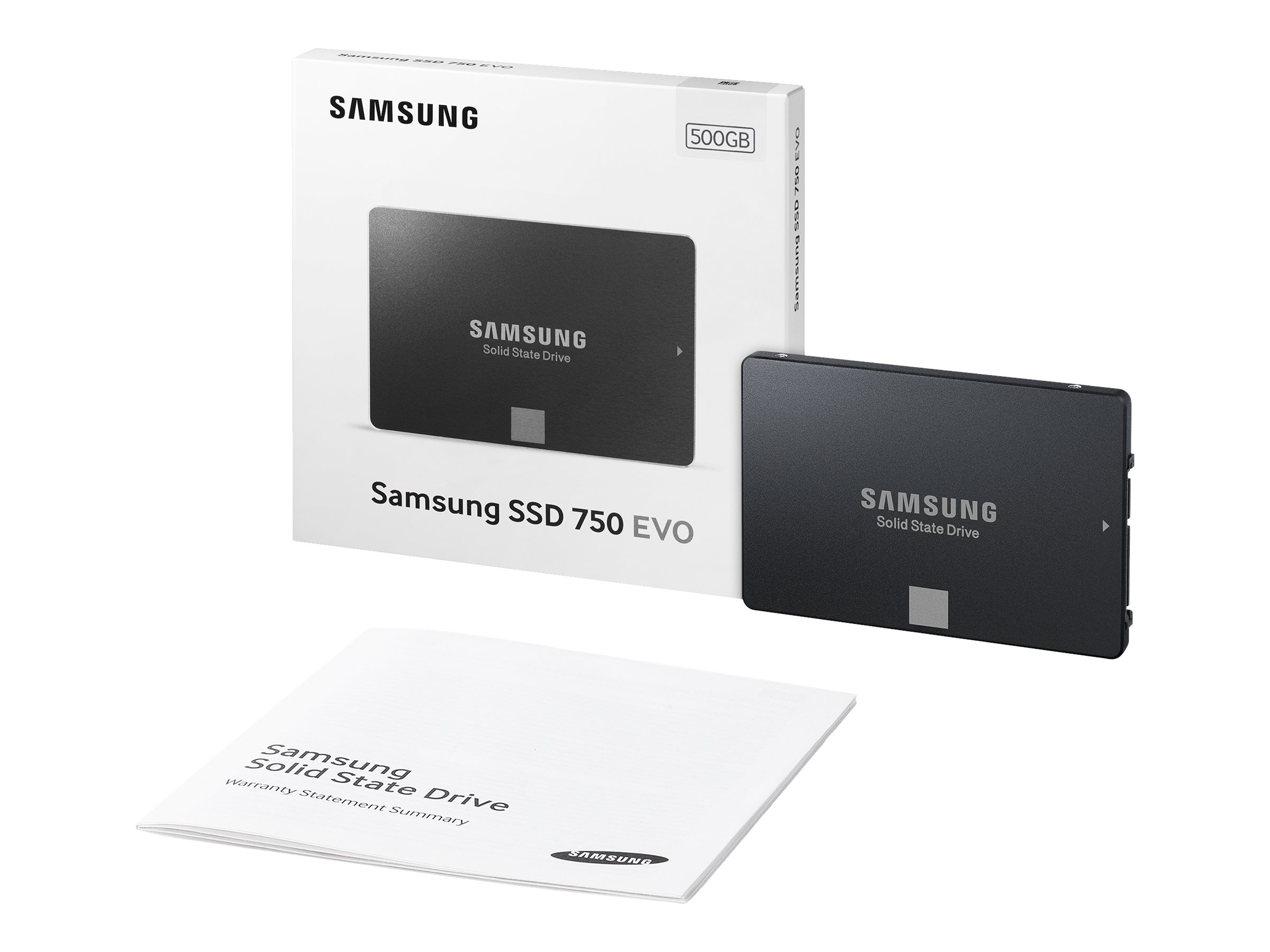

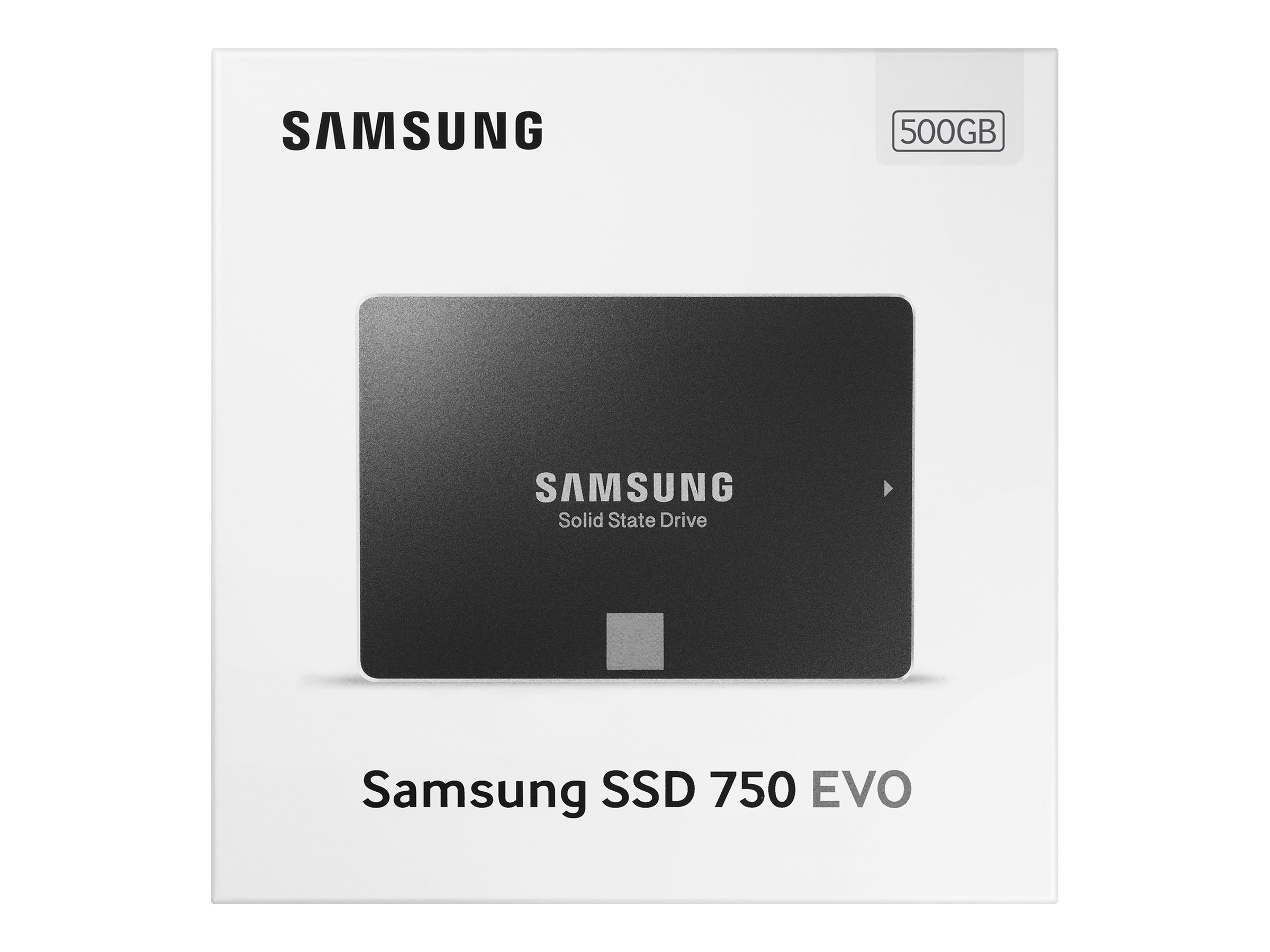

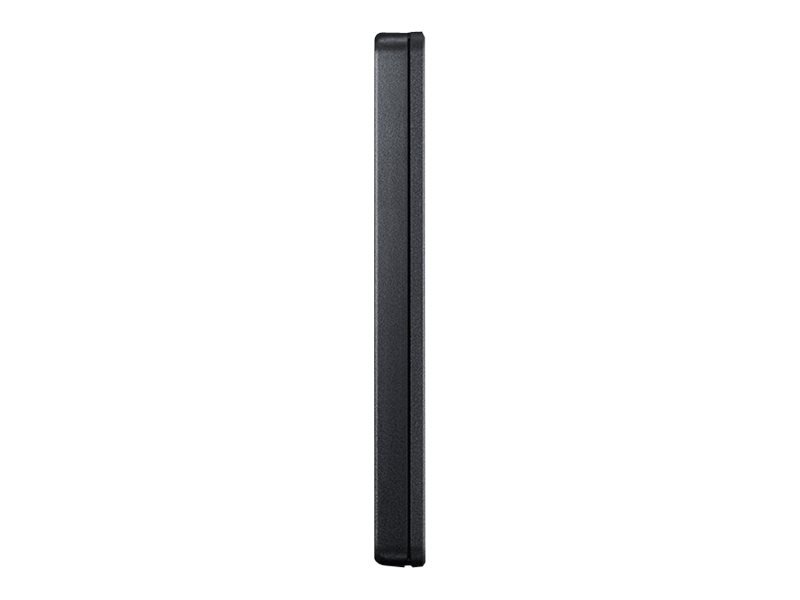

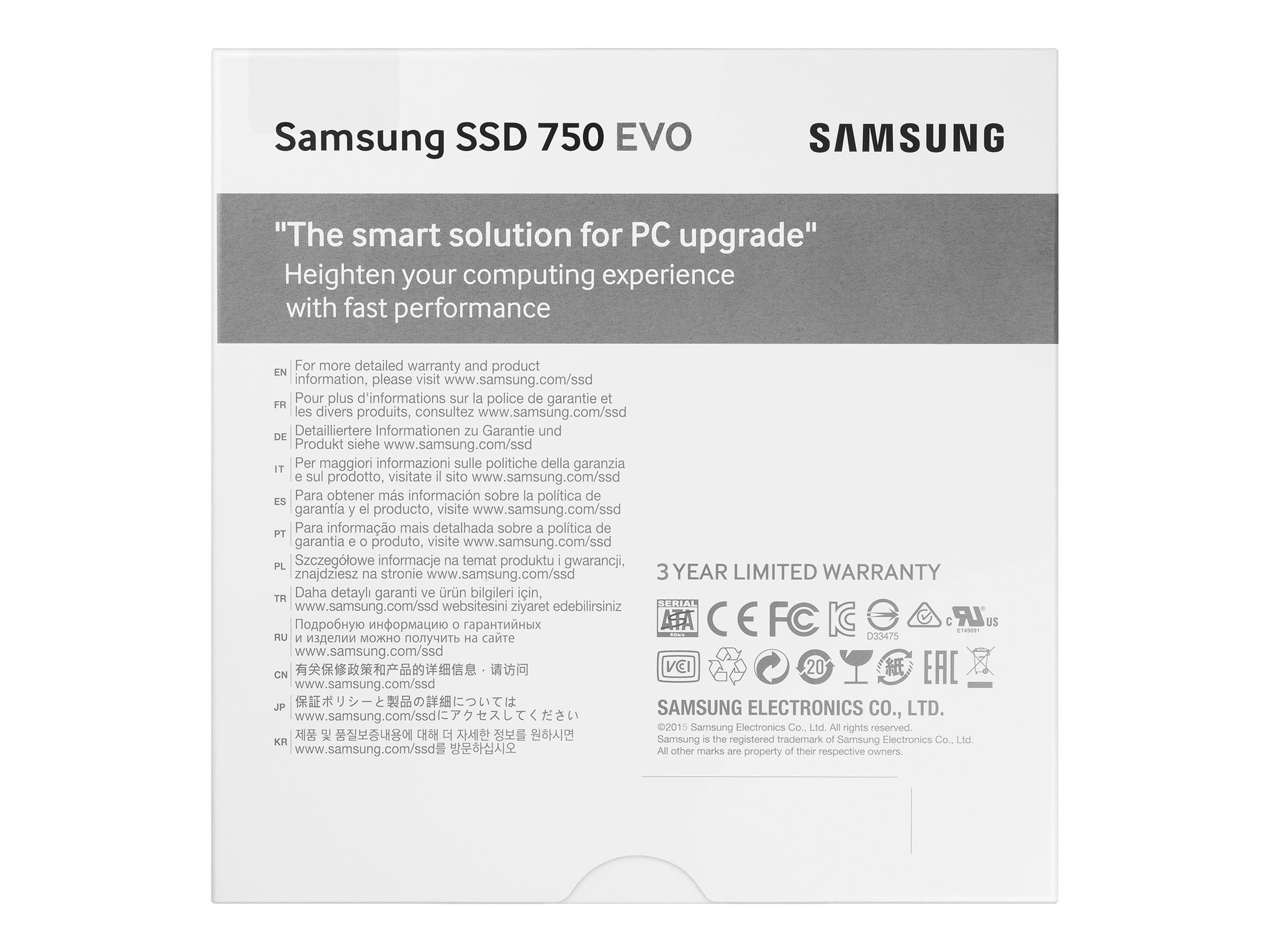

Samsung 750 EVO MZ-750500


Samsung 750 EVO MZ-750500

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • SSD
  • encrypted
  • 500 GB
  • internal
  • 2.5"
Samsung 750 EVO MZ-750500
  • SSD
  • encrypted
  • 500 GB
  • internal
  • 2.5"
  • SATA 6Gb/s
  • buffer: 512 MB
  • 256-bit AES
  • Self-Encrypting Drive (SED), TCG Opal Encryption 2.0
  Additional Details
Mfr Part #: MZ-750500BW
SHI Part #: 40687307
Category: Hard drives
UNSPSC: 43201803
Manufacturer: Samsung
Product Type: Hardware
General Information
CategoryHard drives
DescriptionSamsung 750 EVO MZ-750500 - SSD - encrypted - 500 GB - internal - 2.5" - SATA 6Gb/s - buffer: 512 MB - 256-bit AES - Self-Encrypting Drive (SED), TCG Opal Encryption 2.0
ManufacturerSamsung
UNSPSC43201803
Main Specifications
Environmental Parameters
Max Operating Temperature70 °C
Min Operating Temperature0 °C
Shock Tolerance (non-operating)1500 g @ 0.5 ms
Expansion & Connectivity
Compatible Bay2.5"
Interfaces1 x SATA 6 Gb/s - 7 pin Serial ATA
General
Buffer Size512 MB
Capacity500 GB
Depth100 mm
Device TypeSolid state drive - internal
Encryption Algorithm256-bit AES
FeaturesHardware Full Disk Encryption (FDE), TRIM support, sleep mode, DDR3 DRAM Cache, Auto Garbage Collection Algorithm, Worldwide Name (WWN), RAPID mode support, TurboWrite Technology, Samsung MGX Controller, S.M.A.R.T., IEEE 1667
Form Factor2.5"
Hardware EncryptionYes
Height6.8 mm
InterfaceSATA 6Gb/s
Weight50 g
Width69.85 mm
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Performance
Drive Transfer Rate600 MBps (external)
Internal Data Rate540 MBps (read) / 520 MBps (write)
Maximum 4KB Random Read98000 IOPS
Maximum 4KB Random Write88000 IOPS
SSD Endurance100 TB
Power
Power Consumption
  • 2.3 watt (read)
  • 2.5 watt (write)
  • 50 mW (idle)
  • 5 mW (sleep)
Reliability
MTBF1,500,000 hours
Software & System Requirements
Software IncludedSamsung Magician Software
