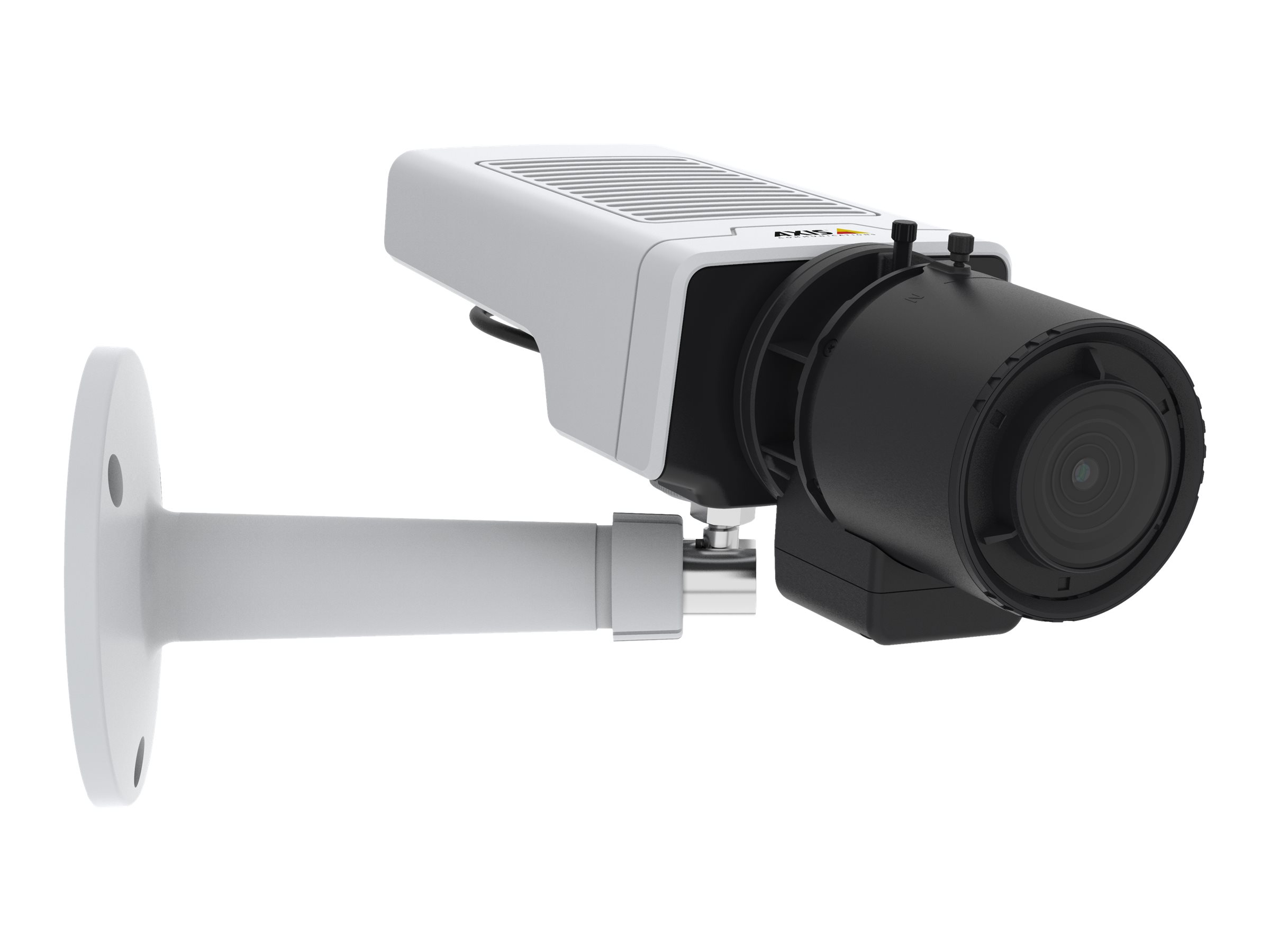

AXIS M1137 Barebone - Network surveillance camera
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
AXIS M1137 Barebone - Network surveillance camera
- color (Day&Night)
- 5 MP
- 2592 x 1944
- CS-mount
- auto iris
- vari-focal
- LAN 10/100
- MPEG-4, MJPEG, H.264
- DC 8
- 28 V / PoE
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 01769-041 |
| SHI Part #: | 39310810 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Axis Communications |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | AXIS M1137 Barebone - Network surveillance camera - color (Day&Night) - 5 MP - 2592 x 1944 - CS-mount - auto iris - vari-focal - LAN 10/100 - MPEG-4, MJPEG, H.264 - DC 8 - 28 V / PoE |
| Manufacturer | Axis Communications |
| MSRP | €479.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7 cm |
| Dimensions & Weight / Height | 17.9 cm |
| Dimensions & Weight / Weight | 165 g |
| Dimensions & Weight / Width | 6.4 cm |
| Header / Brand | Axis |
| Header / Country Kits |
|
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Camera | |
| Digital Video Capture Resolution | 160 x 120, 2592 x 1944 |
| Digital Video Format | MPEG-4, MJPEG, H.264 |
| Exposure Range | 1/5 sec - 1/33500 sec |
| Features | Sharpness control, white balance, color control, brightness control, contrast control, Wide Dynamic Range (WDR), AXIS Video Hosting System (AVHS), infrared cut filter, Video Motion Detection Technology, active tampering alarm, digital PTZ function, LED indicator, password protection, IR Corrected lens, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support |
| Flash Memory | 512 MB |
| Frame Rate (max) | 30 frames per second |
| Max Digital Video Resolution | 2592 x 1944 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 1024 MB |
| Type | Color - Day&Night - fixed |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -20 °C |
| Relative Humidity (operating) | 10 - 80% (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Connectivity Technology | Wired |
| Depth | 7 cm |
| Device Type | Network surveillance camera |
| Height | 17.9 cm |
| Localization | Argentina, Australia, China, Japan, Korea, Brazil, United Kingdom, United States, Europe |
| Weight | 165 g |
| Width | 6.4 cm |
| Image Sensor | |
| Type | 5 MP RGB CMOS 1/3" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |

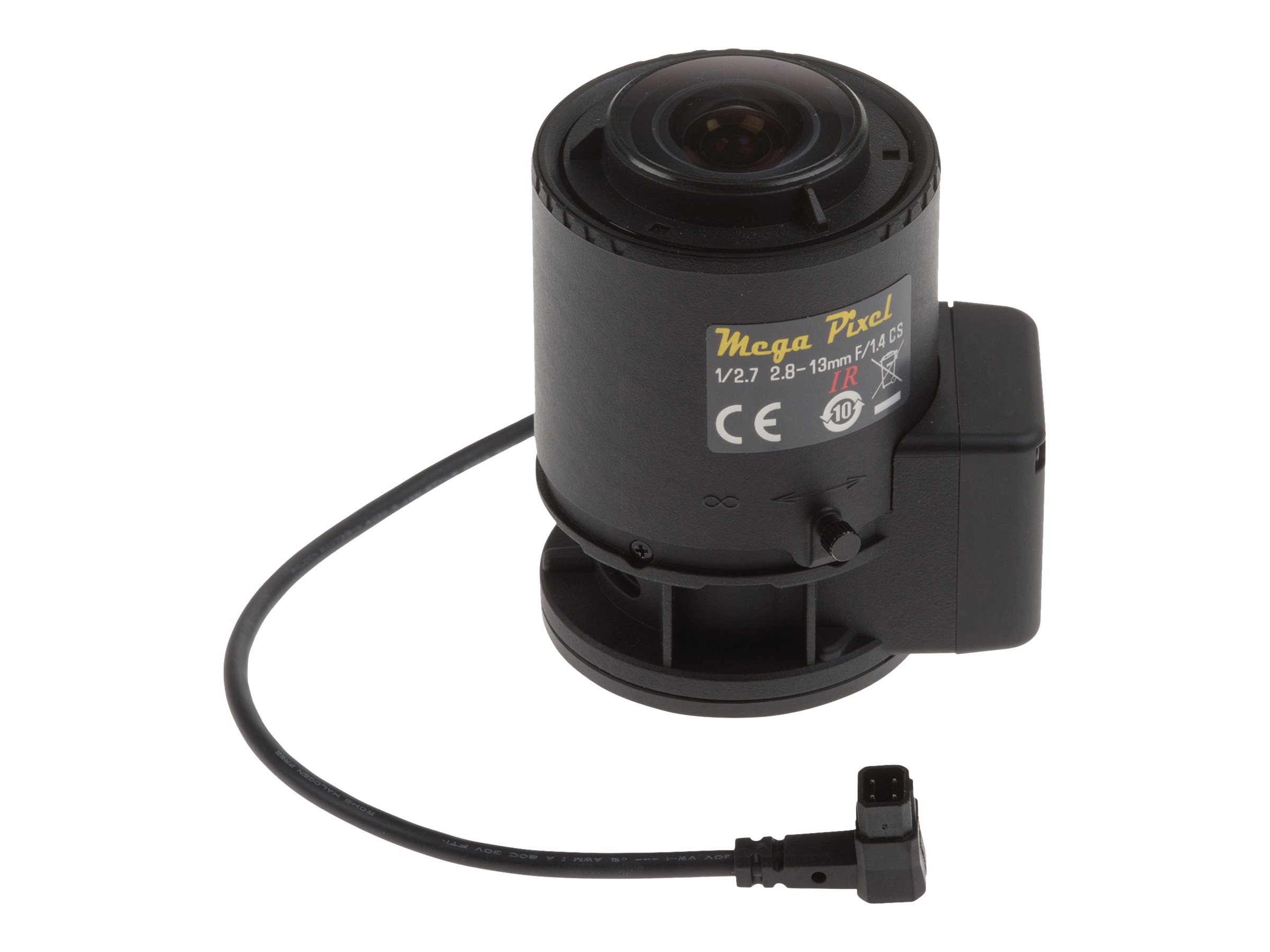

| Lens Construction | |
| Focal Length | 2.8 mm - 13 mm |
| Horizontal Field of View (degree) | 24 - 112 |
| Lens Iris | F/1.4 auto iris (DC) |
| Optical Zoom | 4.6 x |
| Type | CS-mount - vari-focal |
| Vertical Field of View (degree) | 14 - 82 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black, white |
| Compliant Standards | C-Tick, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-30, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, VCCI Class A, EN 50581, KN24, KCC KN22, AS/NZS CISPR22:2004 Class A, EN 55022 Class A |
| Included Accessories | Stand |
| Power | |
| Power Device | 7.2 Watt |
| Power Requirements | DC 8 - 28 V / PoE |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user license |
