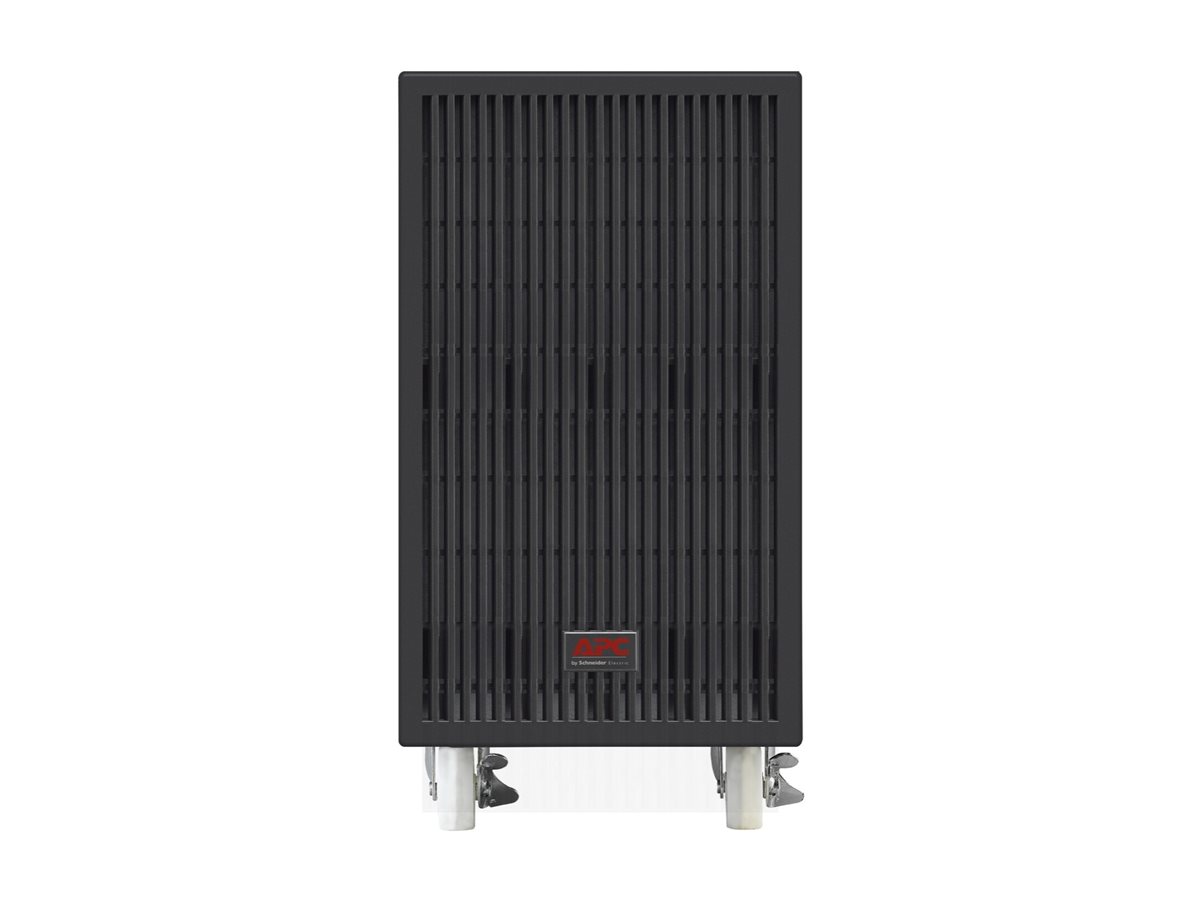

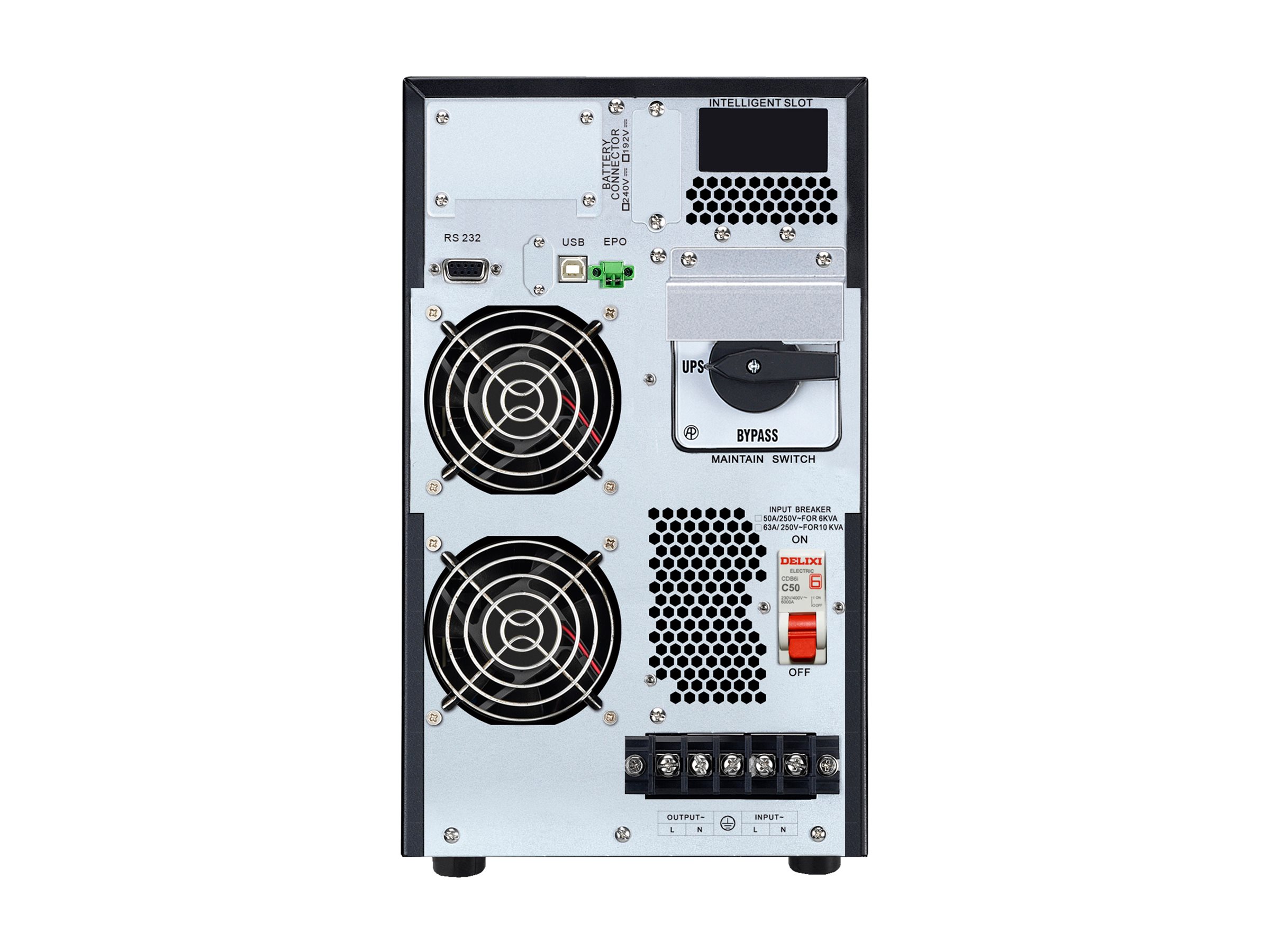

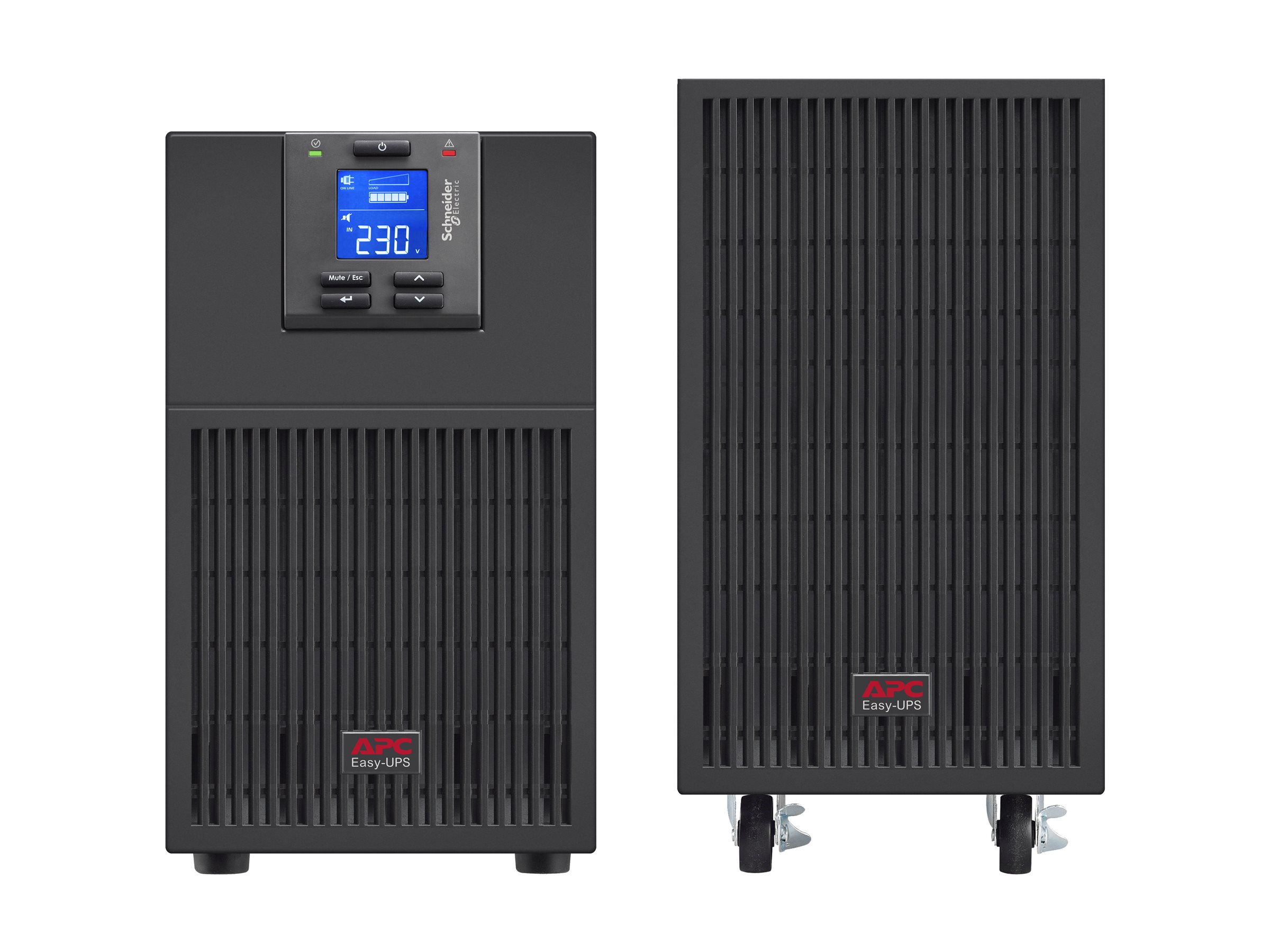

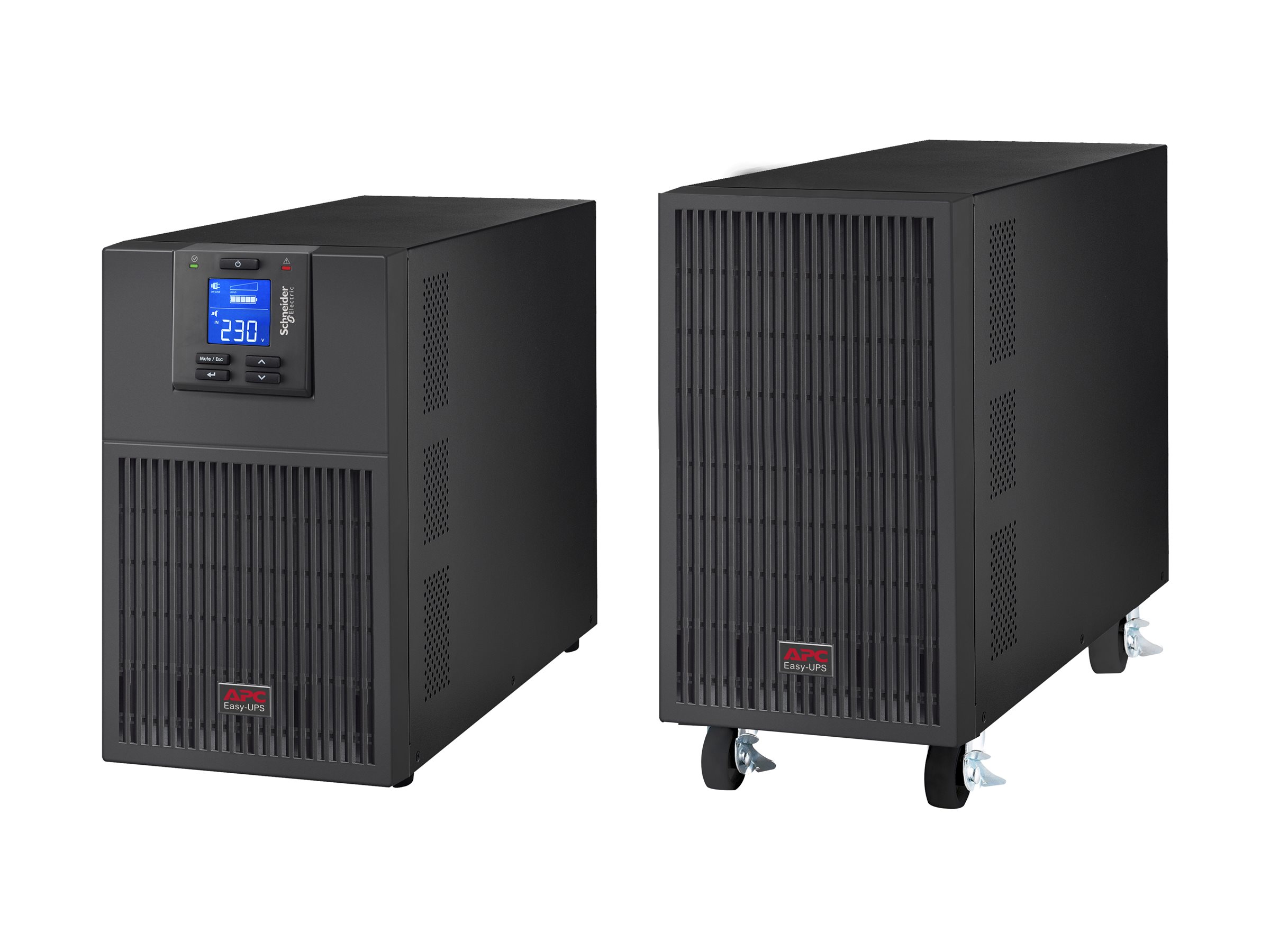

APC Easy UPS SRV SRV10KIL
MSRP€5,225.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC Easy UPS SRV SRV10KIL
- UPS
- AC 220-240 V
- 10000 Watt
- 10000 VA
- 1-phase
- USB, RS-232
- output connectors: 1
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | €5,225.00 |
| Mfr Part #: | SRV10KIL |
| SHI Part #: | 37322992 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | APC Easy UPS SRV SRV10KIL - UPS - AC 220-240 V - 10000 Watt - 10000 VA - 1-phase - USB, RS-232 - output connectors: 1 |
| Manufacturer | APC by Schneider Electric |
| MSRP | €5,225.00 |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 44.7 cm |
| Dimensions & Weight / Height | 33.6 cm |
| Dimensions & Weight / Weight | 16.5 kg |
| Dimensions & Weight / Width | 19 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 1 |
| Power Device / Power Capacity (VA) | 10000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 220-240 V |
| Product Type | UPS |
| Battery | |
| Features | Sealed, maintenance free |
| Quantity | 1 |
| Technology | Lead acid |
| Dimensions & Weight | |
| Depth | 44.7 cm |
| Height | 33.6 cm |
| Weight | 16.5 kg |
| Width | 19 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 58 dB |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | UPS - external |
| Miscellaneous | |
| Features | LCD display, Eco-Mode, generator compatible, overvoltage protection, internal bypass, firmware upgradable |

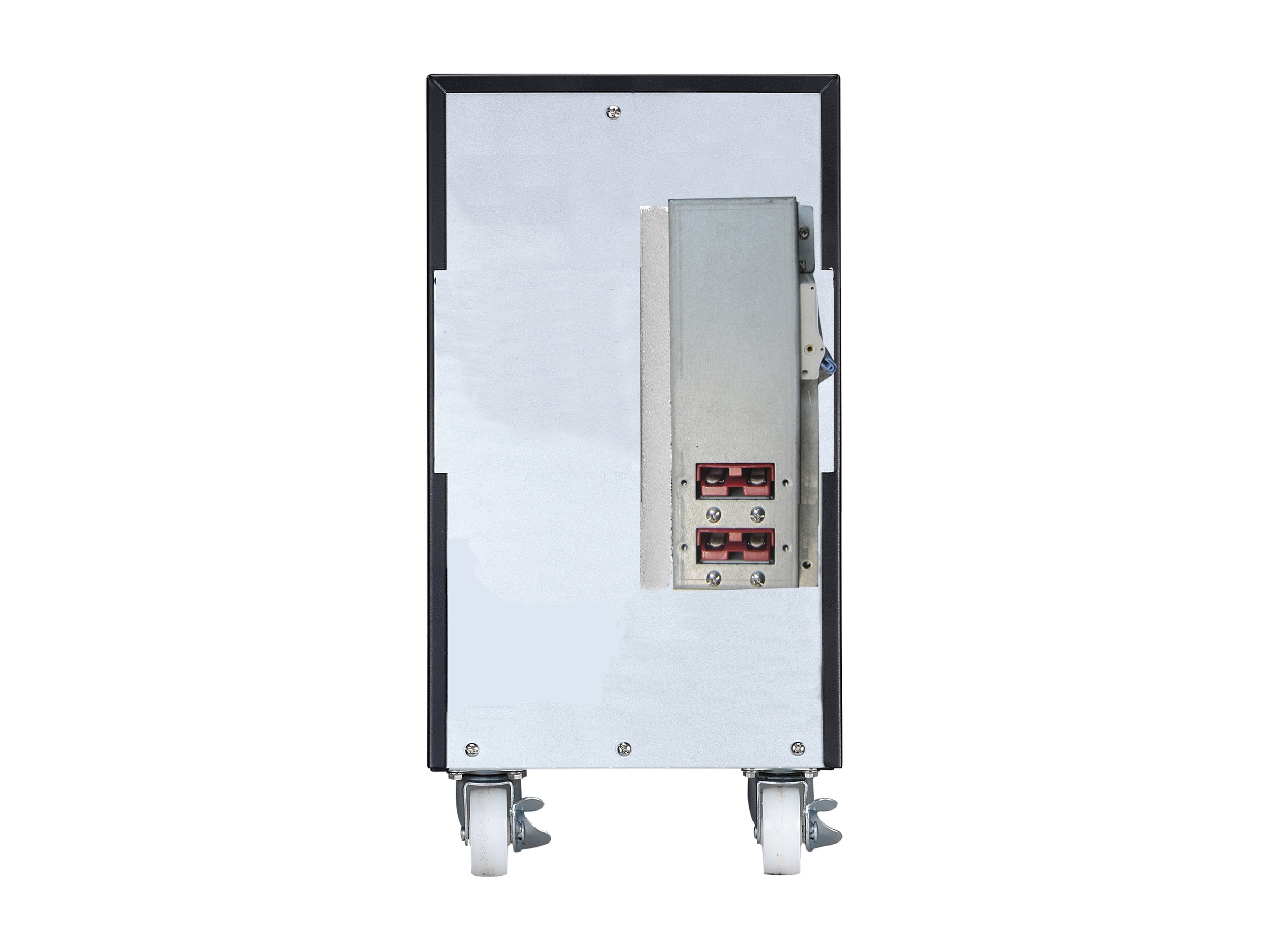

| Included Accessories | External battery pack |
| Networking | |
| Remote Management Interface | USB, RS-232 |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 94% AC mode |
| Frequency Provided | 50/60 Hz ± 4Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x terminal block |
| Input Voltage | AC 220-240 V |
| Input Voltage Range | AC 110 - 300 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 220/230/240 V ± 1% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 10000 watt / 10000 VA |
| Power Factor (PF) | 0.99 |
| Power Output Connectors Details | 1 x terminal block |
| Surge Energy Rating | 600 joules |
| UPS Technology | On-line |
| Software / System Requirements | |
| Software Included | APC Easy Ups Online SNMP Shutdown Wizard |
