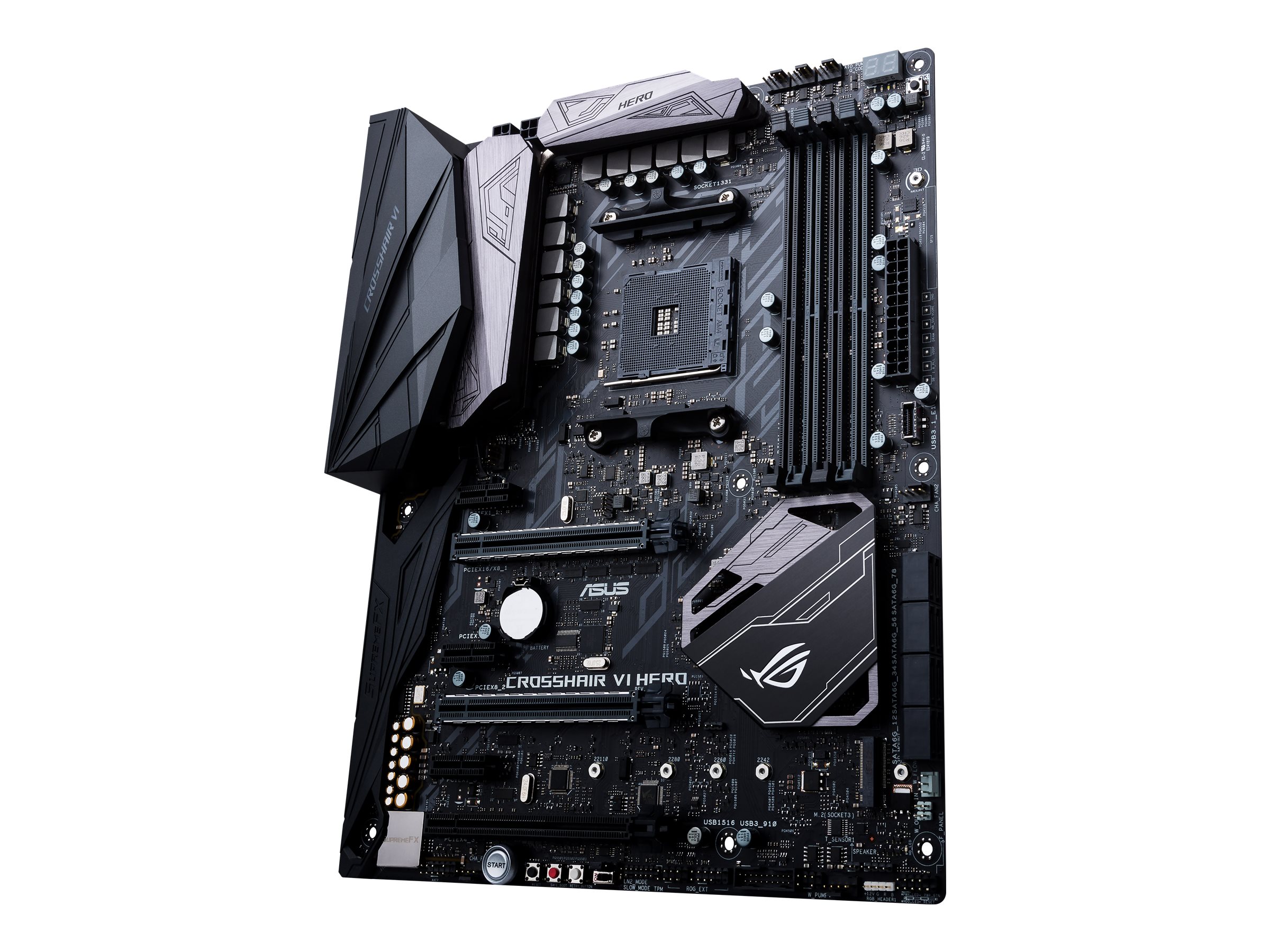

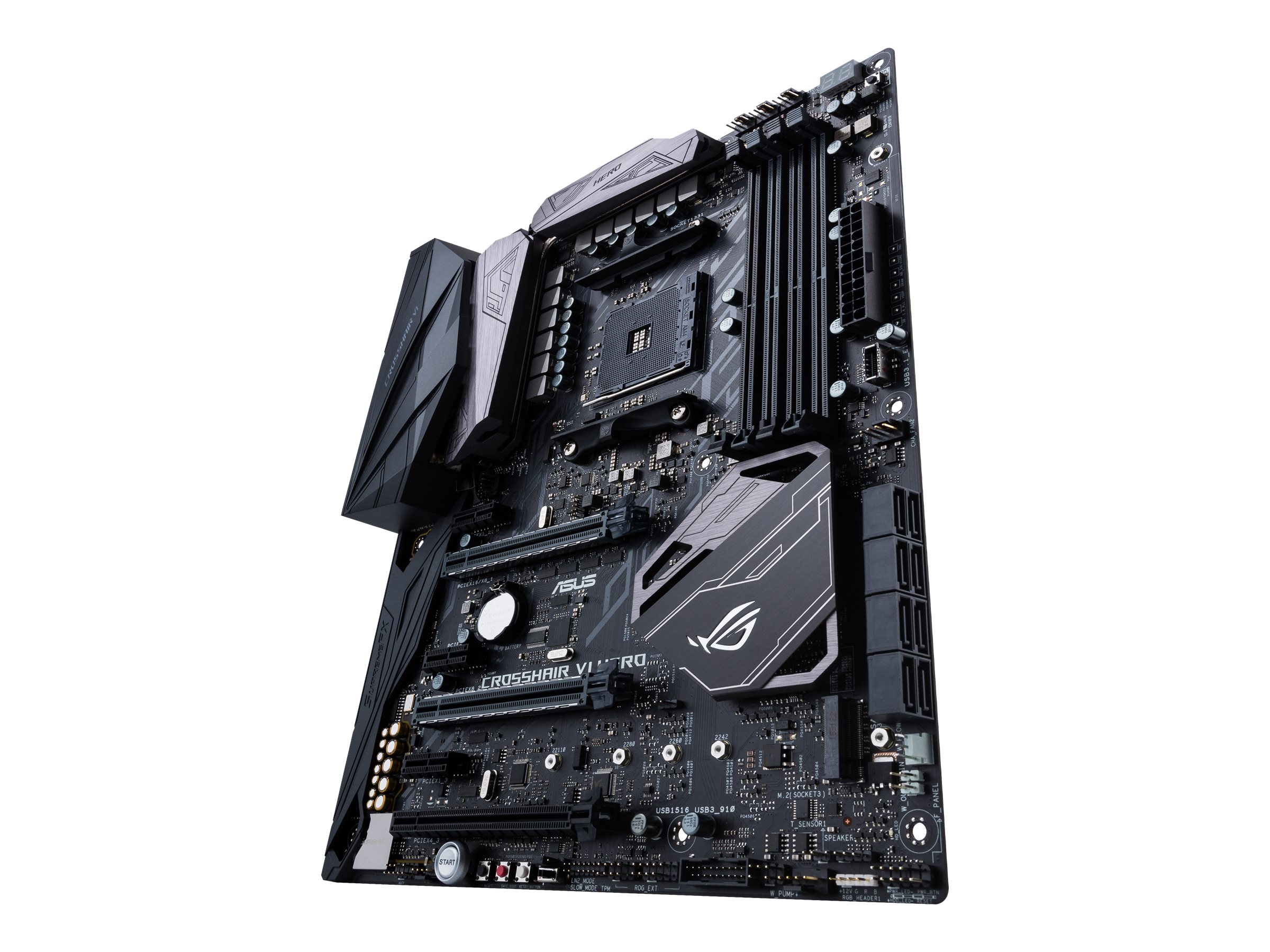

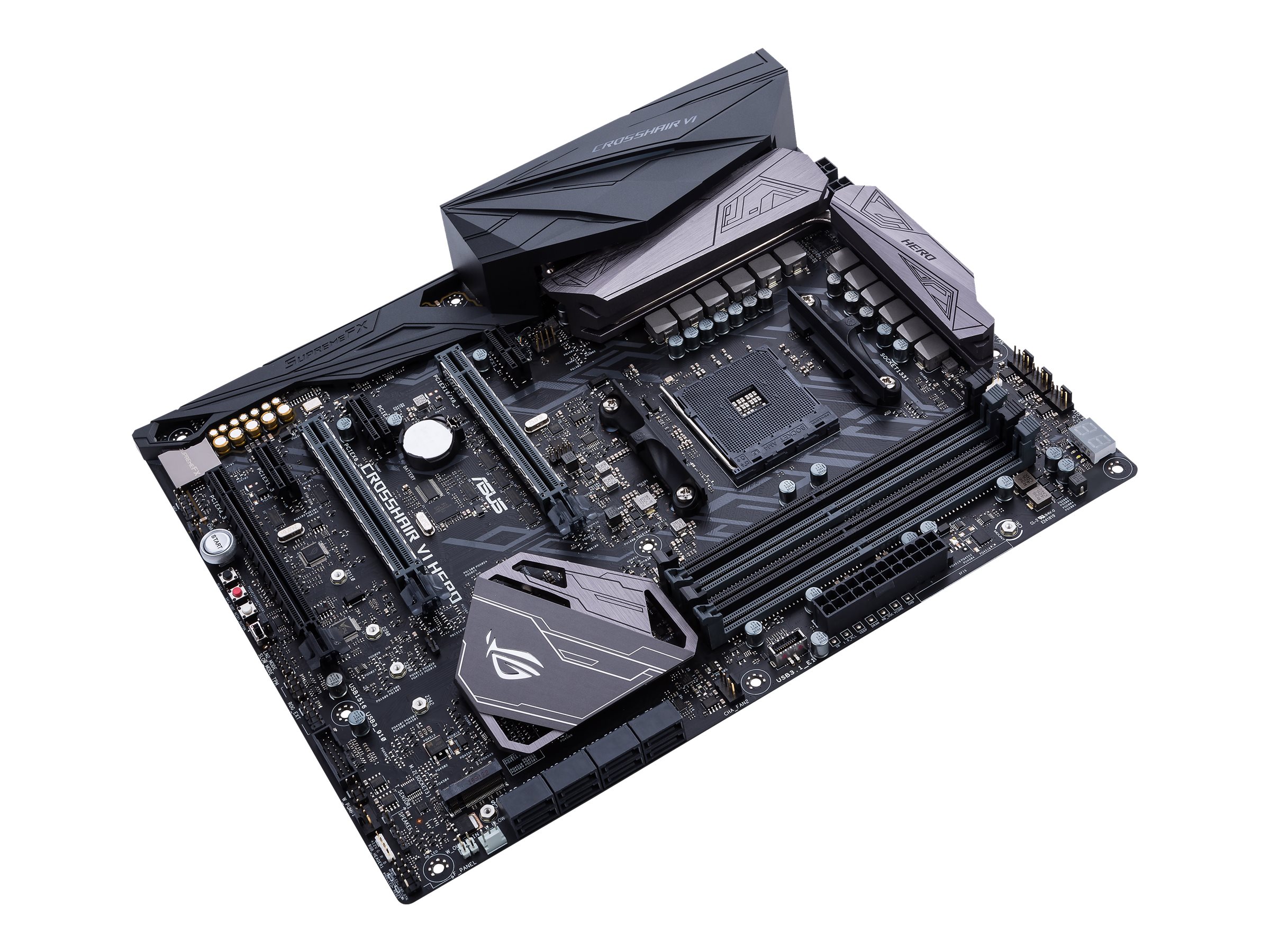

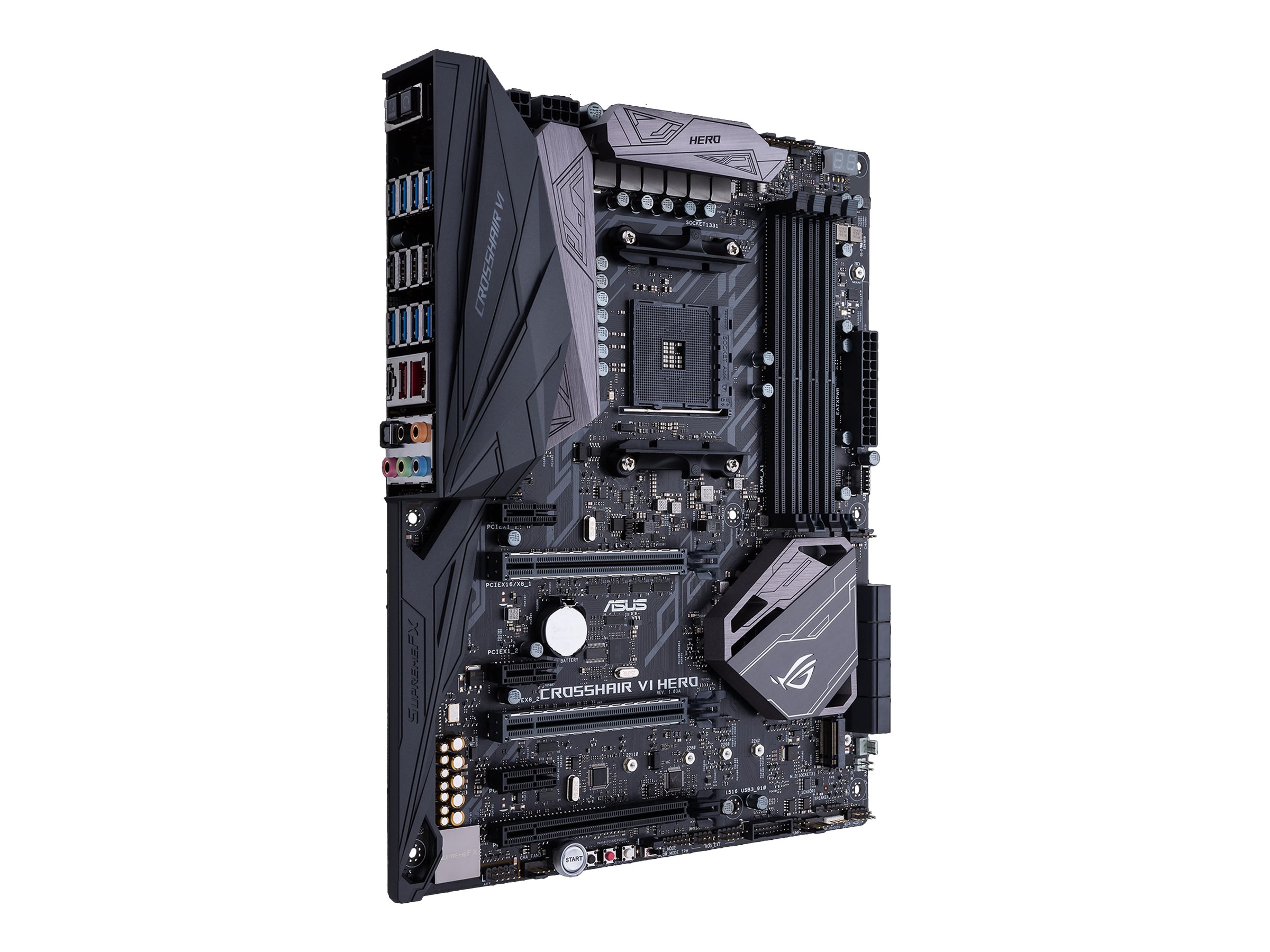

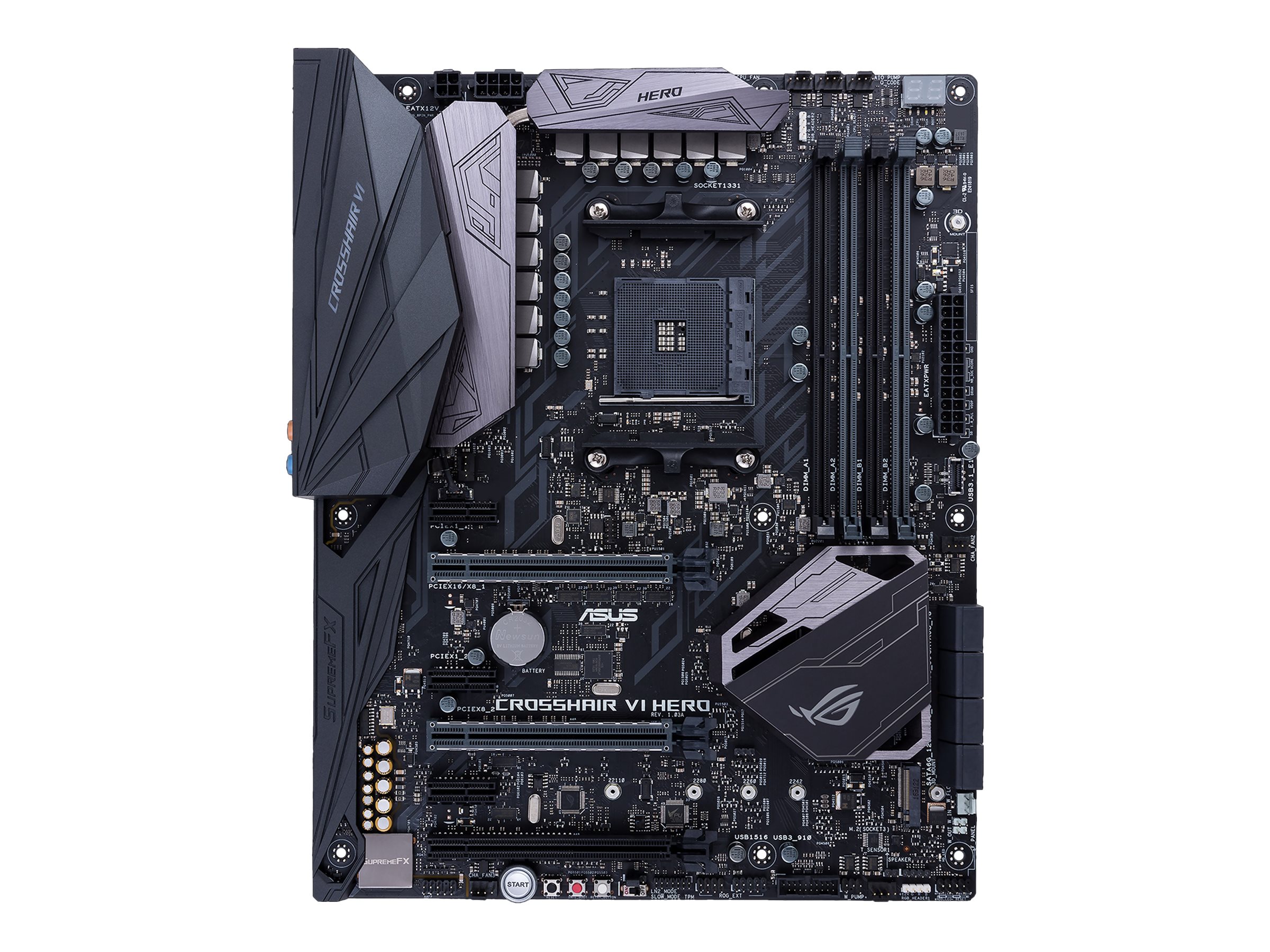

ASUS ROG CROSSHAIR VI HERO
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ASUS ROG CROSSHAIR VI HERO
- Motherboard
- ATX
- Socket AM4
- AMD X370 Chipset

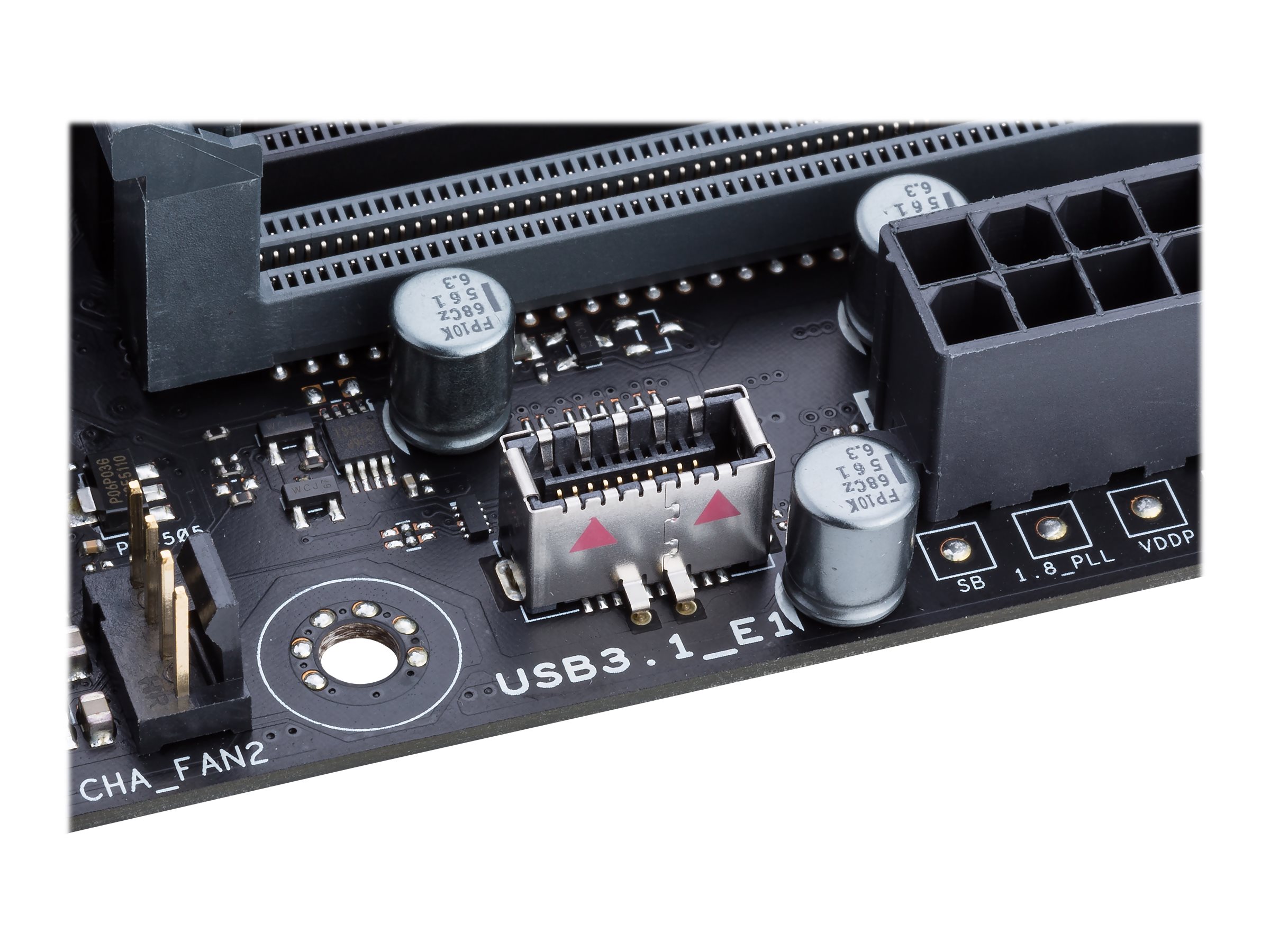

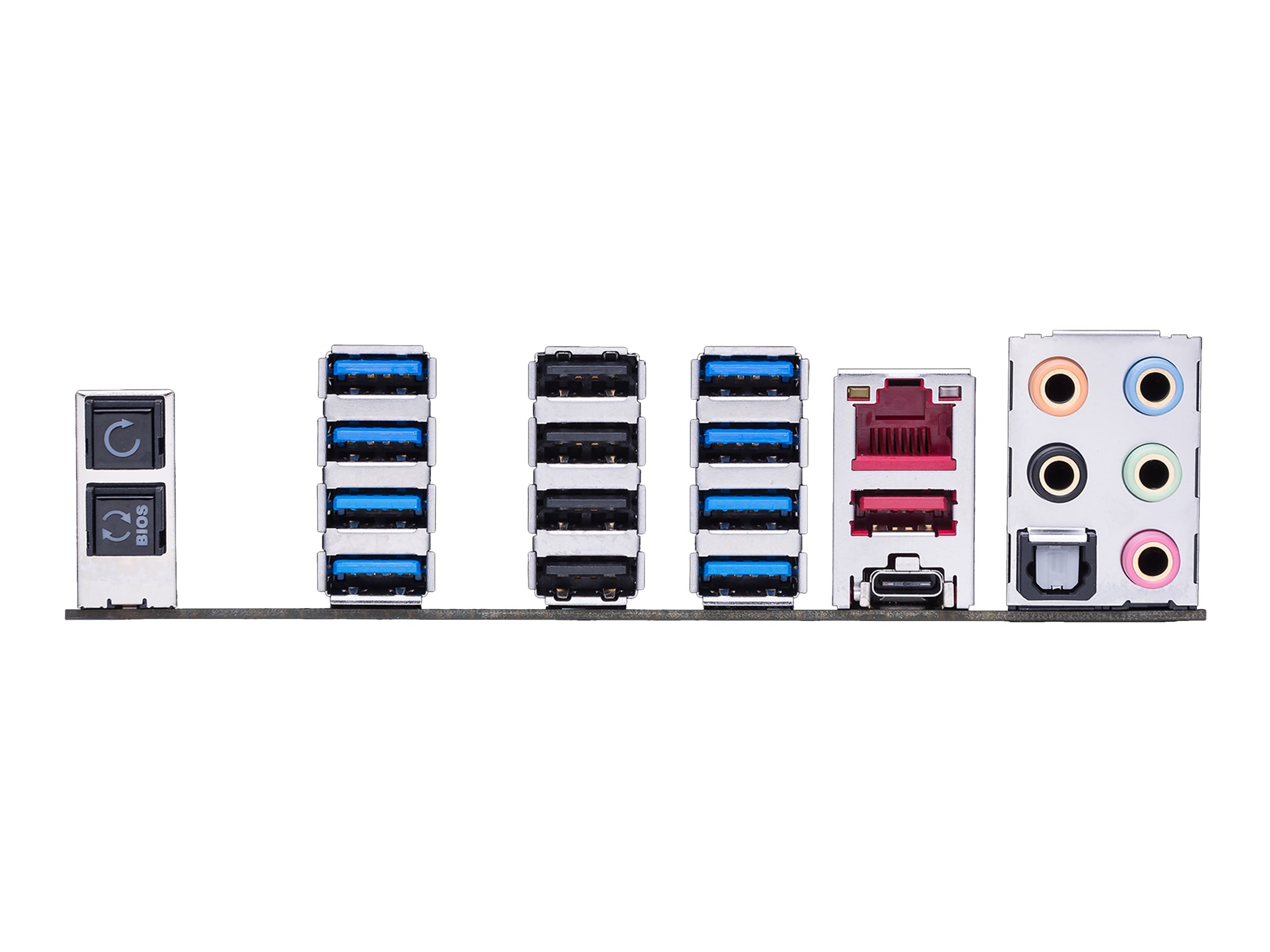

- USB 3.0, USB 3.1, USB-C
- Gigabit LAN
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Mfr Part #: | 90MB0SC0-M0EAY0 |
| SHI Part #: | 33523254 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASUS ROG CROSSHAIR VI HERO - Motherboard - ATX - Socket AM4 - AMD X370 Chipset - USB 3.0, USB 3.1, USB-C - Gigabit LAN - HD Audio (8-channel) |
| Manufacturer | ASUS |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | ASUS |
| Mainboard / Chipset Type | AMD X370 |
| Mainboard / Compatible Processors |
|
| Mainboard / Processor Socket | Socket AM4 |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Video Output / Type | None |
| Audio | |

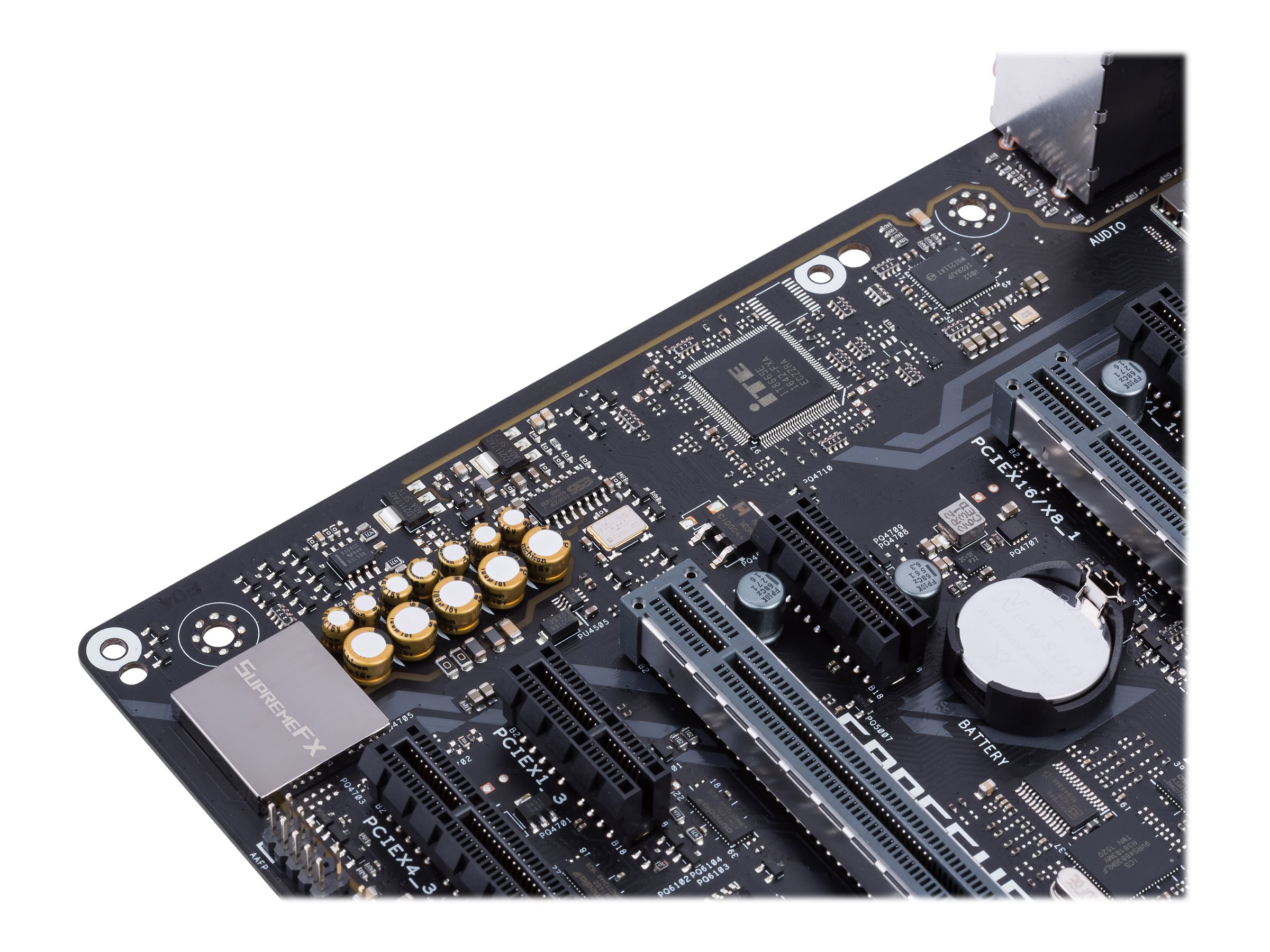

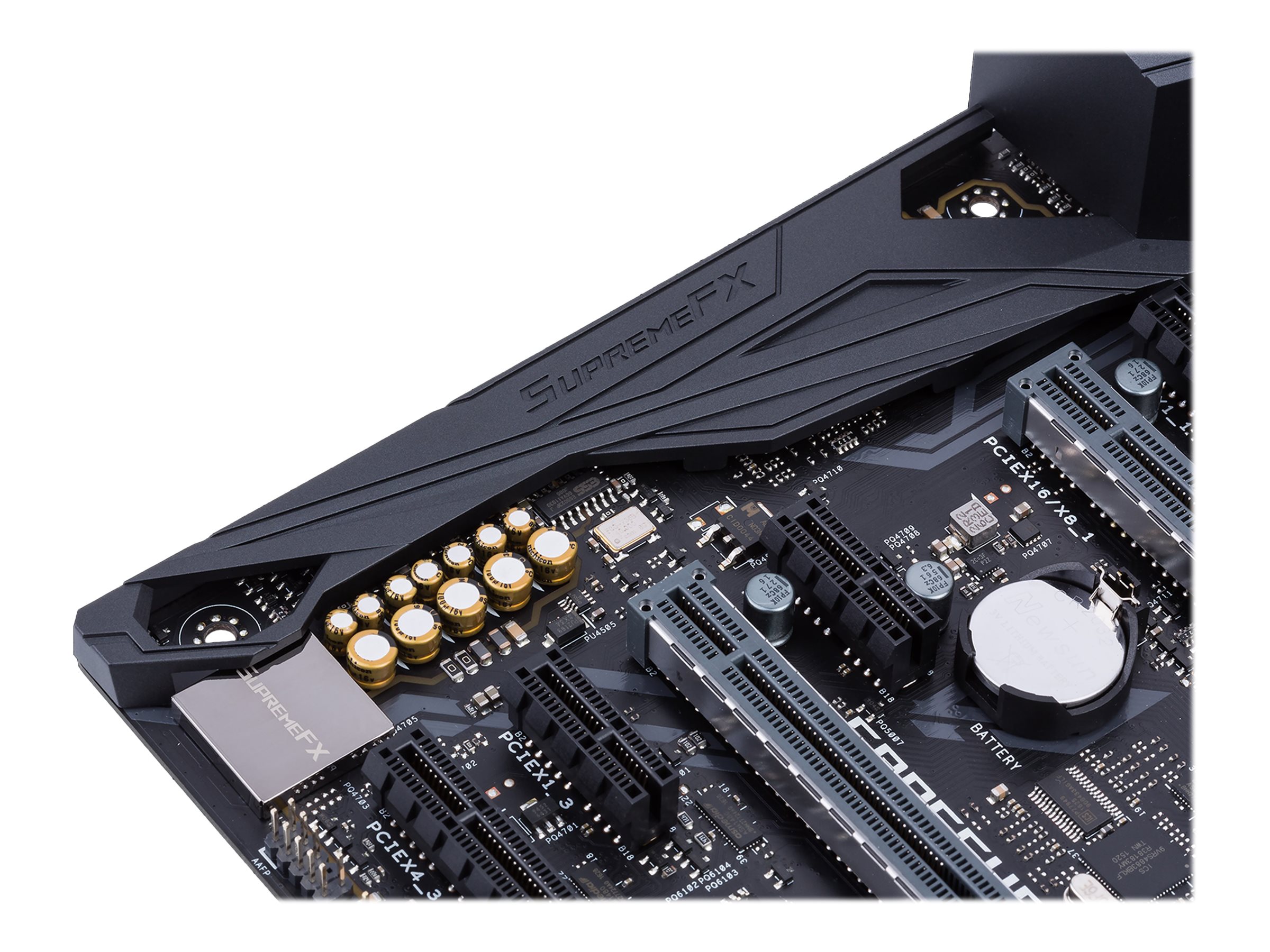

| Audio Codec | SupremeFX (S1220) |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | WfM 2.0 support, Multilingual BIOS, ASUS O.C. Profile, BIOS FlashBack, UEFI BIOS, ACPI 5.0 support, ASUS EZ Flash 3, SMBIOS 3.0 support |
| BIOS Type | AMI |
| Hardware Features | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS Q-Shield, ASUS Loadline Calibration, NVIDIA 2-way SLI Technology Support, ASUS TPU (TurboV Processing Unit), Q-Code, SupremeFX Shielding technology, AMD CrossFireX technology support, Onboard Button, Preboot eXecution Environment (PXE), Dual Intelligent Processors 5, LANGuard, KeyBot II, ROG SSD Secure Erase, ASUS Gamer's Guardian, AURA RGB Lighting Control, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, Mem TweakIt |
| Sleep / Wake Up | Wake on LAN (WOL), wake on ring (WOR) |
| General | |
| Chipset Type | AMD X370 |
| Compatible Processors | Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - ATX |
| LAN | |

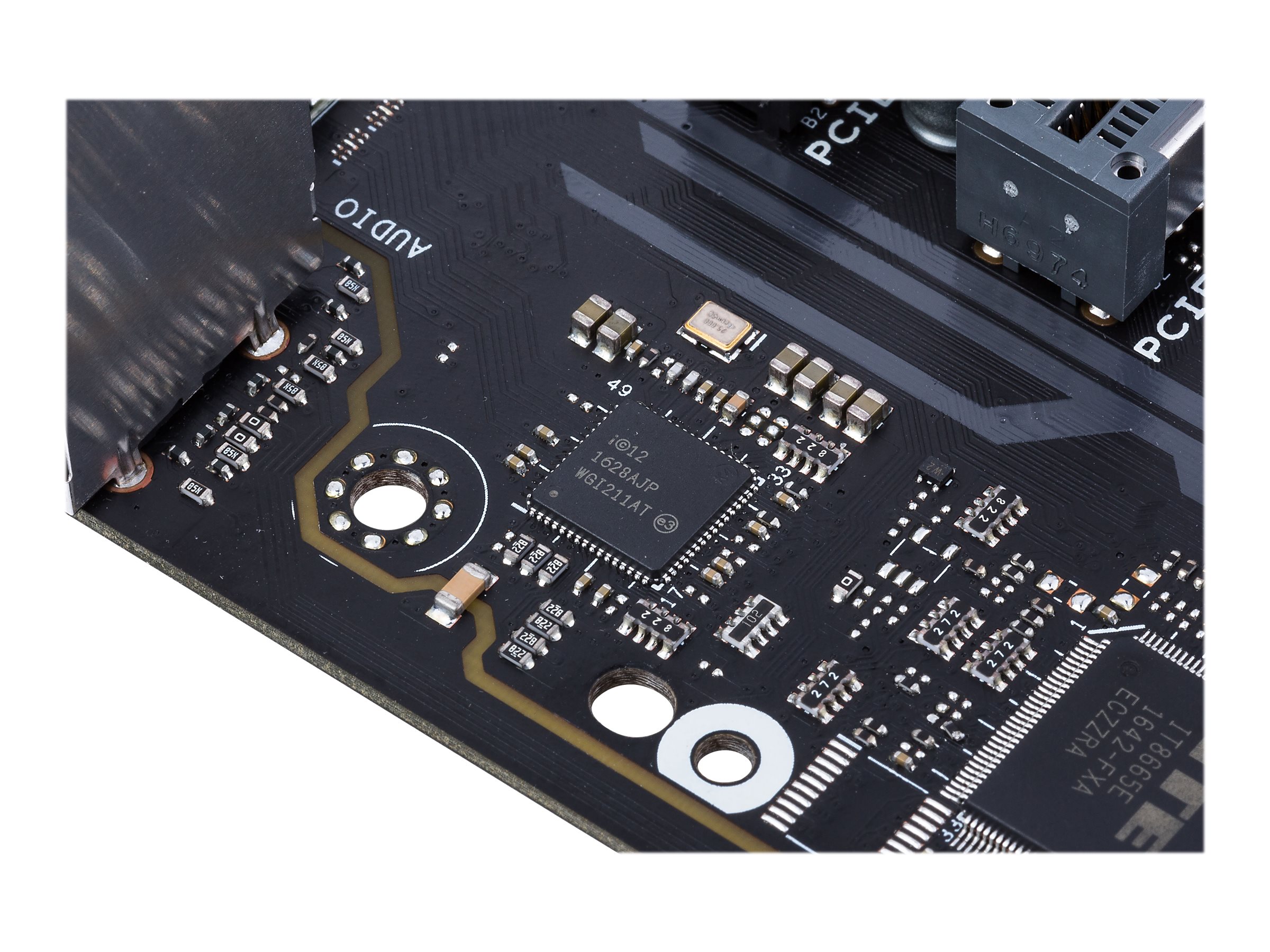

| Network Controller | Intel I211-AT |
| Network Interfaces | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | Plug and Play |
| Depth | 24.4 cm |

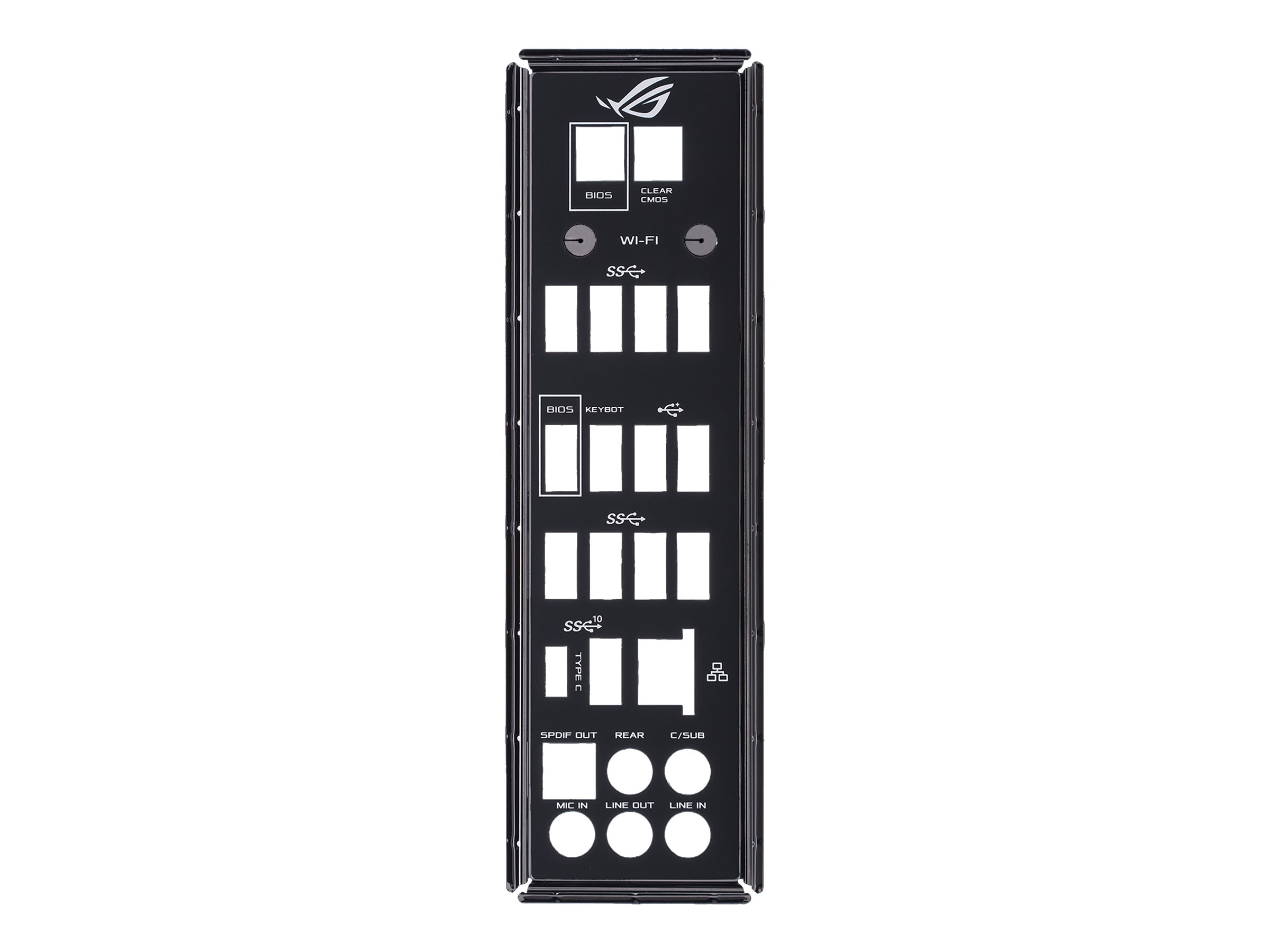

| Included Accessories | ROG cable lables, 1 x M.2 screw, I/O back cover, ROG coasters, RGB (RGBW) LED strip extension cable, 3D printing mount package |
| Software Included | Drivers & utilities, Kaspersky Anti-Virus, ROG CPU-Z, ROG Mem TweakIt Utility, ASUS WebStorage, WinZip, ROG RAMDisk, Overwolf, ASUS EZ Flash 3, ROG Aura, ROG GameFirst IV, ASUS ROG RAMCache II, ROG CloneDrive, DAEMON Tools |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz (O.C.), 3200 MHz (O.C.) |
| Features | Dual channel memory architecture |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR4 |
