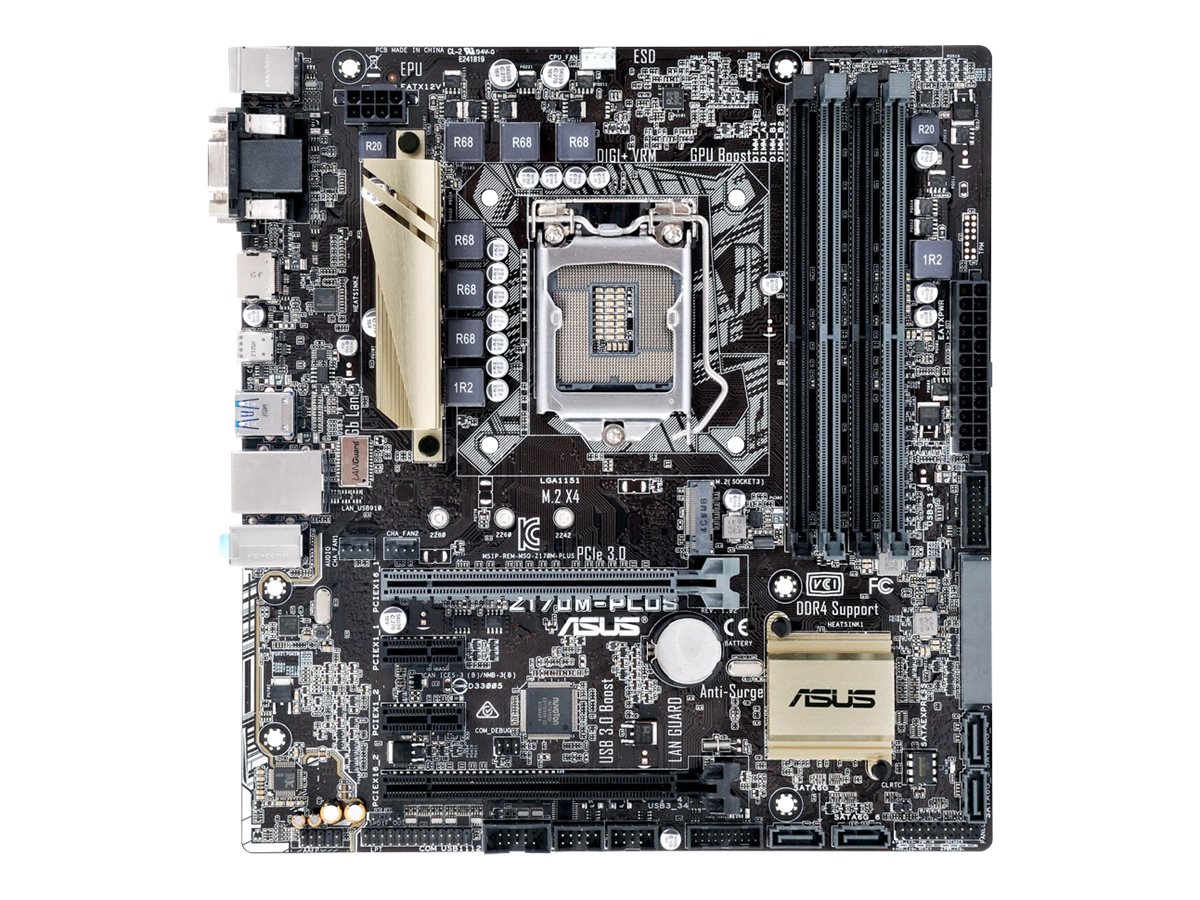

ASUS Z170M-PLUS - Motherboard
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ASUS Z170M-PLUS - Motherboard
- micro ATX
- LGA1151 Socket
- Z170 Chipset
- USB 3.0, USB-C
- Gigabit LAN
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Mfr Part #: | Z170M-PLUS |
| SHI Part #: | 30724006 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASUS Z170M-PLUS - Motherboard - micro ATX - LGA1151 Socket - Z170 Chipset - USB 3.0, USB-C - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASUS |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 22.7 cm |
| Dimensions & Weight / Width | 24.4 cm |
| Header / Brand | ASUS |
| Mainboard / Chipset Type | Intel Z170 |
| Mainboard / Compatible Processors |
|
| Mainboard / Processor Socket | LGA1151 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| RAID Features | Intel Smart Response Technology |
| Storage Interfaces | SATA-600 / PCIe 3.0 -connectors: 6 x 7pin SATA, 1 x M.2, 1 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Features | |
| BIOS Features | WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ACPI 5.0 support, ASUS EZ Flash 3, DMI 3.0 support, SMBIOS 3.0 support |
| BIOS Type | AMI |
| Hardware Features | Jack retasking, ASUS Anti-Surge Protection, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, GPU Boost, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Extreme Memory Profile (XMP) support, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Fanless Design Heatsink, USB 3.0 Boost, AMD Quad CrossFireX technology support, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Disk Unlocker, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), Clear CMOS Button, ASUS Stainless Steel Back I/O, ASUS Fan Xpert 3, LANGuard, ASUS Overvoltage Protection, ASUS 5X Protection II |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| General | |
| Chipset Type | Intel Z170 |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
| Max Processors Qty | 1 |
| Processor Socket | LGA1151 Socket |
| Product Type | Motherboard - micro ATX |
| Graphics | |
| Max Allocated RAM Size | 1024 MB |
| LAN | |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | Plug and Play |
| Depth | 22.7 cm |
| Included Accessories | I/O back plate, 1 x M.2 screw |
| Software Included | ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, Antivirus (OEM version), Mobo Connect, PC Cleaner, Media Streamer |
| Width | 24.4 cm |
| Supported RAM | |
| Bus Clock | 2133 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2400 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR4 |
