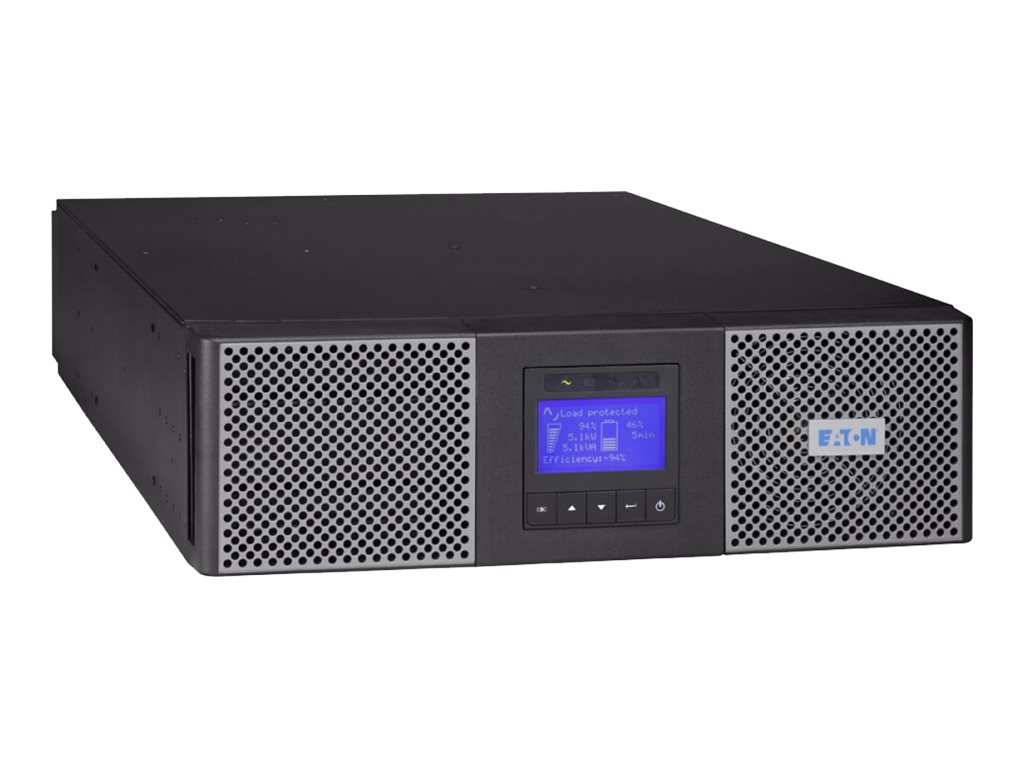

Eaton 9PX 9PX8KIPM - UPS (rack-mountable / external)
MSRP€4,861.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Eaton 9PX 9PX8KIPM - UPS (rack-mountable / external)
- AC 200/208/220/230/240/250 V
- 7200 Watt
- 8000 VA
- RS-232, USB
- PFC
- 3U
- 19"
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | €4,861.00 |
| Mfr Part #: | 9PX8KIPM |
| SHI Part #: | 26369388 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | Eaton 9PX 9PX8KIPM - UPS (rack-mountable / external) - AC 200/208/220/230/240/250 V - 7200 Watt - 8000 VA - RS-232, USB - PFC - 3U - 19" |
| Manufacturer | Eaton |
| MSRP | €4,861.00 |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 70 cm |
| Dimensions & Weight / Height | 13 cm |
| Dimensions & Weight / Weight | 19 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | Eaton |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Power Capacity (VA) | 8000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 200/208/220/230/240/250 V |
| Product Type | UPS |
| Service & Support / Type | 2-year warranty |
| System Requirements / OS Required |
|
| Battery | |
| Type | Expandable |
| Dimensions & Weight | |
| Depth | 70 cm |
| Height | 13 cm |
| Weight | 19 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 48 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces |
|
| General | |
| Battery Enclosure Type | Plug-in module |
| Device Type | UPS - Power Factor Correction (PFC) - rack-mountable / external |
| Height (Rack Units) | 3U |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, TUV, UL 1778, CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2, CSA 22.2, EN 62040-1-1, EN 62040-2 |
| Features | Advance Battery Management (ABM), LCD display, LED indicators, deep discharge protection, automatic self-test |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | Hardwire |
| Input Voltage | AC 200/208/220/230/240/250 V |
| Input Voltage Range | AC 176 - 276 V |
| Output Voltage | AC 200/208/220/230/240/250 V ± 1% - 50/60 Hz |
| Power Capacity | 7200 watt / 8000 VA |
| Power Output Connectors Details |
|
| Supported Power Modules Qty | 12 |
| Surge Suppression | Yes |
| UPS Technology | On-line |
| Software / System Requirements | |
| OS Required | Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7, Microsoft Windows Server 2008 |
| Software Included | Intelligent Power Software Suite |
| Sustainability Information | |
| ENERGY STAR | Yes |
