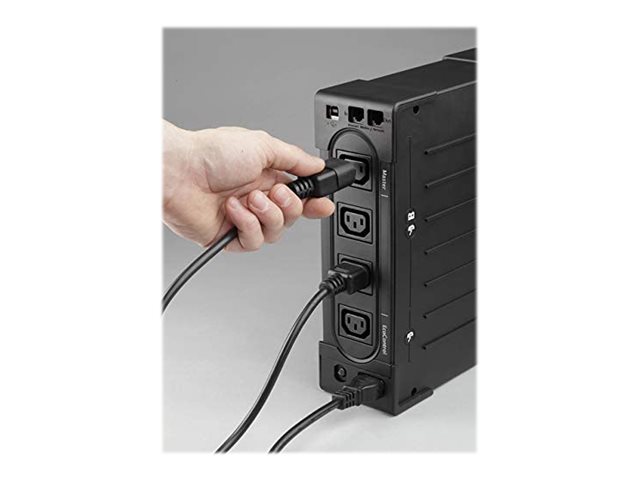

Eaton Ellipse ECO 650 USB IEC
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Eaton Ellipse ECO 650 USB IEC
- UPS (rack-mountable / external)
- AC 230 V
- 400 Watt
- 650 VA
- USB
- output connectors: 4
- 2U
- 19"
| Additional Details | |
|---|---|
| Mfr Part #: | EL650USBIEC |
| SHI Part #: | 23710997 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | Eaton Ellipse ECO 650 USB IEC - UPS (rack-mountable / external) - AC 230 V - 400 Watt - 650 VA - USB - output connectors: 4 - 2U - 19" |
| Manufacturer | Eaton |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 23.5 cm |
| Dimensions & Weight / Height | 26.3 cm |
| Dimensions & Weight / Weight | 3.6 kg |
| Dimensions & Weight / Width | 8.1 cm |
| Header / Brand | Eaton |
| Networking / Remote Management Interface | USB |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 4 |
| Power Device / Power Capacity (VA) | 650 VA |
| Power Device / UPS Technology | Off-line |
| Power Device / Voltage Required | AC 230 V |
| Product Type | UPS |
| Service & Support / Type | 2-year warranty |
| System Requirements / OS Required |
|
| Battery | |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Dimensions & Weight | |
| Depth | 23.5 cm |
| Height | 26.3 cm |
| Weight | 3.6 kg |
| Width | 8.1 cm |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 4 pin USB Type B |
| General | |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | USB cable - external |
| Compliant Standards | CB, IEC 62040-1-1, IEC 62040-2, IEC 60950-1, IEC 61643-1 |
| Features | Wall mountable, audible alarm, LED indicators, deep discharge protection, cold-start function, Eco-efficiency |
| Rack Mounting Kit | Optional |
| Networking | |
| Remote Management Interface | USB |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 184 - 264 V |
| Input Voltage Range (Adjustable) | AC 161 - 284 V |
| Output Voltage | AC 220/230/240 V 50/60 Hz |
| Power Capacity | 400 watt / 650 VA |
| Power Output Connectors Details |
|
| Surge Suppression | Yes |
| UPS Technology | Off-line |
| Software / System Requirements | |
| OS Required | Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7 |
| Software Included | Intelligent Power Manager |
