Socket Mobile XtremeScan Grip XG940
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

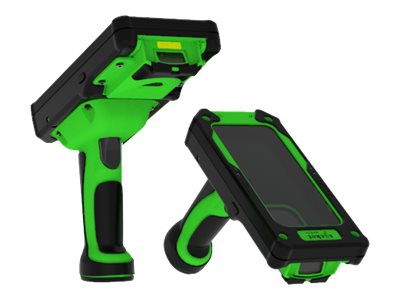

Socket Mobile XtremeScan Grip XG940
- Barcode scanner
- portable
- 2D imager
- decoded
- Bluetooth 2.1 EDR
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | CX4184-3251 |
| SHI Part #: | 47139725 |
| Category: | Light pen or barcode scanner |
| UNSPSC: | 43211707 |
| Manufacturer: | Socket Mobile |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Light pen or barcode scanner |
| Description | Socket Mobile XtremeScan Grip XG940 - Barcode scanner - portable - 2D imager - decoded - Bluetooth 2.1 EDR |
| Manufacturer | Socket Mobile |
| UNSPSC | 43211707 |
| Main Specifications | |
| Dimensions & Weight / Depth | 19.31 cm |
| Dimensions & Weight / Height | 20.32 cm |
| Dimensions & Weight / Width | 9.1 cm |
| Header / Brand | Socket Mobile |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Scanner / Type | Barcode scanner |
| Service & Support / Type | 1-year warranty |
| System Requirements / OS Required | Apple iOS |
| Barcode | |
| Connectivity Technology | Wireless |
| Decode Capability | Bookland, Codabar, Code 39, Code 93, Code 128, EAN-13, EAN-18, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1-128, Interleaved 2 of 5, ISBT 128, UPC-A, UPC-E0, Aztec, Data Matrix, DotCode, MaxiCode, Micro PDF417, PDF 417, QR code, Australian Post, OCR-B, Chinese 2 of 5, Composite AB, Composite C, Composite TLC, Discrete 2 of 5, ISSN, Matrix 2 of 5, MSI, UPC/EAN/JAN Composites, GS1 QR code, Kix (Netherlands) Post, Han Xin, Japanese Post, UPU FICS, US Planet, US Postnet, USPS 4-state (US4CB), Intelligent Mail Barcode |
| Features | Replaceable battery, rugged |
| Interface Type | Bluetooth 2.1 EDR |
| Minimum Bar Width | 5 mil |
| OK Notification | LED indicator, beeper |
| Print Contrast Signal (PCS) | 25% |
| Scan Element Type | 2D imager |
| TTL Decoding | Decoded |
| Dimensions & Weight | |
| Depth | 19.31 cm |
| Height | 20.32 cm |
| Width | 9.1 cm |
| Environmental Parameters | |
| Drop Specification | 3.1 m |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Type | Barcode scanner - portable |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | 1 x charging cable - detachable |
| Compliant Standards | Laser Class 2, RoHS, Bluetooth Class 2, IP65, IEC 60068-2-31, IEC 60068-2-32, EN 62368-1:2020+A11:2020, IEC 62368-1:2018, UL 62368-1:2019, CSA C22.2 No. 62368-1:19, EN 50581, FCC Part 15 Class C, RSS-210, ICES 003, C-Tick, CISPR 22, EN55022, EN55024, TELEC, FCC, IC, IEC 60825-1, EN 60825-1, ISO 9001, UKCA, RCM, cTUVus, WEEE, EN 60529 |
| Networking | |
| Wireless Connectivity | Bluetooth 2.1 EDR |
| Power | |
| Battery | 1 x lithium polymer |
| System Requirements | |
| OS Required | Apple iOS |
