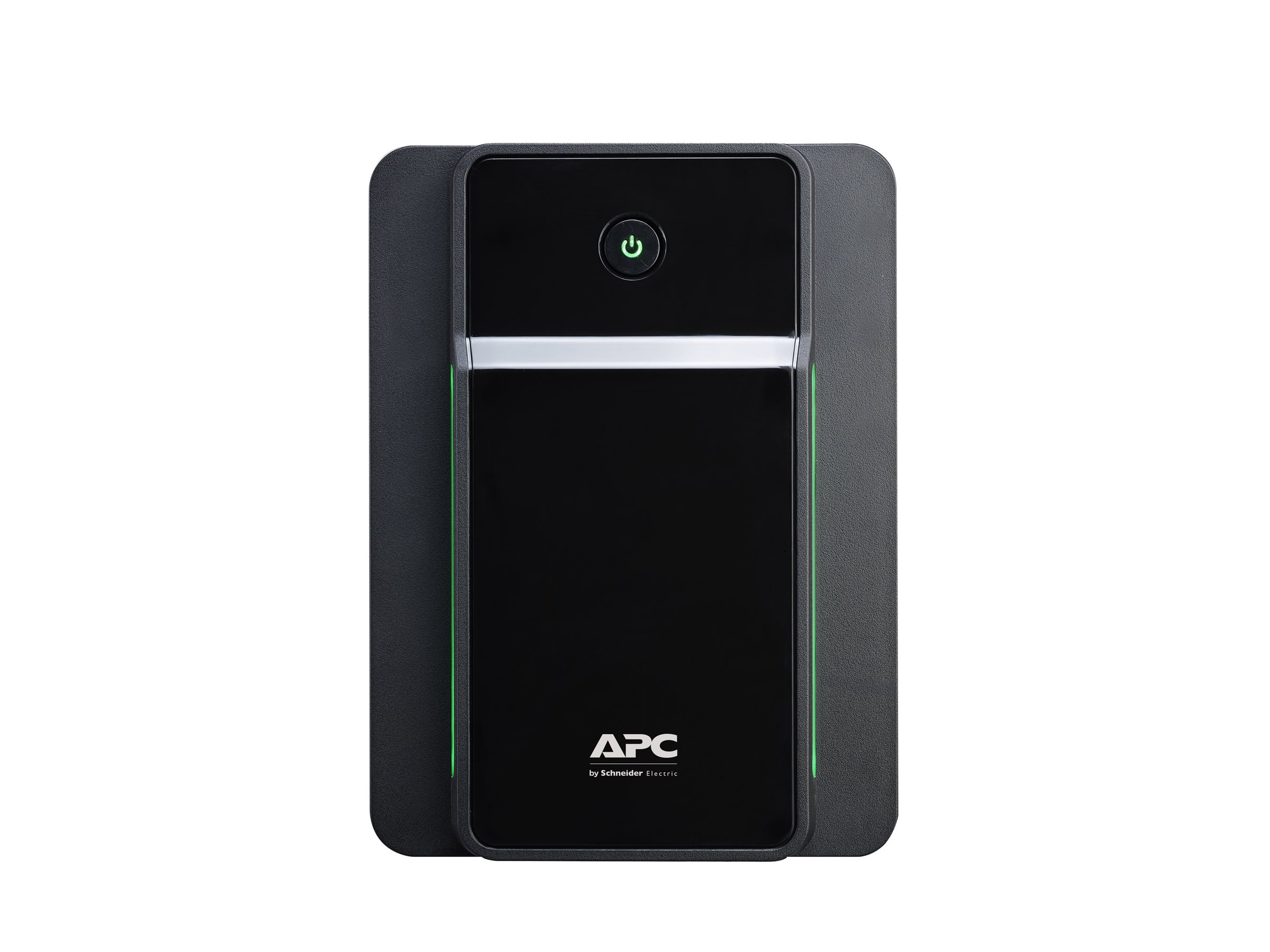

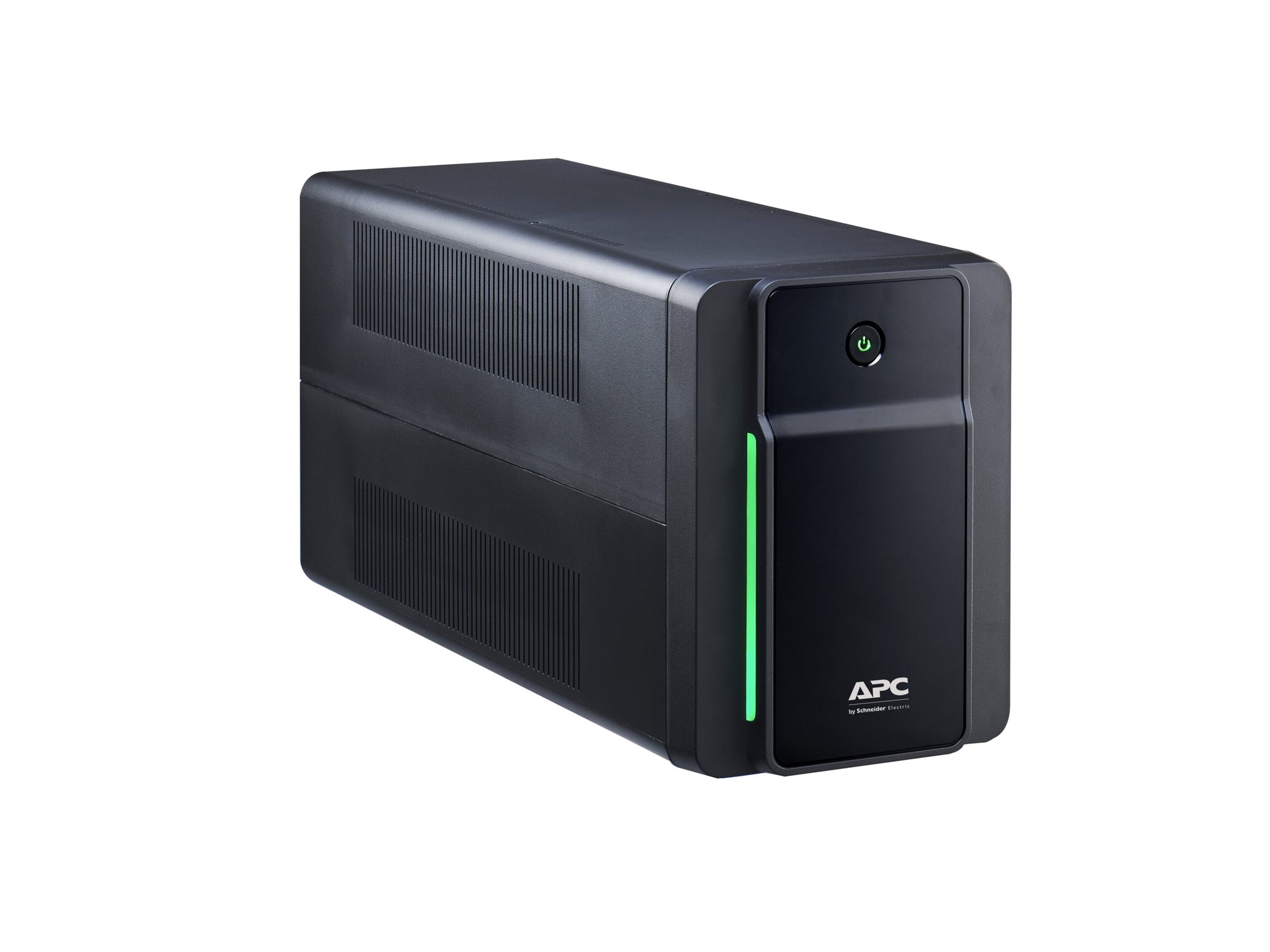

APC Back-UPS BX Series BX2200MI-FR
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC Back-UPS BX Series BX2200MI-FR
- UPS
- AC 230 V
- 1200 Watt
- 2200 VA
- output connectors: 4
- France
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | BX2200MI-FR |
| SHI Part #: | 41094026 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | APC Back-UPS BX Series BX2200MI-FR - UPS - AC 230 V - 1200 Watt - 2200 VA - output connectors: 4 - France - black |
| Manufacturer | APC by Schneider Electric |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 39 cm |
| Dimensions & Weight / Height | 19 cm |
| Dimensions & Weight / Weight | 12.3 kg |
| Dimensions & Weight / Width | 14 cm |
| General / Subcategory | UPS |
| Header / Brand | APC |
| Header / Country Kits | France |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 4 |
| Power Device / Power Capacity (VA) | 2200 VA |
| Power Device / Voltage Required | AC 230 V |
| Product Type | UPS |
| Service & Support / Type | 2-year warranty |
| Battery | |
| Recharge Time | 8 hours |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Dimensions & Weight | |
| Depth | 39 cm |
| Height | 19 cm |
| Weight | 12.3 kg |
| Width | 14 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 40 dBA |
| General | |
| Color | Black |
| Device Type | UPS - external |
| Localization | France |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 2 years |
| Miscellaneous | |
| Cables Included | Power cable - external - 1.22 m |
| Compliant Standards | EN 62040-1, EN 62040-2, IEC 62040-1, IEC 62040-2, CB, IP20, RoHS |
| Equipment Protection Value | 50000 Euros |
| Features | Automatic Voltage Regulation (AVR), audible alarm |
| Power Device | |
| Dataline Surge Protection | Network - RJ-45 - 1 input line / 1 output line |
| Frequency Provided | 50/60 Hz ± 1Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 140 - 300 V |
| Output Voltage | AC 230 V ± 10% - 50/60 Hz |
| Output Waveform | Stepped approximation to a sinewave |
| Power Capacity | 1200 Watt / 2200 VA |

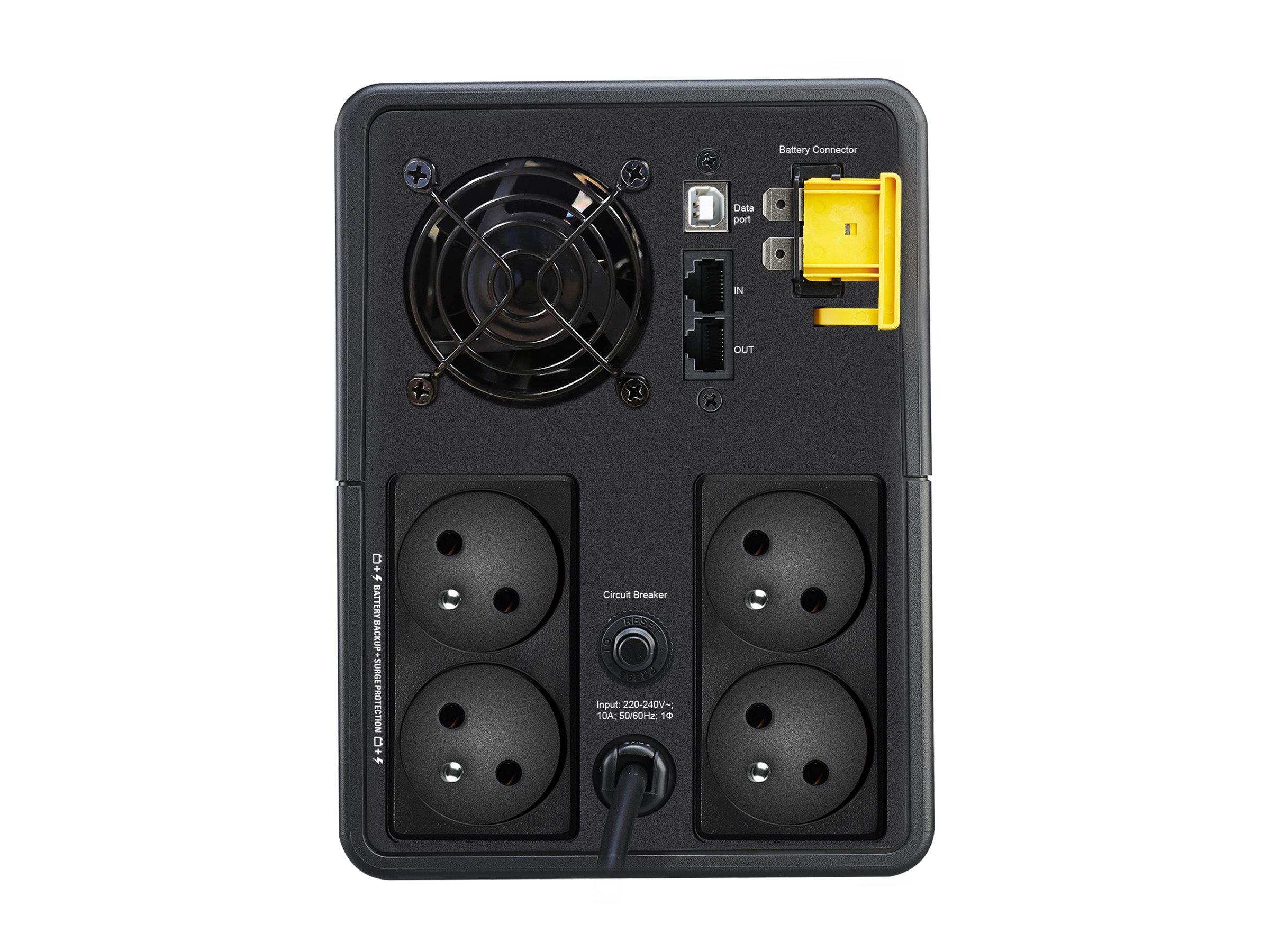

| Power Output Connectors Details | 4 x power Type E |
| Surge Energy Rating | 273 Joules |
