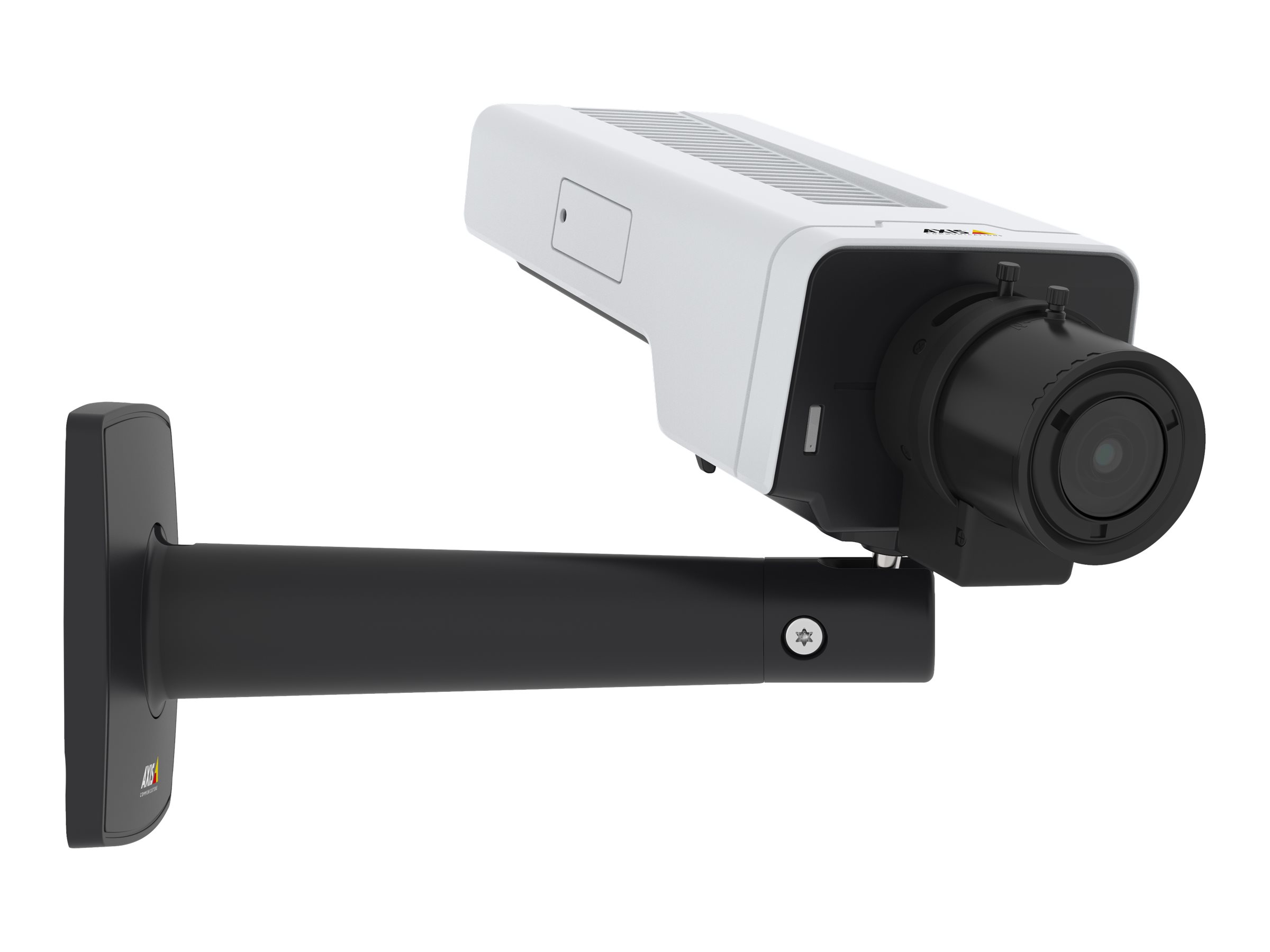

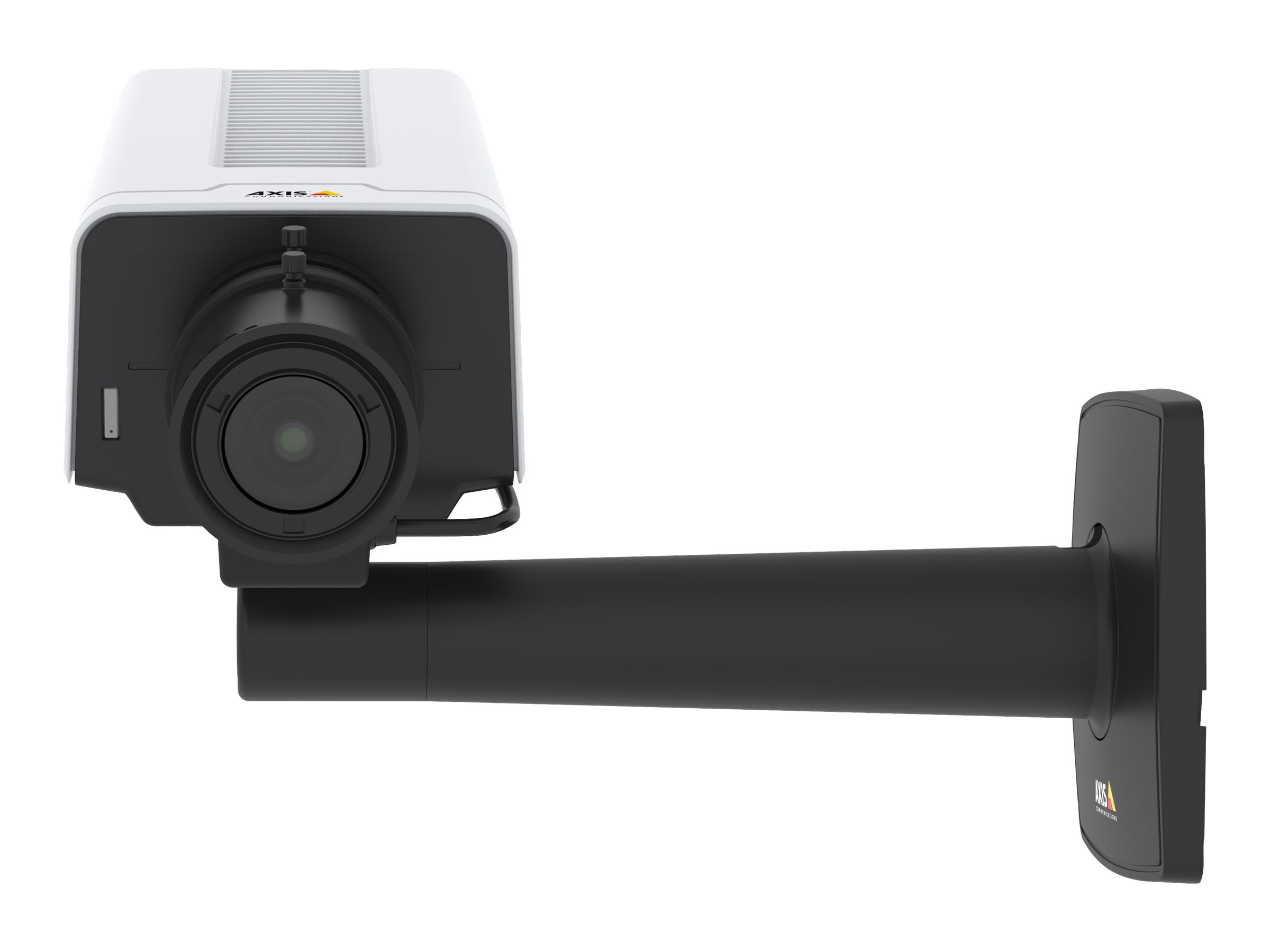

AXIS P1377 BAREBONE
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
AXIS P1377 BAREBONE
| Additional Details | |
|---|---|
| Mfr Part #: | 01808-031 |
| SHI Part #: | 39354185 |
| Category: | Security cameras |
| UNSPSC: | 46171610 |
| Manufacturer: | Axis Communications |
| Product Type: | Hardware |
Power Adapters
- AC 100-240 V
- 30 Watt
- output connectors: 1
- Europe
- black
- for AXIS A1610, C1410, D3110, M4308, P1385, P3818, Q1715, Q3536, Q3538, W400; P37 Series
- AC 100-240 V
- 30 Watt
- for AXIS C1410, M3064, M3065, M3066, M3067, M3068, M3075, M3205, P5654, Q1615, Q6075, Q9216
| General Information | |
|---|---|
| Category | Security cameras |
| Description | AXIS P1377 BAREBONE |
| Manufacturer | Axis Communications |
| UNSPSC | 46171610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8 cm |
| Dimensions & Weight / Height | 5.7 cm |
| Dimensions & Weight / Weight | 750 g |
| Dimensions & Weight / Width | 21.4 cm |
| Header / Brand | Axis |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Camera | |
| Digital Video Capture Resolution | 1280 x 720, 2592 x 1944, 2688 x 1512, 160 x 90 |
| Digital Video Format | MJPEG, H.264, HEVC, H.265, MPEG-4 AVC |
| Exposure Range | 1/5 sec - 1/500000 sec |
| Features | Sharpness control, white balance, saturation control, brightness control, contrast control, e-mail alerts, image mirror, Privacy Mask Function, Video Motion Detection Technology, full duplex audio, Lightfinder technology, active tampering alarm, digital PTZ function, security lock slot (cable lock sold separately), Event Notification, password protection, distortion correction function, shock detection, IR Corrected lens, Audio Detection, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, infrared-cut filter, Forensic WDR, electronic image stabilization, auto defogging, i-CS lens, ONVIF (Profile T) support |
| Flash Memory | 512 MB |
| Frame Rate (max) | 30 frames per second |
| Max Digital Video Resolution | 2592 x 1944 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 1 GB |
| Type | Color - Day&Night - fixed |
| Video Modes | 720p |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 10 - 85% (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Audio Support | Yes: two-way audio capability |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Depth | 8 cm |
| Device Type | Network surveillance camera |
| Height | 5.7 cm |
| Weight | 750 g |
| Width | 21.4 cm |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.7" |
| Interfaces | |
| Alarm Inputs Qty | 2 |
| Alarm Outputs Qty | 2 |
| Control Interface | RS-485, RS-422 |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, SFTP, LLDP, USGv6 |
| Lens Construction | |
| Focal Length | 2.8 mm - 8 mm |
| Horizontal Field of View (degree) | 38 - 111 |
| Lens Iris | F/1.2 (P-Iris) |
| Optical Zoom | 2.8 x |
| Type | CS-mount - vari-focal |
| Vertical Field of View (degree) | 28 - 81 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black, white |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-6, IP67, IK10, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, NEMA TS-2, RCM, EN 60529, IEC 62471, IEC 60529, KN35, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, IEC/EN/UL 60950-22, IEEE 802.3af, IEEE 802.3at, IEC/EN 62262, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, NIST SP500-267 |
| Included Accessories | Stand, connector kit, Resistorx T20 tool L-key, Torx L-key T6 |
| Power | |
| Power Device | 10.7 Watt |
| Power Requirements | DC 12 - 28 V / PoE+ |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user license |
