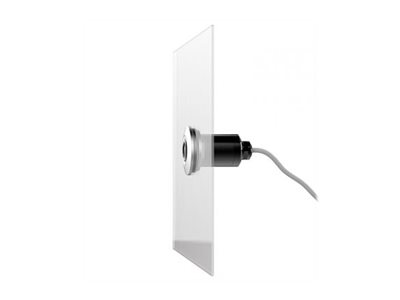

AXIS FA1080-E Thermal Sensor Unit
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
AXIS FA1080-E Thermal Sensor Unit
- Thermal camera
- outdoor
- B&W
- fixed focal
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 01728-001 |
| SHI Part #: | 37091510 |
| Category: | Security cameras |
| UNSPSC: | 46171610 |
| Manufacturer: | Axis Communications |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Security cameras |
| Description | AXIS FA1080-E Thermal Sensor Unit - Thermal camera - outdoor - B&W - fixed focal |
| Manufacturer | Axis Communications |
| MSRP | €699.00 |
| UNSPSC | 46171610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 3 cm |
| Dimensions & Weight / Height | 6.2 cm |
| Dimensions & Weight / Weight | 370 g |
| Dimensions & Weight / Width | 3 cm |
| Header / Brand | Axis |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Camera | |
| Features | Aluminum housing, thermal sensitivity 100mK |
| Frame Rate (max) | 8.3 frames per second |
| Type | Black and white - fixed - outdoor |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -35 °C |
| Relative Humidity (operating) | 10 - 100% (non-condensing) |
| Expansion / Connectivity | |
| Ports | Sensor unit - RJ-12 |
| General | |
| Connectivity Technology | Wired |
| Depth | 3 cm |
| Device Type | Thermal camera |
| Height | 6.2 cm |
| Weight | 370 g |
| Width | 3 cm |
| Image Sensor | |
| Effective Pixels | 208 x 156 |
| Type | Uncooled Micro bolometer |
| Lens Construction | |
| Focal Length | 4 mm |
| Horizontal Field of View (degree) | 35.4 |
| Lens Iris | F/1.2 |
| Type | Fixed focal |
| Vertical Field of View (degree) | 28 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x sensor cable - integrated - 12 m |
| Compliant Standards | EN 61000-3-3, EN55024, IEC 60529 IP66, IEC 60529 IP67, EN 61000-6-1, EMC, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, IP67, FCC Part 15 B Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, RCM, EN61000-3-2, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, IEC/EN/UL 60950-22, UL 62368-1 |
| Included Accessories | Mounting bracket |
