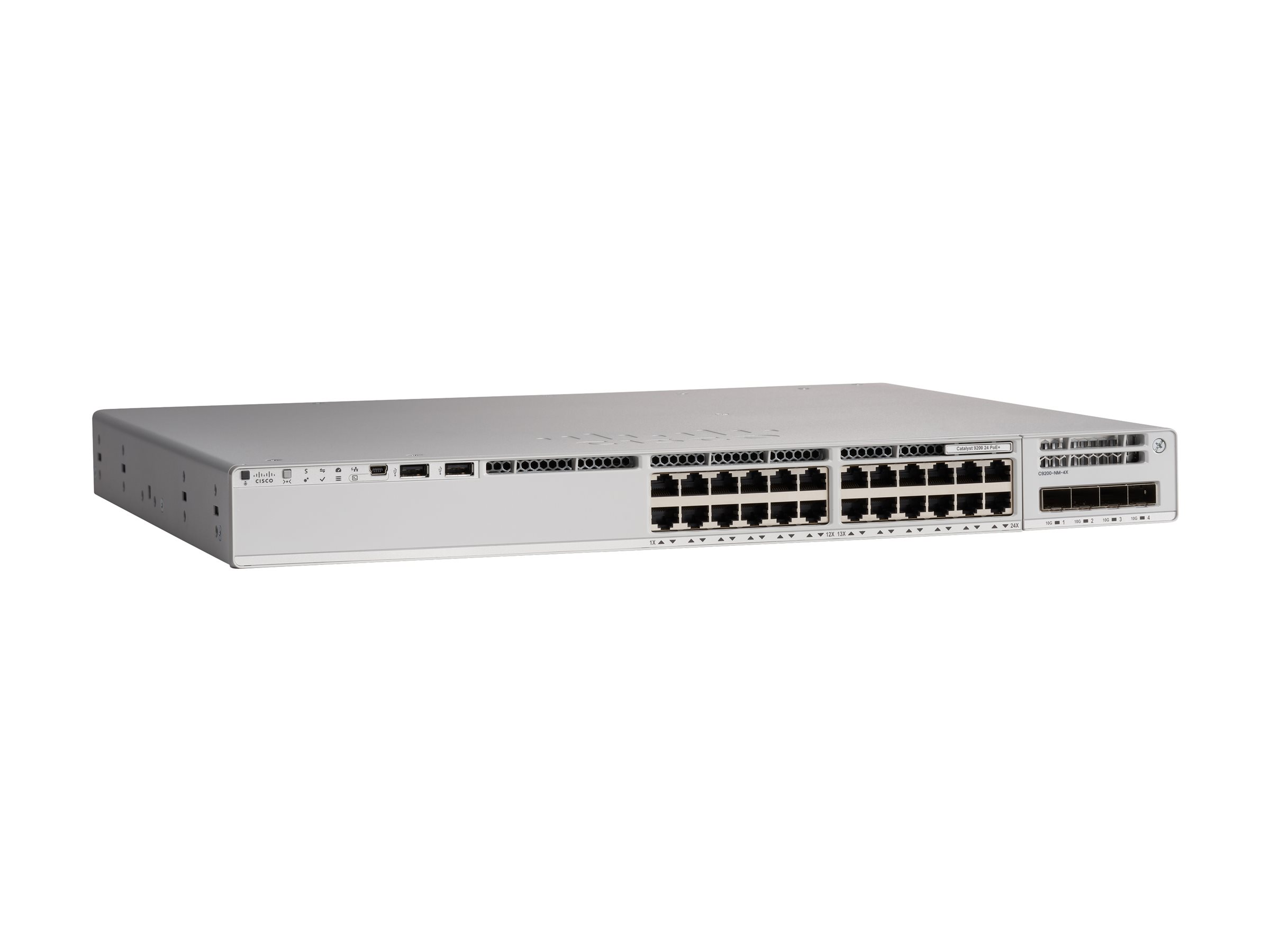

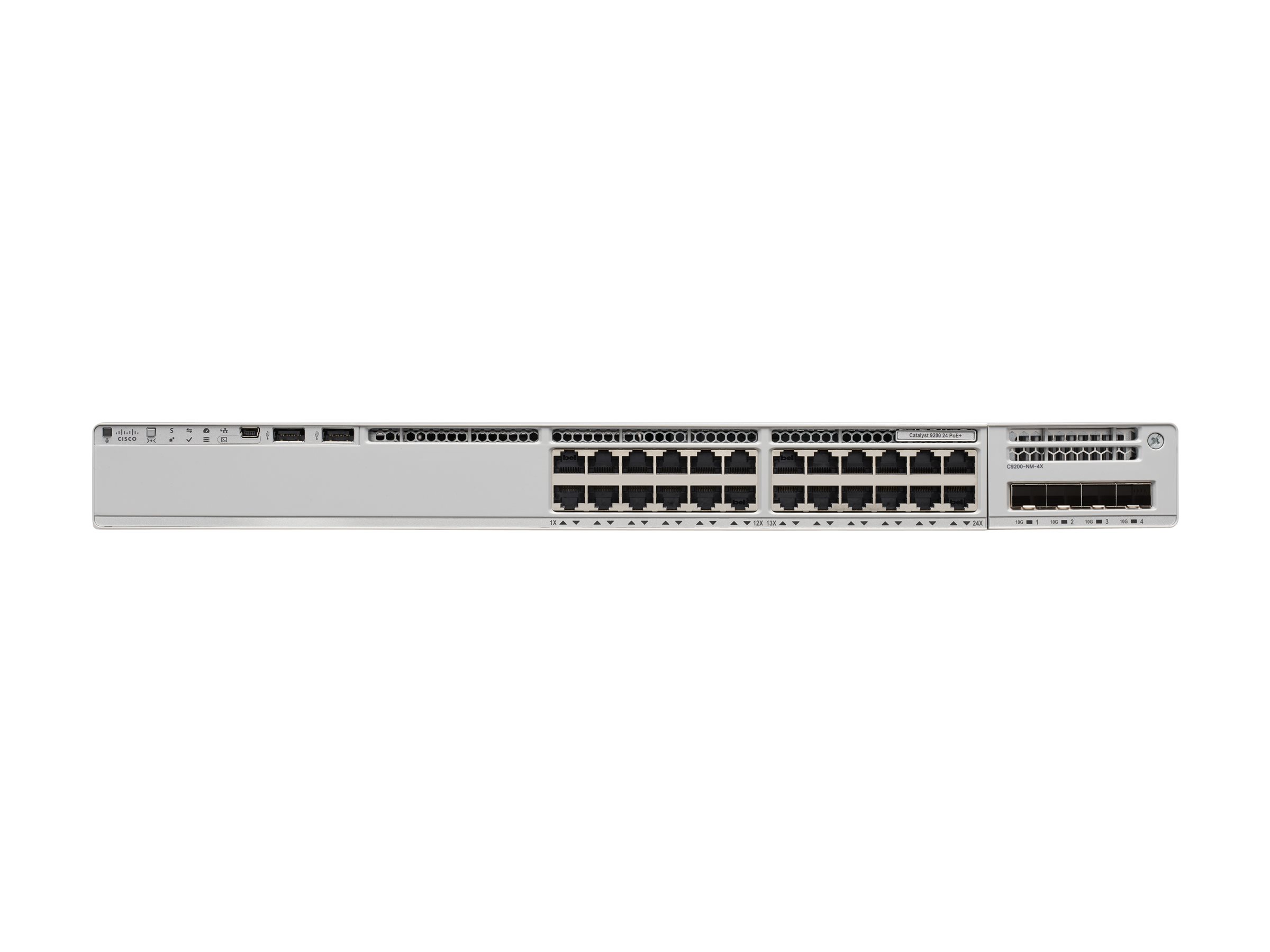

Cisco Catalyst 9200 - Network Essentials
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Cisco Catalyst 9200 - Network Essentials
- switch
- L3
- smart
- 24 x 10/100/1000 (PoE+)
- rack-mountable
- PoE+
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | C9200-24P-E |
| SHI Part #: | 36933211 |
| Category: | Switch matrixes |
| UNSPSC: | 43222612 |
| Manufacturer: | Cisco Systems |
| Product Type: | Hardware |
Network Interface Cards
- Expansion module
- 10 Gigabit SFP+ x 4
- for Catalyst 9200, 9200L
| General Information | |
|---|---|
| Category | Switch matrixes |
| Description | Cisco Catalyst 9200 - Network Essentials - switch - L3 - smart - 24 x 10/100/1000 (PoE+) - rack-mountable - PoE+ |
| Manufacturer | Cisco Systems |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 44.5 cm |
| Dimensions & Weight / Height | 35 cm |
| Dimensions & Weight / Weight | 5.5 kg |
| Dimensions & Weight / Width | 4.4 cm |
| Header / Brand | Cisco |
| Miscellaneous / Product Color | Gray |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 24 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 44.5 cm |
| Height | 35 cm |
| Weight | 5.5 kg |
| Width | 4.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W |
| General | |
| Built-in Devices | RFID tag |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz |
| Device Type | Switch - 24 ports - L3 - smart - stackable |
| Enclosure Type | Rack-mountable |
| Encryption Algorithm | 128-bit AES |
| Features | Cisco StackWise Technology, EIGRP Stub Routing, FNF, MACsec support, built-in ASIC, CoPP, Blue Beacon LED, EEM, PIM, FHS, PVLAN support, DNA support, Superior QoS |
| Flash Memory | 4 GB |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 32000 entries |
| Performance |
|
| Ports | 24 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| RAM | 4 GB |
| Remote Management Protocol | NETCONF, RESTCONF |
| Routing Protocol | OSPF, RIP-1, RIP-2, VRRP, PIM-SSM, policy-based routing (PBR), RIPng |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day |
| Miscellaneous | |
| Compliant Standards | Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
| MTBF | 422,310 hours |
| Power | |
| Max Supported Qty | 2 |
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Optional |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Software / System Requirements | |
| Software Included | Cisco Network Essentials |
