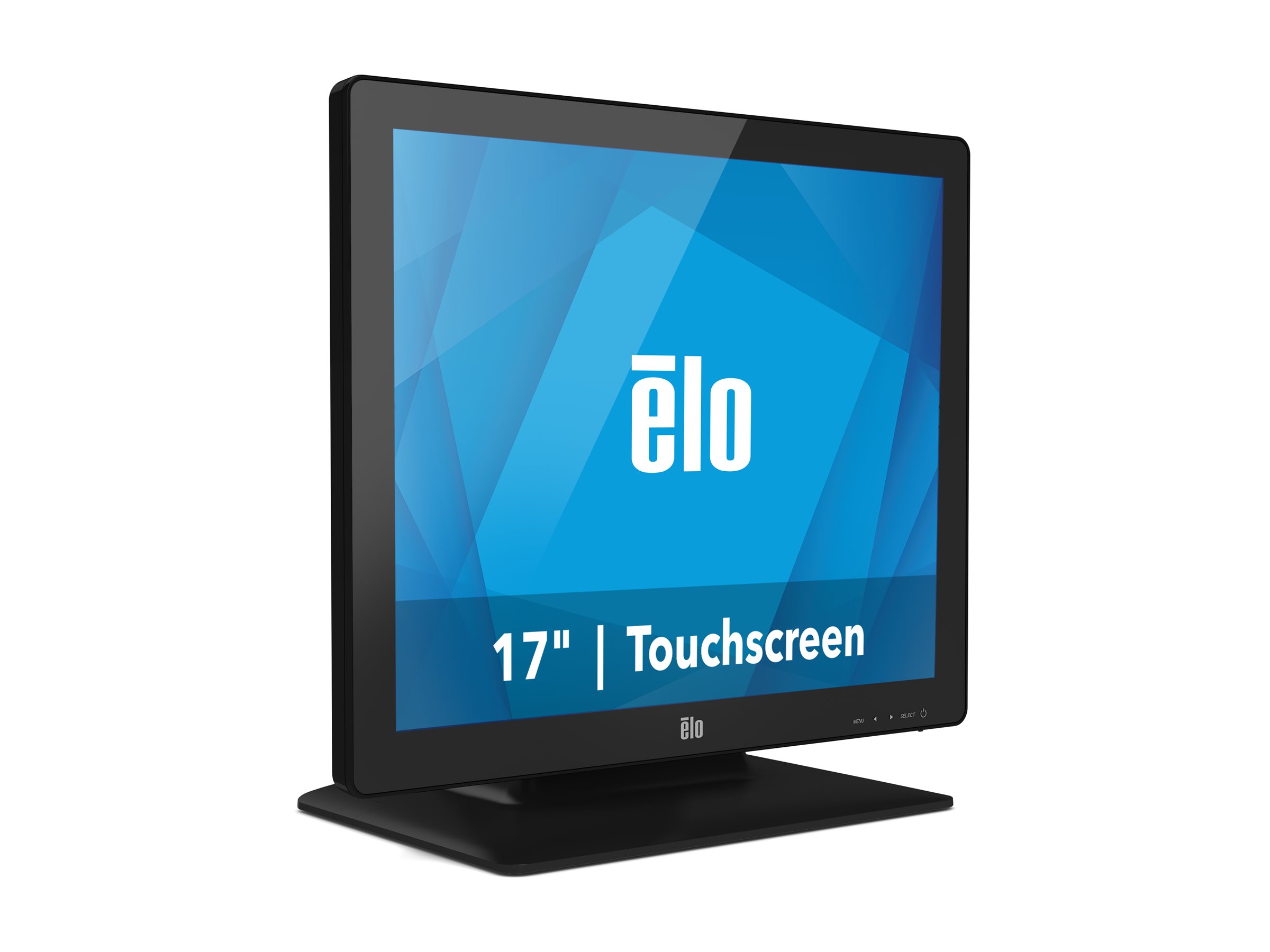

Elo 1723L - LED monitor
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Elo 1723L - LED monitor
- 17"
- touchscreen
- 1280 x 1024 @ 75 Hz
- 250 cd/m²
- 800:1
- 30 ms
- DVI, VGA
- speakers
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | E683457 |
| SHI Part #: | 30489646 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | Elo Touch Solutions |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | Elo 1723L - LED monitor - 17" - touchscreen - 1280 x 1024 @ 75 Hz - 250 cd/m² - 800:1 - 30 ms - DVI, VGA - speakers - black |
| Manufacturer | Elo Touch Solutions |
| UNSPSC | 43211902 |
| Main Specifications | |
| Height | 9.00 |
| Length | 19.00 |
| UPC | 0834619007354 |
| Width | 17.00 |
| Audio | |
| Output Power / Channel | 2 Watt |
| Type | Speakers - stereo |
| Connectivity | |
| Interfaces |
|
| Dimensions & Weight | |
| Dimensions & Weight Details |
|
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Aspect Ratio | 5:4 |
| Backlight Technology | LED backlight |
| Brightness | 250 cd/m² |
| Brightness w/touchscreen | 215 cd/m² |
| Color | Black |
| Color Support | 16.7 million colors |
| Contrast Ratio | 800:1 |
| Controls & Adjustments | Mute, volume, brightness, contrast, H/V position, sharpness, color temperature, phase, clock, aspect control |
| Diagonal Size | 17" |
| Dimensions (WxDxH) | 39.19 cm x 20.94 cm x 36.07 cm - with stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Features | Anti-glare, IntelliTouch Pro |
| Horizontal Refresh Rate | 31 - 80 KHz |
| Horizontal Viewing Angle | 170 |
| Native Resolution | 1280 x 1024 at 75 Hz |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Response Time | 30 ms |
| Vertical Refresh Rate | 56 - 75 Hz |
| Vertical Viewing Angle | 160 |
| Weight | 5.21 kg |
| Input | |
| Movement Detection Technology | Projected capacitive |
| Type | Touchscreen - touchscreen |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Mechanical | |
| Display Position Adjustments | Height, tilt |
| Tilt Angle | -5/+90 |
| VESA Mounting Interface | 75 x 75 mm |
| Miscellaneous | |
| Compliant Standards | Plug and Play, UL, VCCI, C-Tick, BSMI, cUL, VESA DPMS, CB, CCC, IC, FCC, RoHS, DDC, KCC, WEEE, E-Standby, China RoHS, CoC |
| Features | Security lock slot (cable lock sold separately) |
| MTBF | 50,000 hour(s) |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (Typical) | 22 Watt |
| Power Consumption Sleep | 2 Watt |
