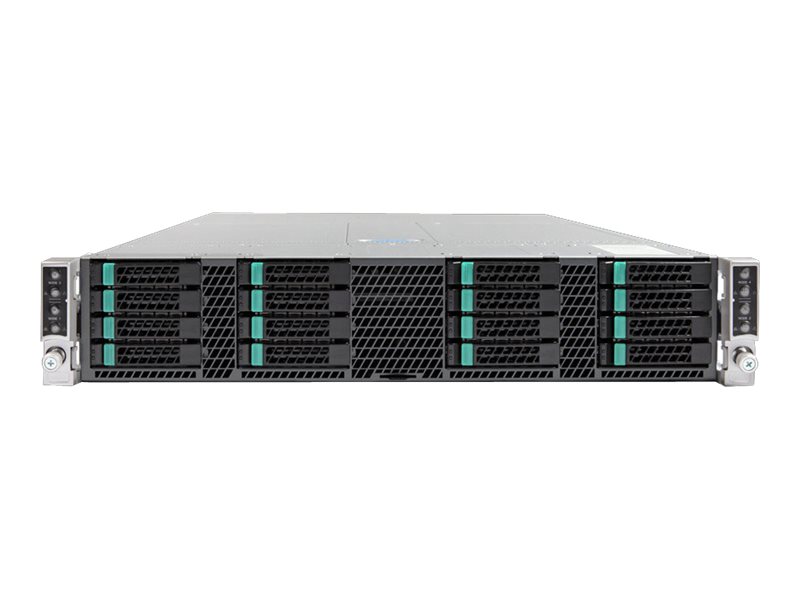

Intel Server Chassis H2216XXKR2
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Intel Server Chassis H2216XXKR2
- Rack-mountable 2U
- up to 4 blades
- SATA/SAS
- hot-swap
| Additional Details | |
|---|---|
| Mfr Part #: | H2216XXKR2 |
| SHI Part #: | 29633541 |
| Category: | Chassis |
| UNSPSC: | 43201601 |
| Manufacturer: | Intel |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Chassis |
| Description | Intel Server Chassis H2216XXKR2 - Rack-mountable 2U - up to 4 blades - SATA/SAS - hot-swap |
| Manufacturer | Intel |
| UNSPSC | 43201601 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Chassis / Server Storage Bays | Hot-swap |
| Chassis / Server Swappable Drive Interface | SATA/SAS |
| Dimensions & Weight / Depth | 73.3 cm |
| Dimensions & Weight / Height | 8.69 cm |
| Dimensions & Weight / Weight | 20.5 kg |
| Dimensions & Weight / Width | 43.8 cm |
| Header / Brand | Intel |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Power Device / Type | Power supply |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 73.3 cm |
| Height | 8.69 cm |
| Weight | 20.5 kg |
| Width | 43.8 cm |
| Environmental Parameters | |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Expansion Bays | 16 (total) / 16 (free) x hot-swap - 2.5" |
| General | |
| Form Factor | Rack-mountable - 2U |
| Hot-Swap Bays Qty | 16 |
| Server Swappable Drive Interface | SATA/SAS |
| Supported Blades Qty | Up to 4 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Included Accessories | Mounting rails, 4 x filler panel, 2 x power distribution boards |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Capacity (of Single Unit) | 1600 Watt |
| Power Device | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Supply Features | Power Factor Correction (PFC) |
| Voltage Required | AC 90 - 264 V (47 - 63 Hz) |
