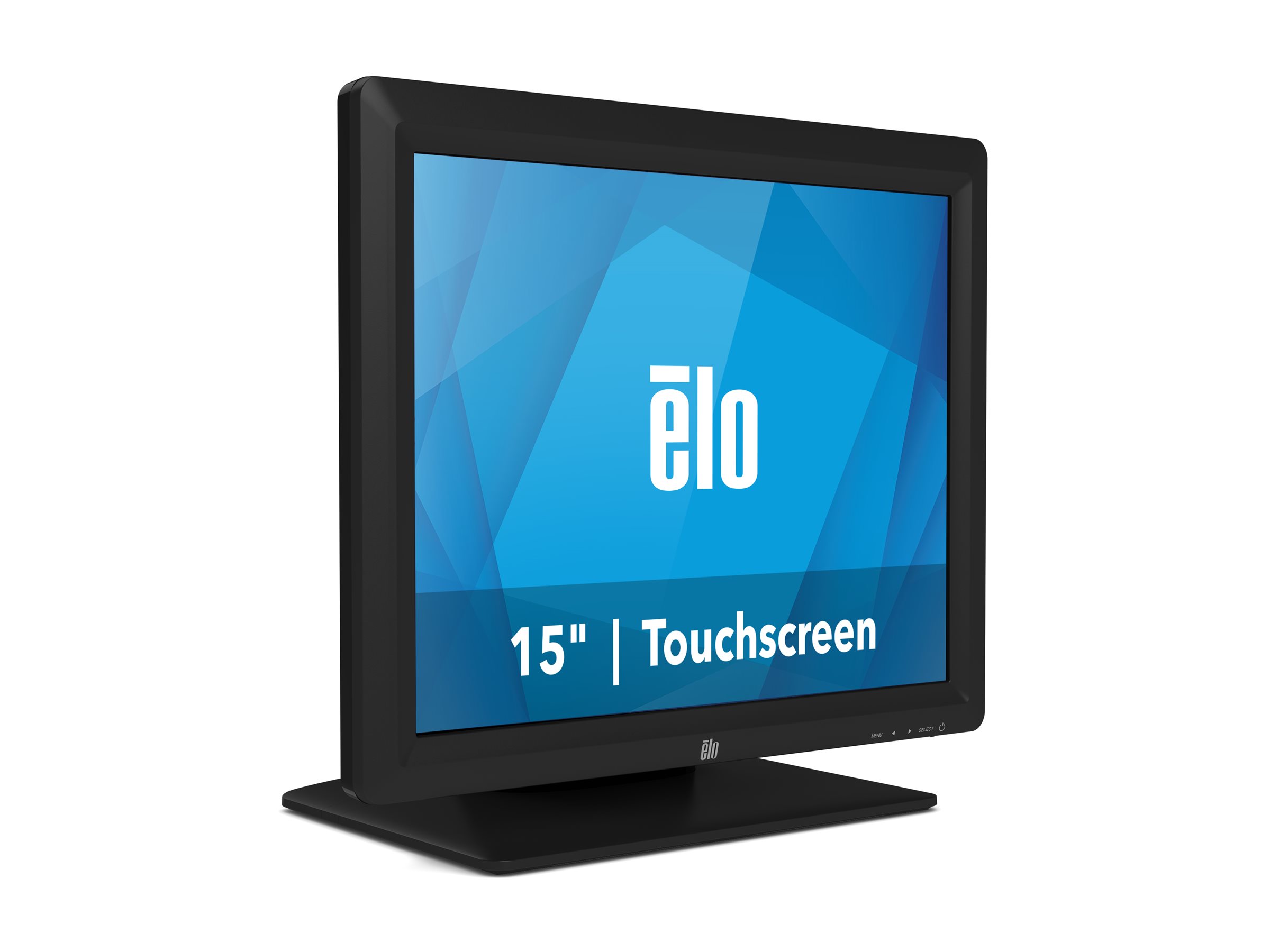

Elo 1517L iTouch Zero-Bezel
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Elo 1517L iTouch Zero-Bezel
- LED monitor
- 15"
- touchscreen
- 1024 x 768 @ 75 Hz
- 300 cd/m²
- 800:1
- 23 ms
- VGA
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | E829550 |
| SHI Part #: | 27967929 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | Elo Touch Solutions |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | Elo 1517L iTouch Zero-Bezel - LED monitor - 15" - touchscreen - 1024 x 768 @ 75 Hz - 300 cd/m² - 800:1 - 23 ms - VGA - black |
| Manufacturer | Elo Touch Solutions |
| UNSPSC | 43211902 |
| Main Specifications | |
| Height | 9.00 |
| Length | 19.40 |
| UPC | 0834619001253 |
| Width | 19.10 |
| Connectivity | |
| Interfaces |
|
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Aspect Ratio | 4:3 |
| Backlight Technology | LED backlight |
| Brightness | 300 cd/m² |
| Brightness w/touchscreen | 270 cd/m² |
| Color | Black |
| Color Support | 16.2 million colors |
| Contrast Ratio | 800:1 |
| Controls & Adjustments | Brightness, contrast, H/V position, sharpness, color balance, color temperature, phase, clock, aspect control |
| Diagonal Size | 15" |
| Dimensions (WxDxH) | 35.8 cm x 19.7 cm x 31.9 cm - with stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Features | iTouch Surface Wave |
| Horizontal Viewing Angle | +80 / -80 |
| Native Resolution | 1024 x 768 at 75 Hz |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Response Time | 23 ms |
| Vertical Viewing Angle | +70 / -70 |
| Weight | 4.3 kg |
| Input | |
| Movement Detection Technology | Surface acoustic wave |
| Type | Touchscreen - touchscreen |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Mechanical | |
| VESA Mounting Interface | 75 x 75 mm |
| Miscellaneous | |
| Compliant Standards | UL, VCCI, C-Tick, BSMI, cUL, CB, CCC, IC, FCC, RoHS, KCC, WEEE, S Mark, China RoHS |
| Features | Security lock slot (cable lock sold separately), iTouch Surface Acoustic Wave Technology |
| Localization | Worldwide |
| MTBF | 50,000 hour(s) |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (Typical) | 10.5 Watt |
| Power Consumption Sleep | 0.5 Watt |
| Power Consumption Stand by | 0.92 Watt |
- Product Data Sheet / Brochure
- Product Data Sheet / Brochure
- Product Data Sheet / Brochure
- Quick Start Guide
- User Manual
These links will open documents stored on other websites. SHI does not own this content.
