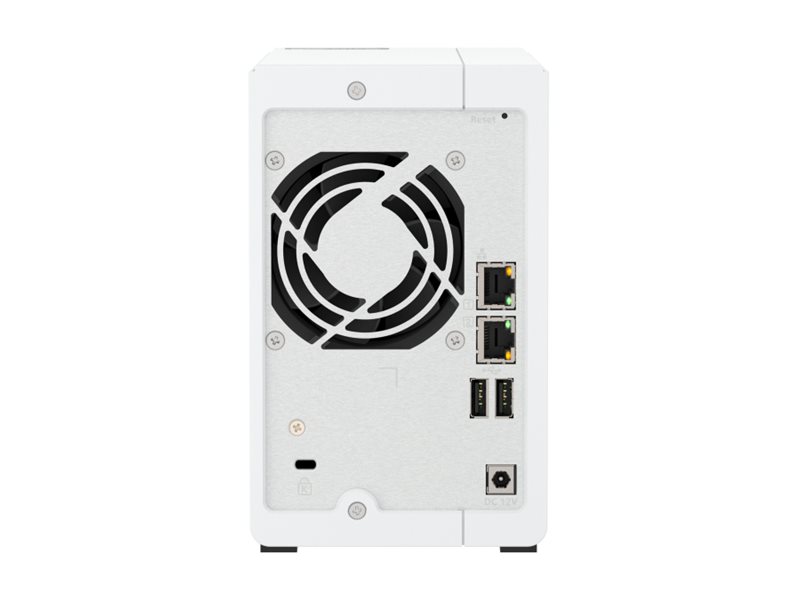

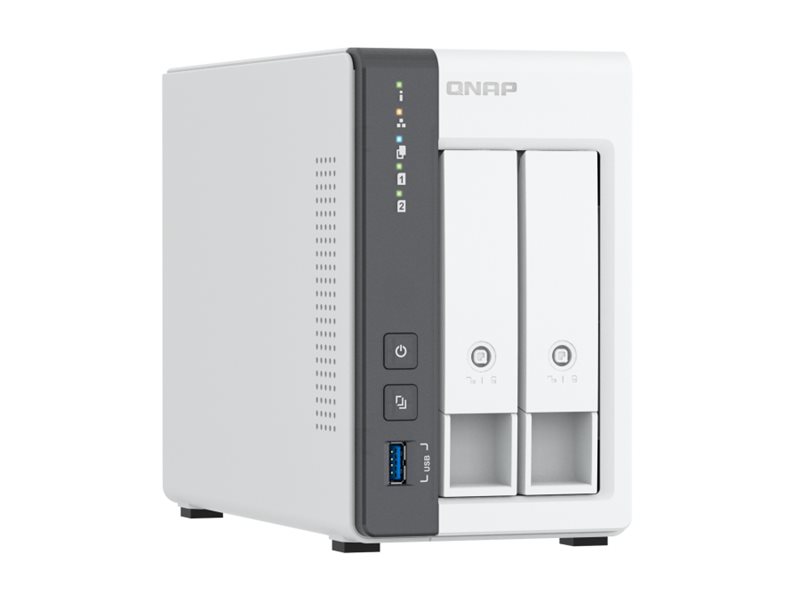

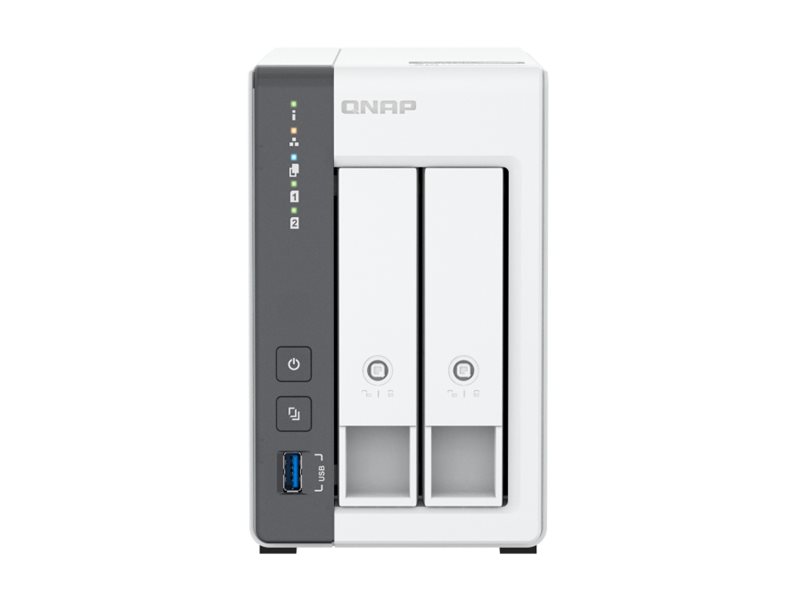

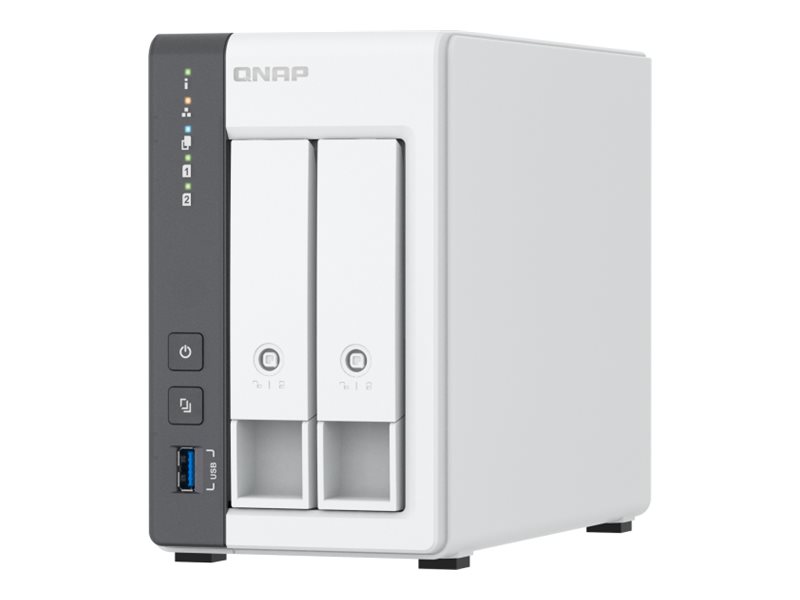

QNAP TS-216G - NAS server
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
QNAP TS-216G - NAS server
- 2 bays
- SATA 6Gb/s
- RAID JBOD, 0, 1
- RAM 4 GB
- 2.5 Gigabit Ethernet
- iSCSI support
| Additional Details | |
|---|---|
| Mfr Part #: | TS-216G |
| SHI Part #: | 48278711 |
| Category: | Electronic data storage equipment |
| UNSPSC: | 43201800 |
| Manufacturer: | QNAP |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Electronic data storage equipment |
| Description | QNAP TS-216G - NAS server - 2 bays - SATA 6Gb/s - RAID JBOD, 0, 1 - RAM 4 GB - 2.5 Gigabit Ethernet - iSCSI support |
| Manufacturer | QNAP |
| UNSPSC | 43201800 |
| Main Specifications | |
| Dimensions & Weight / Depth | 22.06 cm |
| Dimensions & Weight / Height | 16.5 cm |
| Dimensions & Weight / Weight | 1.45 kg |
| Dimensions & Weight / Width | 10.2 cm |
| Header / Brand | QNAP |
| Miscellaneous / Product Color |
|
| Networking / Data Link Protocol |
|
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Service & Support / Type | 2-year warranty |
| System Requirements / OS Required |
|
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.41 kg |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) x hot-swap - 2.5" / 3.5" |
| Interfaces |
|
| General | |
| Depth | 22.06 cm |
| Device Type | NAS server |
| Height | 16.5 cm |
| Host Connectivity | 2.5 Gigabit Ethernet |
| Installed Devices / Modules Qty | 0 (installed) / 2 (max) |
| Max Supported Capacity | 38.6 TB |
| Total Storage Capacity | 0 GB |
| Weight | 1.45 kg () |
| Width | 10.2 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Features | 70mm cooling fan, alarm buzzer, security lock slot (cable lock sold separately), reset button, on/off power switch, USB copy button |
| Included Accessories | Power cable, 8 x flat head screws (for 3.5" HDD), 6 x flat head screws (for 2.5" HDD), 2 x drive tray keys |
| Security Slot Type | Kensington security slot |
| Networking | |
| Data Link Protocol | 100Mb LAN, 1GbE, 2.5GbE |
| Encryption Algorithm | 256-bit AES, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3 |
| Features | Floating point unit, Encryption Engine, built-in hardware transcoding, NPU, WOL, Jumbo Frames support, Storage Pool, SED Storage Pool, JBOD Expansion, VJBOD Cloud, iSCSI service, fibre channel service, file-based iSCSI LUN, block-based iSCSI LUN, LUN mapping, LUN masking, WWPN Aliases Import/Export, FC Port Group, FC Port Binding, MPIO, online LUN capacity expansion, LUN snapshot, LUN snapshot replication and clone, auto tiering, RAID Group, RAID Level Migration, RAID Expansion, Storage Pool Expansion, RAID Hot Spare, RAID Sync/Rebuild/Scrubbing, EXT4 file system, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Secure Erase, SSD trim, SSD life estimation, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD profiling tool, External Device Management, MTP, Object Storage, domain security, Domain Controller, shared folder permission, user quota, group quota, folder quota, home folder, Resource Monitor, Network Recycle Bin, schedule on/off, Virtual Switch, port trunking, VLAN support, DHCP server, security counselor, malware remover, 2-step verification, Allow/Deny List, Access Protection, Service binding, firewall protection, Windows ODX, Qsync, HybridMount, hybrid backup sync, Boxafe, Qsirch, QuMagie, anti-virus protection, QVPN Service, LDAP server, RADIUS support, SQL Server, Qfiling, QmailAgent, QuWAN, DA Driver Analyzer |
| Network / Transport Protocol | IPv4, IPv6, DDNS, PPTP, L2TP, IPSec, OpenVPN, WireGuard, QBelt, QuFTP |
| Network Services Compatibility | Apple File Protocol (AFP), Microsoft CIFS, Server Message Block (SMB), FTP, Web-based Distributed Authoring and Versioning (WebDAV) |
| Performance | Concurrent connections (CIFS): 200 - (with maximum memory) |
| Remote Management Protocol | SSH, Telnet, HTTP, HTTPS, SNMP 2, SNMP 3, TFTP |
| Power | |
| Power Consumption Operational | 13.907 Watt |
| Power Device | External power adapter |
| Power Provided | 65 Watt |
| Voltage Required | AC 100-240 V |
| Processor / Memory | |
| Flash Memory Installed | 4 GB |
| Max Supported Qty | 1 |
| Max Turbo Speed | 2 GHz |
| Number of Cores | Quad-Core |
| Processors Installed | 1 x ARM |
| RAM | 4 GB |
| Software / System Requirements | |
| OS Required | Apple MacOS X 10.10 or later, Ubuntu 14.04, CentOS 7.0, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, IBM AIX 7, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022 |
| Software Included | IronWolf Health Management |
| Storage Operating System | QNAP QTS 5.1.7 |
| Storage Controller | |
| Interface Type | SATA 6Gb/s |
| RAID Level | JBOD, RAID 0, RAID 1 |
| Type | RAID |
