AXIS M30 Series M3086-V Mic
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

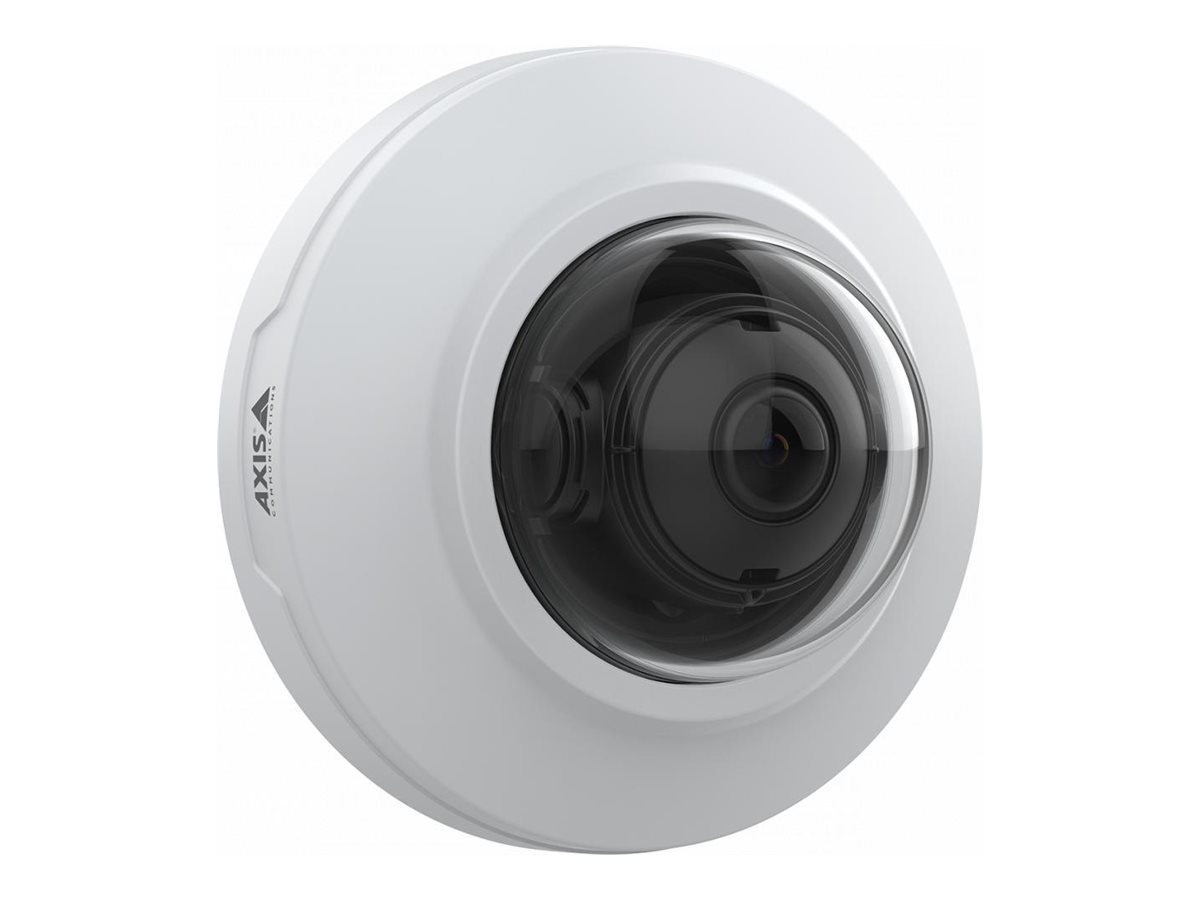

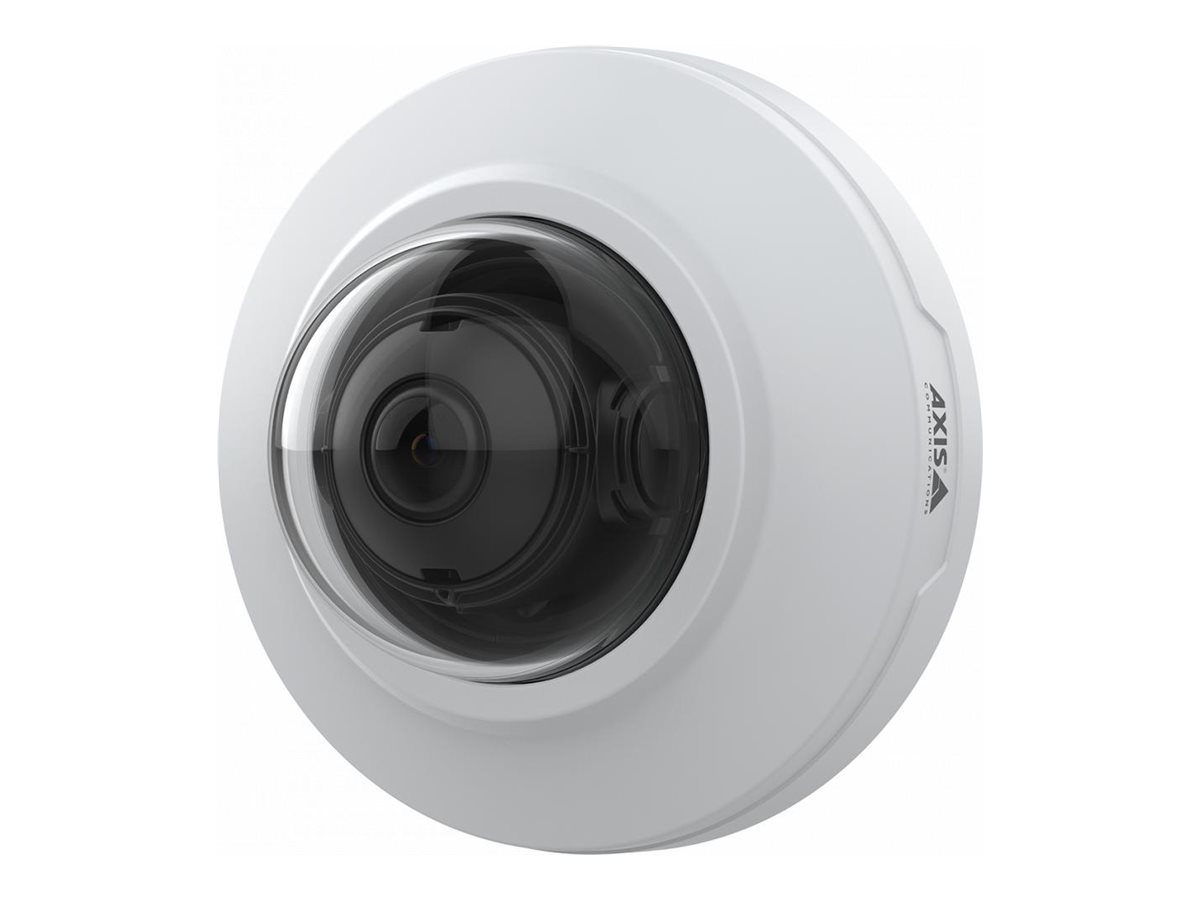

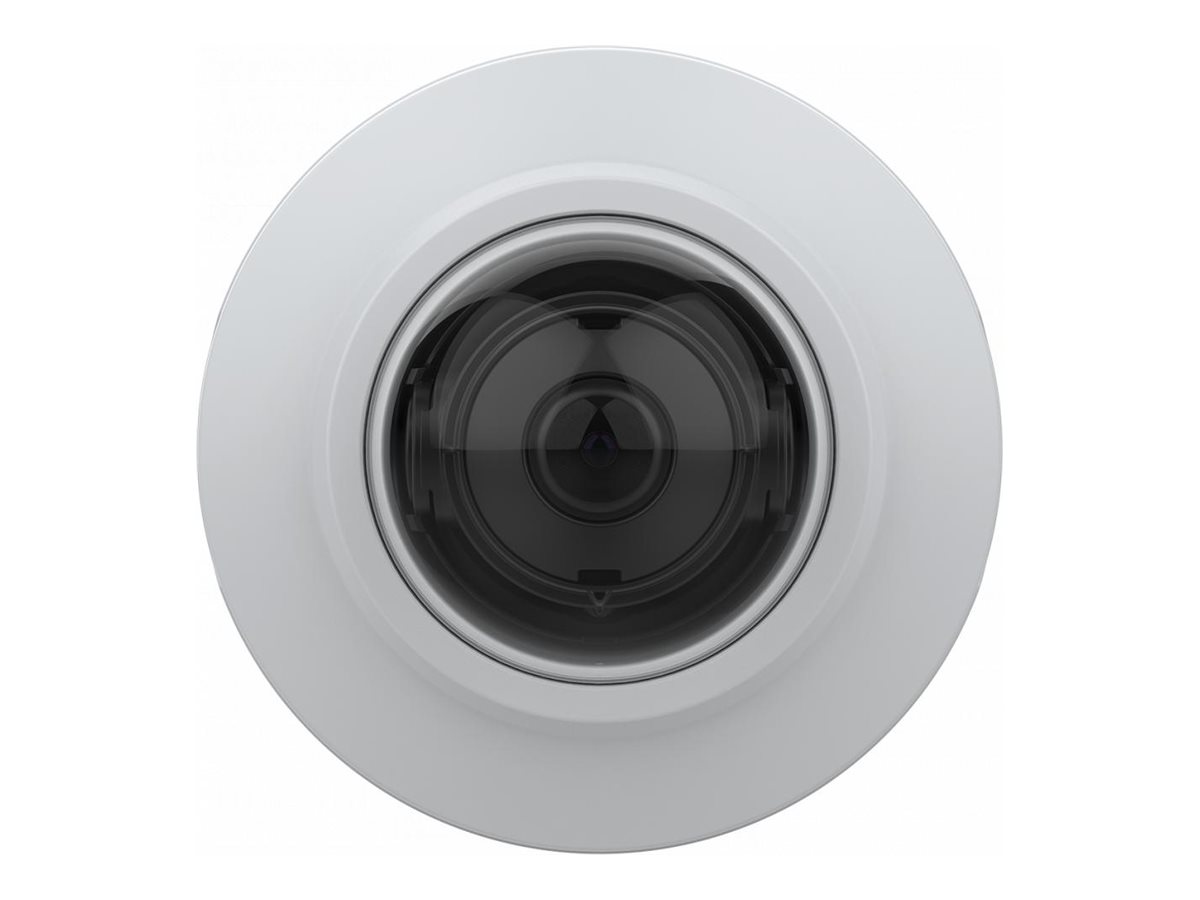

AXIS M30 Series M3086-V Mic
- Network surveillance camera
- dome
- vandal resistant / impact resistant / dust resistant / water resistant
- color (Day&Night)
- 4 MP
- 2688 x 1512
- fixed iris
- fixed focal
- audio
- LAN 10/100
- MJPEG, H.264, AVC, HEVC, H.265, MPEG-4 Part 10, MPEG-H Part 2
- PoE Plus Class 2
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 02832-001 |
| SHI Part #: | 47723736 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Axis Communications |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | AXIS M30 Series M3086-V Mic - Network surveillance camera - dome - vandal resistant / impact resistant / dust resistant / water resistant - color (Day&Night) - 4 MP - 2688 x 1512 - fixed iris - fixed focal - audio - LAN 10/100 - MJPEG, H.264, AVC, HEVC, H.265, MPEG-4 Part 10, MPEG-H Part 2 - PoE Plus Class 2 |
| Manufacturer | Axis Communications |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.1 cm |
| Dimensions & Weight / Height | 5.6 cm |
| Dimensions & Weight / Weight | 150 g |
| Dimensions & Weight / Width | 10.1 cm |
| Header / Brand | Axis |
| Header / Country Kits |
|
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Camera | |
| Digital Video Capture Resolution | 320 x 240, 2688 x 1512 |
| Digital Video Format | MJPEG, H.264, AVC, HEVC, H.265, MPEG-4 Part 10, MPEG-H Part 2 |
| Exposure Range | 1/5 sec - 1/38500 sec |
| Features | Sharpness control, white balance, color control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), Privacy Mask Function, NAS-Ready, Lightfinder technology, digital PTZ function, password protection, IR Corrected lens, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, exposure control, Pixel Counter Support, infrared-cut filter, digest authentication, Vehicle Detection, IP address filtering, HTTPs encryption, human detection, signed firmware, secure boot, Corridor mode, ONVIF (Profile T) support, VAPIX support, motion-adaptive exposure, compression, 180° image rotation, 90° image rotation, 270° image rotation, memory card encryption, user access log, centralized certificate management, brute force delay protection, ONVIF (Profile M) support, Axis Edge Vault, Multi-Bitrate (MBR), Axis device ID, deep learning processing unit (DLPU), up to 2 view areas |
| Flash Memory | 512 MB |
| Frame Rate (max) | 30 frames per second |
| Max Digital Video Resolution | 2688 x 1512 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 1 GB |
| Type | Color - Day&Night - fixed - vandal resistant / impact resistant / dust resistant / water resistant |
| Environmental Parameters | |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Relative Humidity (operating) | 10 - 85% RH (non-condensing) |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Connectivity Technology | Wired |
| Depth | 10.1 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 5.6 cm |
| Localization | Argentina, Australia, China, Japan, India, Korea, Brazil, United Kingdom, United States, Europe |
| Weight | 150 g |
| Width | 10.1 cm |
| Image Sensor | |
| Type | 4 MP PS RGB CMOS 1/2.7" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, Zeroconf, USGv6, MQTT, CDP, Syslog |
| Lens Construction | |
| Focal Length | 2.4 mm |
| Horizontal Field of View (degree) | 130 |
| Lens Iris | F/2.1 fixed iris |
| Type | Fixed focal |
| Vertical Field of View (degree) | 93 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Color | White, NCS S 1002-B |
| Compliant Standards | EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, FCC Part 15 B Class A, VCCI Class A, RCM, AS/NZS CISPR 32 Class A, BFR-free, EN 55032 Class A, IEEE 802.3af, IEEE 802.3at, IEC 60068-2, EN 55035, IEC/EN/UL 62368-1, PVC-free, IEC/EN 62262 IK08, NIST SP500-267, IEC/EN 60529 IP42, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, CFR free |
| Panning | |
| Range (degree) | -175 to +175 |
| Power | |
| Power Device | 3.6 Watt |
| Power Requirements | PoE Plus Class 2 |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user license, AXIS Video Motion Detection, AXIS Object Analytics |
| Tilting | |
| Range (degree) | -80 to +80 |
