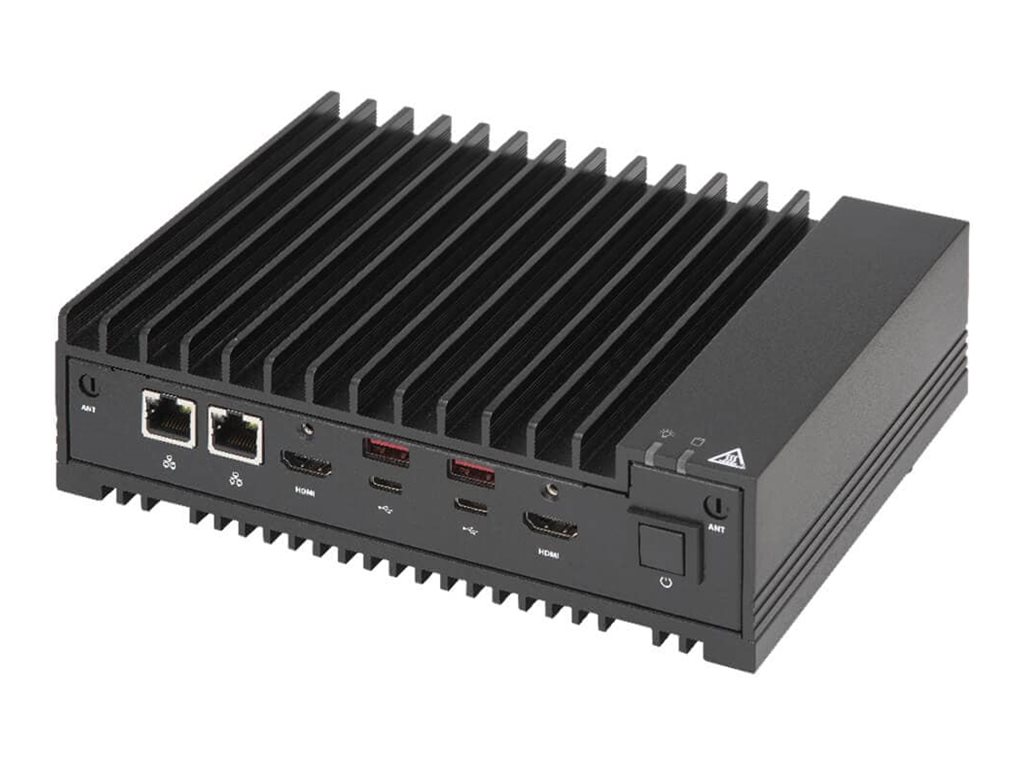

Supermicro IoT SuperServer E100-13AD-C
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Supermicro IoT SuperServer E100-13AD-C
- Server
- rack-mountable 1 x Celeron 7305E up to
- RAM 0 GB
- no HDD
- UHD Graphics
- 2.5 Gigabit Ethernet, Gigabit Ethernet
- no OS
- monitor: none
- black
| Additional Details | |
|---|---|
| Mfr Part #: | SYS-E100-13AD-C |
| SHI Part #: | 47650187 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Super Micro Computer |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | Supermicro IoT SuperServer E100-13AD-C - Server - rack-mountable 1 x Celeron 7305E up to - RAM 0 GB - no HDD - UHD Graphics - 2.5 Gigabit Ethernet, Gigabit Ethernet - no OS - monitor: none - black |
| Manufacturer | Super Micro Computer |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Dimensions & Weight / Depth | 15 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 980 g |
| Dimensions & Weight / Width | 19.5 cm |
| Display / Type | None. |
| Header / Brand | Supermicro |
| Mainboard / Processor Socket | FCBGA1744 Socket |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 1 GHz |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 5-core |
| Processor / Processor Number | 7305E |
| Processor / Type | Celeron |
| RAM / Data Integrity Check | Non-ECC |
| RAM / Form Factor | SO-DIMM 262-pin |
| RAM / Memory Speed | 4800 MHz |
| RAM / Technology | DDR5 SDRAM |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Server |
| Video Output / Graphics Processor | Intel UHD Graphics |
| Cache Memory | |
| Cache Per Processor | 8 MB |
| Installed Size | 8 MB |
| Dimensions & Weight | |
| Depth | 15 cm |
| Height | 4.4 cm |
| Weight | 980 g |
| Width | 19.5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 27.9 cm |
| Shipping Height | 13 cm |
| Shipping Weight | 1.95 kg |
| Shipping Width | 30 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots |
|
| General | |
| Color | Black |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Product Form Factor | Rack-mountable |
| Type | Server |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | HDMI, USB-C |
| Hard Drive | |
| Type | No HDD |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet, Ethernet |
| Ethernet Controller | Intel I225-IT |
| Ethernet Ports | 2 x 2.5 Gigabit Ethernet |
| Features | KVM over IP support |
| Remote Management Protocol | IPMI 2.0 |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | IPMI 2.0, KVM with dedicated LAN, Redfish API, Super Diagnostics Offline, Super Doctor 5, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM) |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Voltage Required | DC 12 V |
| Processor / Chipset | |
| Clock Speed | 1 GHz |
| CPU | Intel Celeron 7305E |
| CPU Qty | 1 |
| CPU Socket | FCBGA1744 Socket |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 1 |
| Motherboard Name | Supermicro X13SAN-C-WOHS |
| Number of Cores | 5-core |
| Processor Main Features | Intel Smart Cache |
| RAM | |
| Effective Memory Speed | 4800 MHz |
| Form Factor | SO-DIMM 262-pin |
| Installed Size | 0 GB (installed) / 64 GB (max) |
| Rated Memory Speed | 4800 MHz |
| Slots | 2 (total) / 2 (empty) |
| Technology | DDR5 SDRAM - non-ECC |
