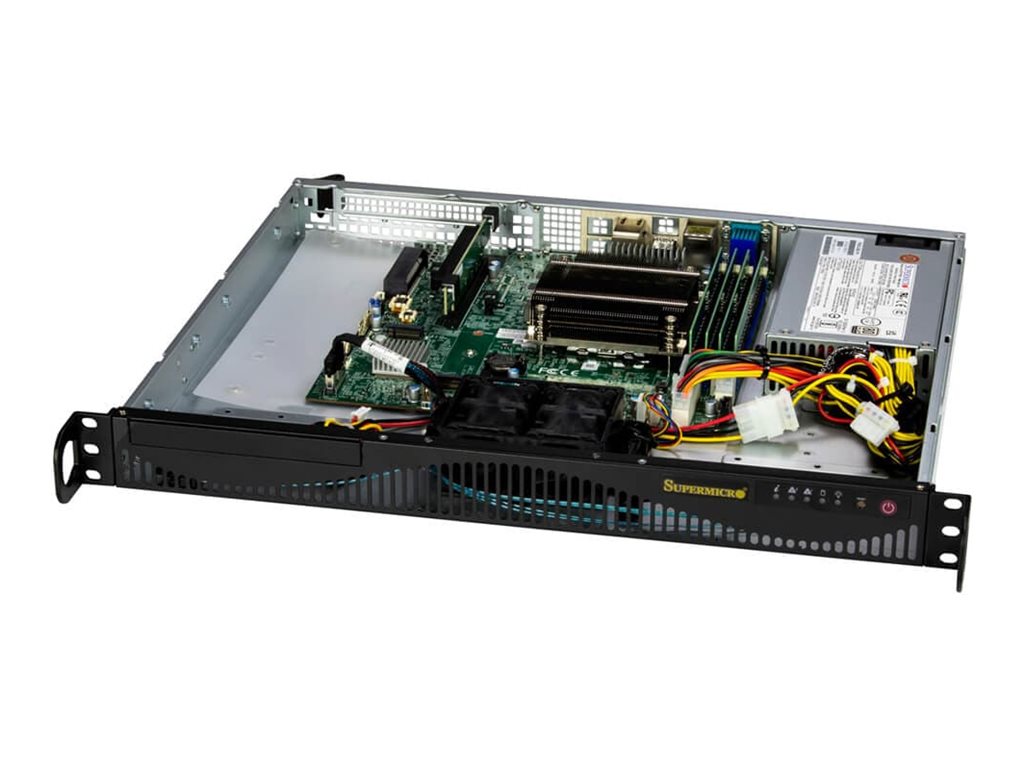

Supermicro UP SuperServer 511R-ML
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Supermicro UP SuperServer 511R-ML
- Server
- rack-mountable 1U
- no CPU
- RAM 0 GB
- no HDD
- Gigabit Ethernet
- no OS
- monitor: none
- black
| Additional Details | |
|---|---|
| Mfr Part #: | SYS-511R-ML |
| SHI Part #: | 47586250 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Super Micro Computer |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | Supermicro UP SuperServer 511R-ML - Server - rack-mountable 1U - no CPU - RAM 0 GB - no HDD - Gigabit Ethernet - no OS - monitor: none - black |
| Manufacturer | Super Micro Computer |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Dimensions & Weight / Depth | 36.8 cm |
| Dimensions & Weight / Height | 4.3 cm |
| Dimensions & Weight / Weight | 4.99 kg |
| Dimensions & Weight / Width | 43.7 cm |
| Display / Type | None. |
| Header / Brand | Supermicro |
| Mainboard / Chipset Type | Intel C266 |
| Mainboard / Processor Socket | LGA1700 Socket |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Type | No CPU |
| RAM / Data Integrity Check | ECC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Technology | DDR5 SDRAM |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Server |
| Dimensions & Weight | |
| Depth | 36.8 cm |
| Height | 4.3 cm |
| Weight | 4.99 kg |
| Width | 43.7 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 50.8 cm |
| Shipping Height | 16 cm |
| Shipping Weight | 6.35 kg |
| Shipping Width | 55.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 80% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x internal 3.5" |
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | Air cooling solution, 2 x 40 mm fan, LED panel |
| Color | Black |
| Internal Bays Qty | 2 |
| Product Form Factor | Rack-mountable - 1U |
| Type | Server |
| Hard Drive | |
| Type | No HDD |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Gigabit Ethernet, Fast Ethernet, Ethernet |
| Ethernet Controller | Intel I210 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Features | KVM over IP support |
| Remote Management Protocol | IPMI 2.0 |
| Operating System / Software | |
| OS Provided | No operating system |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply |
| Power Provided | 350 Watt |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel C266 |
| CPU | No CPU |
| CPU Socket | LGA1700 Socket |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 1 |
| Motherboard Name | Supermicro X13SCH-SYS |
| RAM | |
| Features | Unbuffered |
| Form Factor | DIMM 288-pin |
| Installed Size | 0 GB (installed) / 128 GB (max) |
| Slots | 4 (total) / 4 (empty) |
| Technology | DDR5 SDRAM - ECC |
| Storage Controller | |
| Channel Qty | 8 |
| Controller Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Type | SATA |
