APC Easy UPS SRV SRVPM2KRIL


MSRP€869.00
€778.00
APC Easy UPS SRV SRVPM2KRIL

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • UPS (rack-mountable)
  • AC 230 V
  • 1600 Watt
  • 2000 VA
  • no battery

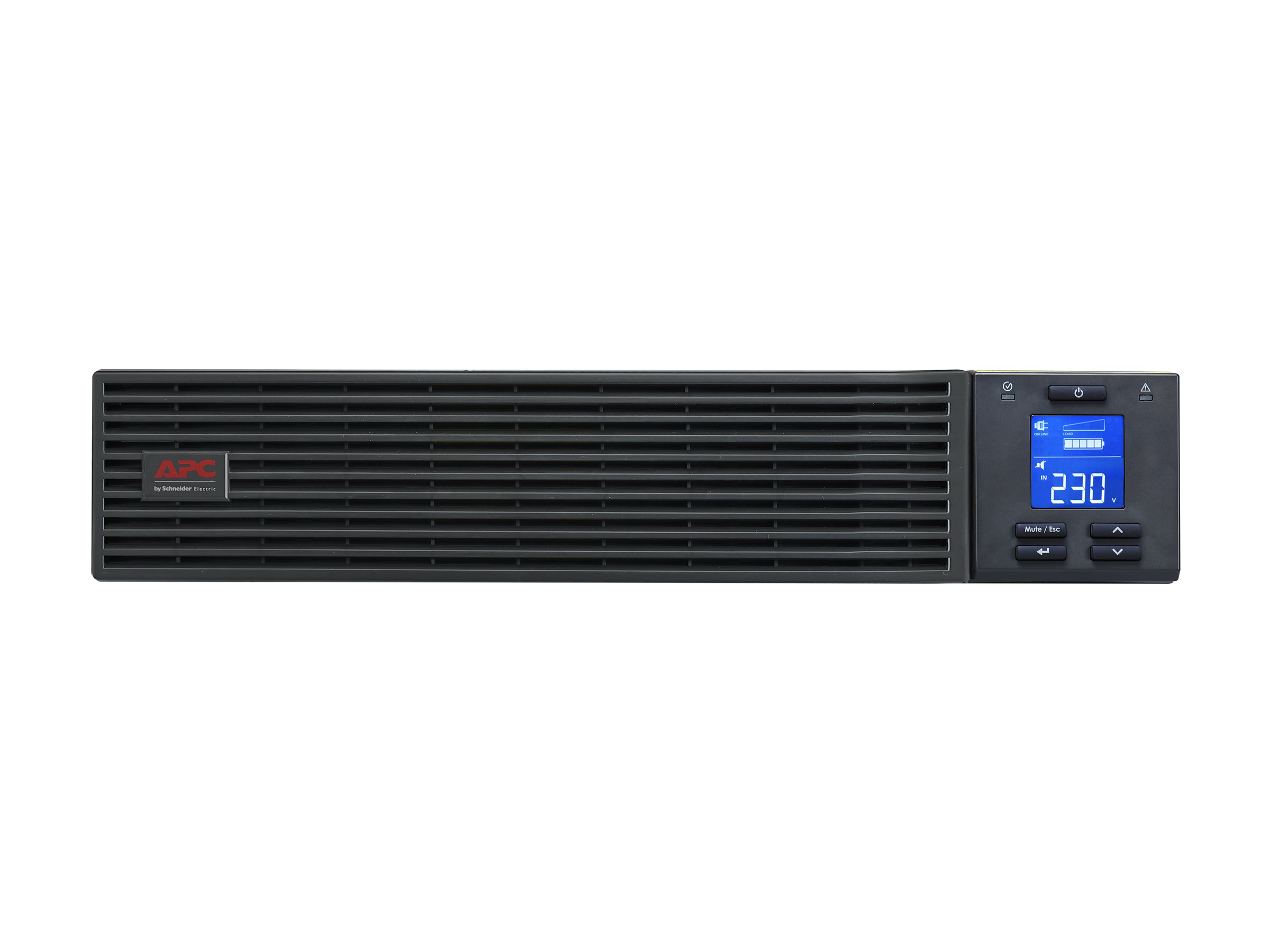

APC Easy UPS SRV SRVPM2KRIL
  • UPS (rack-mountable)
  • AC 230 V
  • 1600 Watt
  • 2000 VA
  • no battery
  • RS-232, USB
  • output connectors: 4
  • 2U
  Additional Details
Price: €778.00
MSRP: €869.00
Mfr Part #: SRVPM2KRIL
SHI Part #: 47245500
Category: Uninterruptible power supplies
UNSPSC: 39121011
Manufacturer: APC by Schneider Electric
Product Type: Hardware
General Information
CategoryUninterruptible power supplies
DescriptionAPC Easy UPS SRV SRVPM2KRIL - UPS (rack-mountable) - AC 230 V - 1600 Watt - 2000 VA - no battery - RS-232, USB - output connectors: 4 - 2U
ManufacturerAPC by Schneider Electric
MSRP€869.00
UNSPSC39121011
Main Specifications
Dimensions & Weight / Depth46.2 cm
Dimensions & Weight / Height8.6 cm
Dimensions & Weight / Weight9.2 kg
Dimensions & Weight / Width43.8 cm
General / SubcategoryUPS
Header / BrandAPC
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • RS-232
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable
Power Device / Output Connector Qty4
Power Device / Power Capacity (VA)2000 VA
Power Device / UPS TechnologyOn-line
Power Device / Voltage RequiredAC 230 V
Product TypeUPS
Battery
TypeNo battery
Dimensions & Weight
Depth46.2 cm
Height8.6 cm
Weight9.2 kg
Width43.8 cm
Dimensions & Weight (Shipping)
Shipping Depth70 cm
Shipping Height24 cm
Shipping Weight13.4 kg
Shipping Width54.5 cm
Environmental Parameters
Humidity Range Operating0 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x Intelligent Slot

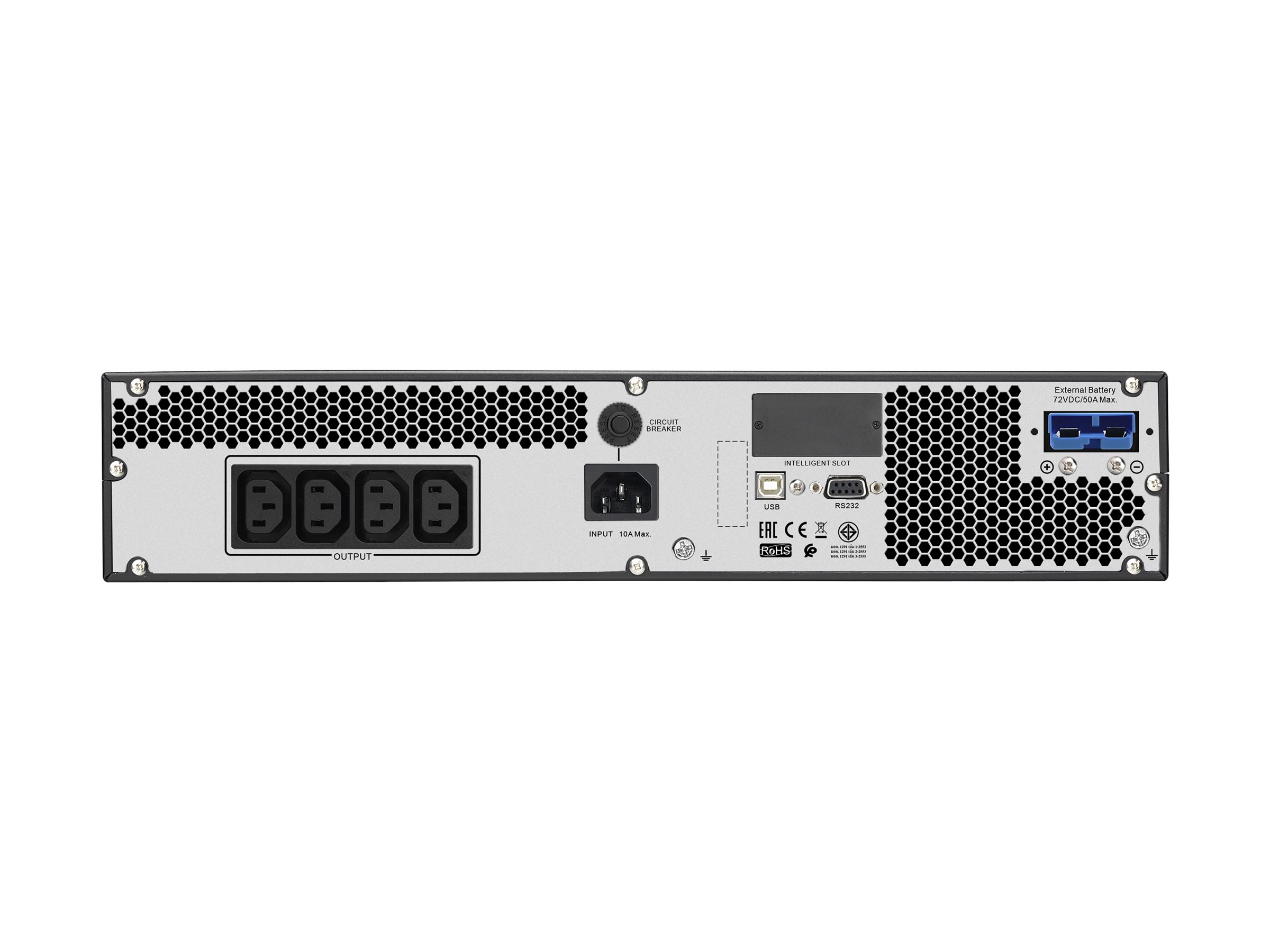

Interfaces
  • 1 x management (USB) - 4 pin USB Type B
  • 1 x management (RS-232) - 9 pin D-Sub (DB-9)
General
Device TypeUPS - rack-mountable
Height (Rack Units)2U
Miscellaneous
Cables Included
  • Serial cable - external
  • Power cable - external
  • USB cable - external
Compliant StandardsIP20
FeaturesAudible alarm, LCD display, internal bypass, LED indicators
Rack Mounting KitIncluded
Networking
Remote Management InterfaceRS-232, USB
Power Device
Circuit ProtectionCircuit breaker
Efficiency88%
Frequency Provided50/60 Hz ± 3Hz
Frequency Required40 - 70 Hz
Input Connectors1 x power IEC 60320 C14
Input VoltageAC 230 V
Input Voltage RangeAC 110 - 285 V
Output VoltageAC 220/230/240 V 50/60 Hz
Output WaveformSinewave
Power Capacity1600 Watt / 2000 VA
Power Factor (PF)0.95
Power Output Connectors Details4 x power IEC 60320 C13 10 A
Surge SuppressionYes
UPS TechnologyOn-line
