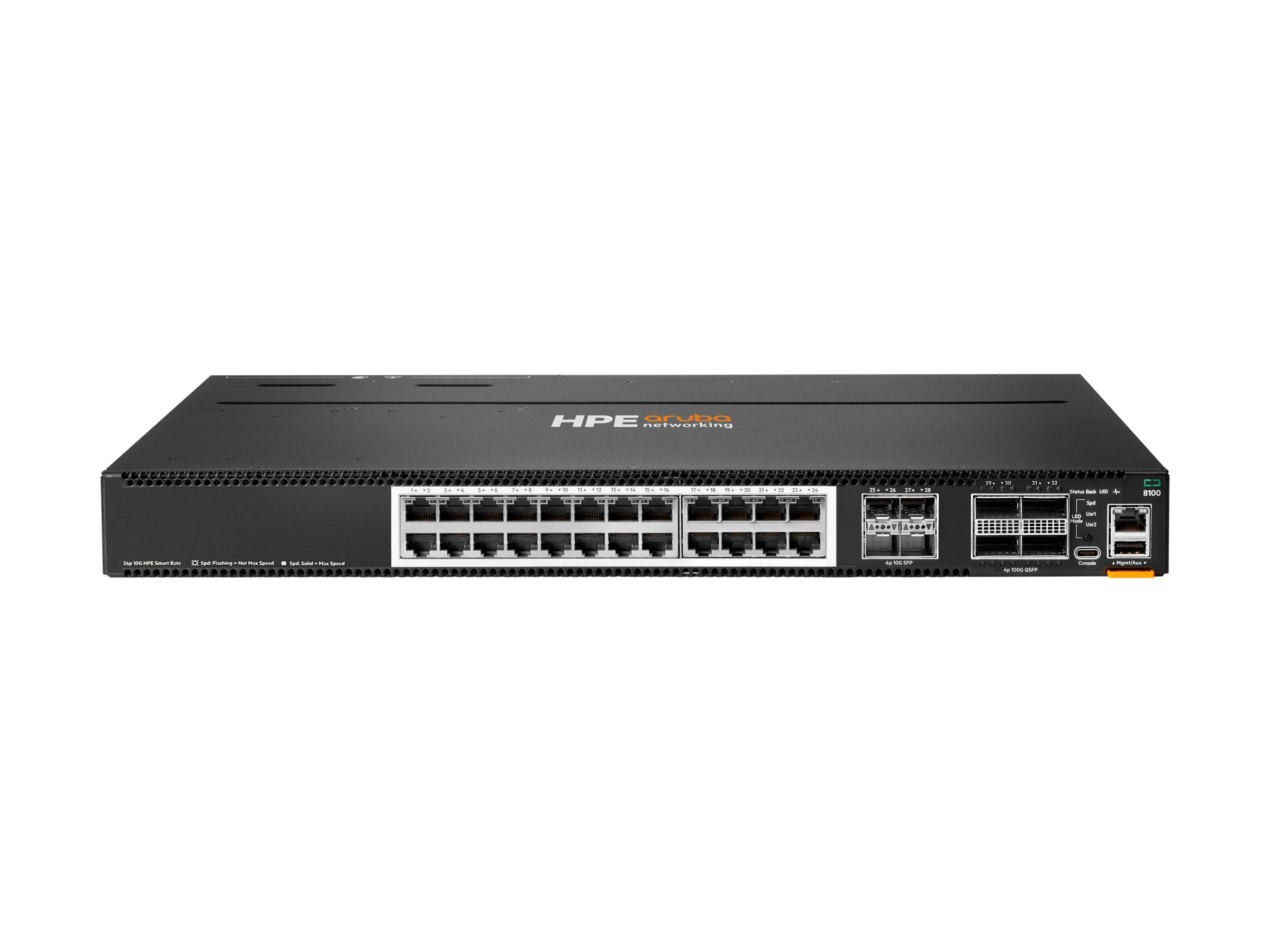

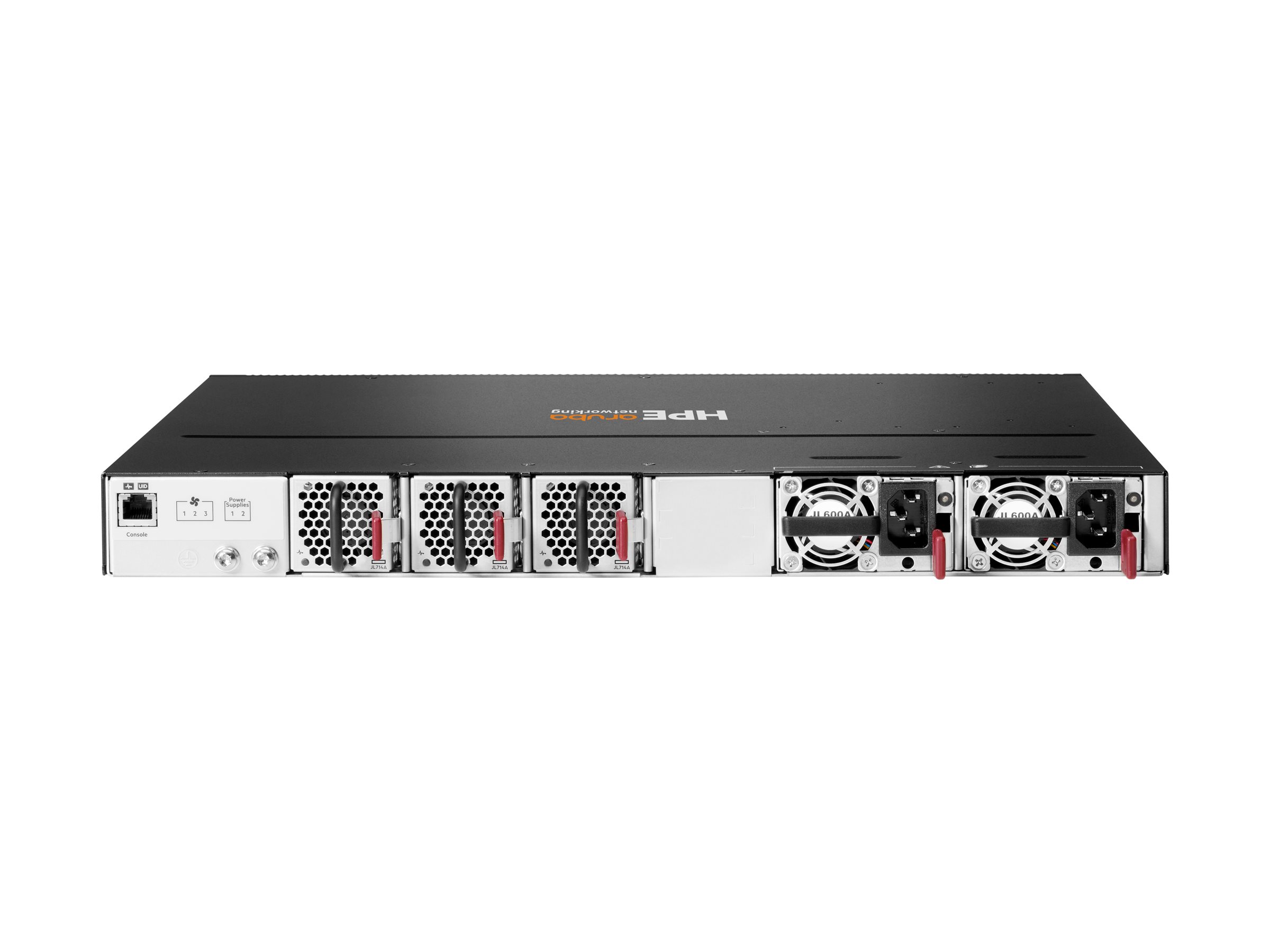

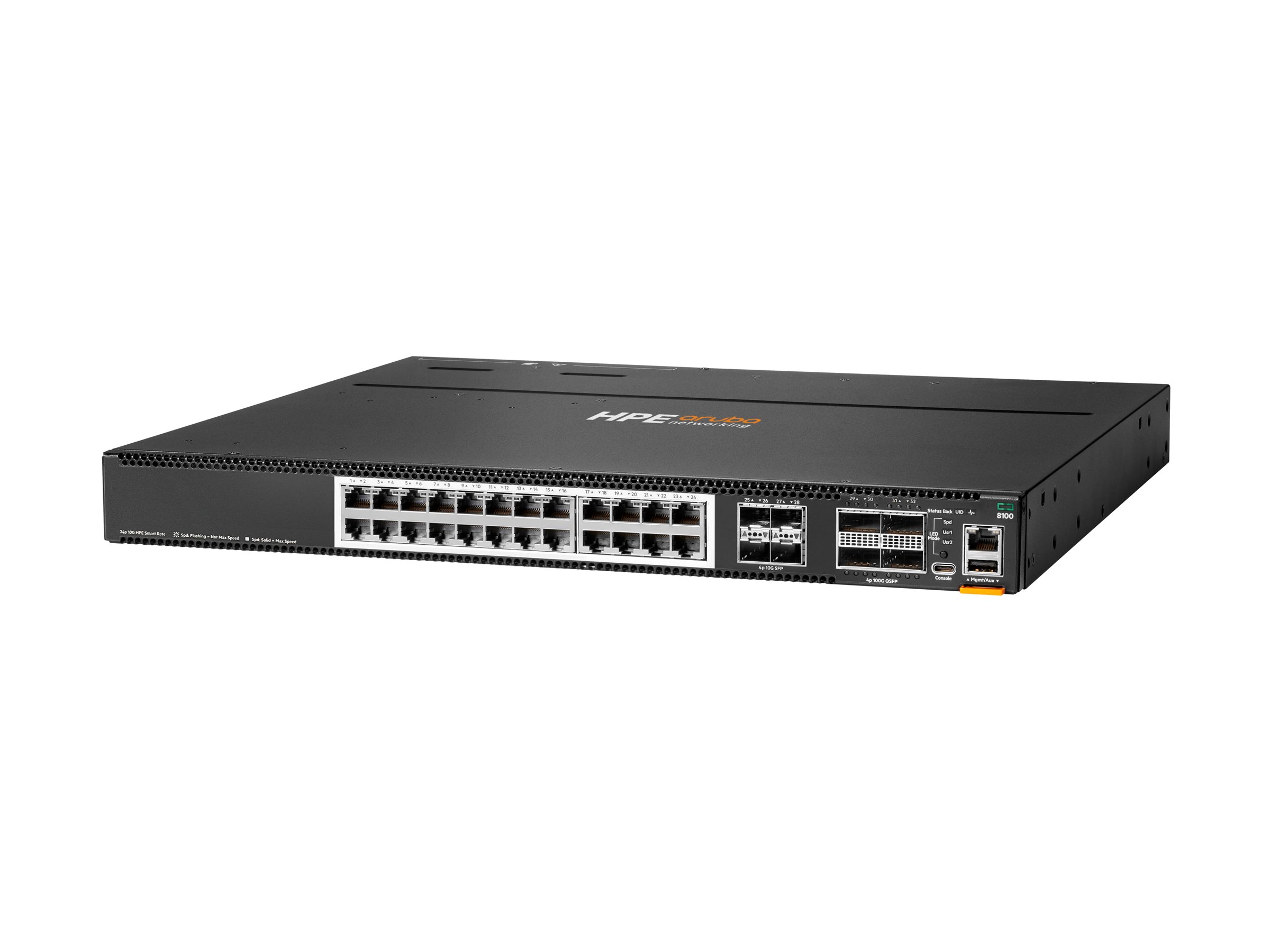

HPE Aruba Networking CX 8100 24x10GBase-T 4x10G SFP+ 4x40/100G QSFP28 Switch


MSRP€22,918.00
€19,321.00
HPE Aruba Networking CX 8100 24x10GBase-T 4x10G SFP+ 4x40/100G QSFP28 Switch

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Spare Only
  • switch
  • L3
  • managed
  • 24 x 100/1000/2.5G/5G/10GBase-T + 4 x Gigabit SFP / 10 Gigabit SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28
HPE Aruba Networking CX 8100 24x10GBase-T 4x10G SFP+ 4x40/100G QSFP28 Switch
  • Spare Only
  • switch
  • L3
  • managed
  • 24 x 100/1000/2.5G/5G/10GBase-T + 4 x Gigabit SFP / 10 Gigabit SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28
  • rack-mountable
  Additional Details
Price: €19,321.00
MSRP: €22,918.00
Mfr Part #: R9W95A
SHI Part #: 46203543
Category: Network switches
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware

CPU-Fans

Aruba X741 - Fan module
  • for CX 8360-12, 8360-16, 8360-24, 8360-32, 8360-48; Networking CX 8100 24x10
MSRP €575.00 €475.00
Aruba X742 - Fan module
  • for CX 8360-12, 8360-16, 8360-24, 8360-32, 8360-48; Networking CX 8100 24x10
MSRP €556.00 €176.00

Power Management

HPE Aruba X391 - Power supply
  • hot-plug / redundant (plug-in module)
  • AC
  • 550 Watt
  • Europe
  • for CX 8360-12, 8360-16, 8360-24, 8360-32, 8360-48; Networking CX 8100 24x10
MSRP €1,000.00 €877.00
HPE Aruba X391 - Power supply
  • hot-plug / redundant (plug-in module)
  • AC
  • 550 Watt
  • Europe
  • for CX 8360-12, 8360-16, 8360-24, 8360-32, 8360-48; Networking CX 8100 24x10
MSRP €1,000.00 €877.00
General Information
CategoryNetwork switches
DescriptionHPE Aruba Networking CX 8100 24x10GBase-T 4x10G SFP+ 4x40/100G QSFP28 Switch - Spare Only - switch - L3 - managed - 24 x 100/1000/2.5G/5G/10GBase-T + 4 x Gigabit SFP / 10 Gigabit SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28 - rack-mountable
ManufacturerHewlett Packard Enterprise
MSRP€22,918.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth40.64 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight8.3 kg
Dimensions & Weight / Width44.25 cm
Header / BrandAruba
Miscellaneous / Product ColorBlack
Networking / Form FactorRack-mountable
Networking / Ports Qty24
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
System Requirements / OS RequiredAOS-CX
Dimensions & Weight
Depth40.64 cm
Height4.4 cm
Weight8.3 kg
Width44.25 cm
Environmental Parameters
Humidity Range Operating15 - 95% (non-condensing)
Humidity Range Storage15 - 95% (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 24 x 100/1000/2.5G/5G/10GBase-T RJ-45
  • 4 x Gigabit / 10Gbit LAN SFP+
  • 4 x 40/100Gbit LAN QSFP28/QSFP+
  • 1 x USB-C console
  • 1 x serial RJ-45
  • 1 x USB Type A AUX
General
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Capacity
  • IPv4 ACL entries (ingress): 16384
  • IPv6 ACL entries (ingress): 4096
  • MAC ACL entries (ingress): 16384
  • IPv4 ACL entries (egress): 2048
  • IPv6 ACL entries (egress): 512
  • MAC ACL entries (egress): 2048
  • Maximum number of VLANs: 1024
  • IGMP groups: 4000
  • MLD groups: 4000
  • Packet buffer size: 32 MB
  • IPv4 routes (Multicast): 4096
  • IPv6 routes (Multicast): 4096
  • Link aggregation groups: 54
Compliant StandardsIEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3by
Device TypeSwitch - 24 ports - L3 - managed
Enclosure TypeRack-mountable 1U
FeaturesLayer 2 switching, port mirroring, sFlow, Quality of Service (QoS), Equal-Cost Multipath (ECMP), Bidirectional Forwarding Detection (BFD), Data Center Bridging (DCB), Generic Routing Encapsulation (GRE), Ethernet Ring Protection Switching (ERPS), RDMA over Converged Ethernet (RoCE), Bridge protocol data unit (BPDU), RDMA over Converged Ethernet (RoCE) v2, Open Shortest Path First (OSPF), Network Timing Protocol (NTP), policy based routing, Rapid PVST+ (RPVST+), Unidirectional Link Detection (UDLD), layer 3 routing, Address Resolution Protocol, Aruba Virtual Switching Extension (VSX), Dynamic VXLAN with BGP-EVPN, Border Gateway Protocol 4 (BGP-4)
Flash Memory32 GB
Jumbo Frame Support9000 bytes
MAC Address Table Size147456 entries
PerformanceSwitching capacity: 1.36 Tbps
Ports24 x 100/1000/2.5G/5G/10GBase-T + 4 x Gigabit SFP / 10 Gigabit SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28
Processor1 x ARM Cortex-A72: 1.8 GHz
RAM16 GB
Remote Management ProtocolSNMP 2, SNMP, SNMP 3, MIB
Routing ProtocolBGP-4, RIP-2, IGMPv2, IGMP, IGMPv3, MLDv2, MLD
Subtype10 Gigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsIEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, Laser Class 1, EN 61000-4-8, VCCI Class A, EN 61000-3-3:2013, IEC 61000-3-3:2013, EMC 2014/30/EU, CNS 13438 Class A, Directive 2014/35/EU, KN32 Class A, EN 55032:2015, CISPR 35, EN 60825-1:2014, EN 55035:2017, IEC 62368-1: 2014, EN 62368-1:2014 Second Edition, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, IEC 61000-3-2:2019, IEC 62368-1:2018, EN 63000:2018, UL62368-1/CAN/CSA C22.2 No.62368-1, FCC CFR 47 Part 15: 2018 Class A, AS/NZS CISPR 32:2015 Class A, CISPR-32 Class A, EN 62368-1:2020 3rd Edition
Included Accessories2-Post Rack Kit
Power
Max Supported Qty2
Power Consumption Stand by120 Watt
Power DeviceInternal power supply (not installed) - hot-plug
Voltage RequiredAC 100-127/200-240 V (50/60 Hz)
Software / System Requirements
OS RequiredAOS-CX
