HPE ProLiant DL320 Gen11
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
Quick Details
|
---|
|

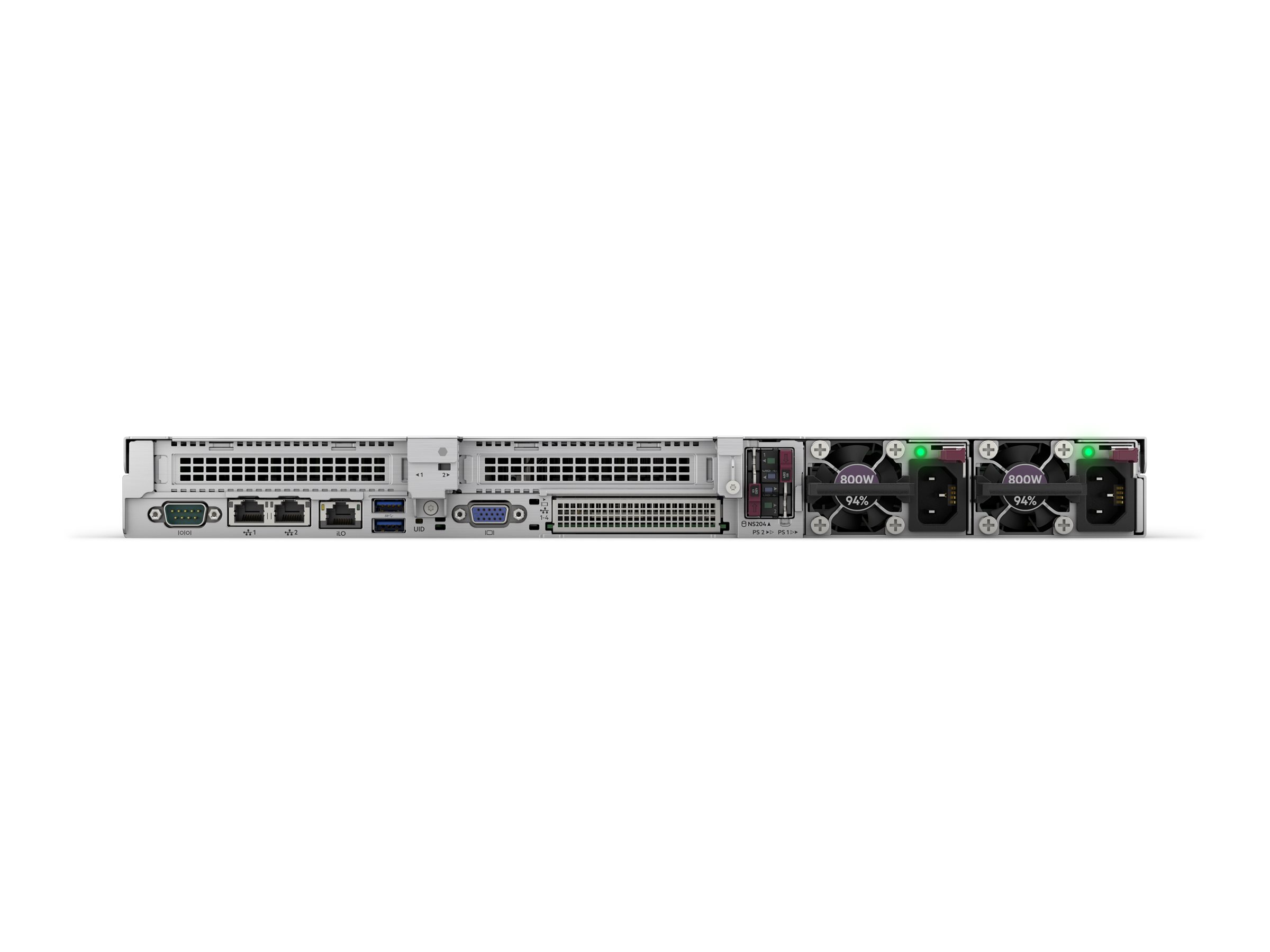

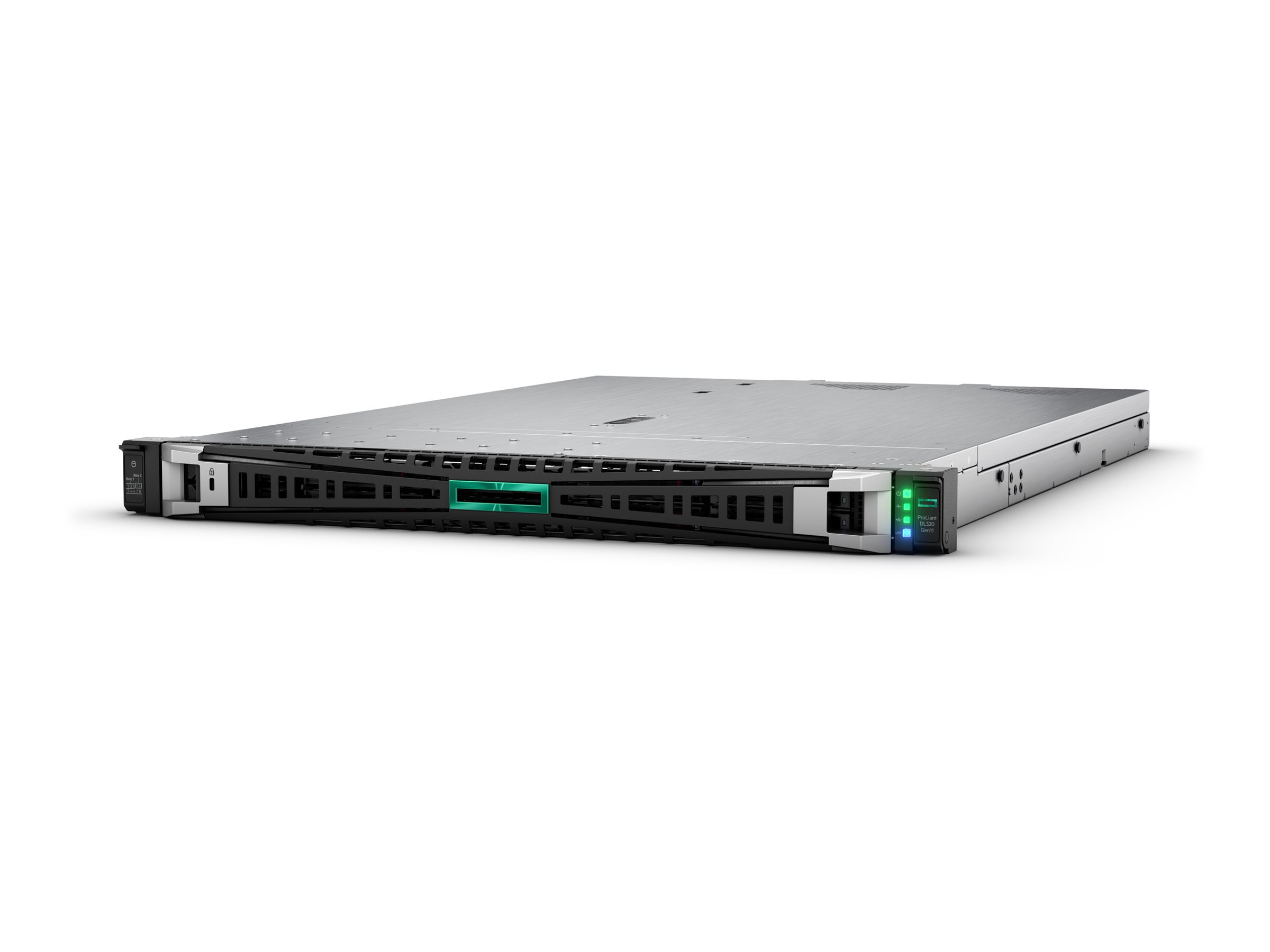

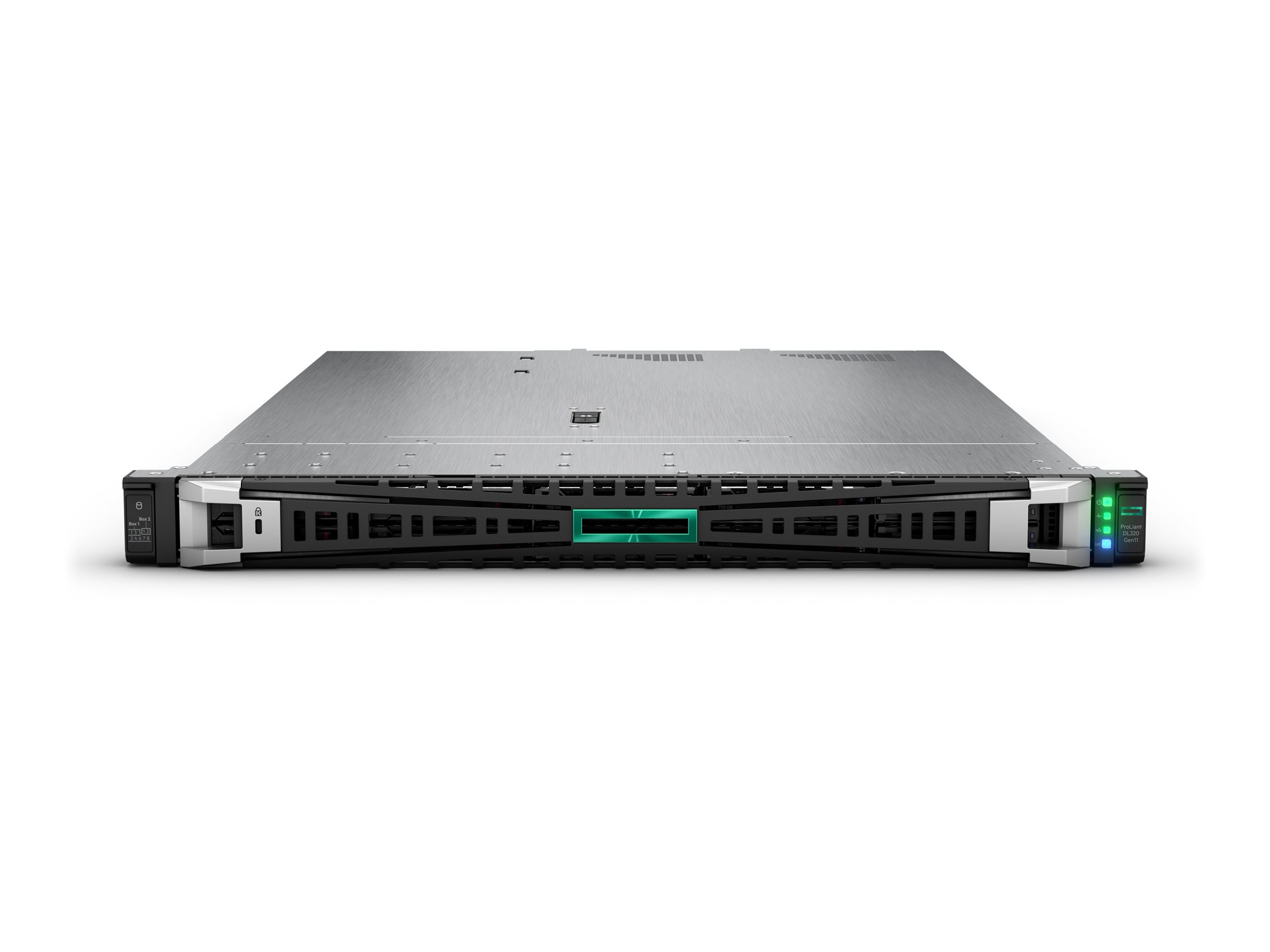

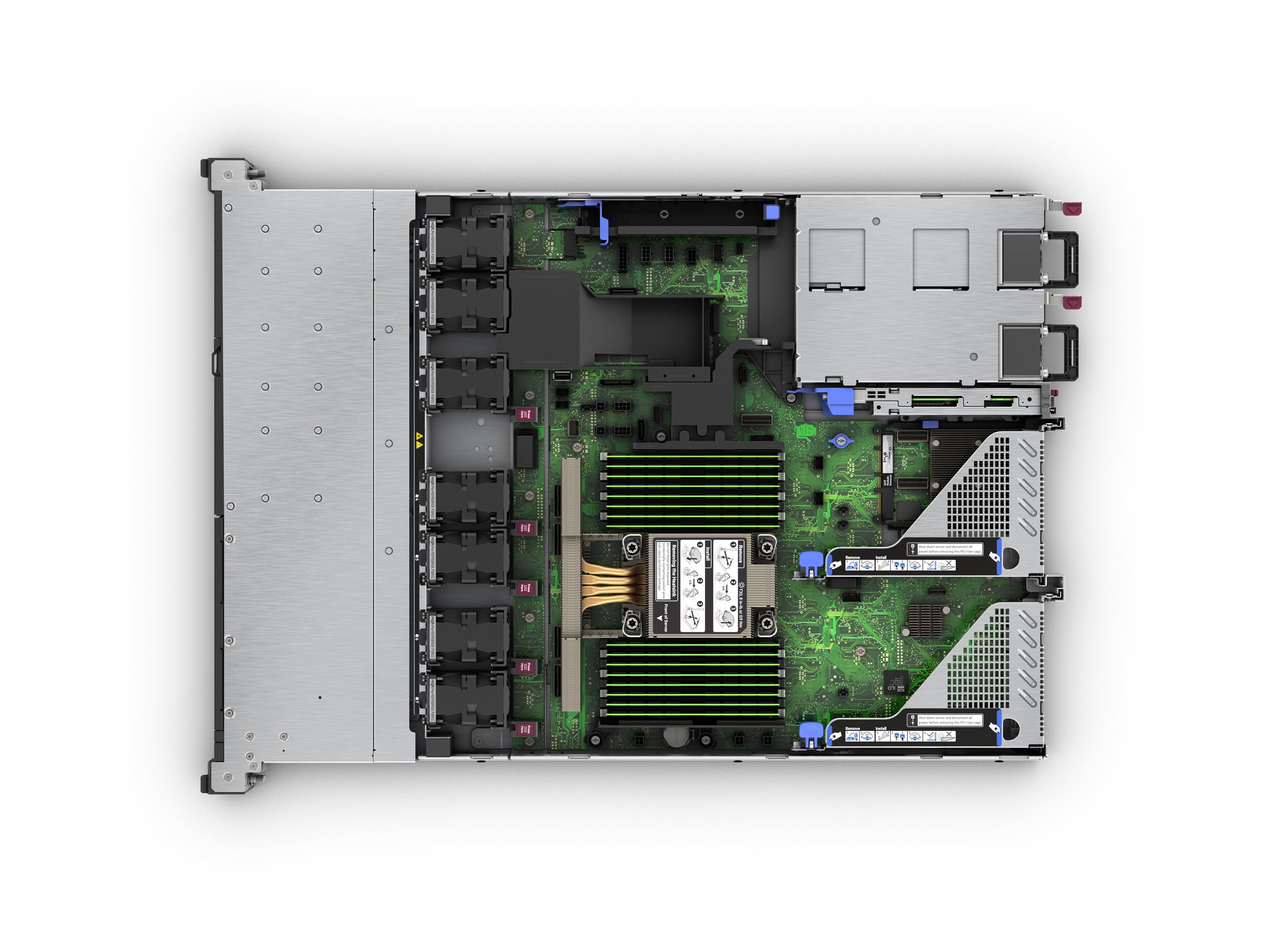

HPE ProLiant DL320 Gen11
- Server
- rack-mountable 1U
- 1-way
- 1 x Xeon Gold 5416S / up to 4 GHz
- RAM 32 GB
- SATA/SAS
- hot-swap 2.5" bay(s)
- no HDD
- Gigabit Ethernet
- no OS
- monitor: none
Additional Details | |
---|---|
Price: | |
Mfr Part #: | P57688-B21 |
SHI Part #: | 46058176 |
Category: | Servers |
UNSPSC: | 43211501 |
Manufacturer: | Hewlett Packard Enterprise |
Product Type: | Hardware |
Audio/Video Cables
Storage Networking (SAN)
- Storage drive cage
- 2SFF x4 Tri-Mode 24G U.3
- for ProLiant DL320 Gen11
- Rack rail kit
- for ProLiant DL320 Gen11, DL325 Gen11, DL345 Gen11, DL360 Gen11, DL365 Gen11, DL385 Gen11
General Information | |
---|---|
Category | Servers |
Description | HPE ProLiant DL320 Gen11 - Server - rack-mountable 1U - 1-way - 1 x Xeon Gold 5416S / up to 4 GHz - RAM 32 GB - SATA/SAS - hot-swap 2.5" bay(s) - no HDD - Gigabit Ethernet - no OS - monitor: none |
Manufacturer | Hewlett Packard Enterprise |
UNSPSC | 43211501 |
Main Specifications | |
Chassis / Form Factor | Rack-mountable |
Chassis / Server Storage Bays | Hot-swap |
Chassis / Server Swappable Drive Interface | SATA/SAS |
Dimensions & Weight / Depth | 60.51 cm |
Dimensions & Weight / Height | 4.28 cm |
Dimensions & Weight / Weight | 12 kg |
Dimensions & Weight / Width | 43.46 cm |
Display / Type | None. |
Header / Brand | HPE |
Mainboard / Chipset Type | Intel C741 |
Miscellaneous / Product Color |
|
Networking / Data Link Protocol |
|
Optical Storage / Drive Type | No optical drive |
Optical Storage / Type | None |
OS Provided / Type | No operating system |
Packaged Quantity | 1 |
Processor / Clock Speed | 2 GHz |
Processor / Manufacturer | Intel |
Processor / Number of Cores | 16-core |
Processor / Processor Number | 5416S |
Processor / Type | Xeon Gold |
RAM / Data Integrity Check | Advanced ECC |
RAM / Form Factor | DIMM 288-pin |
RAM / Memory Speed | 4400 MHz |
RAM / Technology | DDR5 SDRAM |
Service & Support / Type | 3-year warranty |
System / Hard Drive Capacity | 0 GB |
System / Type | Server |
Cache Memory | |
Cache Per Processor | 30 MB |
Installed Size | L3 cache - 30 MB |
Dimensions & Weight | |
Depth | 60.51 cm |
Height | 4.28 cm |
Weight | 12 kg |
Width | 43.46 cm |
Environmental Parameters | |
Humidity Range Operating | 8 - 90% RH (non-condensing) |
Max Operating Temperature | 35 °C |
Min Operating Temperature | 10 °C |
Expansion / Connectivity | |
Bays | 8 (total) / 8 (free) x hot-swap 2.5" SFF |
Interfaces |
|
Slots |
|
General | |
Built-in Devices | LED panel |
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
Hot-Swap Bays Qty | 8 |
Product Form Factor | Rack-mountable - 1U |
Server Scalability | 1-way |
Type | Server |
Graphics Controller | |
Video Interfaces | VGA |
Video Memory | 16 MB |
Hard Drive | |
Type | No HDD |
Manufacturer Warranty | |
Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
Miscellaneous | |
Compliant Standards | AES, FIPS 140-2, Triple DES, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.3 |
Included Accessories | 5 x standard fans, HPE Easy Install Rails without CMA |
Monitor | |
Monitor Type | None. |
Networking | |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Ethernet Ports | 2 x Gigabit Ethernet |
Features | Wake on LAN (WoL), ACPI support, PXE support |
Remote Management Controller | Integrated Lights-Out 6 |
Remote Management Protocol | SNMP 3, IPMI 2.0 |
Operating System / Software | |
OS Certified | CentOS, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Red Hat Enterprise Linux 8.6, Ubuntu 22.04 LTS, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Server 15 SP4, VMware ESXi 7.0 update 3, VMware ESXi 8.0, VMware ESXi 8.0 update 1 |
OS Provided | No operating system |
Optical Storage | |
Type | No optical drive |
Power | |
80 PLUS Certification | 80 PLUS Platinum |
Device Type | Power supply - hot-plug |
Installed Qty | 1 |
Max Supported Qty | 2 |
Power Provided | 500 Watt |
Power Redundancy | Optional |
Power Redundancy Scheme | 1+1 (with optional power supply) |
Voltage Required | AC 100-240 V |
Processor / Chipset | |
Chipset Type | Intel C741 |
Clock Speed | 2 GHz |
CPU | Intel Xeon Gold 5416S |
CPU Qty | 1 |
CPU Upgradability | Upgradable |
Max CPU Qty | 1 |
Max Turbo Speed | 4 GHz |
Number of Cores | 16-core |
Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
RAM | |
Configuration Features | 1 x 32 GB |
Effective Memory Speed | 4400 MHz |
Features | Registered, 8-channel memory architecture, HPE SmartMemory |
Form Factor | DIMM 288-pin |
Installed Size | 32 GB (installed) / 2.04 TB (max) |
Rated Memory Speed | 4800 MHz |
Slots | 16 (total) / 15 (empty) |
Technology | DDR5 SDRAM - Advanced ECC |
Storage Controller | |
Buffer Size | 4 GB |
Channel Qty | 8 |
Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50, RAID 60 |
Storage Controller Name | HPE MR408i-o Gen11 SPDM |
Type | 1 x RAID - OCP |
Sustainability Information | |
ENERGY STAR Certified | Yes |
