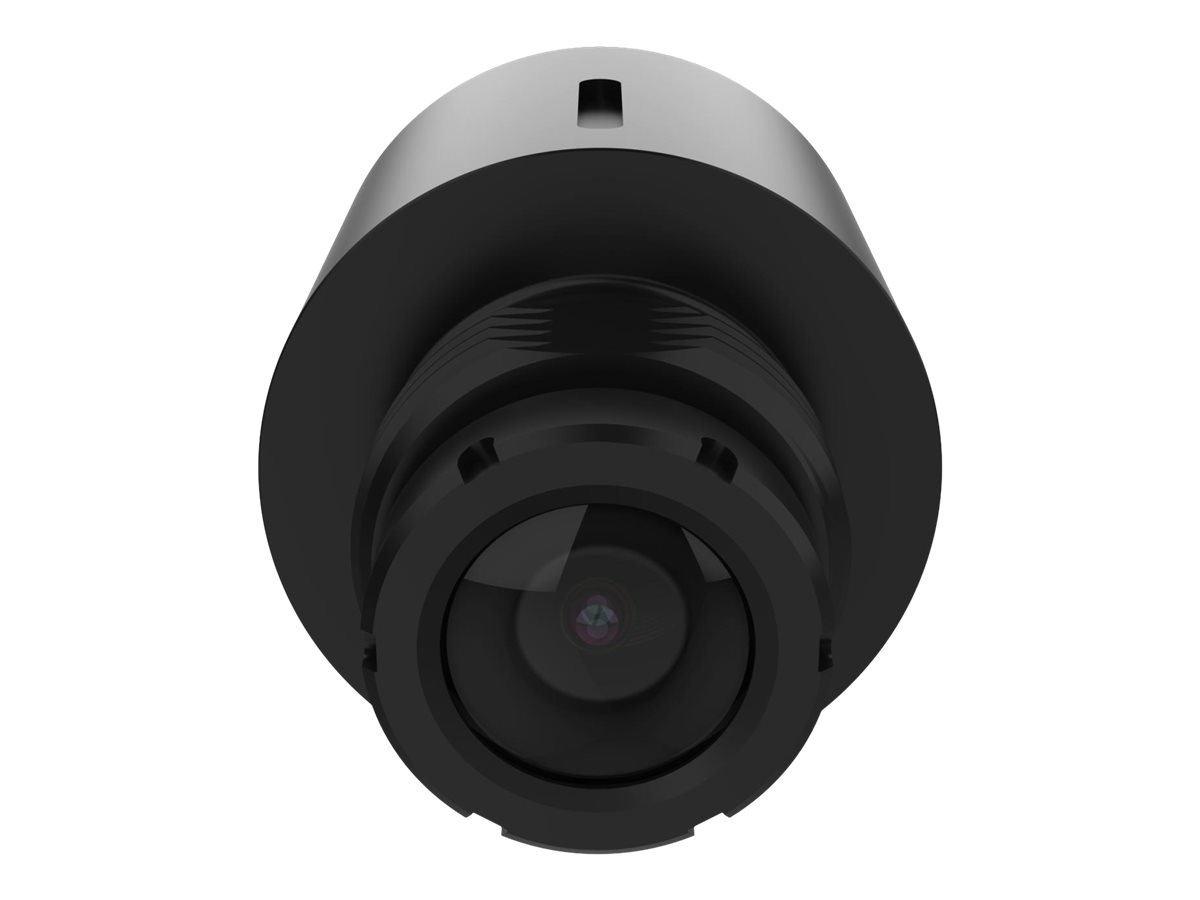

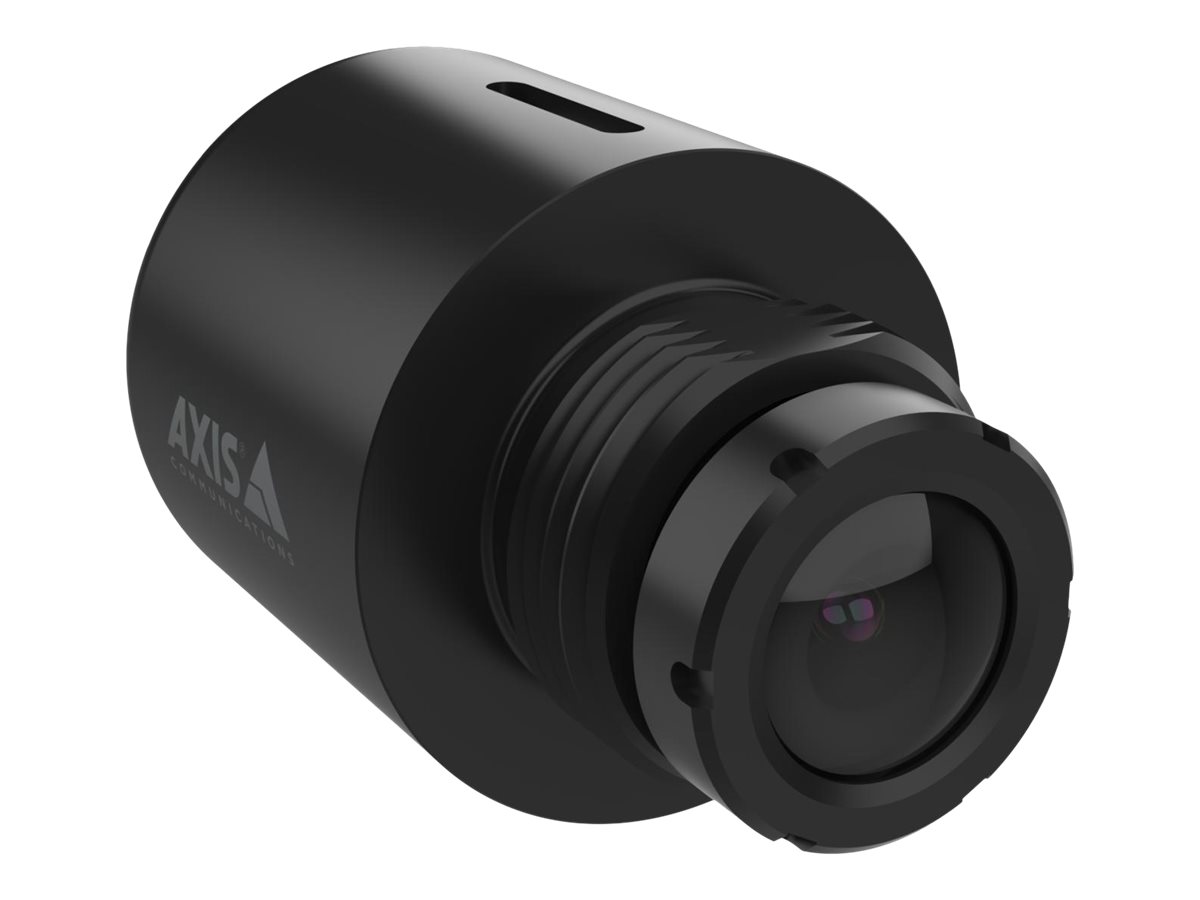

F2105-RE STANDARD BULK 8P
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
F2105-RE STANDARD BULK 8P
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 02640-021 |
| SHI Part #: | 45678733 |
| Category: | Surveillance video or audio recorders |
| UNSPSC: | 46171621 |
| Manufacturer: | Axis Communications |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Surveillance video or audio recorders |
| Description | F2105-RE STANDARD BULK 8P |
| Manufacturer | Axis Communications |
| UNSPSC | 46171621 |
| Main Specifications | |
| Dimensions & Weight / Depth | 4.6 cm |
| Dimensions & Weight / Height | 2.98 cm |
| Dimensions & Weight / Weight | 50 g |
| Dimensions & Weight / Width | 2.98 cm |
| Header / Brand | Axis |
| Header / Country Kits |
|
| Miscellaneous / Product Color |
|
| Packaged Quantity |
|
| Service & Support / Type | 5-year warranty |
| Camera | |
| Features | Infrared-cut filter, ruggedized, replaceable lens |
| Frame Rate (max) | 180 frames per second |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination | 0.1 lux - color |
| Type | Color - fixed - outdoor - weather resistant |
| Video Modes | 1080p, 720p |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 10 - 100% RH (condensing) |
| Expansion / Connectivity | |
| Ports | Video output - SMA |
| General | |
| Connectivity Technology | Wired |
| Depth | 4.6 cm |
| Device Type | Surveillance camera |
| Height | 2.98 cm |
| Localization | Argentina, Australia, Brazil, China, Europe, India, Japan, Korea, United Kingdom, United States |
| Packaged Quantity | 8 (specifications are for single item) |
| Weight | 50 g |
| Width | 2.98 cm |
| Image Sensor | |
| Type | PS RGB CMOS 1/2.8" |
| Lens Construction | |
| Focal Length | 3.1 mm |
| Horizontal Field of View (degree) | 70 - 108 |
| Lens Iris | F/2.0 fixed iris |
| Type | M12 mount - fixed focal |
| Vertical Field of View (degree) | 39 - 58 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Color | Black, NCS S 9000-N |
| Compliant Standards | PVC-free, NEMA TS-2 (2.2.7-2.2.9), EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, AS/NZS CISPR 32 Class A, RCM, KN32 Class A, KC, KN35, EAC, ECE-R10 Rev.5 (E approval), IEC/EN/UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 60950-22, UN ECE R118, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC TR 60721-4-5 Class 5M3, IEC/EN 60529 IP67, IEC/EN 60529 IP66, IEC/EN 61373 Category 1 Class B, NEMA250 Type 4X, ISO 21207 method B, ISO 20653, IP6K9K |
| Power | |
| Power Device | 1 Watt |
