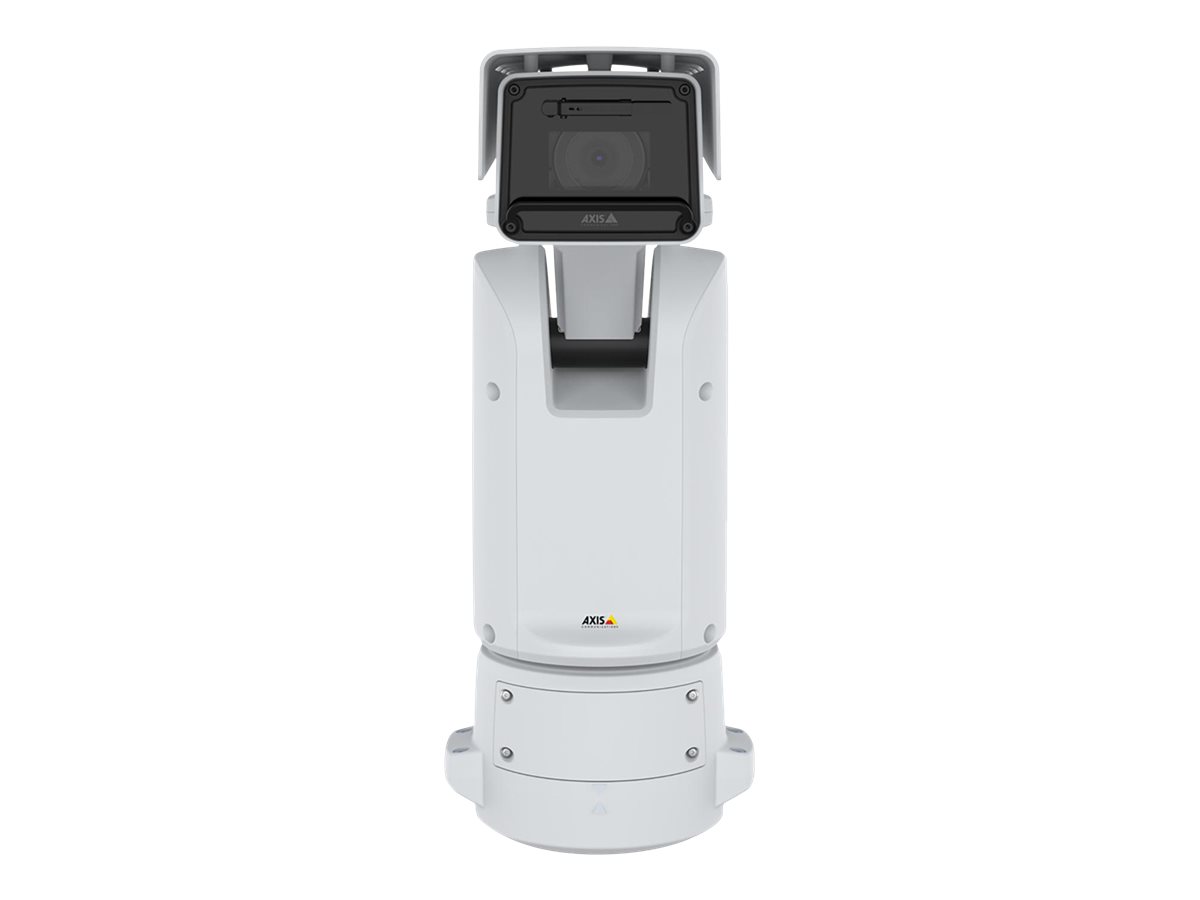

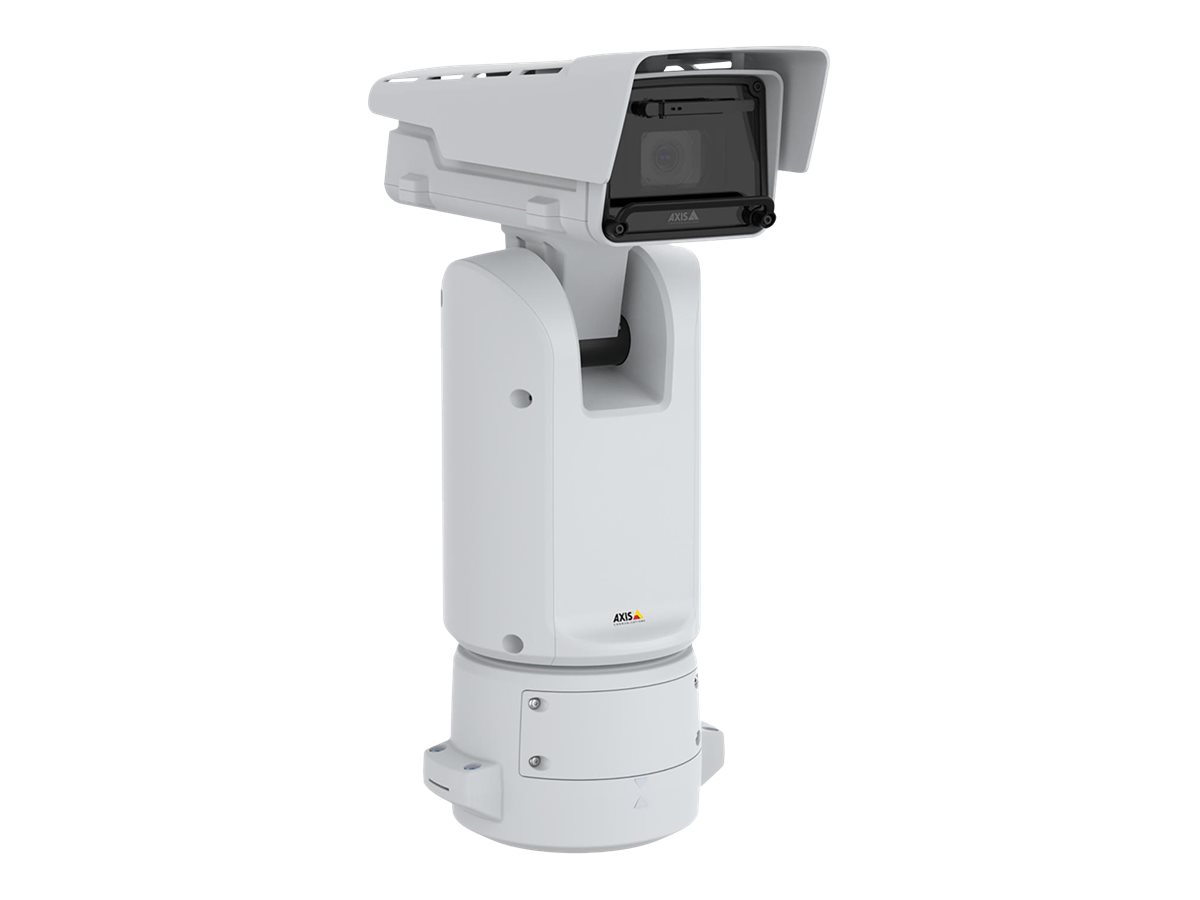

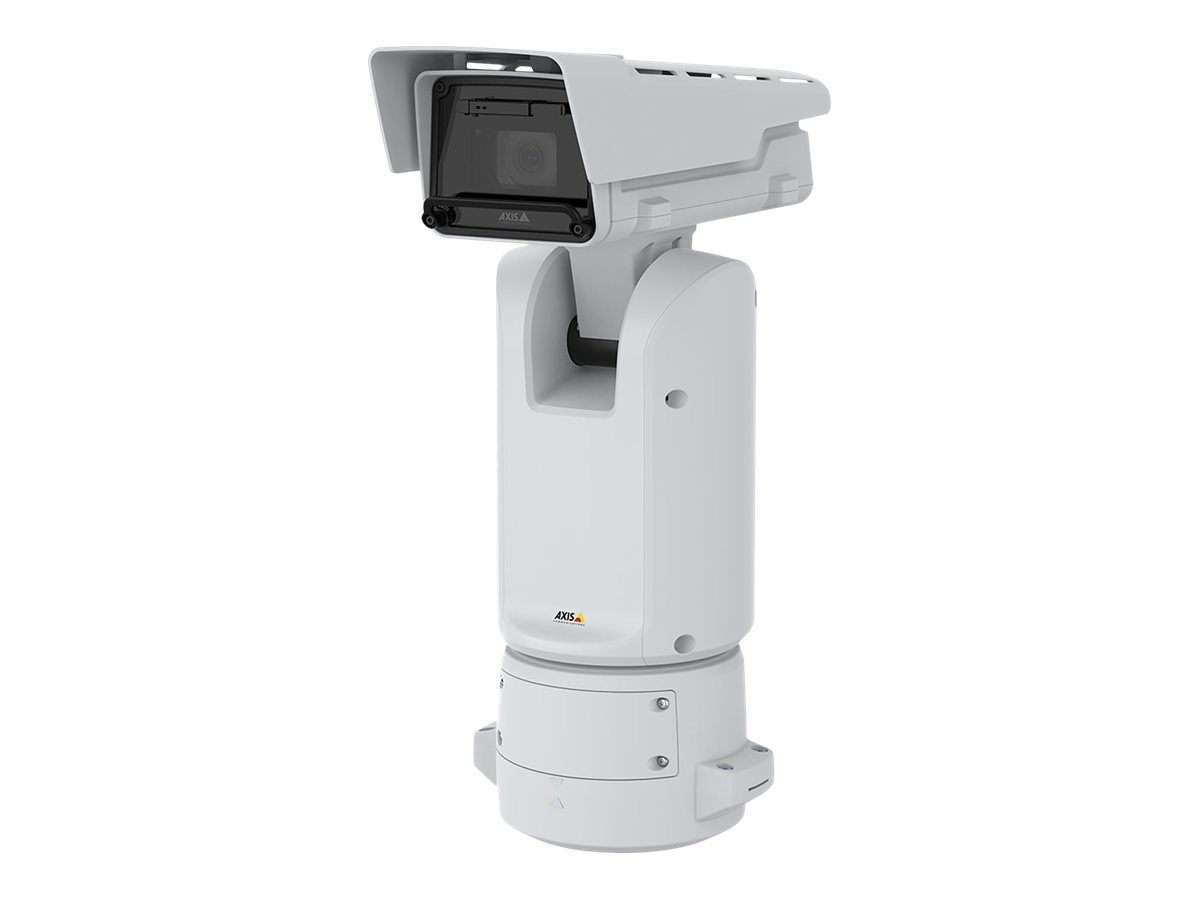

AXIS Q86 Series Q8615-E 60HZ


€4,856.00
AXIS Q86 Series Q8615-E 60HZ

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Network surveillance camera
  • PTZ
  • outdoor
  • weather resistant / impact resistant
  • color (Day&Night)
AXIS Q86 Series Q8615-E 60HZ
  • Network surveillance camera
  • PTZ
  • outdoor
  • weather resistant / impact resistant
  • color (Day&Night)
  • 1920 x 1080
  • 1080p
  • vari-focal
  • wired
  • GbE
  • MJPEG, H.264, AVC, HEVC, H.265, MPEG-4 Part 10, MPEG-H Part 2
  • DC 10
  • 28 V
  Additional Details
Price: €4,856.00
Mfr Part #: 02517-001
SHI Part #: 45481939
Category: Digital cameras
UNSPSC: 45121504
Manufacturer: Axis Communications
Product Type: Hardware
General Information
CategoryDigital cameras
DescriptionAXIS Q86 Series Q8615-E 60HZ - Network surveillance camera - PTZ - outdoor - weather resistant / impact resistant - color (Day&Night) - 1920 x 1080 - 1080p - vari-focal - wired - GbE - MJPEG, H.264, AVC, HEVC, H.265, MPEG-4 Part 10, MPEG-H Part 2 - DC 10 - 28 V
ManufacturerAxis Communications
MSRP€4,299.00
UNSPSC45121504
Main Specifications
Dimensions & Weight / Depth41.1 cm
Dimensions & Weight / Height57.9 cm
Dimensions & Weight / Weight14.4 kg
Dimensions & Weight / Width22.9 cm
Header / BrandAxis
Header / Country Kits
  • Brazil
  • Europe
  • Japan
  • Korea
  • United States
Miscellaneous / Product ColorWhite
Packaged Quantity1
Service & Support / Type5-year warranty
Camera
Digital Video Capture Resolution1920 x 1080, 320 x 180
Digital Video FormatMJPEG, H.264, AVC, HEVC, H.265, MPEG-4 Part 10, MPEG-H Part 2
Digital Zoom12
Exposure Range1/111000 sec - 1/2 sec
FeaturesSharpness control, white balance, saturation control, brightness control, contrast control, 256 preset positions, Variable Bitrate (VBR), Zipstream technology, Access Control, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, Pixel Counter Support, infrared-cut filter, Forensic WDR, IP address filtering, electronic image stabilization, guard tour, on-screen directional indicator, HTTPs encryption, programmable exposure zones, focus recall, secure boot, ONVIF (Profile T) support, Adaptive Bitrate (ABR), Lightfinder 2.0 technology, autotracking 2, day/night threshold, defogging, compression, polygon privacy mask, user access log, centralized certificate management, Machine learning processing unit (MLPU), Trusted Platform Module (TPM), ONVIF (Profile M) support, Axis Edge Vault, AXIS Object Analytics, 16:9 aspect ratio, Multi-Bitrate (MBR), secure keystore, video streaming indicator, control queue, dynamic text overlay, tone mapping, exposure mode, barrel distortion correction, de-icing control, dynamic load balancing, chameleon privacy masks
Flash Memory512 MB
Frame Rate (max)60 frames per second
Infrared LEDsYes
Max Digital Video Resolution1920 x 1080
Minimum Illumination
  • 0.06 lux - color - F1.36 - 50 IRE
  • 0.001 lux - B&W - F1.36 - 50 IRE
Motion DetectionYes
RAM2 GB
TypeColor - Day&Night - pan / tilt / zoom - outdoor - weather resistant / impact resistant
Video Modes1080p
Environmental Parameters
Max Operating Temperature55 °C
Min Operating Temperature-50 °C
Relative Humidity (operating)10 - 100% RH (condensing)
Expansion / Connectivity
Ports
  • LAN - RJ-45
  • LAN - SFP
Supported Memory CardsSD Memory Card, SDXC Memory Card, SDHC Memory Card
General
Connectivity TechnologyWired
Depth41.1 cm
Device TypeNetwork surveillance camera
Height57.9 cm
LocalizationJapan, Korea, Brazil, United States, Europe
Weight14.4 kg
Width22.9 cm
Image Sensor
TypePS RGB CMOS 1/2"
Interfaces
Alarm Inputs Qty4
Alarm Outputs Qty4
Network InterfaceEthernet 10Base-T/100Base-TX/1000Base-T
Network ProtocolsDDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, NTCIP, Zeroconf, USGv6, MQTT, CDP, Syslog, NTS, RTSPS
Lens Construction
Focal Length6.9 mm - 214.6 mm
Focus AdjustmentAutomatic
Horizontal Field of View (degree)2 - 60.6
Lens IrisF/1.36-4.6 (P-Iris)
Min Focus Distance1 m
Optical Zoom31 x
TypeVari-focal
Vertical Field of View (degree)1.1 - 36.5
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Miscellaneous
ColorWhite, NCS S 1002-B
Compliant StandardsEN 61000-3-2, EN 61000-3-3, EN 61000-6-1, FIPS 140-2 Level 2, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, AES-256, X.509, FCC Part 15 B Class A, Common Criteria EAL4+, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, ISO 4892-2, IEC 62262 IK10, EN 50121-4, IEC 62236-4, VCCI Class A, TLS v1.2, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 55032 Class A, EN 55035, IEC/EN 60529 IP66, IEEE 802.1x, PVC-free, NIST SP500-267, ICES-3(A)/NMB-3(A), NEMA TS-2 (2.2.7-2.2.9), UL 62368-1 Third Edition, EN 62368-1 Third Edition, IEC 62368-1 Third Edition, TLS v1.3, CAN/CSA C22.2 No. 62368-1 Third Edition, KS C 9832 Class A, KS C 9835, IEEE 802.1ar
Panning
Range (degree)360
Speed (degree/sec)Up to 120
Power
Power Device9.6 Watt
Power RequirementsDC 10 - 28 V
Software / System Requirements
Software IncludedWindows decoder 1-user license, AXIS Video Motion Detection, AXIS Object Analytics, AXIS PTZ autotracking, AXIS OSDI Zones
Tilting
Range (degree)-90 to +45
Speed (degree/sec)Up to 60
