APC Smart-UPS On-Line SRTL1500RM4UXLI
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

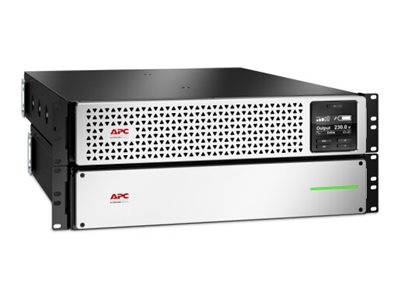

APC Smart-UPS On-Line SRTL1500RM4UXLI
- UPS (rack-mountable) (high density)
- AC 220/230 V
- 1350 Watt
- 1500 VA
- lithium ion
- output connectors: 8
- 4U
- 1.83 m cord
- black with silver front bezel
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | SRTL1500RM4UXLI |
| SHI Part #: | 45436041 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | APC Smart-UPS On-Line SRTL1500RM4UXLI - UPS (rack-mountable) (high density) - AC 220/230 V - 1350 Watt - 1500 VA - lithium ion - output connectors: 8 - 4U - 1.83 m cord - black with silver front bezel |
| Manufacturer | APC by Schneider Electric |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 43.2 cm |
| Dimensions & Weight / Height | 17.1 cm |
| Dimensions & Weight / Weight | 40.7 kg |
| Dimensions & Weight / Width | 59 cm |
| General / Subcategory | UPS |
| Header / Brand | APC |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor |
|
| Power Device / Output Connector Qty | 8 |
| Power Device / Power Capacity (VA) | 1500 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 220/230 V |
| Product Type | UPS |
| Service & Support / Type | 5-year warranty |
| Battery | |
| Technology | Lithium ion lithium ion |
| Type | High density |
| Voltage Provided | 48 V |
| Dimensions & Weight | |
| Depth | 43.2 cm |
| Height | 17.1 cm |
| Weight | 40.7 kg |
| Width | 59 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 50 dBA |
| General | |
| Color | Black with silver front bezel |
| Cord Length | 1.83 m |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 4U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 5 years |
| Miscellaneous | |
| Cables Included | Power cable - external - 1.83 m |
| Compliant Standards | IP20, EU RoHS |
| Features | Emergency power off, audible alarm, auto-sensing, vertical orientation, LCD status and control console, horizontal orientation, audible alarm, LCD display, internal bypass, double conversion |
| Included Accessories | Rail kit |
| Rack Mounting Kit | Included |
| Power Device | |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Input Voltage | AC 220/230 V |
| Input Voltage Range | AC 160 - 275 V |
| Output Voltage | AC 220/230 V ± 2% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 1350 Watt / 1500 VA |
| Power Output Connectors Details | 8 x power IEC 60320 C13 |
| Surge Energy Rating | 340 Joules |
| Surge Suppression | Yes |
| UPS Technology | On-line |
