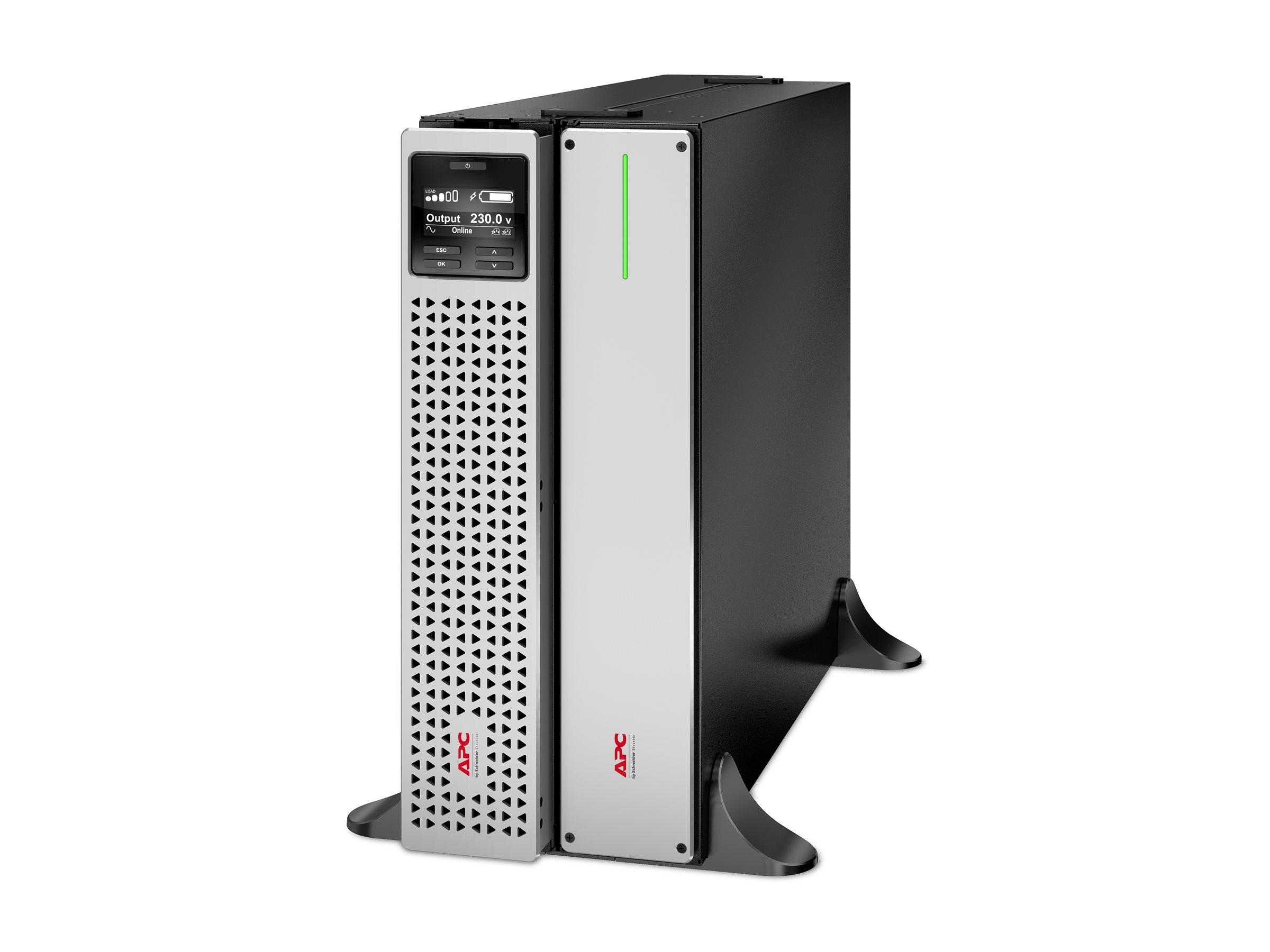

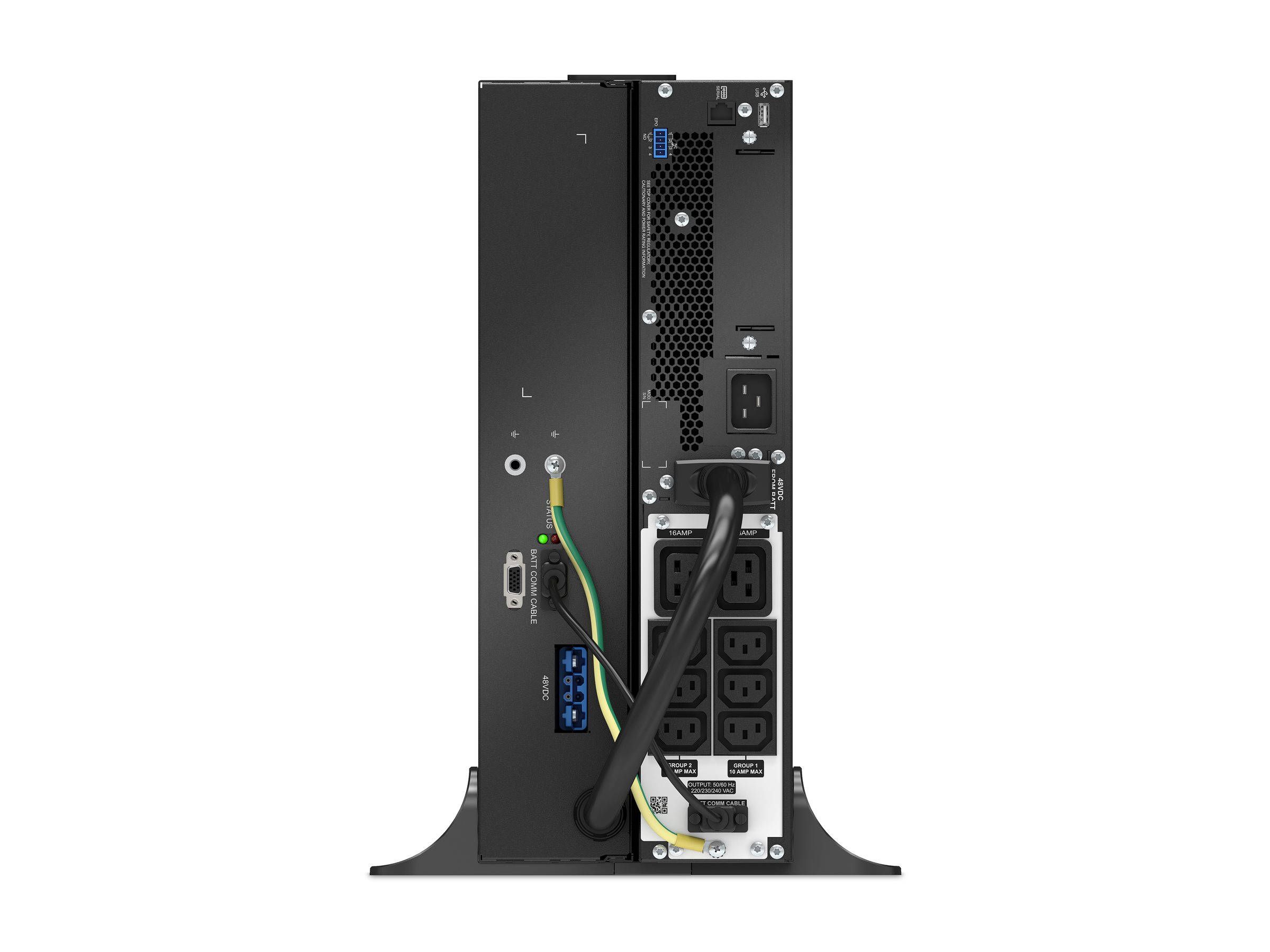

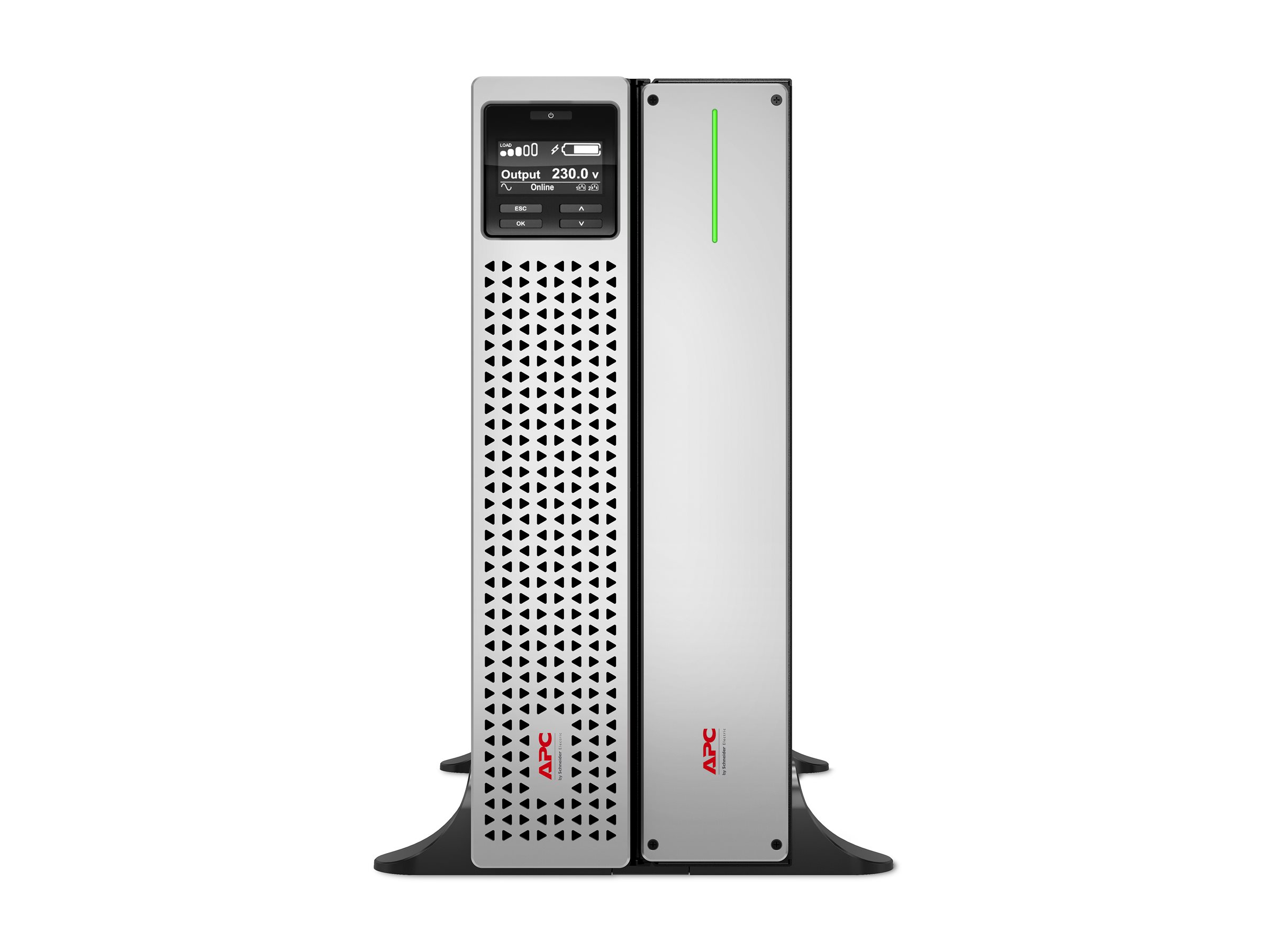

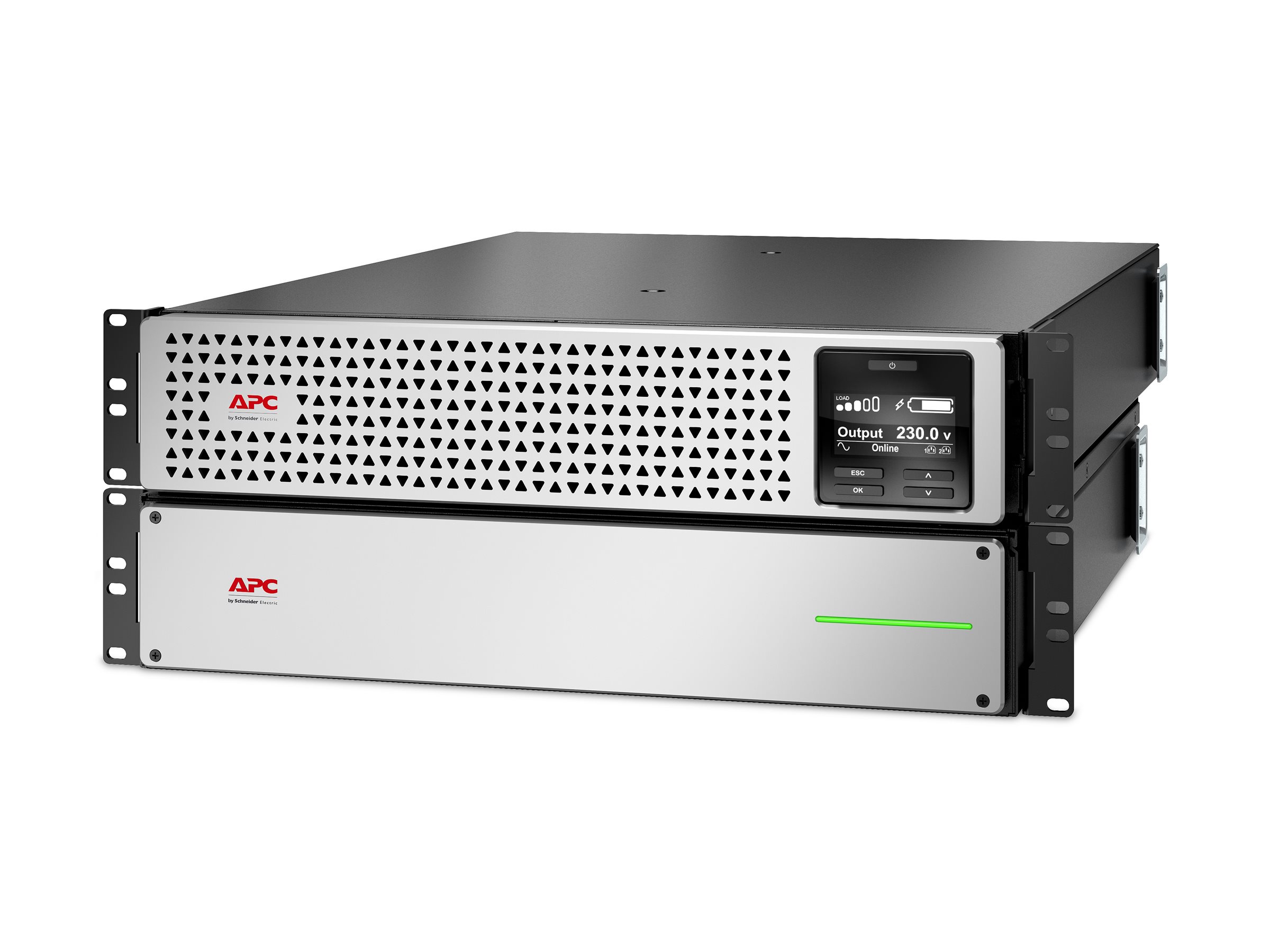

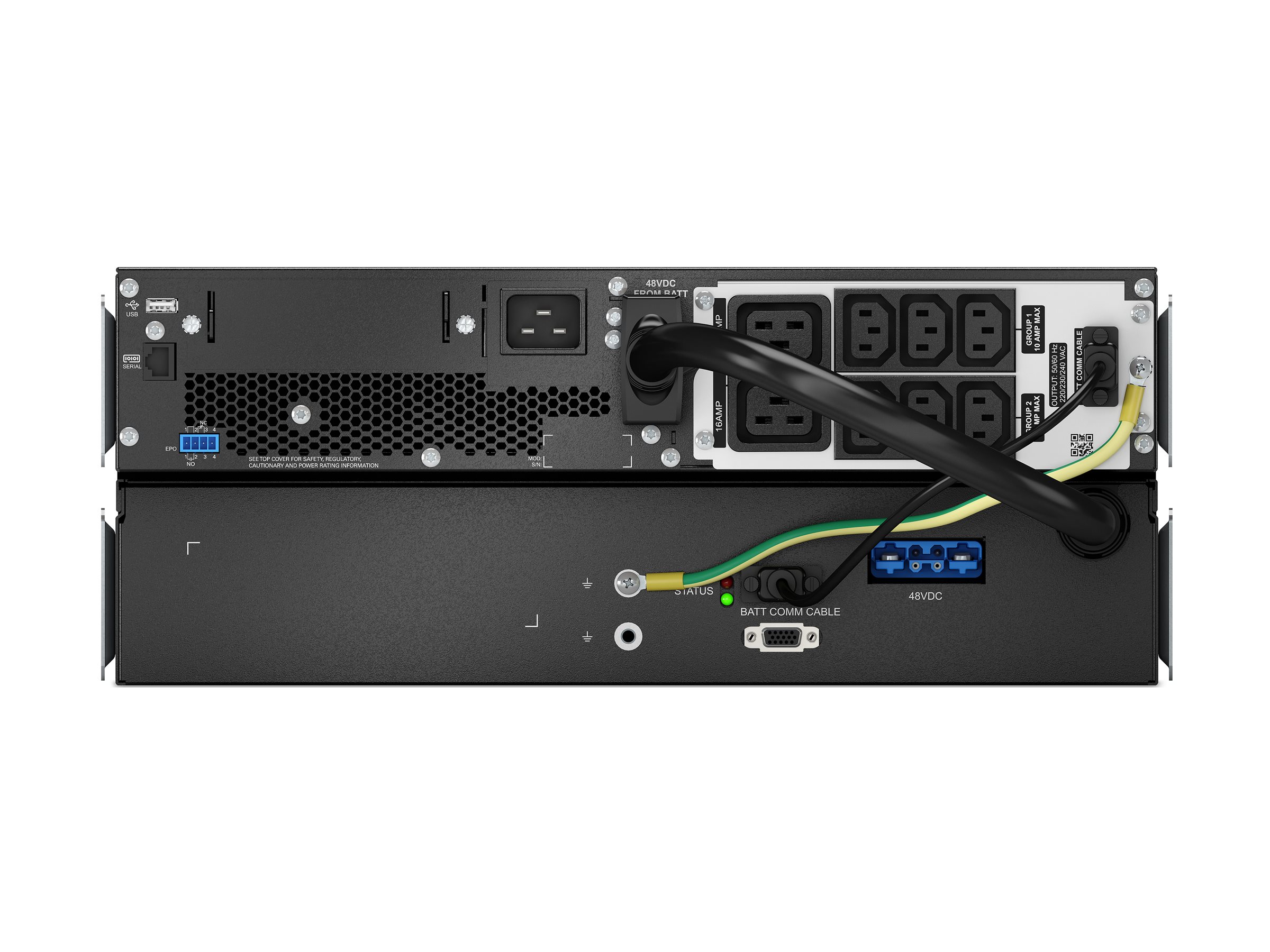

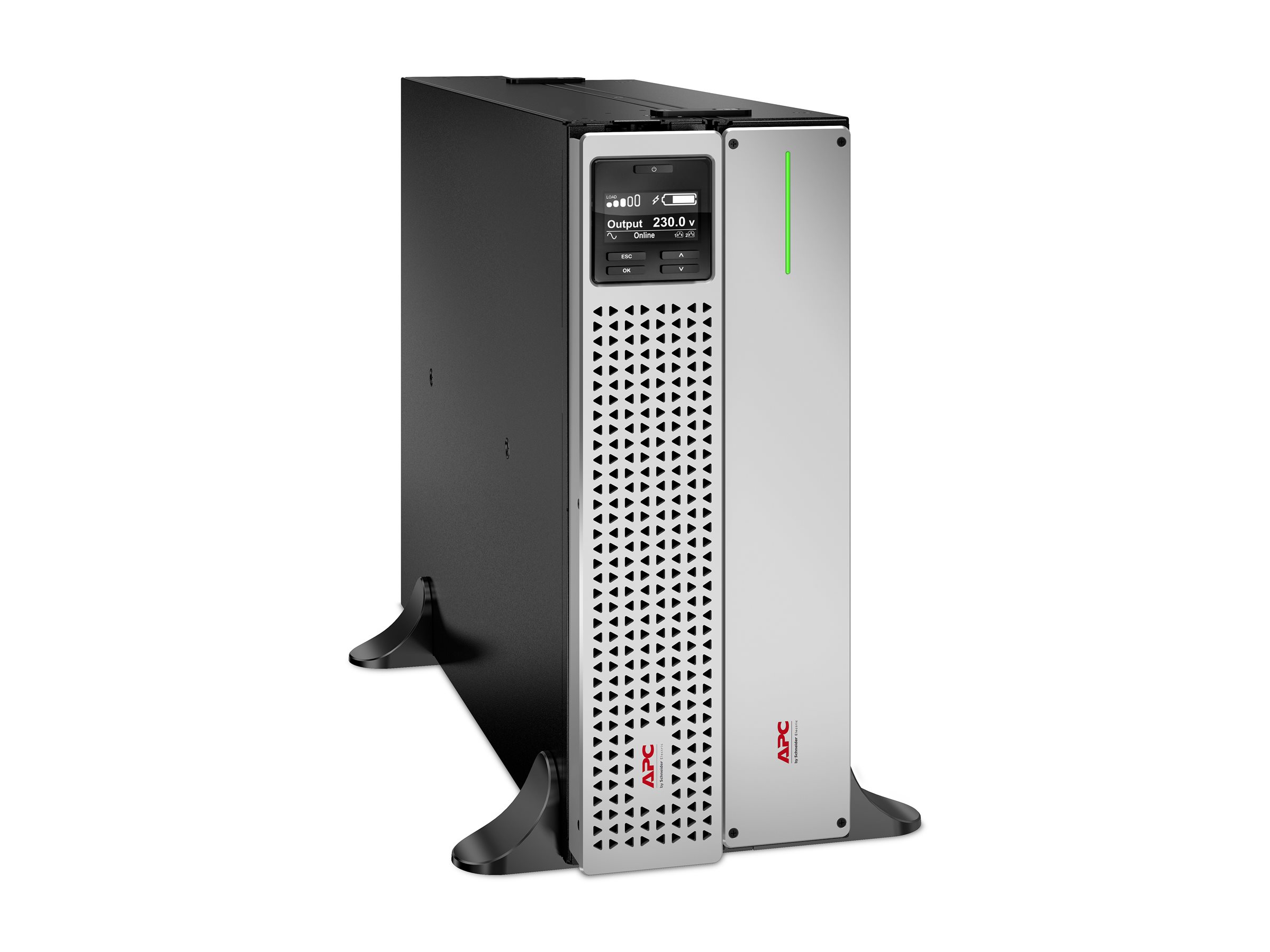

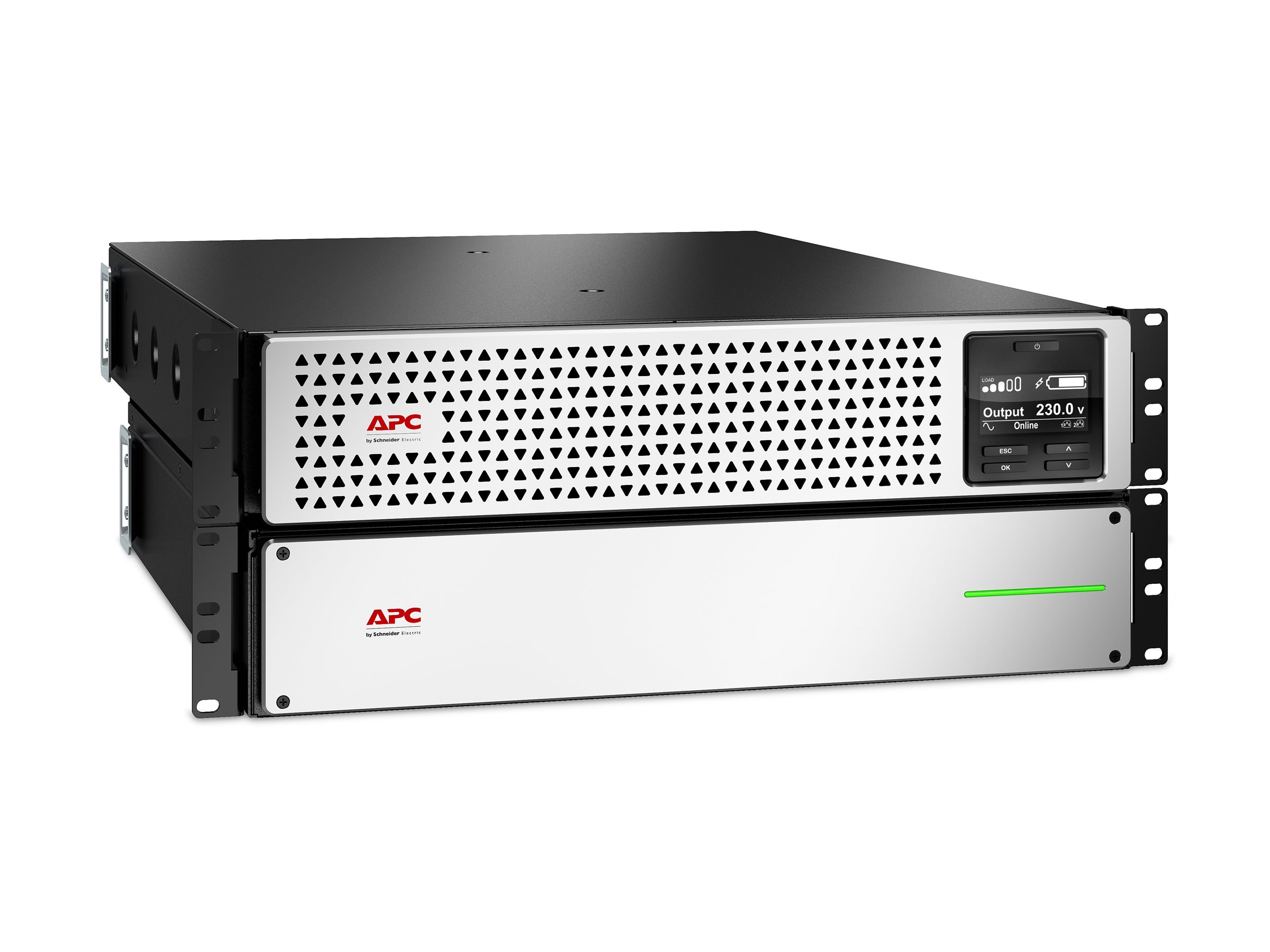

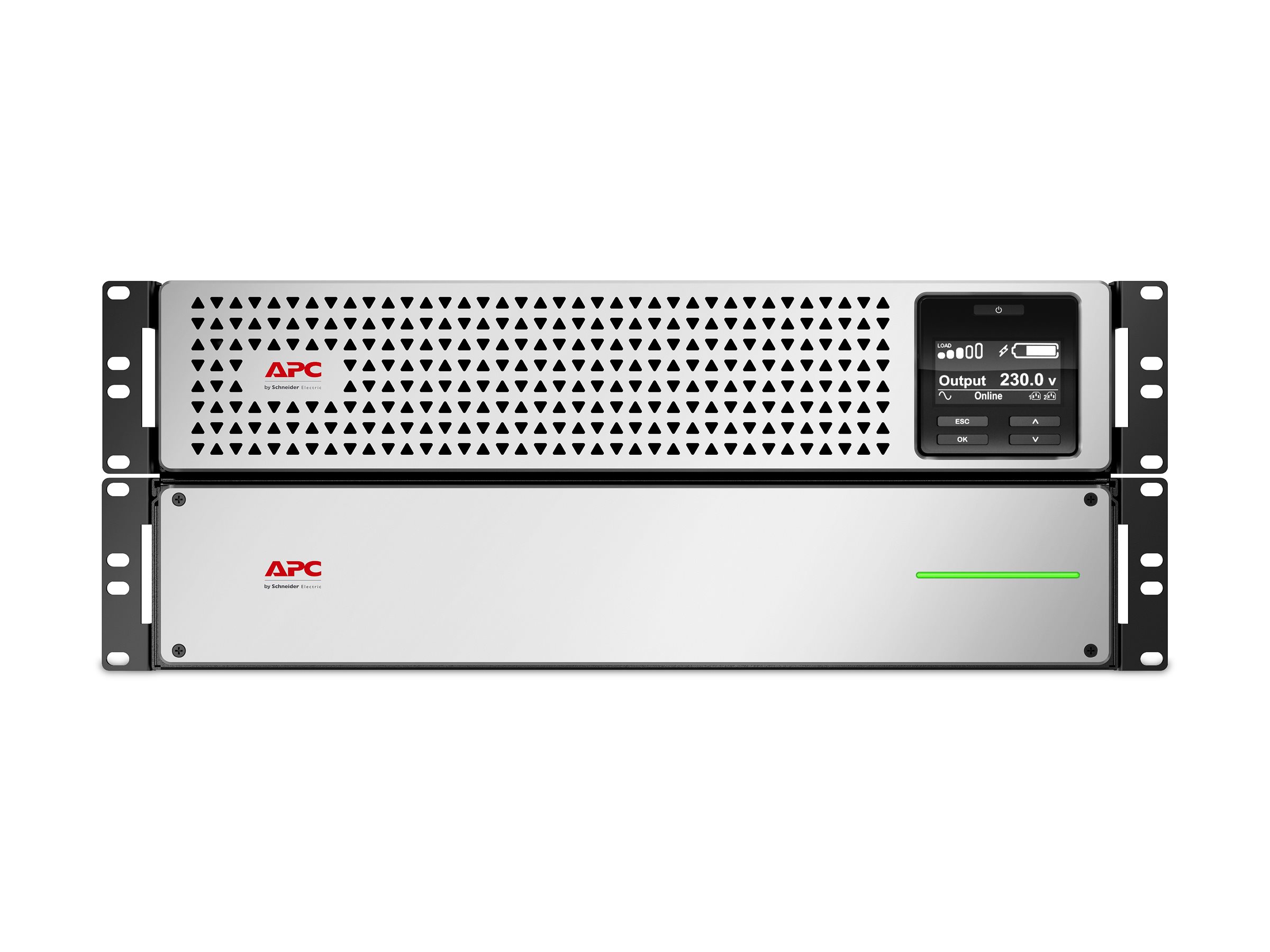

APC Smart-UPS On-Line
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC Smart-UPS On-Line
- UPS (rack-mountable)
- AC 220/230 V
- 2700 Watt
- 3000 VA
- USB
- output connectors: 8
- 4U
- 1.83 m cord
- black, silver
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | SRTL3000RM4UXLI |
| SHI Part #: | 45436037 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | APC Smart-UPS On-Line - UPS (rack-mountable) - AC 220/230 V - 2700 Watt - 3000 VA - USB - output connectors: 8 - 4U - 1.83 m cord - black, silver |
| Manufacturer | APC by Schneider Electric |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 63.9 cm |
| Dimensions & Weight / Height | 17.1 cm |
| Dimensions & Weight / Weight | 44.5 kg |
| Dimensions & Weight / Width | 43.2 cm |
| General / Subcategory | UPS |
| Header / Brand | APC |
| Miscellaneous / Product Color |
|
| Networking / Remote Management Interface | USB |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 8 |
| Power Device / Power Capacity (VA) | 3000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 220/230 V |
| Product Type | UPS |
| Service & Support / Type | 5-year warranty |
| Battery | |
| Technology | Lithium ion |
| Dimensions & Weight | |
| Depth | 63.9 cm |
| Height | 17.1 cm |
| Weight | 44.5 kg |
| Width | 43.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 50 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Color | Black, silver |
| Cord Length | 1.83 m |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 4U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 5 years |
| Miscellaneous | |
| Cables Included | Power cable 1.83 m |
| Compliant Standards | IP20, Green Premium |
| Features | High density, vertical mount, horizontal mount, audible alarm, LCD display, built-in static bypass, vertical orientation, horizontal orientation, visible alarm, double conversion |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | USB |
| Power Device | |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |
| Input Voltage | AC 220/230 V |
| Input Voltage Range | AC 160 - 275 V |
| Output Voltage | AC 220/230 V 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 2700 Watt / 3000 VA |
| Power Output Connectors Details |
|
| Surge Energy Rating | 432 Joules |
| Surge Suppression | Yes |
| UPS Technology | On-line |
