M3088-V
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

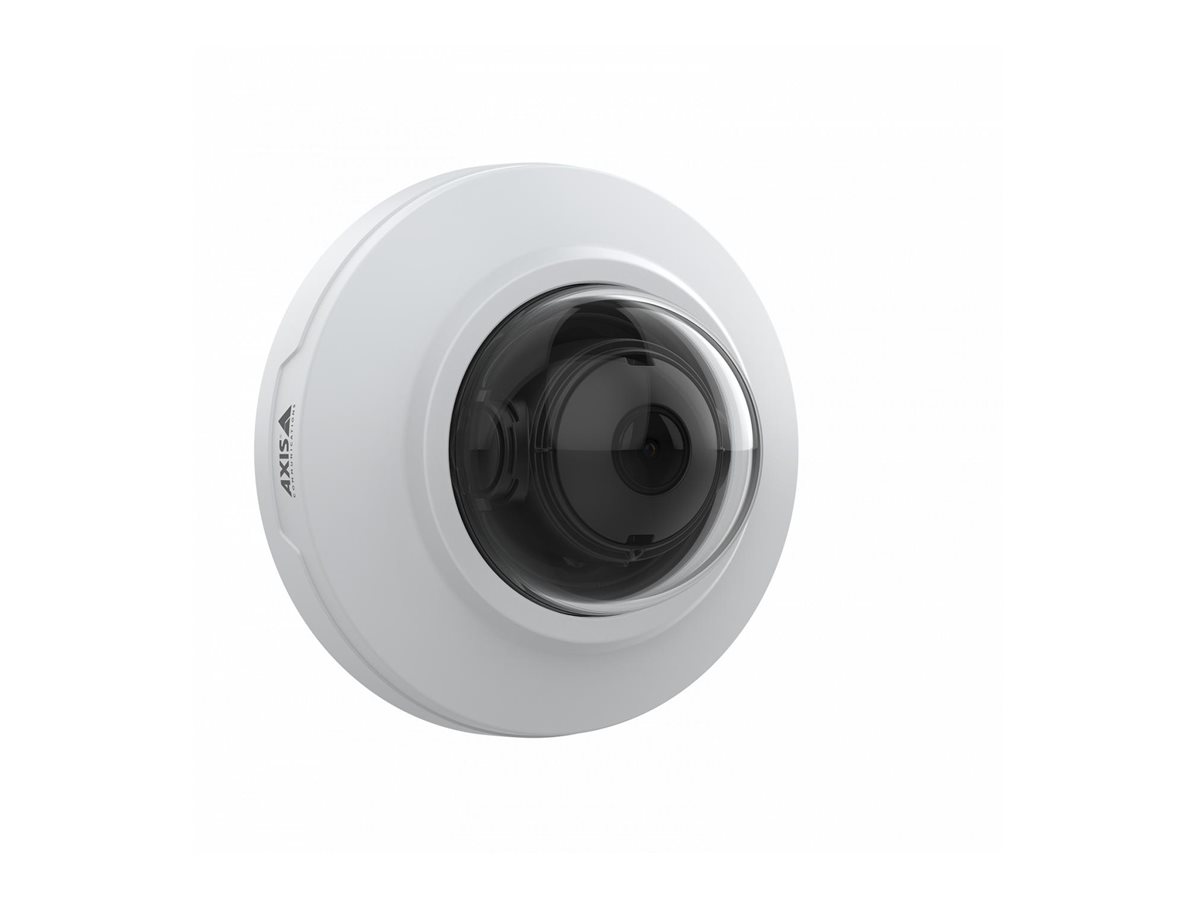

M3088-V
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 02375-001 |
| SHI Part #: | 44881769 |
| Category: | Security cameras |
| UNSPSC: | 46171610 |
| Manufacturer: | Axis Communications |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Security cameras |
| Description | M3088-V |
| Manufacturer | Axis Communications |
| MSRP | €449.00 |
| UNSPSC | 46171610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.1 cm |
| Dimensions & Weight / Height | 5.6 cm |
| Dimensions & Weight / Weight | 150 g |
| Dimensions & Weight / Width | 10.1 cm |
| Header / Brand | Axis |
| Header / Country Kits |
|
| Header / Localization |
|
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Camera | |
| Digital Video Capture Resolution | 3840 x 2160, 320 x 240 |
| Digital Video Format | MJPEG, H.264, H.265, MPEG-H Part 2, MPEG-4 Part 10, AVC, HEVC |
| Exposure Range | 1/5 sec - 1/71500 sec |
| Features | Infrared-cut filter, manual 175° rotation, deep learning processing unit (DLPU), Zipstream technology, Multi-Bitrate (MBR), Variable Bitrate (VBR), compression, multi view mode, color control, brightness control, sharpness control, contrast control, white balance, exposure control, motion-adaptive exposure, Wide Dynamic Range (WDR), dynamic text overlay, image mirror, Privacy Mask Function, 180° image rotation, 270° image rotation, 90° image rotation, digital PTZ function, IP address filtering, HTTPs encryption, Access Control, user access log, centralized certificate management, signed video, Axis Edge Vault, Axis device ID, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, AXIS Object Analytics, human detection, Vehicle Detection, Line Crossing Detection, Object Detection, Metadata, signed firmware, brute force delay protection, digest authentication, password protection, secure boot, secure keystore, NAS-Ready, IR Corrected lens |
| Flash Memory | 512 MB |
| Frame Rate (max) | 15 frames per second |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination |
|
| RAM | 2 GB |
| Type | Color - Day&Night - fixed - vandal / weatherproof |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Relative Humidity (operating) | 10 - 85% RH (non-condensing) |
| Expansion / Connectivity | |
| Ports | LAN - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Support | Yes: two-way audio via optional audio and I/O interface |
| Camera Mount Type | Ceiling mount, wall mount |
| Connectivity Technology | Wired |
| Depth | 10.1 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 5.6 cm |
| Localization | English, German, French, Spanish, Italian, Russian, Chinese (simplified), Japanese, Korean, Portuguese, Polish, Chinese (traditional) / Argentina, Australia, Brazil, China, Europe, Japan, Korea, United Kingdom, United States |
| Weight | 150 g |
| Width | 10.1 cm |
| Image Sensor | |
| Type | 8 MP PS RGB CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv6, IPv4, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, DNS, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DDNS, NTP, NTS, RTSP, RTCP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, DHCP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf |
| Lens Construction | |
| Focal Length | 2.9 mm |
| Horizontal Field of View (degree) | 109 |
| Lens Iris | F/2.0 fixed iris |
| Type | Fixed focal |
| Vertical Field of View (degree) | 56 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Color | White, NCS S 1002-B |
| Compliant Standards | IEEE 802.1x, TLS v1.3, IEEE 802.1ar, TLS v1.2, IEC/EN 60529 IP42, IEC/EN 62262 IK08, PVC-free, BFR-free, CFR free, IEEE 802.3at, IEEE 802.3af, ICES-3(A)/NMB-3(A), EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-003 Class A, VCCI Class A, KS C 9835, KS C 9832 Class A, AS/NZS CISPR 32 Class A, RCM, EN 62368-1, IEC 62368-1, UL 62368-1, IS 13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, NIST SP500-267 |
| Panning | |
| Range (degree) | -175 to +175 |
| Power | |
| Power Device | 3.6 Watt |
| Power Requirements | PoE Class 2 |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user license, AXIS Companion, AXIS Camera Station |
| Tilting | |
| Range (degree) | -80 to +80 |
