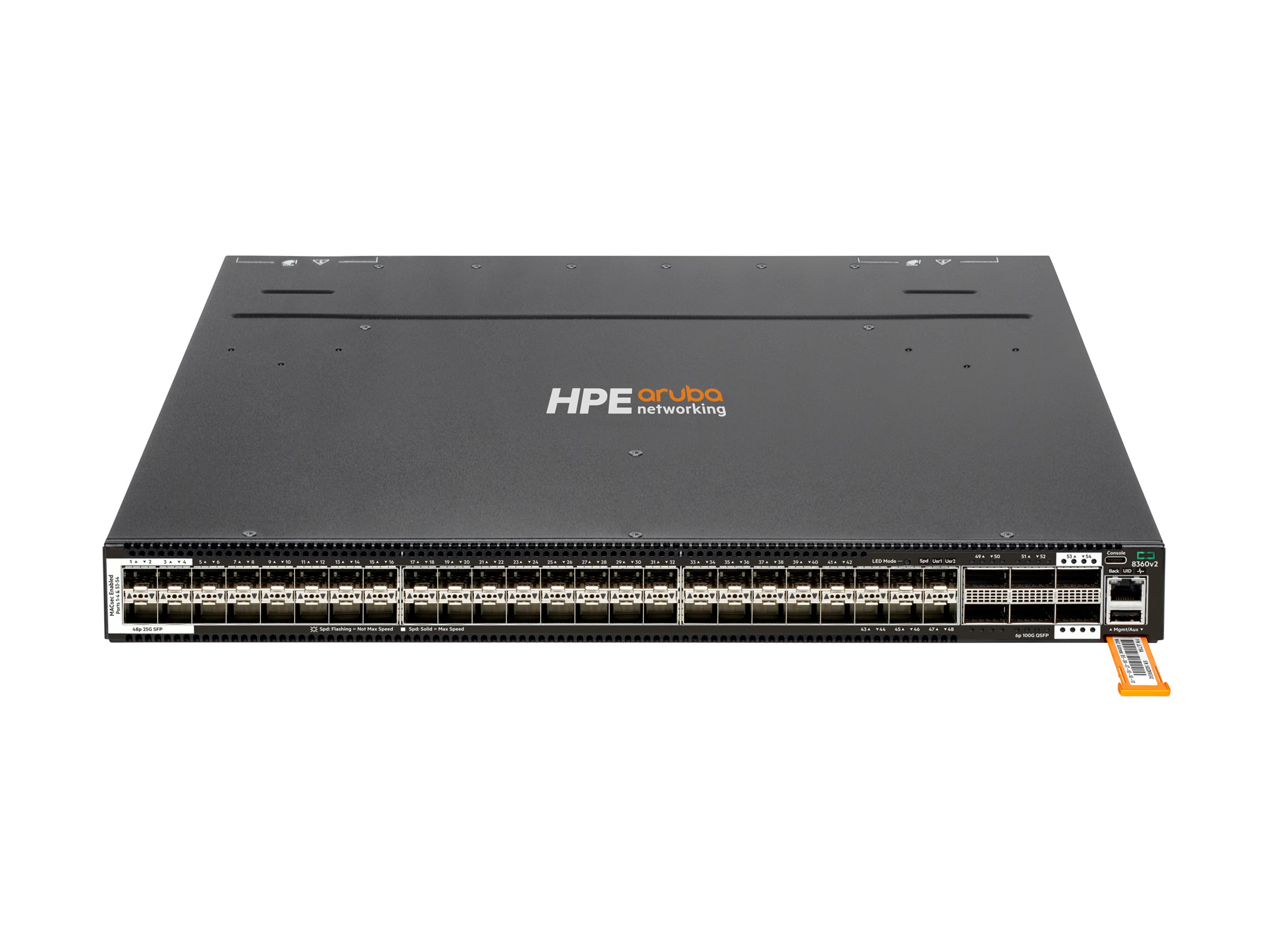

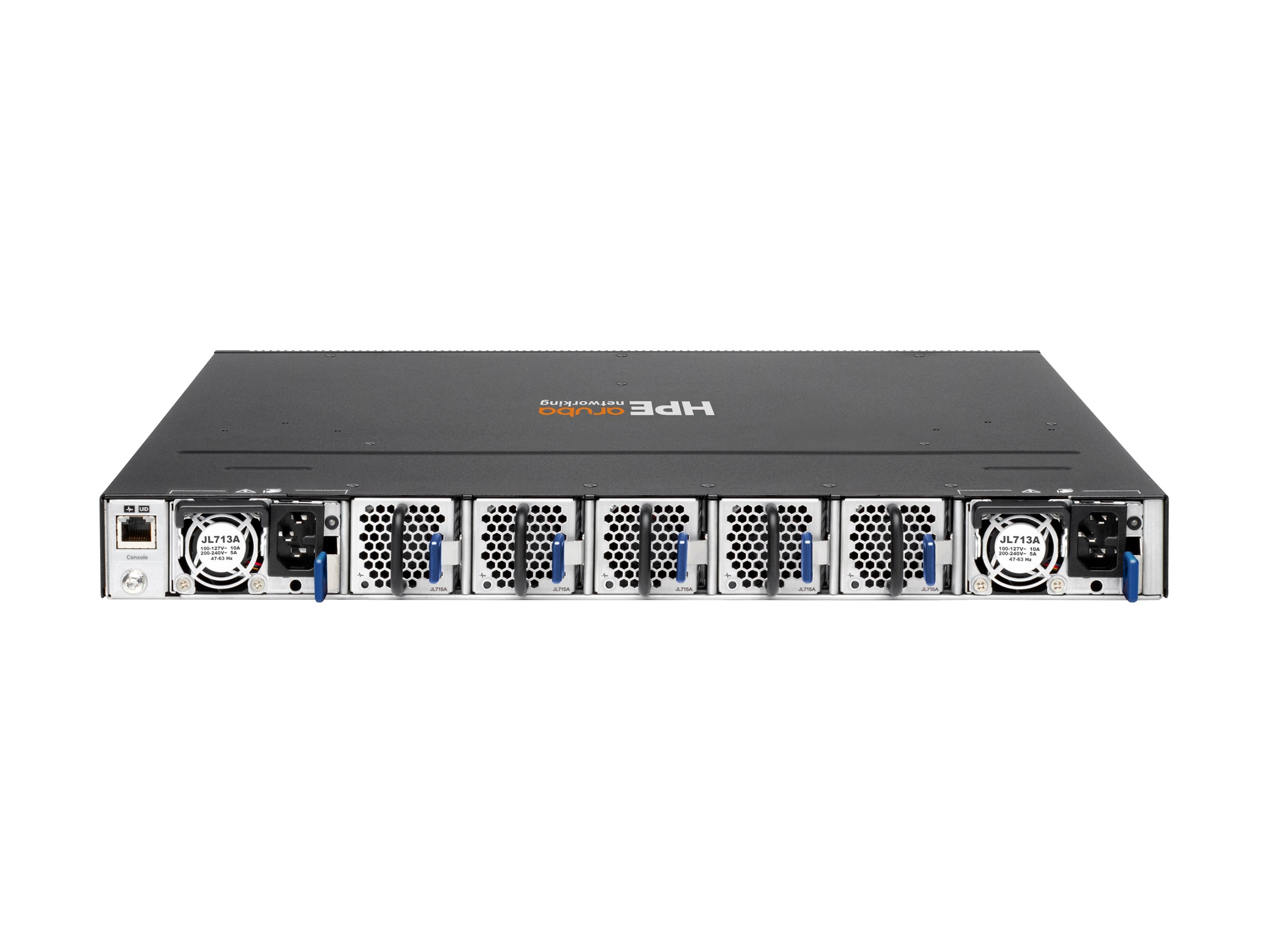

HPE Aruba CX 8360-48Y6C v2


MSRP€44,106.00
€37,184.00
HPE Aruba CX 8360-48Y6C v2

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3
  • managed
  • 44 x 1/10/25 Gigabit SFP / SFP+ / SFP28 + 4 x 10 Gigabit / 25 Gigabit SFP+ / SFP28 + 4 x 40/100 Gigabit QSFP+ / QSFP28 + 2 x 40/100 Gigabit QSFP+ / QSFP28
  • back to front airflow
HPE Aruba CX 8360-48Y6C v2
  • Switch
  • L3
  • managed
  • 44 x 1/10/25 Gigabit SFP / SFP+ / SFP28 + 4 x 10 Gigabit / 25 Gigabit SFP+ / SFP28 + 4 x 40/100 Gigabit QSFP+ / QSFP28 + 2 x 40/100 Gigabit QSFP+ / QSFP28
  • back to front airflow
  • rack-mountable
  Additional Details
Price: €37,184.00
MSRP: €44,106.00
Mfr Part #: JL705C#ABB
SHI Part #: 44250112
Category: Network switches
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware

Network Cables

HPE Aruba - 50GBase direct attach cable
  • SFP56 to SFP56
  • 65 cm
  • for HPE Aruba 6300, 6405, 6405 48, 6405 96, 6410; CX 8360
MSRP €393.00 €358.00
HPE Copper Cable - 25GBase direct attach cable
  • SFP28 (M) to SFP28 (M)
  • 3 m
€453.00
HPE Copper Cable - 25GBase direct attach cable
  • SFP28 (M) to SFP28 (M)
  • 5 m
€519.00
General Information
CategoryNetwork switches
DescriptionHPE Aruba CX 8360-48Y6C v2 - Switch - L3 - managed - 44 x 1/10/25 Gigabit SFP / SFP+ / SFP28 + 4 x 10 Gigabit / 25 Gigabit SFP+ / SFP28 + 4 x 40/100 Gigabit QSFP+ / QSFP28 + 2 x 40/100 Gigabit QSFP+ / QSFP28 - back to front airflow - rack-mountable
ManufacturerHewlett Packard Enterprise
MSRP€44,106.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth55.88 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight10.73 kg
Dimensions & Weight / Width44.25 cm
Header / BrandAruba
Header / Country KitsEurope
Header / LocalizationEnglish
Miscellaneous / Product ColorBlack
Networking / Form FactorRack-mountable
Networking / Ports Qty48
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth55.88 cm
Height4.4 cm
Weight10.73 kg
Width44.25 cm
Environmental Parameters
Humidity Range Operating15 - 95% (non-condensing)
Humidity Range Storage15 - 95% (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 44 x 1/10/25Gbit LAN SFP28
  • 4 x 10/25Gbit LAN SFP28 with MACsec
  • 4 x 40/100Gbit LAN QSFP28
  • 2 x 40/100Gbit LAN QSFP28 with MACsec
  • 1 x management (LAN) RJ-45
  • 1 x console (USB) Type C
  • 1 x USB Type A
  • 1 x serial (console) RJ-45
General
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), RADSEC
Capacity
  • MAC addresses: 212992
  • IPv4 host table capacity: 145780
  • IPv6 host table capacity: 145780
  • IPv4 routes (Unicast): 606977
  • IPv6 routes (Unicast): 630784
  • IPv4 ACL entries (ingress): 65536
  • IPv6 ACL entries (ingress): 16384
  • MAC ACL entries (ingress): 65536
  • IPv4 ACL entries (egress): 8192
  • IPv6 ACL entries (egress): 2048
  • MAC ACL entries (egress): 8192
  • VLANs supported: 4094
  • IGMP groups: 7000
  • MLD groups: 7000
  • IPv4 routes (Multicast): 7000
  • IPv6 routes (Multicast): 7000
Compliant StandardsIEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3by, IEEE 802.3cc
Device TypeSwitch - 48 ports - L3 - managed
Enclosure TypeBack to front airflow rack-mountable 1U
Encryption Algorithm128-bit AES, 256-bit AES
FeaturesFlow control, DHCP support, BOOTP support, ARP support, load balancing, VLAN support, IGMP snooping, Syslog support, port mirroring, IPv6 support, High Availability, sFlow, STP support, RSTP support, VRRP support, MSTP support, QoS, DHCP server, MLD snooping, ECMP, BFD, DWRR, DHCP relay, DCB, SNMP trap, dual firmware images, NDP, packet storm protection, SP, Loopback, ERPS, MACsec support, hot swappable 5 fans, ECN, BPDU, ICMP Router Discovery Protocol (IRDP), 32MB packet buffer, VXLAN, Link Aggregation, RoCE v2, EVPN, fast leave, NTP, Private VLAN, Cisco IPSLA, IP forwarding support, IPv4 and IPv6 dual stack, DDoS Protection, IPv6 addressing, VSX, Aruba VSF, RPVST+, DNS support, UDP support, TCP support, BGP, UDLD, IPv6 multicasting
Flash Memory32 GB
Jumbo Frame Support9KB
Performance
  • Switching capacity: 4.8 Tbps
  • Switching capacity: 2.678 Mpps
Ports44 x 1/10/25 Gigabit SFP / SFP+ / SFP28 + 4 x 10 Gigabit / 25 Gigabit SFP+ / SFP28 + 4 x 40/100 Gigabit QSFP+ / QSFP28 + 2 x 40/100 Gigabit QSFP+ / QSFP28
Processor1: 1.8 GHz
RAM16 GB
Remote Management ProtocolSNMP 1, SNMP 2, RMON, SNMP 3, TFTP, SSH, SSH 6, SFTP, ICMP
Routing ProtocolOSPF, BGP-4, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, MSDP, static IPv6 routing, policy-based routing (PBR), RIPng, MLDv2, MLD, CIDR, BGP-MP
Status IndicatorsPort transmission speed
Subtype25 Gigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsCISPR 24, ICES-003 Class A, RoHS, Laser Class 1, UL 60950-1, VCCI Class A, EN 50581:2012, CNS 13438, CSA 22.2 No. 60950-1, EN 61000-3-3:2013, EN 55024:2010, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, EN 55032:2015, CISPR 32 Class A, EN 61000-3-2:2014 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, CISPR 35, EN 60825-1:2014, IEC 60825-1:2014, EN 55035:2017, IEC 62368-1: 2014, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 62368-1:2014 Second Edition
LocalizationEnglish / Europe
Rack Mounting KitIncluded
Power
Installed Qty2
Max Supported Qty2
Power DeviceInternal power supply - hot-plug
Power RedundancyYes
Power Redundancy Scheme1+1
Voltage RequiredAC 100-240 V (47 - 63 Hz)
Software / System Requirements
Software IncludedArubaOS-CX
