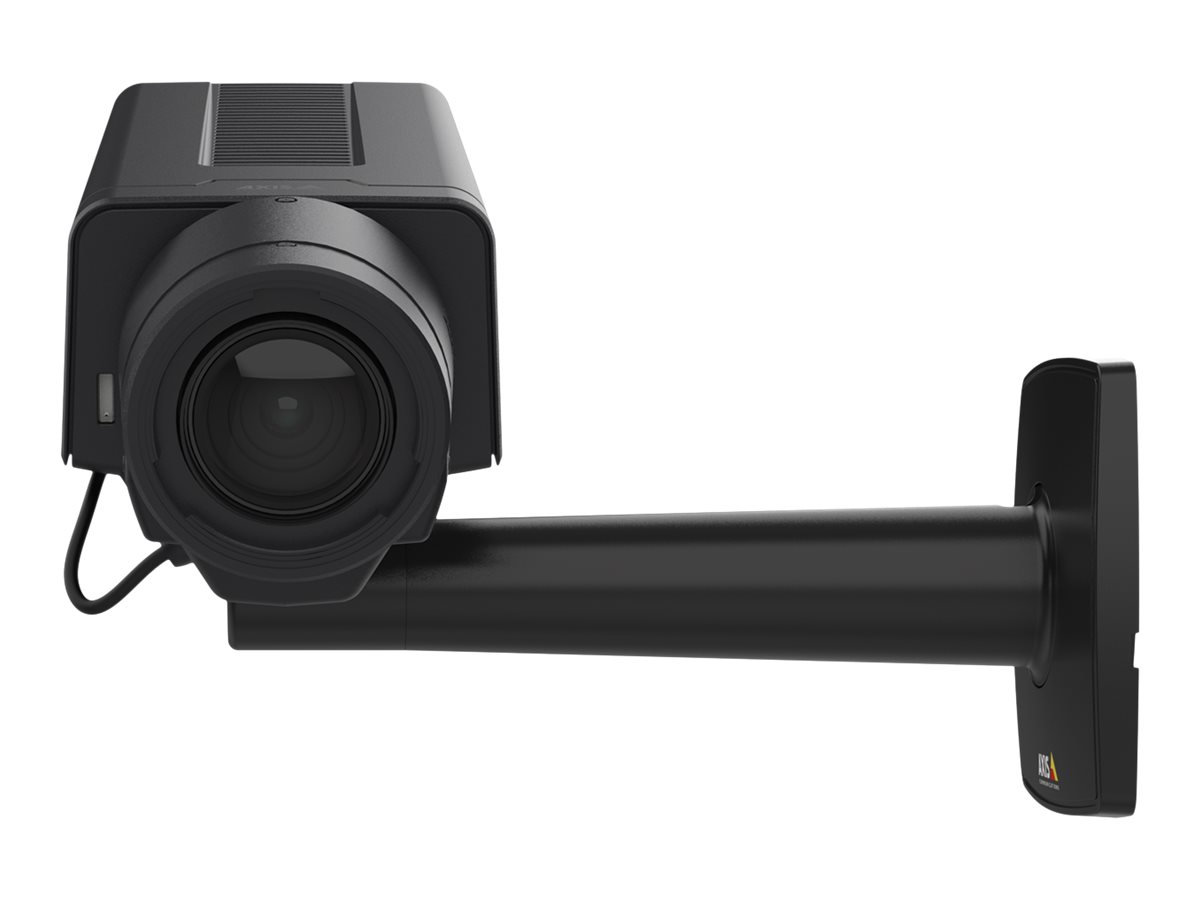

AXIS Q1656 - Network surveillance camera
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
AXIS Q1656 - Network surveillance camera
- box
- color (Day&Night)
- 4 MP
- 2688 x 1512
- i-CS-mount
- auto iris
- vari-focal
- audio
- GbE
- H.264B, H.264H, H.264M, H.265, MJPEG, MPEG-4 AVC, MPEG-4 Part 10, HEVC, MPEG-H Part 2
- DC 10
- 28 V / PoE Plus Class 3
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 02164-001 |
| SHI Part #: | 44077155 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Axis Communications |
| Product Type: | Hardware |
Flash Drives (USB)
- 128 GB
- UHS-I U1 / Class10
- microSDXC UHS-I
- black
- for AXIS D3110, M3085, M3086, M4308, M5075, P3818, Q1656, Q1715, Q1942, Q6100; P37 Series
- 256 GB
- Video Class V30 / UHS Class 3 / Class10
- microSDXC
- white
- for AXIS D3110, M3085, M3086, M5075, P3818, Q1656, Q1715, Q1942, Q3538, Q6100; P37 Series
- 64 GB
- Class 10
- microSDXC
- white (pack of 10)
- for AXIS D201, M4308, P3818, Q1656, Q1715, Q1951, Q1952, Q6100, V5938 50; P37 Series
Memory (RAM)
- 512 GB
- A2 / UHS-I U3 / Class10
- microSDXC UHS-I
- white (pack of 10)
- for AXIS D3110, M3085, M3086, M3215, M5075, M7116, Q1656, Q1715, Q1942, Q6100; P37 Series
- 1 TB
- A2 / UHS-I U3 / Class10
- microSDXC UHS-I (pack of 10)
- for AXIS D3110, M3085, M3086, M5075, M7116, P3818, Q1656, Q1715, Q1942, Q6100; P37 Series
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | AXIS Q1656 - Network surveillance camera - box - color (Day&Night) - 4 MP - 2688 x 1512 - i-CS-mount - auto iris - vari-focal - audio - GbE - H.264B, H.264H, H.264M, H.265, MJPEG, MPEG-4 AVC, MPEG-4 Part 10, HEVC, MPEG-H Part 2 - DC 10 - 28 V / PoE Plus Class 3 |
| Manufacturer | Axis Communications |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 21.4 cm |
| Dimensions & Weight / Height | 6.8 cm |
| Dimensions & Weight / Weight | 790 g |
| Dimensions & Weight / Width | 8 cm |
| Header / Brand | Axis |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Camera | |
| Digital Video Capture Resolution | 2688 x 1512, 160 x 90, 2016 x 1512, 160 x 120 |
| Digital Video Format | H.264B, H.264H, H.264M, H.265, MJPEG, MPEG-4 AVC, MPEG-4 Part 10, HEVC, MPEG-H Part 2 |
| Exposure Range | 1 sec - 1/47500 sec |
| Features | Lightfinder 2.0 technology, Forensic WDR, electronic image stabilization, Zipstream technology, signed firmware, secure boot, remote focus, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, infrared-cut filter, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Constant Bitrate (CBR), multi-streaming, brightness control, saturation control, contrast control, white balance, exposure zone, exposure control, Defog, distortion correction function, Corridor mode, 180° image rotation, 270° image rotation, 90° image rotation, polygon privacy mask, image mirror, image overlay, text overlay, password protection, digital PTZ function, Pelco Protocol, Audio Noise Reduction, heater, IP address filtering, brute force delay protection, TPM 2.0 module, Remote Back Focus, Audio Detection, notification picture to FTP, notification picture to E-mail, Line Crossing Detection, Axis Edge Vault |
| Flash Memory | 8 GB |
| Frame Rate (max) | 60 frames per second |
| Max Digital Video Resolution | 2688 x 1512 |
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - fixed |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -20 °C |
| Relative Humidity (operating) | 10 - 85% (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| General | |
| Audio Formats | LPCM, AAC-LC, ADPCM, G.711, G.726, OPUS, PCM |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 21.4 cm |
| Device Type | Network surveillance camera |
| Form Factor | Box |
| Height | 6.8 cm |
| Weight | 790 g |
| Width | 8 cm |
| Image Sensor | |
| Type | 4 MP RGB CMOS 1/1.8" |
| Interfaces | |
| Control Interface | RS-422, RS-485 |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | HTTPS, EAP, TLS, IPv4, IPv6, USGv6, HTTP, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, RTSP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT |
| Lens Construction | |
| Focal Length | 3.9 mm - 10 mm |
| Horizontal Field of View (degree) | 47 - 120 |
| Lens Iris | F/1.5 auto iris (P-Iris) |
| Min Focus Distance | 50 cm |
| Optical Zoom | 2.9 x |
| Type | I-CS-mount - vari-focal |
| Vertical Field of View (degree) | 27 - 63 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Color | Black |
| Compliant Standards | NEMA TS-2, IEEE 802.1x, IK08, PVC-free, BFR-free, IEEE 802.3af, IEEE 802.3at, CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, CAN ICES-3(B)/NMB3(B), EN 50121-4, IEC 62236-4, KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547, AS/NZS CISPR 32 Class A, RCM, VCCI Class A, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, NEMA250 Type 4X, ISO 21207 method B, NIST SP500-267 |
| Included Accessories | Resistorx L-key, stand, drill hole template, connector kit |
| Power | |
| Power Device | 5.1 Watt |
| Power Requirements | DC 10 - 28 V / PoE Plus Class 3 |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user license |
