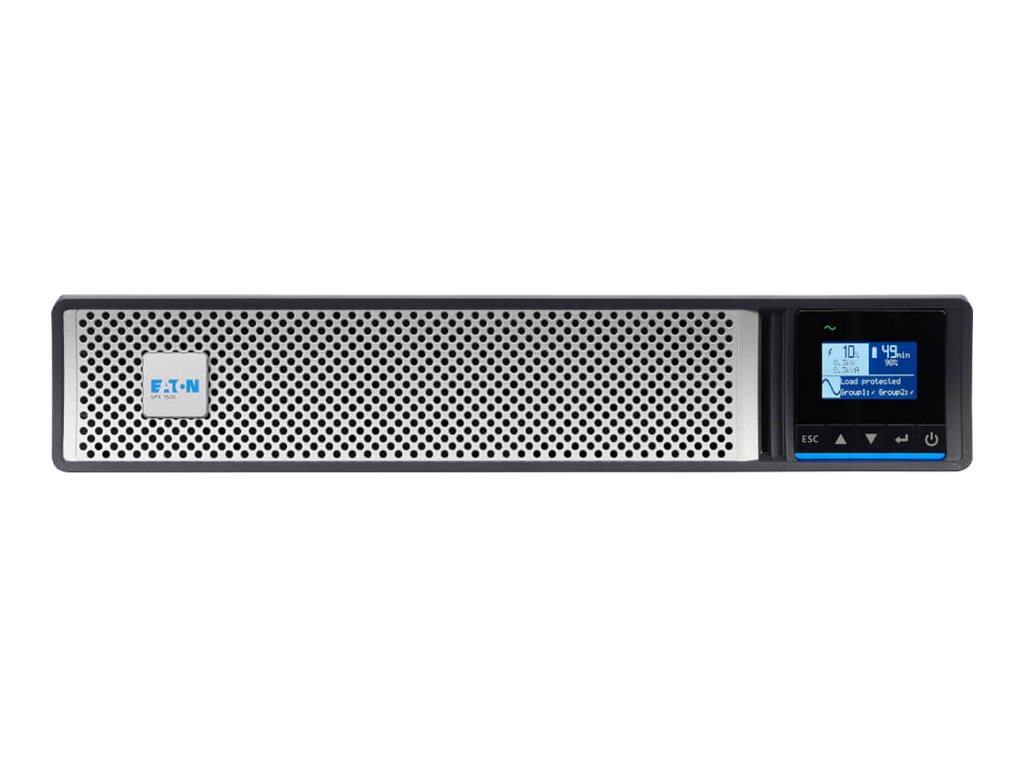

Eaton 5PX G2 - UPS (rack-mountable / external)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Eaton 5PX G2 - UPS (rack-mountable / external)
- AC 120 V
- 1440 Watt
- 1440 VA
- RS-232, USB
- output connectors: 8
- 2U
- black, silver
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 5PX1500RTG2 |
| SHI Part #: | 43643351 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | Eaton 5PX G2 - UPS (rack-mountable / external) - AC 120 V - 1440 Watt - 1440 VA - RS-232, USB - output connectors: 8 - 2U - black, silver |
| Manufacturer | Eaton |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 44.7 cm |
| Dimensions & Weight / Height | 8.64 cm |
| Dimensions & Weight / Weight | 23 kg |
| Dimensions & Weight / Width | 43.7 cm |
| General / Subcategory | UPS |
| Header / Brand | Eaton |
| Miscellaneous / Product Color |
|
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 8 |
| Power Device / Power Capacity (VA) | 1440 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required | AC 120 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Features | Maintenance free, sealed, valve-regulated |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Dimensions & Weight | |
| Depth | 44.7 cm |
| Height | 8.64 cm |
| Weight | 23 kg |
| Width | 43.7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces |
|
| General | |
| Color | Black, silver |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | NOM, RoHS, cULus, REACH, IEC 62040-1 |
| Features | Advance Battery Management (ABM), LCD display, cold-start function, hot-swappable batteries |
| Included Accessories | Tower stand |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Power Device | |
| Efficiency | 98% |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 100 - 125 V |
| Output Voltage | AC 120 V 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 1440 Watt / 1440 VA |
| Power Output Connectors Details | 8 x power NEMA 5-15R |
| Surge Energy Rating | 380 Joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Sustainability Information | |
| ENERGY STAR | Yes |
