ThinkPad Universal USB-C Dock


€224.00
ThinkPad Universal USB-C Dock

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
ThinkPad Universal USB-C Dock
  Additional Details
Price: €224.00
Mfr Part #: 40AY0090EU
SHI Part #: 42962879
Category: Docking stations
UNSPSC: 43211602
Manufacturer: Lenovo
Product Type: Hardware
General Information
CategoryDocking stations
DescriptionThinkPad Universal USB-C Dock
ManufacturerLenovo
MSRP€206.00
UNSPSC43211602
Main Specifications
Dimensions & Weight / Depth8 cm
Dimensions & Weight / Height3.075 cm
Dimensions & Weight / Weight340 g
Dimensions & Weight / Width17.1 cm
Header / BrandLenovo
Header / Country Kits
  • Europe
  • South Korea
  • Vietnam
Header / LocalizationEnglish
Miscellaneous / Product ColorBlack
Networking / Data Link ProtocolGigabit Ethernet
Optical Storage / TypeNone
Packaged Quantity1
Service & Support / Type3-year warranty
System / Device Type (AI)Docking station
Dimensions & Weight (Shipping)
Shipping Depth15.8 cm
Shipping Height7.5 cm
Shipping Weight955 g
Shipping Width21 cm
Environmental Parameters
Max Operating Temperature35 °C
Min Operating Temperature0 °C
Expansion / Connectivity

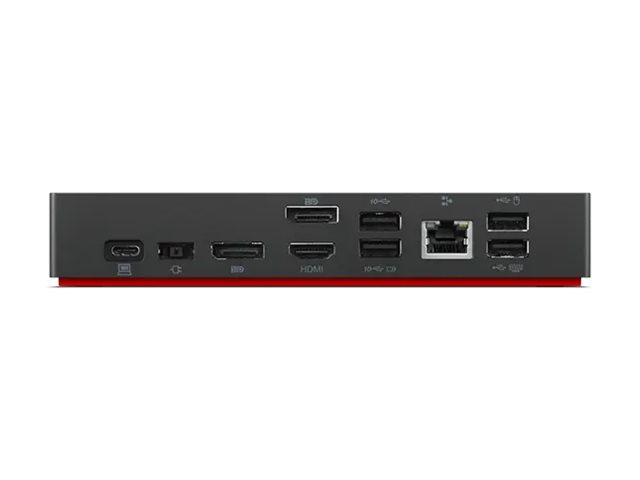

Interfaces
  • USB 3.2 Gen 2 with Always-on charging
  • 2 x USB 3.2 Gen 2
  • 1 x USB-C - 24 pin USB-C
  • 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45
  • 2 x audio / video - DisplayPort - 20 pin DisplayPort
  • 1 x audio / video - HDMI - 19 pin HDMI Type A
  • 1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole
  • 2 x USB 2.0 - 4 pin USB Type A
General
Depth8 cm
Enclosure ColorBlack
Height3.075 cm
LocalizationEnglish / Vietnam, South Korea, Europe
Product TypeDocking station
Weight340 g
Width17.1 cm
Manufacturer Warranty
Service & SupportLimited warranty - replacement - 3 years
Miscellaneous

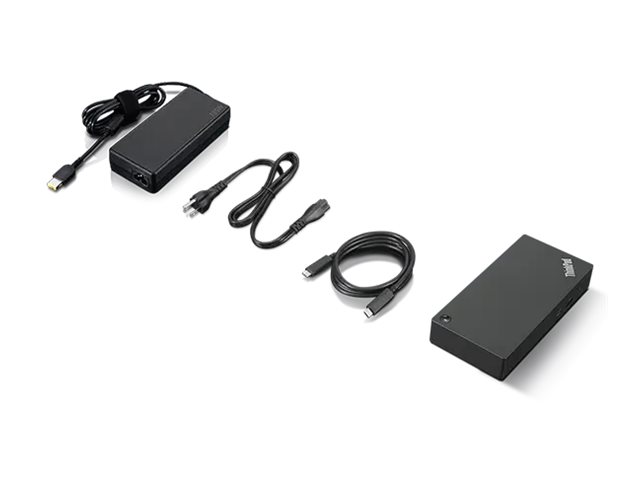

Cables Included1 x USB-C to USB-C cable - external
Compliant StandardsVCCI, BSMI, NOM, CB, FCC, SII, KCC, ICES, cULus, Kvalitet, EAC, RCM, Ukraine EMC DoC, DisplayPort 1.4, LoA, TUV Mark
FeaturesSecurity lock slot (cable lock sold separately), wake on LAN, Preboot Execution Environment (PXE) support, pass through MAC address, 65W output power with 90W power adapter connected, 100W output power with 135W power adapter connected
Manufacturer Selling ProgramLenovo Campus
Security Slot TypeKensington NanoSaver security slot / Kensington MicroSaver security slot
Networking
Data Link ProtocolGigabit Ethernet
Power
Power DevicePower adapter
Power Provided90 Watt
System Requirements
OS RequiredMicrosoft Windows 7 / 10
Video
Max Resolution Details
  • 3840 x 2160 - 60 Hz (Dual Display)
  • 3840 x 2160 - 30 Hz (Triple Display)
