APC Rack PDU 9000 Switched APDU9959EU3
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

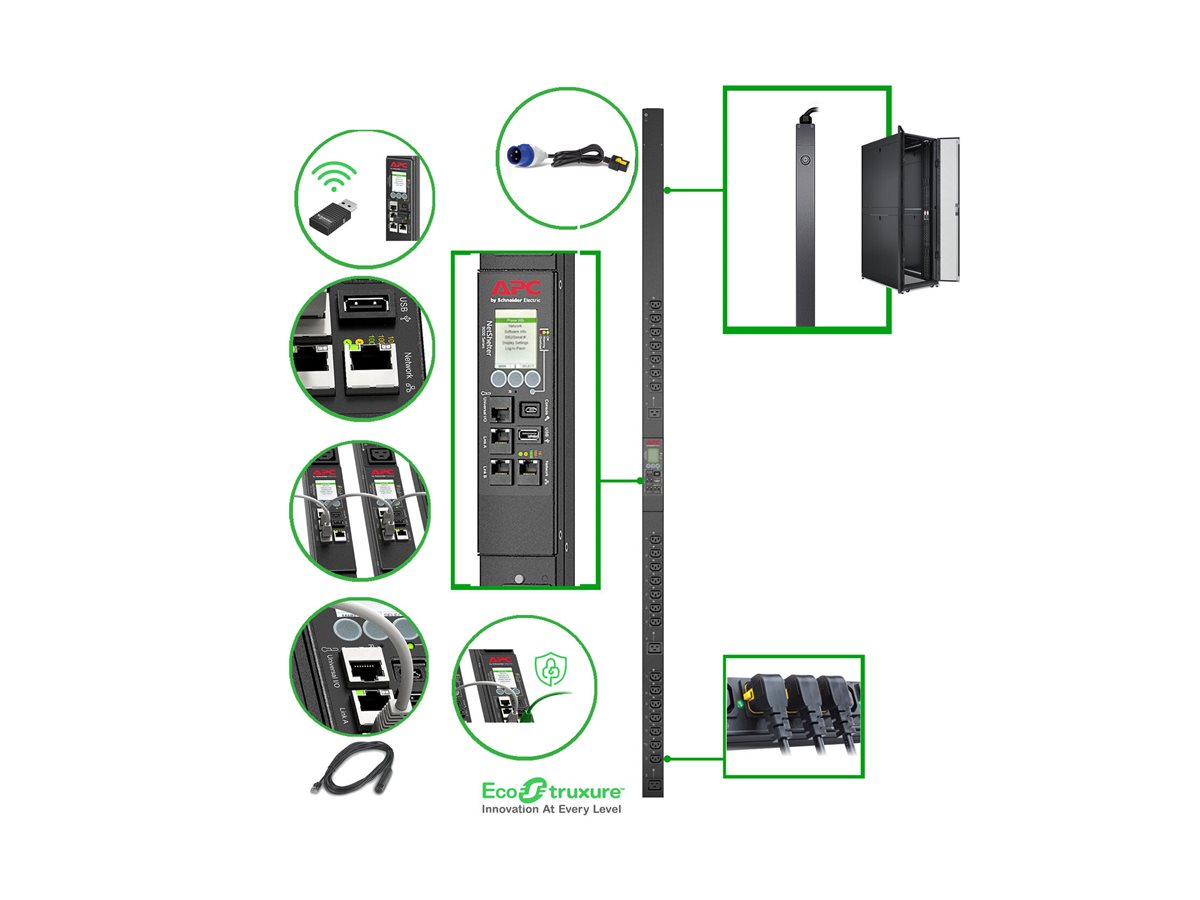

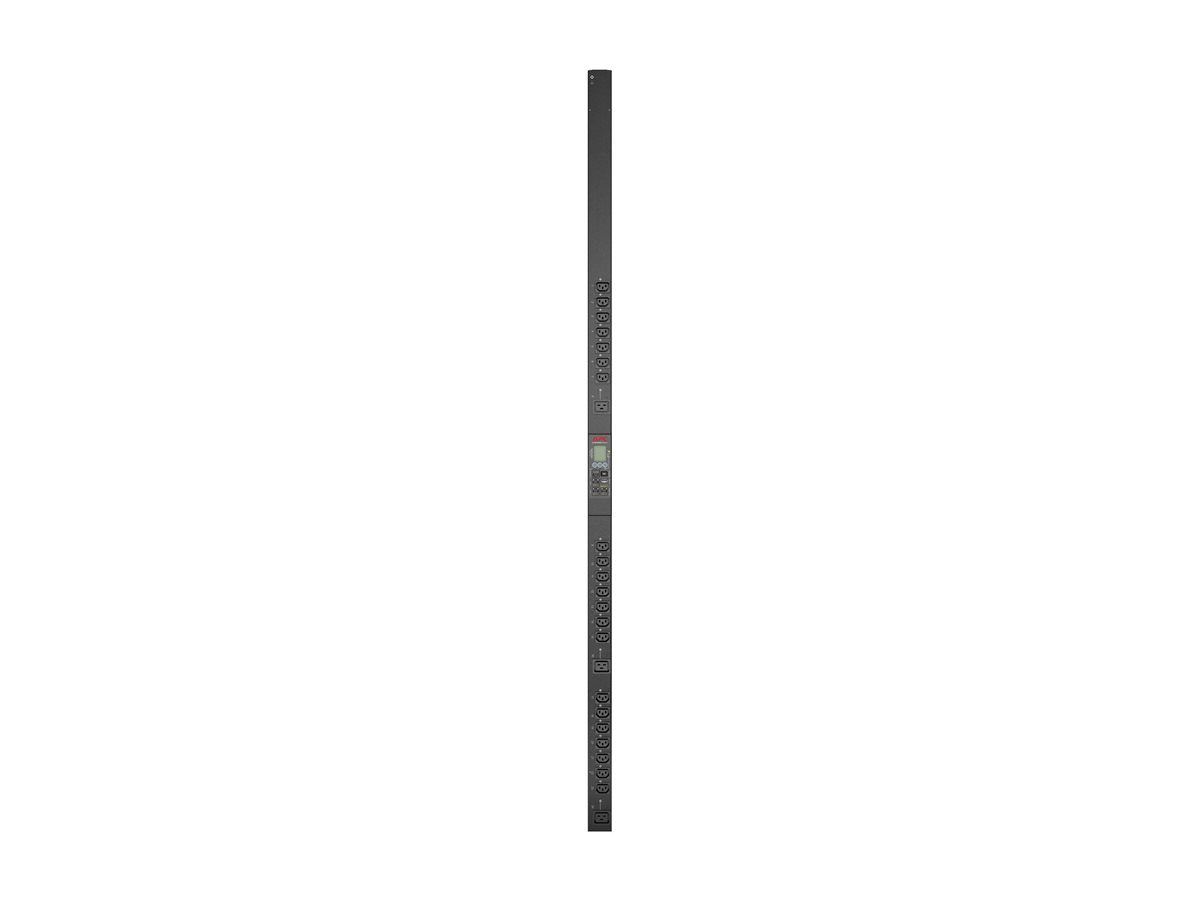

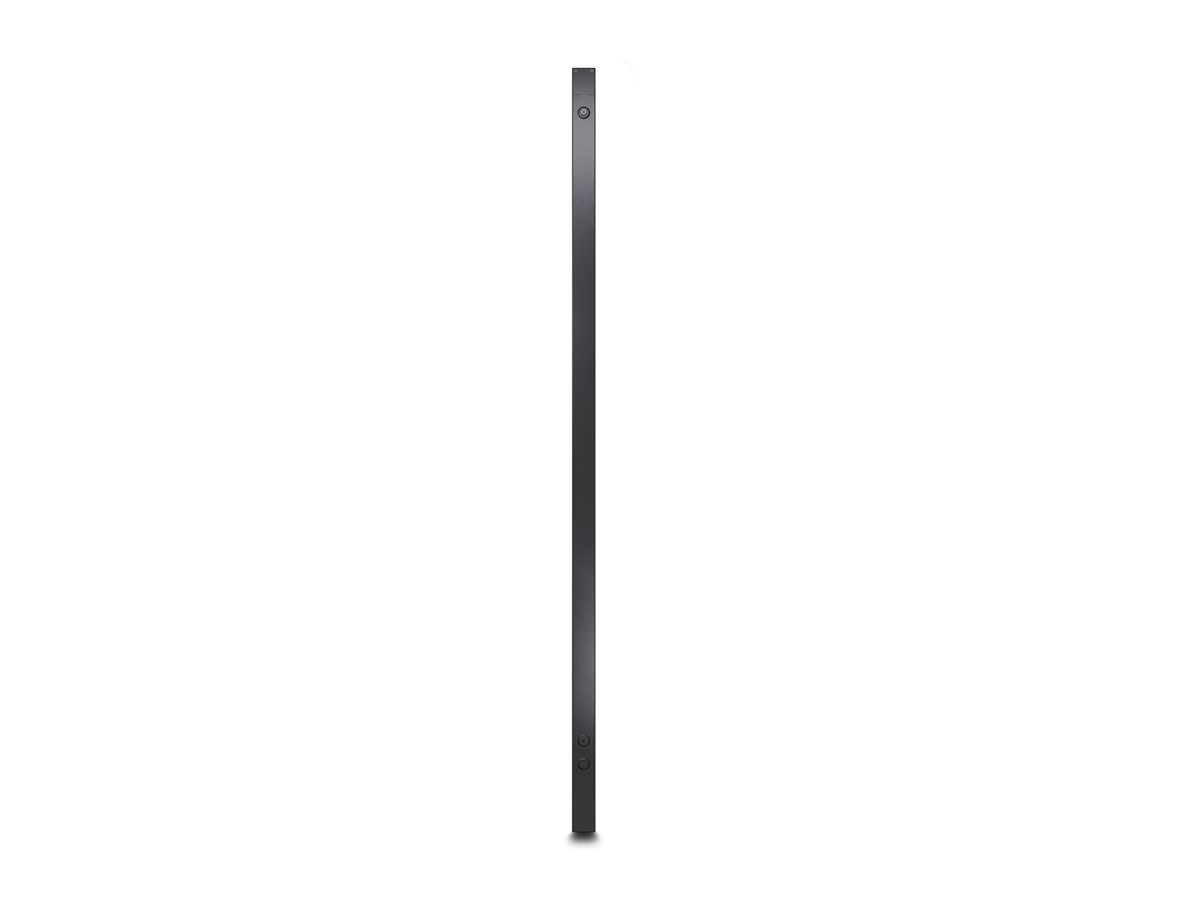

APC Rack PDU 9000 Switched APDU9959EU3
- Power distribution unit (rack-mountable)
- AC 220/240 V
- 3.7 kW
- 3700 VA
- Ethernet 10/100/1000
- input: IEC 60309 16A
- output connectors: 24 (3 x IEC 60320 C19, 21 x IEC 60320 C13)
- 0U
- 3 m cord
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | APDU9959EU3 |
| SHI Part #: | 41736271 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | APC Rack PDU 9000 Switched APDU9959EU3 - Power distribution unit (rack-mountable) - AC 220/240 V - 3.7 kW - 3700 VA - Ethernet 10/100/1000 - input: IEC 60309 16A - output connectors: 24 (3 x IEC 60320 C19, 21 x IEC 60320 C13) - 0U - 3 m cord - black |
| Manufacturer | APC by Schneider Electric |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 4.6 cm |
| Dimensions & Weight / Height | 179.4 cm |
| Dimensions & Weight / Weight | 5.61 kg |
| Dimensions & Weight / Width | 5.5 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | Ethernet 10/100/1000 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Power Capacity (VA) | 3700 VA |
| Power Device / Voltage Required | AC 220/240 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 4.6 cm |
| Height | 179.4 cm |
| Weight | 5.61 kg |
| Width | 5.5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 11.4 cm |
| Shipping Height | 200.2 cm |
| Shipping Weight | 8.59 kg |
| Shipping Width | 16.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | -5 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Gigabit Ethernet) - RJ-45 |
| General | |
| Color | Black |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | EN 61000-3-2, ICES-003, VDE, EN 61000-3-3, EN55024, FCC Part 15 A, EAC, RCM, EN 55022 Class A |
| Features | Switched |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000 |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |

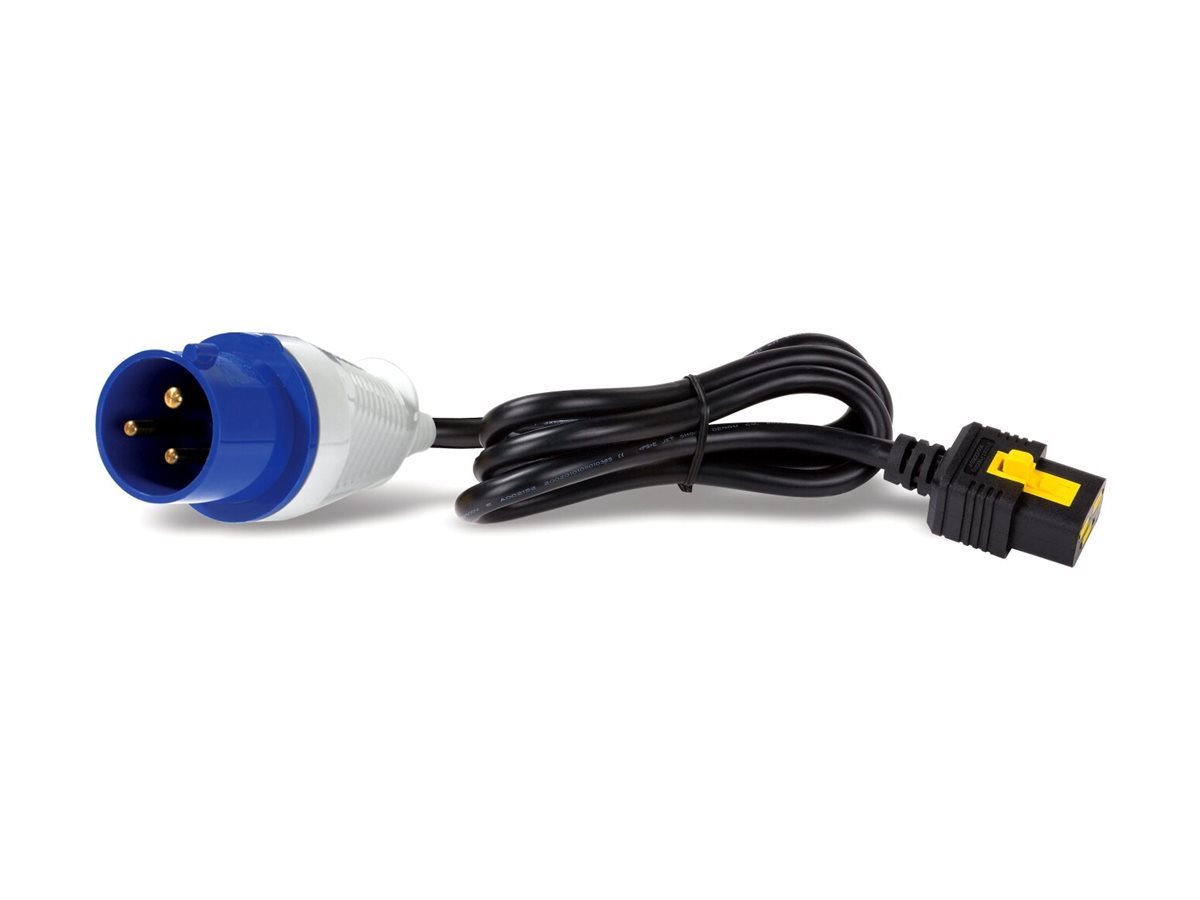

| Input Connectors | 1 x power IEC 60309 16A |
| Input Voltage | AC 220/240 V |
| Max Electric Current | 16 A |
| Output Voltage | AC 220/240 V 50/60 Hz |
| Power Capacity | 3.7 kW / 3700 VA |
| Power Output Connectors Details |
|
