APC Back-UPS 950VA - UPS
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC Back-UPS 950VA - UPS
- AC 230 V
- 520 Watt
- 950 VA
- USB
- output connectors: 4
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | BX950MI-FR |
| SHI Part #: | 41045641 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | APC |
| Product Type: | Hardware |
| Product Line: | APC by Schneider Electric |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | APC Back-UPS 950VA - UPS - AC 230 V - 520 Watt - 950 VA - USB - output connectors: 4 - black |
| Manufacturer | APC |
| UNSPSC | 39121011 |
| Main Specifications | |

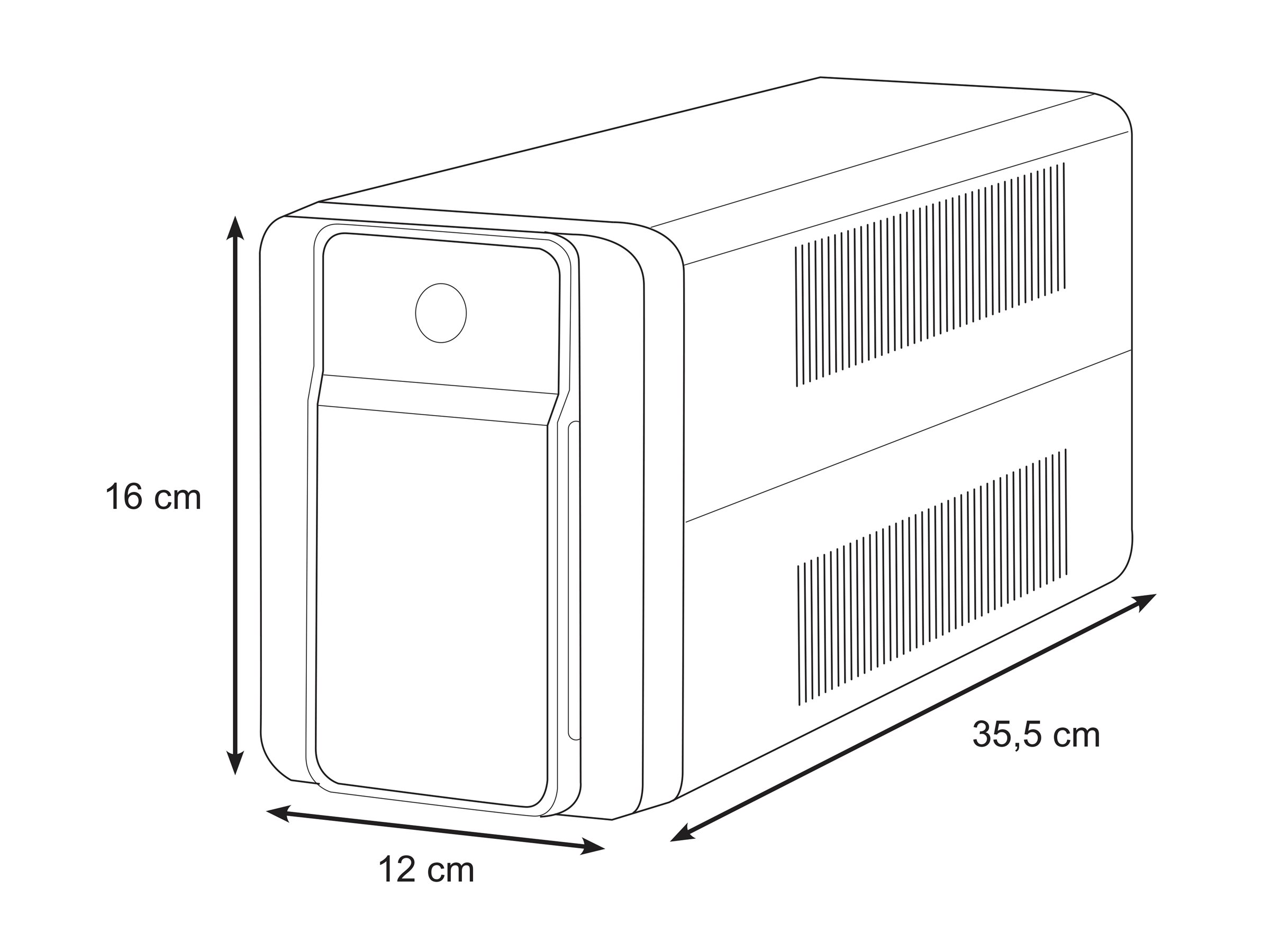

| Dimensions & Weight / Depth | 35.5 cm |
| Dimensions & Weight / Height | 16 cm |
| Dimensions & Weight / Weight | 6.1 kg |
| Dimensions & Weight / Width | 12 cm |
| General / Subcategory | UPS |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | USB |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 4 |
| Power Device / Power Capacity (VA) | 950 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required | AC 230 V |
| Product Type | UPS |
| Service & Support / Type | 2-year warranty |
| Battery | |
| Features | Maintenance free, sealed |
| Quantity | 1 |
| Recharge Time | 8 hours |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Dimensions & Weight | |
| Depth | 35.5 cm |
| Height | 16 cm |
| Weight | 6.1 kg |
| Width | 12 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 43 cm |
| Shipping Height | 25 cm |
| Shipping Weight | 6.6 kg |
| Shipping Width | 19.7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 40 dBA |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 4 pin USB Type B |
| General | |
| Color | Black |
| Device Type | UPS - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 1.22 m |
| Compliant Standards | IEC 62040-1-1, IEC 62040-2, RoHS, REACH, EN 62040-2, IP20 |
| Equipment Protection Value | 50000 Euros |
| Features | Audible alarm, Automatic Voltage Regulation (AVR), LED indicators, automatic self-test |
| Networking | |
| Remote Management Interface | USB |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Dataline Surge Protection | Network - RJ-45 |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power CEE 7/7 |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 140 - 300 V |
| Output Voltage | AC 230 V 50/60 Hz |
| Output Waveform | Stepped approximation to a sinewave |
| Power Capacity | 520 Watt / 950 VA |

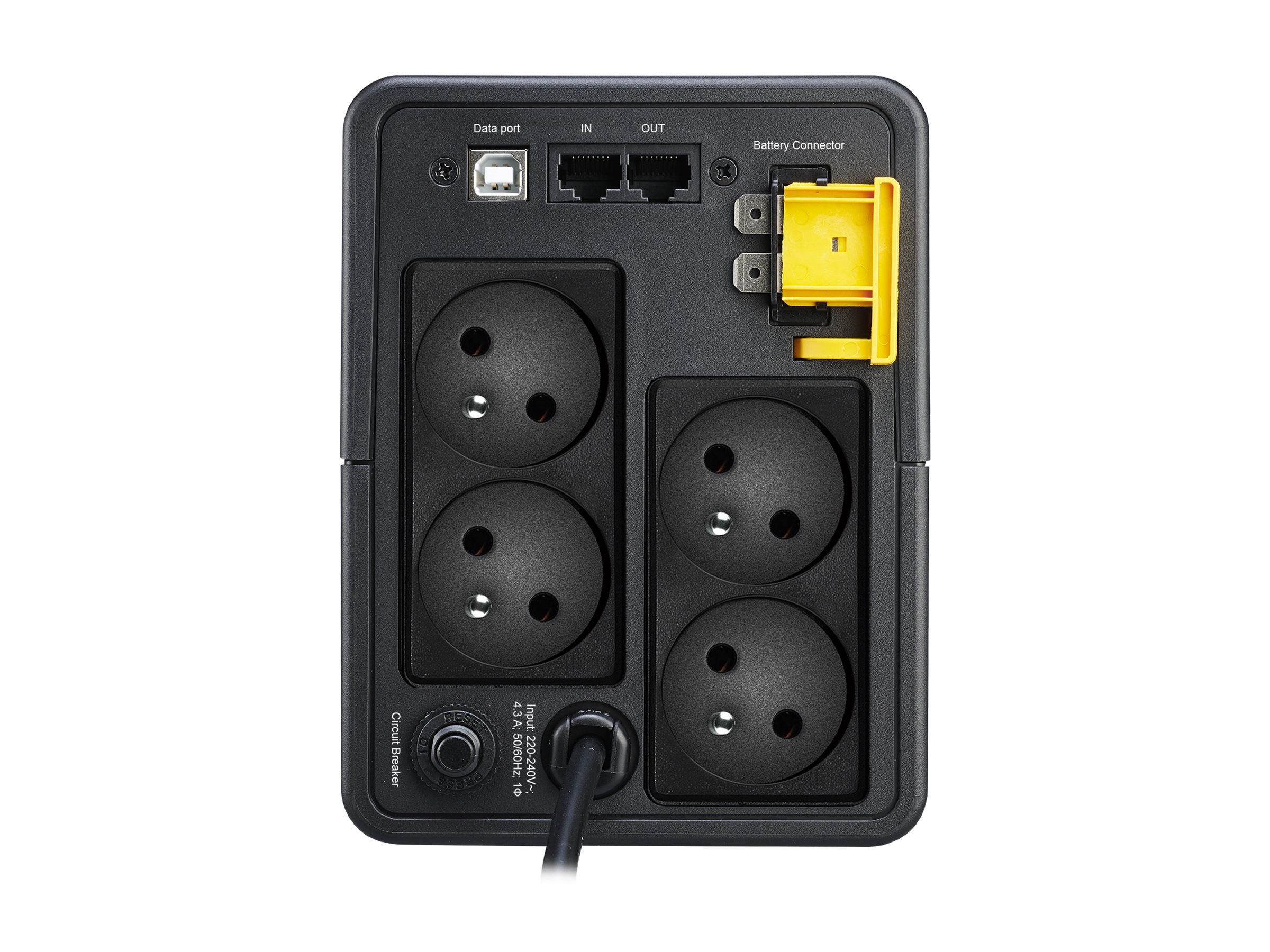

| Power Output Connectors Details | 4 x power Type E (UPS and surge) |
| Surge Energy Rating | 273 Joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Software / System Requirements | |
| Software Included | APC PowerChute Personal Edition |
